As this item contains many parts, please read the installation
instruction carefully before installation . Please use tools
properly and carefully. If you have any questions about the
product and installation, please contact us.
hosoteservice@gmail.com
Our professional after-sales team will serve you online all
J6L009
day.
1-19

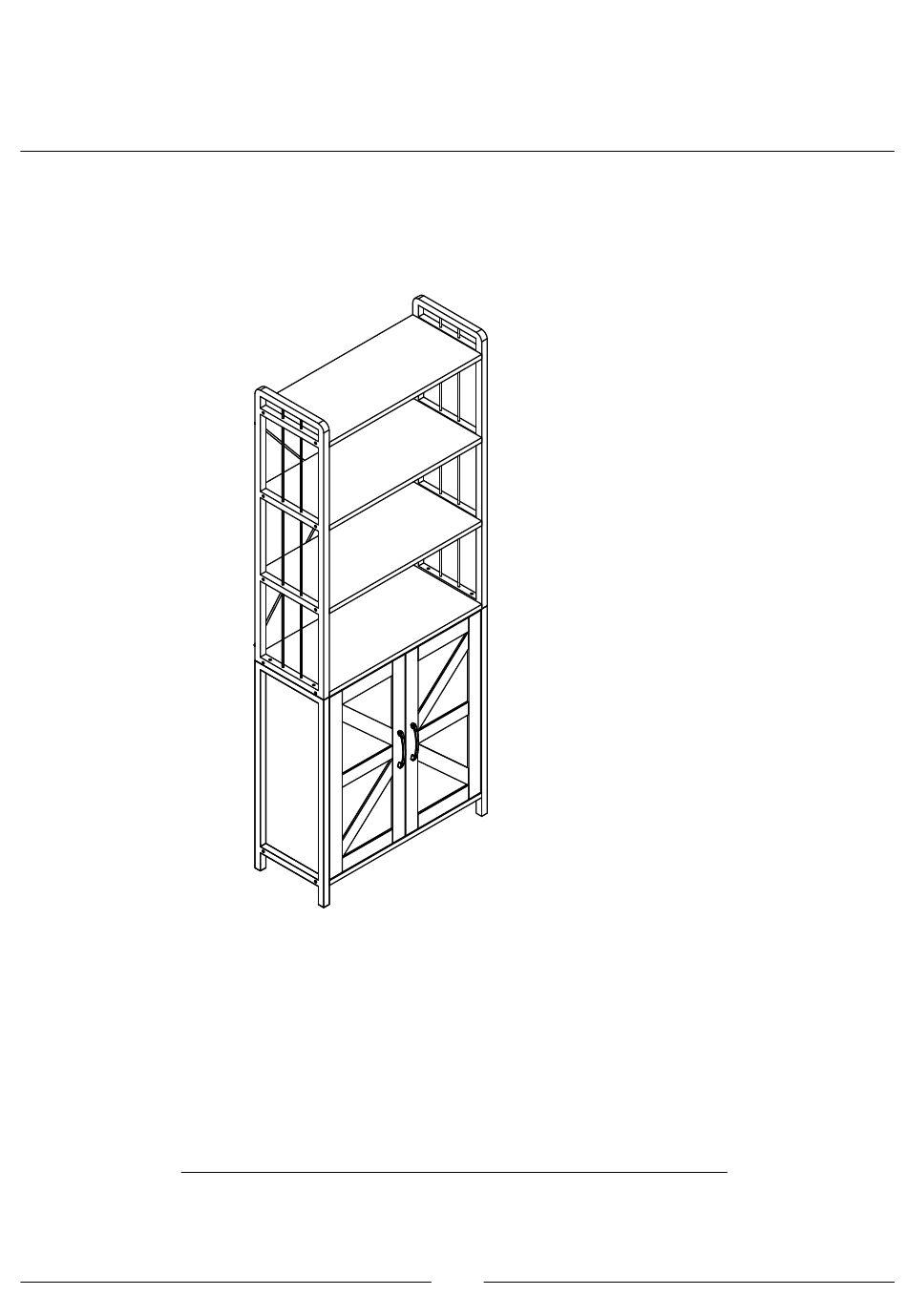

Because it's a narrow
cabinet,it must
permanently fixed to
the wall with included
anti-tipping device to
prevent the cabinet
from tipping over.It will
be very stable and safe
when locked on the
wall.
Please see page 19 for
steps to lock the wall.
Advertisement
Table of Contents
Related Manuals for Halitaa J6L009
Summary of Contents for Halitaa J6L009

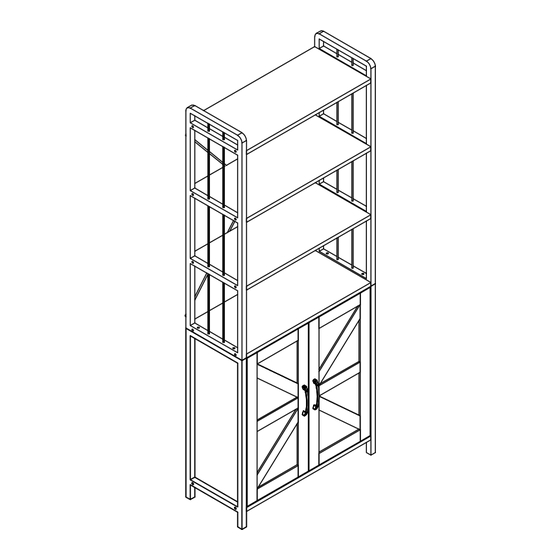

- Page 1 J6L009 Because it's a narrow cabinet,it must permanently fixed to the wall with included anti-tipping device to prevent the cabinet from tipping over.It will be very stable and safe when locked on the wall. Please see page 19 for steps to lock the wall.
-
Page 2: Before You Start
Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware of to slow down and stop when screw is tight. -
Page 3: Board Identification
Board Identification Not actual size Right side panel Metal upper side frame Left side panel Qty:2 Qty:1 Qty:1 door panel Metal lower side frame Shelf panel Qty:2 Qty:2 Qty:3 Bottom panel Back panel Shelf panel Shelf panel Qty:1 Qty:1 Qty:1 Qty:2 Plastic bar Metal X bar... -
Page 4: Part List
Part List Φ7.8x30 Φ15x12 Φ6x35 Φ7x38 Φ4x14 Φ3.5x14 DOOR STOPPER SCREW HINGE Φ6x35 M4x18 HANDLE BOLT BOLT spare:1 spare:1 Φ6x15 BOLT Anti-tip device ALLEN KEY SHELF SUPPORT PIN spare:1 SCREWDRIVER 4-19... - Page 5 Part List Cam Lock Fastening System The opening must point toward the edge of the board 5-19...
- Page 6 Board Identification Not actual size 6-19...
- Page 7 STEP1 Φ7.8x30 Φ6x35 Φ7x38 Φ3.5x14 7-19...
- Page 8 STEP2 8-19...
- Page 9 STEP3 Φ7.8x30 Φ15x12 9-19...
- Page 10 STEP4 Φ7x38 Φ6x35 10-19...
- Page 11 STEP5 11-19...
- Page 12 STEP6 Φ6x15 100% 100% Install the metal X bar to the back of metal frme with bolt(M),and then tighten all bolts not tighten in step 4 to100%. 12-19...
- Page 13 STEP7 Φ4x14 13-19...
- Page 14 To adjust the vertical height. Loosen the four screws "A" on both hinges. Two of them are usually in slotted holes which allows you to adjust up or down by a few mm. Then tighten back up. To adjust depth. Loosen screw "B"...
- Page 15 STEP8 Φ4x14 15-19...
- Page 16 STEP9 M4x18 16-19...
- Page 17 STEP10 17-19...
- Page 18 STEP11 18-19...
- Page 19 STEP12 WALL driling hole Ø8*50mm WALL 1.Mark the drill position on the wall with a pencil. 2.Drill holes on the marked position using a bit. 3.Gently inert the plastic wall anchor into the drilled hole with the help of a hammer. 4.Fixed the cabinet to the wall with provided screws.
