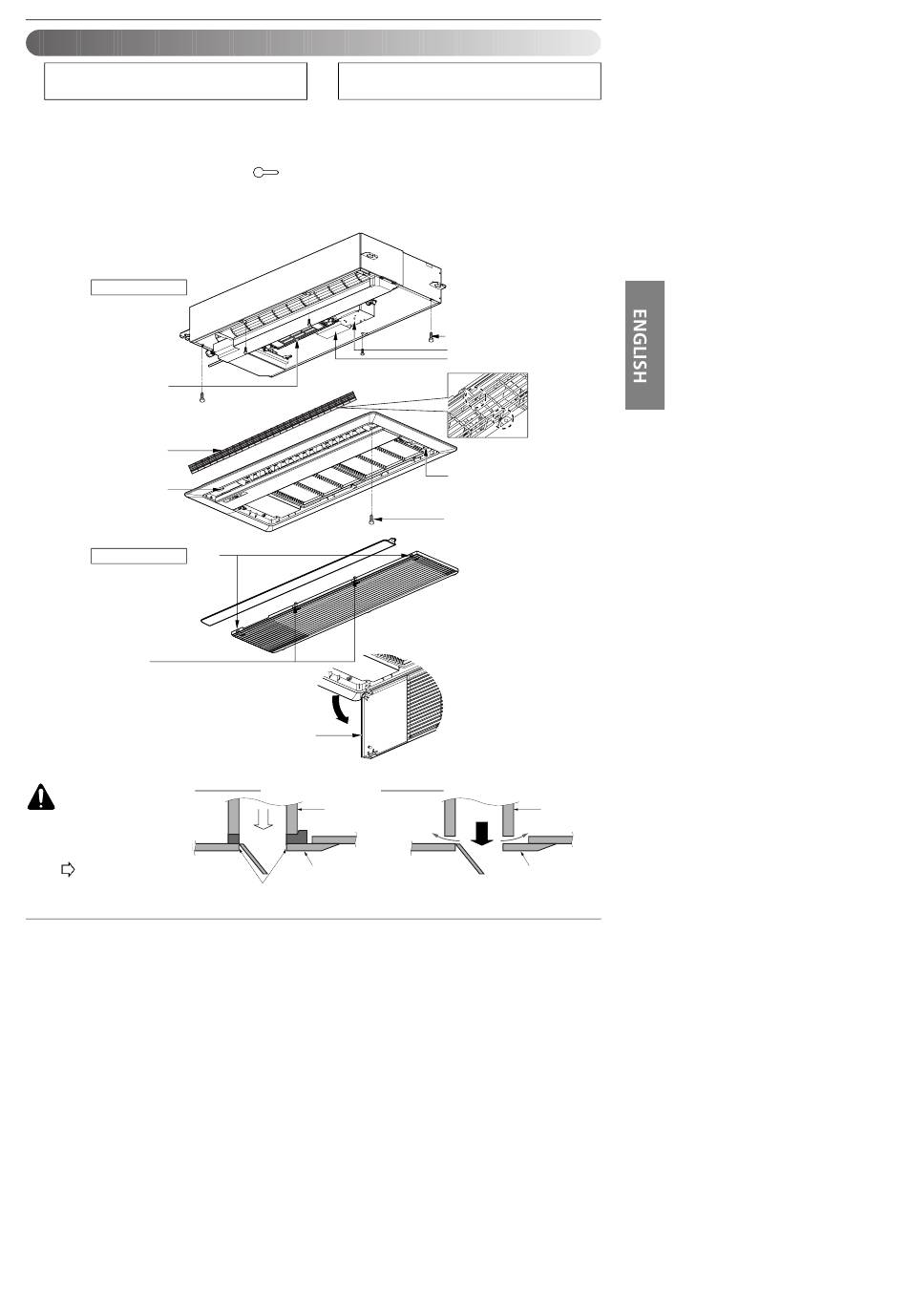

Installation of Decoration Panel

The decoration panel has its installation
direction.
1. Temporarily fix two decoration panel fixing screws (hexagon M5 screw) on the unit body. (Tighten by
amount 10mm in length.)
The fixing screws (hexagon M5 screw) are included the indoor unit box.
2. Remove the air inlet grille from the decoration panel. (Remove the hook for the air inlet grille cord.)
3. Hook the decoration panel key hole (
that the screws reach the key hole edge.
4. Retighten completely two temporarily fixed screws and other two screws. (Total 4 screws)
5. Connect the louver motor connector and display connector.
6. After tightening these screws, install the air inlet grille (including the air filter).
Air conditioner unit
Piping side
Plasma filter
Safety grille
Louver motor
Decorative panel Push
Ratch
pull
CAUTION : Install
Good example
certainly the deco-
ration panel.
Cool air leakage
causes sweating.
Water drops fall.
Before installing the decoration panel,
always remove the paper template.
) on the screws fixed in step above, and slide the panel so
Inlet Grille Inlet Grille
Bad example
Air conditioner
unit
Cool air leakage
Ceiling
board
Decorative panel
Fit the insulator (this part) and
be careful for cool air leakage
Installation
Decorative panel
fixing screws
(hexagon M6 screws)
Temporarily fitting
at 2 poles
(Tightening about 10mm)
Control box cover
Cover
Key holes
Decorative panel
fixing screws
(Hexagon M6 screw)
Air conditioner
unit
(no good)
Decorative panel
Installation Manual 11
Ceiling
board
