Summary of Contents for Dwanton USDF001VV

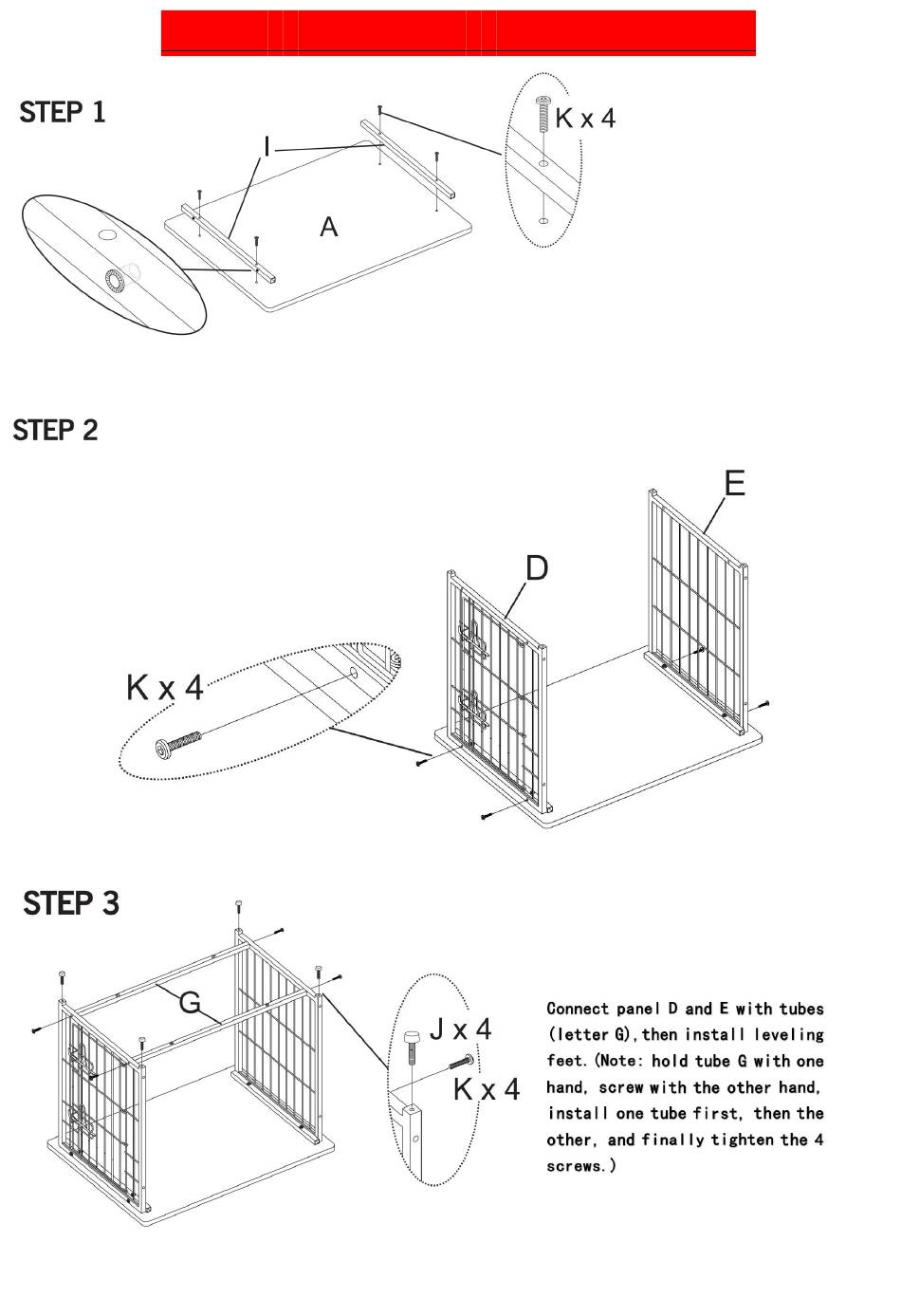

- Page 1 Updated Installation Guide--2021.11.20 Install the tubes (letter I) to the top plate A.(Note: place the metal nuts facing outward left and outward right.) Install panel D and E on the tubes (letter I);(Note: Do not swing panel D or E.)
- Page 2 Connect panel D and E with backplane B.(Note: Because panel B has a corrective effect,so please align the 4 holes with 4 screws first and then tighten the 4 screws). Rotate 90°to put the product down and install the base plate F to the tube G.(Note: Because panel F has a corrective effect,so please align the 4 holes with 4 screws first and then tighten the 4 screws.)
- Page 3 1.Because the holes in panels D and E are identical, you can swap the positions of panels D and E to meet your different directions. 2.If you need any help, please contact DWANTON customer service team through Amazon platform in time, we are honored to serve you!
