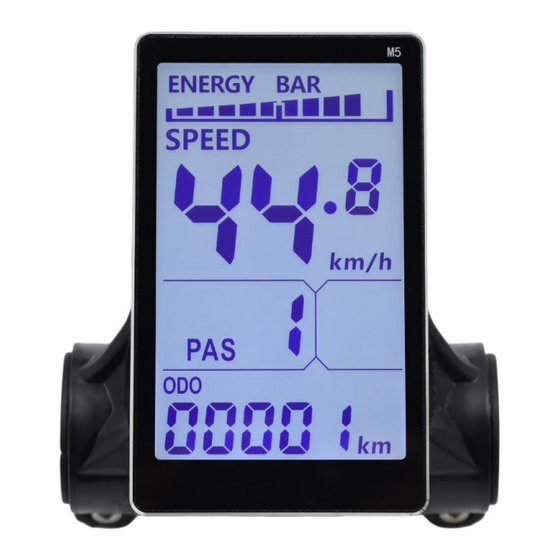

EBycco Electric Bike E9/EB7Pro/G7
Display User Muanual
LCD-M5
Hand Control Panel Operation Instructio
n
Latest Edition-V1.2
2023

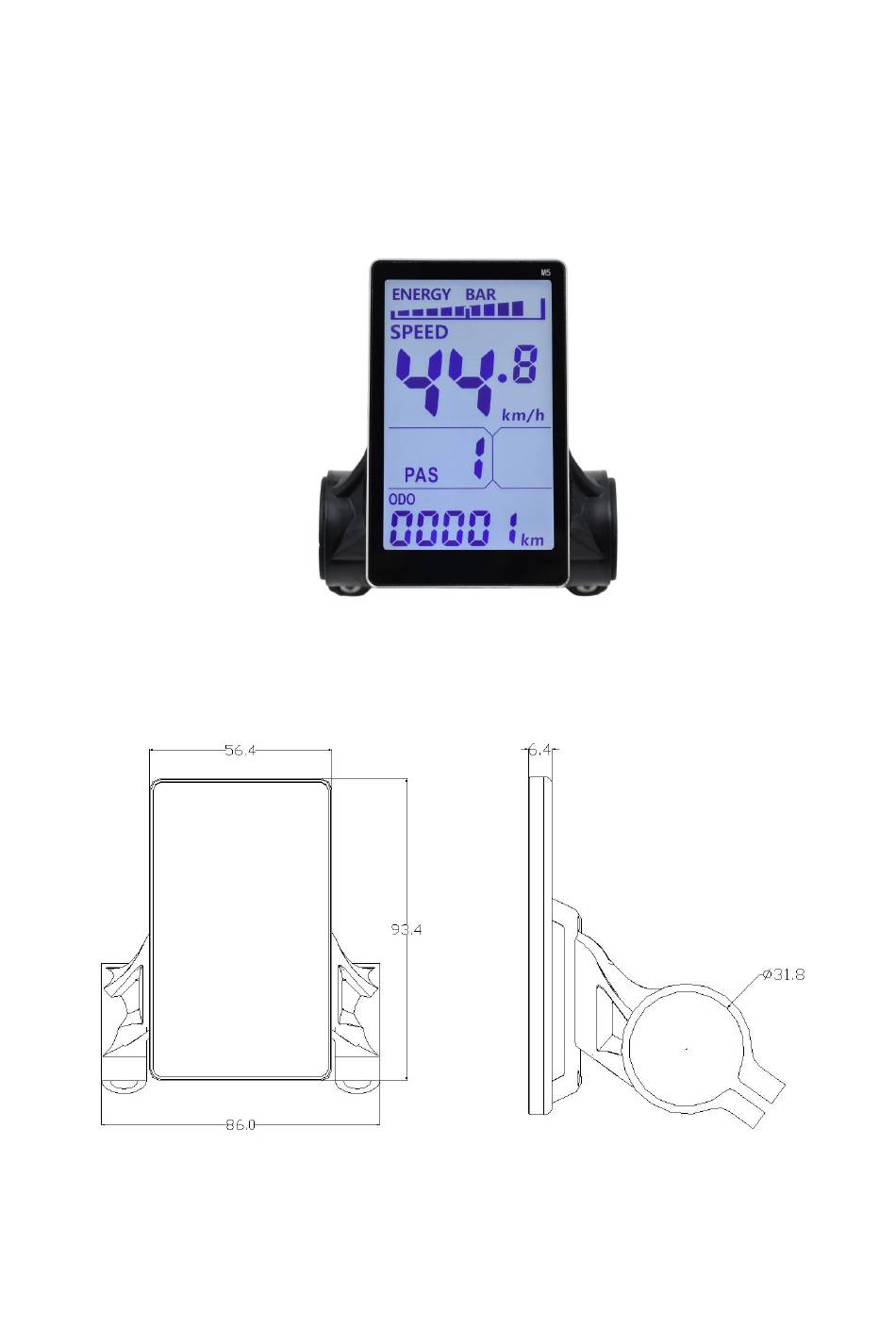

一、 Out shell Size and Material
Out shell material is ABS, Liquid crystal transparent window material is high
hardness acrylic。
Front view
Side view
1
Advertisement
Summary of Contents for EBycco LCD-M5
- Page 1 EBycco Electric Bike E9/EB7Pro/G7 Display User Muanual LCD-M5 Hand Control Panel Operation Instructio Latest Edition-V1.2 2023 一、 Out shell Size and Material Out shell material is ABS, Liquid crystal transparent window material is high hardness acrylic。 Front view Side view...
- Page 2 31.8mm stent is available 22.2mm、25.4mm、28.6mm Transfer Ring Selection Switching view Switch Side View 二、 Work Voltage and connection mode 1、Work voltage ： DC24V 、 36V 、 48V 、 60V(which you can choose on the meter),the others you can customized. 2、Connection mode ： Line sequence of the label connector Instrument Outlet...
- Page 3 Table: Line sequence of the label connector table Order of line Color of line Function Brown（VCC） Instrument power cord Meter data receiving line Green（RX） Meter earth wire Black（GND） Orange（K） Controller power line Data transmission line of instrument White（TX） Notes: Part of the products lead wire use waterproof connection. User cannot see the color of lead line.
- Page 4 Show content introduction 3.1 Headlight The instrument can be manually turned on and the brightness of the sensing environment is automatically turned on(light sensitivity support is required). Battery power display BATTERY Multifunctional display area Total mileage ODO, single mileage TRIP A, single mileage TRIP B, battery current voltage VOL, current operating current CUR, remaining mileage RM;...
- Page 5 3.7.Setting P01: Backlight brightness, level 1 darkest, level 3 brightest; P02: mileage unit, 0: KM; 1: MILE; P03: Voltage level: 24V, 36V, 48V, 60V, 64V default 36V; P04: Dormancy time: 0, not dormancy; Other numbers are dormancy times, range: 1-60; Unit minutes; P05: Help file bit: 0, 3 file mode: 1,5 gear mode: P06: Wheel diameter: unit, inch;...
- Page 6 P18: Display speed ratio adjustment range: 50 % ~ 150 %, P19: 0 power bit, 0: 0, 1: does not include 0 P20 :0:2 Protocol 1:5 S Protocol 2: Standby 3: Standby Introduction： 四、Key Press the button to use the brief Key operation is divided into short press and long press, and combination key length press Short press is used for rapid/frequent operations, such as the specific key combination...
- Page 7 8 seconds. Note: due to the upgrade of the company's products, the content of the product will be different from the specifications, but it will not affect your normal use. Company: ebycco.com ebyccous@gmail.com...
