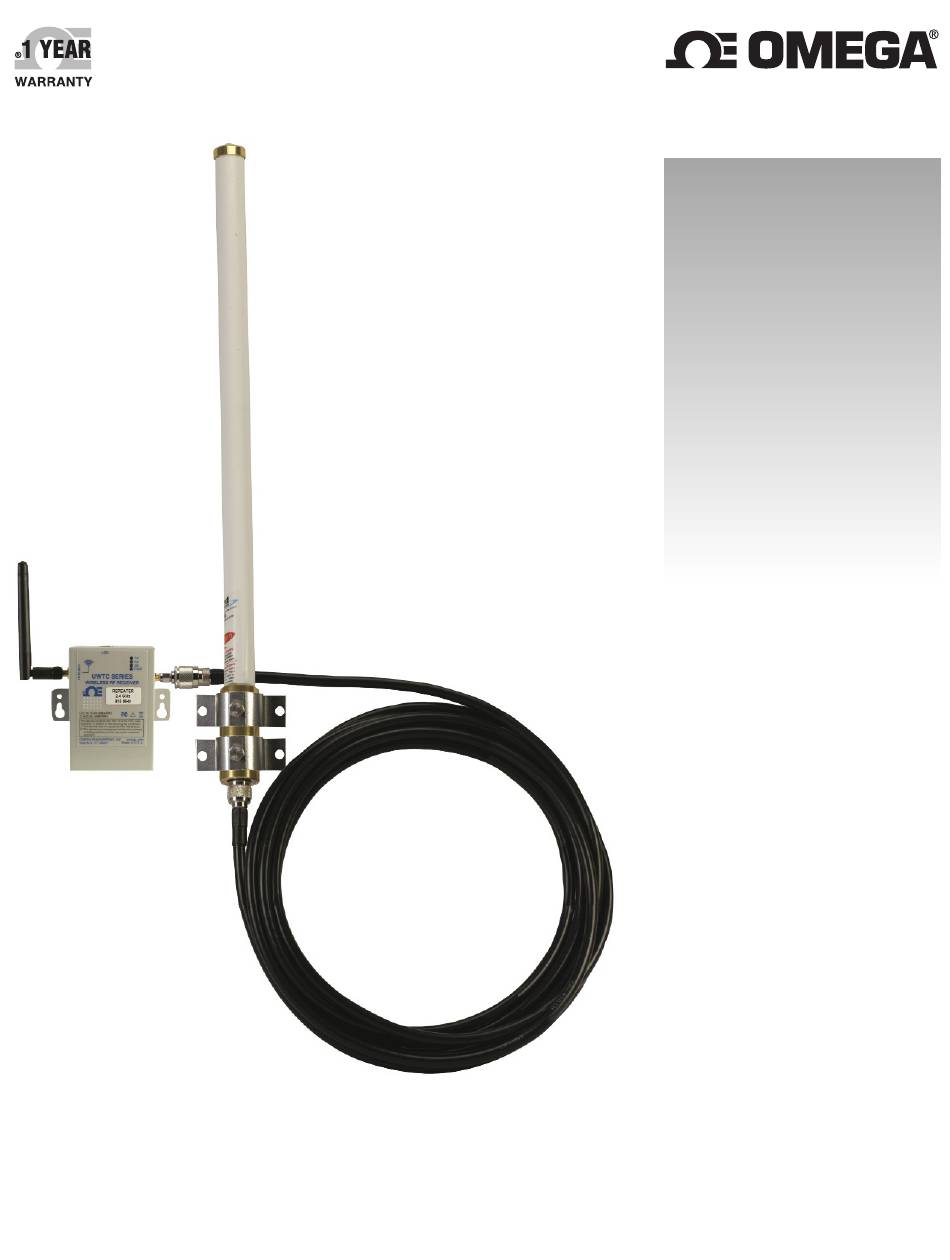

- Page 1 User’s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info UWTC-RPT-ANT-900 High Gain Antenna Mounting Kit...
- Page 2 Tel: (203) 359-1660 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
UWTC-RPT-ANT-900 High Gain Antenna Mounting Kit Table of Contents Section Page Section 1 - Introduction ..................1-1 Precautions ..................1-1 Items Included ..................1-1 High Gain Antenna Accessories ............1-2 Section 2 - General Description ................ 2-1 Section 3 - Assembly Instructions ..............3-1 Section 4 - Antenna Operations ................ - Page 4 UWTC-RPT-ANT-900 High Gain Antenna Mounting Kit List of Figures Section Figure Description Page Section 2 Repeater System With Standard Antennas ... 2-1 Section 2 Repeater System With High Gain Antenna On Receiver Only ............2-2 Section 2 Repeater System With High Gain Antenna On Both Devices ............
-
Page 5: Section 1 - Introduction
Introduction Section 1 - Introduction Please read this manual completely before installing and operating the repeater and high gain antennas. It is important to read and follow all notes, cautions, warnings and safety precautions before operating your high gain antennas. More information may be found in the UWTC-RPT1 Wireless Repeater Manual (M4938). -
Page 6: High Gain Antenna Accessories
Introduction 1.3 High Gain Antenna Accessories Your high gain antenna kit is offered with an additional cable designed to make connecting the antennas easier: UWTC-RPT-CABLE-25 25 ft. cable 1-2... -
Page 7: Section 2 - General Description
General Description Section 2 - General Description The Omega UWTC-RPT-ANT-900 is a high gain antenna kit for your UWTC- RPT1 Wireless Repeater. The antenna increases the transmitting range of the repeater from 1.8 miles (2.9 km), up to 3 miles (4.8 km) with one high gain antenna, or up to 5 miles (8 km) with two high gain antennas. - Page 8 FCC ID: MCQ-XBEEXSC FCC ID: OUR-XBEEPRO IC #1846A-XBEEXSC IC #4214A-XBEEPRO Omega Engineering Inc. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions; Stamford, CT 06907 1) This device may not cause harmful interference;...
- Page 9 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions; 1) This device may not cause harmful interference; 2) This device must accept any interference received, Omega Engineering Inc. including interference that may cause undesired operation. Stamford, CT 06907 OMEGA ENGINEERING INC.
-
Page 10: Section 3 - Assembly Instructions
Assembly Instructions Section 3 - Assembly Instructions To form a proper High Gain system, you must either install the high gain antenna on: a. your UWTC-REC1-915 receiver, or b. on both your UWTC-RPT1-915 repeater and UWTC-REC1-915 receiver. NOTE: When using two high gain antennas: on the repeater, be sure to replace the antenna on the TRANSMITTING side of your repeater with the high gain antenna (as seen in Figure 2-3). - Page 11 Assembly Instructions • Mount your antenna to a pole with an FM2 mounting kit. See Figure 3-2. HIGH GAIN ANTENNA POLE GOLD ANODIZED SLEEVE MOUNTING BRACKET MOUNTING BRACKET Figure 3-2. Mounting Kit Connection • Be sure to place the mounting clamps on the gold anodized sleeves of your high gain antennas.
-
Page 12: Section 4 - Antenna Operations
Antenna Operation Section 4 - Antenna Operation Your new high gain antenna system operates just as the standard UWTC-RPT1 Repeater System, with the only exception being that your signal range has increased. For information on operating your wireless repeater, refer to the UWTC-RPT1 Wireless Repeater Manual (M4938). -
Page 13: Section 5 - Specifications
Specifications Section 4 - Specifications High Gain Antenna Specifications Frequency Range: 902-928 MHz 915 MHz Tuned Frequency: Gain: 3 dBD Signal Line-of-Sight Range: One high gain antenna: up to 3 miles (4.8 km) Two high gain antennas: up to 5 miles (8.0 km) Physical Specifications 25 inches Length:... - Page 14 UWTC-RPT-ANT-900 NOTES: 5-2...
- Page 15 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
- Page 16 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE M U Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies M U Wire: Thermocouple, RTD & Thermistor M U Calibrators & Ice Point References M U Recorders, Controllers &...
