Silex technology Wi-Fi HaLow EX-150AH User Manual

Compliant wi-fi extender
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Wi-Fi HaLow™ Compliant Wi-Fi Extender
EX-150AH
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wi-Fi HaLow EX-150AH and is the answer not in the manual?

Questions and answers

Summary of Contents for Silex technology Wi-Fi HaLow EX-150AH

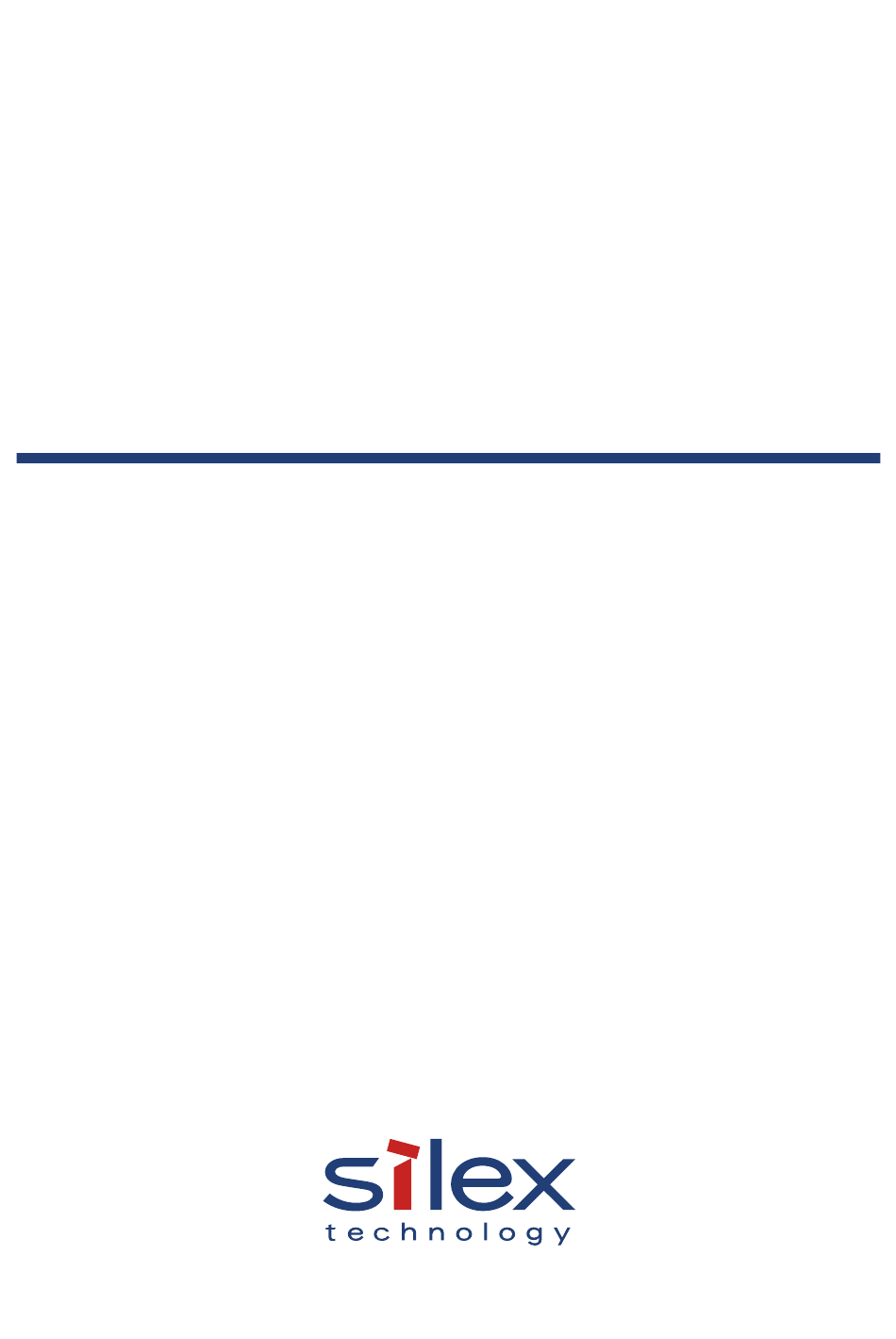

  • Page 1 Wi-Fi HaLow™ Compliant Wi-Fi Extender EX-150AH User's Manual...
  • Page 2 Copyright© 2024 Silex Technology, Inc. All rights reserved. WA108200XA...

  • Page 3: Table Of Contents

    Index 1. Introduction ................1 1-1. Introduction ............................2 1-1-1. About the Notation ........................2 1-1-2. Disclaimers .............................2 1-1-3. Trademarks .............................2 1-1-4. Glossary ............................3 1-2. Safety Instructions ..........................5 1-3. Notes on Usage .............................9 1-3-1. Use of Radio Waves ........................9 1-3-2. Notes on Security ........................11 1-3-3.
  • Page 4 3-4-2. Displaying a Web Page by Using AMC Manager® ............43 3-5. Configuration Using AMC Manager®..................45 3-5-1. Create Configuration File ....................... 45 3-5-2. Apply Configuration File ......................47 4. Establishing Network for Long Distance Transfer ....51 4-1. Configuring Network and Access Point Function ..............52 4-2.
  • Page 5 7-1-2. Remote Restart from the Web Page ................... 83 7-2. Updating Firmware ........................... 84 7-2-1. Downloading the Firmware ....................84 7-2-2. Updating the Firmware ......................85 7-3. Factory Default Configuration ...................... 87 7-3-1. Initialization Using the Push Switch on EX-150AH ............87 7-3-2.

  • Page 6: Introduction

    EX-150AH User's Manual 1. Introduction Introduction Thank you for purchasing the Wi-Fi extender "EX-150AH". This manual provides information on how to configure and use EX-150AH. Please read the 1-2. Safety Instructions carefully before using EX-150AH.

  • Page 7: Introduction

    OS version upgrades, modifications, and other changes. - Although every effort was made to prepare this manual with the utmost accuracy, Silex Technology will not be held liable for any damages as a result of errors, setting examples, or other content.

  • Page 8: Glossary

    EX-150AH User's Manual 1. Introduction 1-1-4. Glossary The following explains the technical terms used in this manual. Please refer to this as you read this manual. Terms Explanation Web Page EX-150AH's Web interface to use for configuration. Name of the device that the users can specify. Host Name The initial value is set based on the MAC address, but the users can change to make it easier to identify and manage.
  • Page 9 EX-150AH User's Manual 1. Introduction Terms Explanation This is the frequency range to use for wireless LAN. Each channel is 20MHz for the 2.4GHz and 5GHz bands, and 1MHz for the 900MHz band. Bandwidth Setting a large value for the bandwidth will increase the amount of data that can be communicated at once, and will enable high-speed communication.

  • Page 10: Safety Instructions

    EX-150AH User's Manual 1. Introduction 1-2. Safety Instructions This page provides the safety instructions for safe use of EX-150AH. To ensure safe and proper use, please read the following information carefully before using EX-150AH. The safety instructions include important information on safe handling of EX-150AH and on general safety issues.
  • Page 11 EX-150AH User's Manual 1. Introduction Product installation Warning * Do not place any objects on top of EX-150AH. It may cause fire, electrical shock or malfunction. * Do not cover or wrap EX-150AH with cloth such as blankets or tablecloths. Accumulated heat may cause fire, accident, or malfunction.
  • Page 12 EX-150AH User's Manual 1. Introduction Measures for abnormal operations Warning * In the following cases, turn off the connected device and remove the power supply cable or plug. Failure to follow these instructions may cause fire or an electrical shock. - When EX-150AH emits a strange smell, smoke or sound or becomes too hot to touch.
  • Page 13 * When removing EX-150AH, be sure to unplug the power supply cable and power plug of both EX-150AH and the connected device beforehand. * Be sure to use the AC adapter specified by Silex Technology. Failure to do so may cause malfunction.

  • Page 14: Notes On Usage

    EX-150AH User's Manual 1. Introduction 1-3. Notes on Usage 1-3-1. Use of Radio Waves When using EX-150AH near the medical devices The radio wave interference may adversely affect the operation of medical devices such as pacemakers. When using EX-150AH near the medical devices that require a high level of safety and reliability, check with the manufacturer or distributor of each medical device about the effects of radio waves.
  • Page 15 EX-150AH User's Manual 1. Introduction Radio waves of 900MHz band Confirm that EX-150AH does not cause a radio interference with other wireless devices before using it. If an interference has occurred, stop using EX-150AH or change the wireless band. Or, try to create a barrier between the devices to avoid an interference.

  • Page 16: Notes On Security

    EX-150AH User's Manual 1. Introduction 1-3-2. Notes on Security Because a wireless LAN uses electromagnetic signals instead of a LAN cable to establish communication with network devices, it has the advantage of allowing devices to connect to the network easily. However, a disadvantage of this is that within a certain range, the electromagnetic signals can pass through barriers such as walls, and if security countermeasures are not implemented in some way, problems such as the following may occur.

  • Page 17: Standards Compliance

    (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Silex Technology America, Inc. https://www.silextechnology.com/ FCC Rules Part 15 FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 18 EX-150AH User's Manual 1. Introduction FCC Rules Part 15 Subpart E §15.407(c) Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC.
  • Page 19 EX-150AH User's Manual 1. Introduction RSS-Gen Issue 5 §6.8 This radio transmitter 4908A-SDMAH has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
  • Page 20 EX-150AH User's Manual 1. Introduction Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’ISDE. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le radiateur et le corps humain.

  • Page 21: About Ex-150Ah

    EX-150AH User's Manual 2. About EX-150AH About EX-150AH...

  • Page 22: Image Of Using Ex-150Ah

    EX-150AH User's Manual 2. About EX-150AH 2-1. Image of Using EX-150AH EX-150AH can connect wireless station devices and wired devices, and transfer the data to IEEE 802.11ah compliant Access Points. By using with IEEE 802.11ah compliant Access Points, the data can easily be transferred to remote locations.

  • Page 23: Features

    EX-150AH User's Manual 2. About EX-150AH 2-2. Features EX-150AH has the following features: Long-distance IoT network with IEEE 802.11ah EX-150AH establishes a network using 900MHz band wireless. IEEE 802.11ah can achieve a much longer communication distance than the wireless LAN standard that operates at 2.4GHz/5GHz/6GHz of IEEE 802.11.
  • Page 24 EX-150AH can be mounted on a wall using Bracket Type VI (optionally available) . Unified device management utility "AMC Manager®" AMC Manager® provides the following functions. - Remote control and monitoring - Bulk configuration and version update - For details on AMC Manager®, please visit the Silex Technology's website. Note...

  • Page 25: Parts And Functions

    EX-150AH User's Manual 2. About EX-150AH 2-3. Parts and Functions External Dimensions 100.0 Unit: mm *) Reference dimensions...
  • Page 26 EX-150AH User's Manual 2. About EX-150AH Parts and Functions (1) DC connector Connect the power supply cable. PIN Number Signal Name Description DC 12V-24V DC connecter : S03B-PASK-2 （ JST ） To connect to this connector, please use JST PAP-03V-S. (2) DC connector (USB Type-C) This is a USB Type-C power connector.
  • Page 27 EX-150AH User's Manual 2. About EX-150AH (5) LED 4 ( Orange ) (6) LED 5 ( Green ) Shows the Wired LAN device connection status. LED 4 LED 5 Explanation Connected in 100BASE -TX network Connected in 10BASE -T network device Wired LAN is not connected.
  • Page 28 EX-150AH User's Manual 2. About EX-150AH (7) LED 1 (POWER) The meaning of the LED status is as follows. Color Light Explanation Green Powered on Powered off (8) LED 2 (IEEE 802.11ah wireless LAN) The meaning of the LED status is as follows. Color Light Explanation...
  • Page 29 EX-150AH User's Manual 2. About EX-150AH (9) LED 3 (IEEE 802.11ax wireless LAN) The meaning of the LED status is as follows. Color Light Explanation Has connected to the IEEE 802.11ax wireless station device (1 to 7 devices) An IP address has been assigned . Green BLINK Has connected to the IEEE 802.11ax wireless station device (1 to 7 devices)
  • Page 30 EX-150AH User's Manual 2. About EX-150AH LED1/LED2/LED3 work together under certain conditions. The following describes the combined LED operation. LED 1 LED 2 LED 3 Explanation Blinks orange Updating the firmware (1-second cycle) Blinks red Internal error (200-millisecond cycle) Blinks green Processing initialization using a push switch (500-millisecond cycle) *Green LEDs are flashing simultaneously...
  • Page 31 EX-150AH User's Manual 2. About EX-150AH 2.4G/5GHz Default SSID : EX150-XXXXXX Key : letmein-XXXXXX Authentic : WPA2/WPA3-Personal E/A : XXXXXXXXXXXX S/N : YYYYYYYYY (10) (10) Product label The following settings are described. 2.4G/5GHz Default SSID SSID for 2.4GHz/5GHz band Pre-Shared Key Authentic Authentication mode MAC address of EX-150AH...

  • Page 32: Specifications

    EX-150AH User's Manual 2. About EX-150AH 2-4. Specifications 2-4-1. Hardware Specifications Push Switch LED 1 (Green/Orange/Red) LED 2 (Green/Orange/Red) LED 3 (Green/Orange/Red) LED 4 (Orange) LAN Port LED 5 (Green) DC connector Operating voltage DC12V to DC24V Power supply USB Type-C connector Operating voltage DC5V Temperature -20 °C to 40 °C...
  • Page 33 EX-150AH User's Manual 2. About EX-150AH Wireless network interface Bandwidth 900MHz 903.5, 904.5, 905.5, 906.5, 907.5, 908.5, 909.5, 910.5, 911.5, 912.5, 913.5, 914.5, 915.5, 916.5, 1MHz bandwidth 917.5, 918.5, 919.5, 920.5, 921.5, 922.5, 923.5, IEEE 802.11ah 924.5, 925.5, 926.5 Channel 905.0, 907.0, 909.0, 911.0, 913.0, 915.0, 917.0, 2MHz bandwidth 919.0, 921.0, 923.0, 925.0...

  • Page 34: Software Specifications

    EX-150AH User's Manual 2. About EX-150AH 2-4-2. Software Specifications Network layer ICMP Transport layer TCP/IP DHCP(Client/Server) HTTP/HTTPS(Server) Application layer DNS(Client) TFTP SXSMP Microsoft Edge Recommended Web browser Google Chrome...

  • Page 35: Power Supply

    EX-150AH User's Manual 2. About EX-150AH 2-5. Power Supply EX-150AH can receive electrical power in the following two ways: - Power supply (DC 12V to 24V) - USB Type-C connector Sample connection1: When using a power supply Connect the power supply cable to the DC connector of EX-150AH. Sample connection2: When using a USB Type-C power connector Connect the USB Type-C power connector to the USB Type-C connector of EX-150AH.

  • Page 36: Optional Utilities

    AMC Manager® (paid version). This manual uses AMC Manager® Free for explanation. - If you want to use AMC Manager® (paid version), you need to purchase the license key. For how to purchase the license key, please contact Silex Technology. See C. Product Information and Customer Services for the contact information.

  • Page 37: How To Download Amc Manager

    EX-150AH User's Manual 2. About EX-150AH 2-6-2. How to Download AMC Manager® AMC Manager® can be downloaded from the Silex Technology’s website. Access the URL below to download it. https://www.silextechnology.com/ When the website is displayed, click Support Center in the bottom of the page.

  • Page 38: Configuration

    EX-150AH User's Manual 3. Configuration Configuration...

  • Page 39: Configuration Methods

    EX-150AH User's Manual 3. Configuration 3-1. Configuration Methods Following configuration methods are available: - Configure using the EX-150AH's Web page Access the EX-150AH's Web page to configure it. If you know the IP address of EX-150AH, you can configure it from your PC without AMC Manager®. - Configure using AMC Manager®...

  • Page 40: Connecting Ex-150Ah And Pc

    EX-150AH User's Manual 3. Configuration 3-2. Connecting EX-150AH and PC For configuration of EX-150AH, connect the PC to wireless LAN. The following explains the connection procedure. - EX-150AH may not be able to connect some models of wireless station device using 5GHz wireless LAN.
  • Page 41 EX-150AH User's Manual 3. Configuration Select the SSID configured on EX-150AH from a list and click Connect. - When EX-150AH has the factory default setting, “xxxxxx” of SSID (EX150-xxxxxx) is a last 6-digit of the MAC address. Note - If Connect automatically is checked, your PC will automatically connect to EX-150AH every time it restarts.

  • Page 42: About Ex-150Ah's Web Page

    EX-150AH User's Manual 3. Configuration 3-3. About EX-150AH's Web page The following shows the Web page structure. (6) (7) (1) Page menu If clicked, the configuration page is changed. (2) Tab The tab is displayed when there are multiple pages for the configuration. If the tab is clicked, the configuration page is changed.
  • Page 43 EX-150AH User's Manual 3. Configuration (3) Configuration page Each setting can be configured. (4) Link to Help The Help page is displayed. The Help page provides the detailed explanation of each setting. (5) Firmware version / MAC address The firmware version and MAC address of EX-150AH are displayed. (6) Submit button If clicked, the changes you made to the configuration page will be saved.
  • Page 44 EX-150AH User's Manual 3. Configuration Menu Explanation Maintenance Restart Restarts EX-150AH. Setting Initialization Restores all settings to the factory defaults and restarts EX-150AH. Firmware Update Updates the firmware. Downloads the log of EX-150AH. Logout Log out of the Web page.

  • Page 45: Displaying The Ex-150Ah's Web Page

    EX-150AH User's Manual 3. Configuration 3-4. Displaying the EX-150AH's Web Page The Web page can be displayed by the following methods. Display the Web page using a method appropriate for your environment. - Displaying a Web Page by entering the IP address directly Connect EX-150AH and PC on wireless LAN, and enter the IP address of EX-150AH to the Web browser to display the Web page.

  • Page 46: Displaying A Web Page By Entering An Ip Address To Web Browser

    EX-150AH User's Manual 3. Configuration 3-4-1. Displaying a Web Page by Entering an IP Address to Web Browser By entering the IP address of EX-150AH to the address bar of your Web browser, the Web page can be accessed. - The following instructions will use Microsoft Edge and Windows 10 as examples. The display may vary depending on the OS or Web browser version.
  • Page 47 EX-150AH User's Manual 3. Configuration When the login page is displayed, enter the configured password and click Login. Web page has been displayed.

  • Page 48: Displaying A Web Page By Using Amc Manager

    EX-150AH User's Manual 3. Configuration 3-4-2. Displaying a Web Page by Using AMC Manager® The Web page of EX-150AH can be accessed using AMC Manager®. Start AMC Manager® in the PC. The device list of AMC Manager® shows the discovered EX-150AH units. Device list - If the EX-150AH is not displayed on the device list, click the icon Refresh ( - It may take approximately 1 min to show them on the device list depending on your environment.
  • Page 49 EX-150AH User's Manual 3. Configuration The login password configuration page appears. Enter the password to configure for EX-150AH and click Submit. When the login page is displayed, enter the configured password and click Login. Web page has been displayed.

  • Page 50: Configuration Using Amc Manager

    EX-150AH User's Manual 3. Configuration 3-5. Configuration Using AMC Manager® For configuration using AMC Manager®, create a configuration file first, and then apply it to EX-150AH. The following explains the procedure. 3-5-1. Create Configuration File Click Start - silex Tools - AMC Manager. The AMC Manager®...
  • Page 51 EX-150AH User's Manual 3. Configuration In the Create Configuration File window, check the check box of the items you want to use for the configuration file, edit the settings and click Save. In the dialog to save the configuration file, specify the file name and click Save. - When EX-150AH is used for the first time, the login password needs to be set.

  • Page 52: Apply Configuration File

    EX-150AH User's Manual 3. Configuration 3-5-2. Apply Configuration File Connect the PC to EX-150AH. For details on the connection method, see 3-2. Connecting EX-150AH and PC. Select the EX-150AH unit to configure from the device list of AMC Manager®, and click the icon Configure multiple devices in bulk( For bulk configuration, the configuration file is used to send the settings to the devices.
  • Page 53 EX-150AH User's Manual 3. Configuration The selected file is displayed at Configuration File Name. Click IP Configuration for the IP address configuration. When you are using the DHCP server to automatically configure the IP address, skip this and go on to 6. In the IP Address Configuration window, specify the range of IP address to configure for EX-150AH, and click OK.
  • Page 54 EX-150AH User's Manual 3. Configuration The IP addresses to configure are pre-assigned and displayed under New IP Address. Check the check boxes of EX-150AH units to configure (1) and click Configure Now (2).
  • Page 55 EX-150AH User's Manual 3. Configuration The configuration performs and the result is displayed. Click Close. When there are more EX-150AH units to configure, repeat the process of 1 to 8 and configure them one by one. The configuration has now been completed.

  • Page 56: Establishing Network For Long Distance Transfer

    EX-150AH User's Manual 4. Establishing Network for Long Distance Transfer Establishing Network for Long Distance Transfer...

  • Page 57: Configuring Network And Access Point Function

    EX-150AH User's Manual 4. Establishing Network for Long Distance Transfer 4-1. Configuring Network and Access Point Function The following explains how to change the network settings and 2.4GHz/5GHz band Access Point function. Display the EX-150AH's Web page. - For how to display the EX-150AH Web page, see 3-4. Displaying the EX-150AH's Web Page. Note Click System Configuration - Device Configuration from the page menu.
  • Page 58 EX-150AH User's Manual 4. Establishing Network for Long Distance Transfer Check the settings and click Submit. Click System Configuration - 2.4/5GHz AP from the page menu. The 2.4/5GHz AP page is displayed. Change SSID, Channel, etc. under Wireless LAN appropriately for the wireless network where EX- 150AH is connected.
  • Page 59 EX-150AH User's Manual 4. Establishing Network for Long Distance Transfer If WPA2-Personal, WPA3-Personal, or WPA2/WPA3-Personal is selected for Network Authentication, the settings of Security Configuration are displayed. Set the Pre-Shared Key. Change the setting at Extension Configuration as necessary. - For details on each configuration item, see A-3-1. 2.4/5GHz AP. Note...
  • Page 60 EX-150AH User's Manual 4. Establishing Network for Long Distance Transfer Check the settings and click Submit. The completion page is displayed. Click Restart. The new settings will take effect after EX-150AH is restarted. - If you do not want to apply the configuration change, reset it to the previous settings and click Submit at the bottom right of the Web page.

  • Page 61: Configuring The Ieee 802.11Ah Settings

    EX-150AH User's Manual 4. Establishing Network for Long Distance Transfer 4-2. IEEE 802.11ah Settings Configuring the The following describes how to establish a network that can transfer data from the wireless station device and wired device to a remote location by using an IEEE 802.11ah Access Point and EX-150AH. - For an image of using an IEEE 802.11ah Access Point and EX-150AH, see 2-1.

  • Page 62: Configuring Ex-150Ah

    EX-150AH User's Manual 4. Establishing Network for Long Distance Transfer 4-2-2. Configuring EX-150AH The following explains how to configure EX-150AH . Display the EX-150AH's Web page. - For how to display the EX-150AH Web page, see 3-4. Displaying the EX-150AH's Web Page. Note Click System Configuration - 900MHz STA from the page menu.
  • Page 63 EX-150AH User's Manual 4. Establishing Network for Long Distance Transfer Change the setting at Extension Configuration as necessary. - For details on each configuration item, see A-2. 900MHz STA. Note Check the settings and click Submit.
  • Page 64 EX-150AH User's Manual 4. Establishing Network for Long Distance Transfer The completion page is displayed. Click Restart. The new settings will take effect after EX-150AH is restarted. - If you do not want to apply the configuration change, reset it to the previous settings and click Submit at the bottom right of the Web page.

  • Page 65: Connecting Wireless Station Devices

    EX-150AH User's Manual 5. Connecting Wireless Station Devices Connecting Wireless Station Devices...

  • Page 66: Connecting Wireless Station Devices

    EX-150AH User's Manual 5. Connecting Wireless Station Devices 5-1. Connecting Wireless Station Devices For how to connect your PC or Tablet to EX-150AH as a wireless station device, see 3-2. Connecting EX- 150AH and PC.

  • Page 67: Connecting Ieee 802.11Ah Access Point

    EX-150AH User's Manual 5. Connecting Wireless Station Devices 5-2. Connecting IEEE 802.11ah Access Point For how to connect an IEEE 802.11ah Access Point, see 4-2. Configuring the IEEE 802.11ah Settings.

  • Page 68: Basic Functions

    EX-150AH User's Manual 6. Basic Functions Basic Functions...

  • Page 69: Checking Status For Connected Wireless Station Devices

    EX-150AH User's Manual 6. Basic Functions 6-1. Checking Status for Connected Wireless Station Devices The operating status of the connected wireless station device can be checked on the Web page. The status includes MAC address of devices and the radio strength. This chapter describes how to check the operating status of the wireless station device .

  • Page 70: Filtering Devices On Ieee 802.11Ah Network

    EX-150AH User's Manual 6. Basic Functions 6-2. Filtering Devices on IEEE 802.11ah Network If the device filter is used, the wireless station devices and wired devices can communicate over the IEEE 802.11ah network only when their MAC addresses are registered to Network Device Address. This chapter describes how to use the device filter.
  • Page 71 EX-150AH User's Manual 6. Basic Functions The Wireless Bridge page is displayed. Select ON for Device Filter. For Network Device Address, enter the MAC address of the device to allow data transfer over the IEEE 802.11ah network, and click Add. Repeat this when there are multiple MAC addresses.
  • Page 72 EX-150AH User's Manual 6. Basic Functions Check the settings and click Submit. The completion page is displayed. Click Restart. The new settings will take effect after EX-150AH is restarted. - If you do not want to apply the configuration change, delete the MAC address you have added and click Submit at the bottom right of the Web page.

  • Page 73: Register A Combination Of Mac Address And Ip Address

    EX-150AH User's Manual 6. Basic Functions 6-3. Register a combination of MAC address and IP address When data is transferred from the connected device to an IEEE 802.11ah Access Point, the MAC address of EX-150AH and the IP address of the connected device will be used. The combination information of the MAC address and IP address for the connected wireless/wired station devices is stored, and when data is sent from an IEEE 802.11ah Access Point, it is transferred to the wireless/wired station device based on the combination information.

  • Page 74: About Address Management Table Feature

    EX-150AH User's Manual 6. Basic Functions 6-3-1. About Address Management Table Feature How to register combination of MAC address and IP address will differ depending on whether the address management table feature is enabled or disabled (ON/OFF). If this function is ON, combination information is managed by the management table. The information will automatically be registered to the management table, and it will be retained even if EX-150AH is restarted.
  • Page 75 EX-150AH User's Manual 6. Basic Functions The Wireless Bridge page is displayed. Select ON for Address Management Table, enter the MAC address and IP address and click Add. Repeat the same process to register more sets of information. - To register a combination of MAC address and IPv6 address, add it to Management Table (for IPv6).
  • Page 76 EX-150AH User's Manual 6. Basic Functions The completion page is displayed. Click Restart. The new settings will take effect after EX-150AH is restarted. - If you do not want to apply the configuration change, reset it to the previous settings and click Submit at the bottom right of the Web page.

  • Page 77: Deleting Address From Management Table

    EX-150AH User's Manual 6. Basic Functions 6-3-3. Deleting Address from Management Table Following explains how to delete combination of MAC address and IP address from management tables (IPv4/IPv6). Display the EX-150AH's Web page. - For how to display the EX-150AH Web page, see 3-4. Displaying the EX-150AH's Web Page. Note Click System Configuration - Wireless Bridge from the page menu.
  • Page 78 EX-150AH User's Manual 6. Basic Functions Click Submit. The completion page is displayed. Click Restart. The new settings will take effect after EX-150AH is restarted. - If you do not want to apply the configuration change, reset it to the previous settings and click Submit at the bottom right of the Web page.

  • Page 79: Mac Address Filter Setting

    EX-150AH User's Manual 6. Basic Functions 6-4. MAC Address Filter Setting By configuring the MAC Address Filter, it is possible to block access from particular wireless station devices to EX-150AH. Wireless station device 1 MAC Address ： aa:bb:cc:11:22:33 EX-150AH × Wireless station device 2 MAC Address ：...

  • Page 80: Mac Address Filter

    EX-150AH User's Manual 6. Basic Functions 6-4-2. MAC Address Filter Register the MAC Address of devices to allow/deny access to EX-150AH. Up to 30 MAC Addresses can be registered. To register, create a list of MAC Addresses as a text file and import it to EX-150AH from the Web page. To change the contents of the MAC Address list, update the MAC Address list file accordingly and import it again.

  • Page 81: Mac Address Filter Settings

    EX-150AH User's Manual 6. Basic Functions 6-4-3. MAC Address Filter Settings Following explains how to configure the MAC Address filter. Display the EX-150AH's Web page. - For how to display the EX-150AH Web page, see 3-4. Displaying the EX-150AH's Web Page. Note Click System Configuration - 2.4/5GHz AP from the page menu.
  • Page 82 EX-150AH User's Manual 6. Basic Functions Check the configuration file you have selected is displayed at the New Configuration File field. Click Submit. The completion page is displayed. Click Restart. - If you do not want to apply the configuration change, delete the MAC address you have added and click Submit at the bottom right of the Web page.

  • Page 83: Login Password Setting

    EX-150AH User's Manual 6. Basic Functions 6-5. Login Password Setting The following explains how to change the EX-150AH's login password. Display the EX-150AH's Web page. - For how to display the EX-150AH Web page, see 3-4. Displaying the EX-150AH's Web Page. Note Click System Configuration - Login Password from the page menu.
  • Page 84 EX-150AH User's Manual 6. Basic Functions The completion page is displayed. Click Restart. The new settings will take effect after EX-150AH is restarted. - If you do not want to apply the configuration change, reset it to the previous settings and click Submit at the bottom right of the Web page.

  • Page 85: Maintenance Functions

    EX-150AH User's Manual 7. Maintenance Functions Maintenance Functions...

  • Page 86: Restarting

    EX-150AH User's Manual 7. Maintenance Functions 7-1. Restarting This chapter explains how to restart EX-150AH. 7-1-1. Manual Restart at the Unit Side Restart by Unplugging the Power Supply Cable Remove the power supply cable of EX-150AH and re-insert it again. - When the power is supplied from the USB Type-C power connector, unplug the USB Type-C cable and plug it again.

  • Page 87: Restart By Using The Push Switch

    EX-150AH User's Manual 7. Maintenance Functions Restart by Using the Push Switch Make sure that EX-150AH is turned on, press and hold the push switch (1) and release it in 4 sec (2). - If the push switch is held down for 5 sec or longer, EX-150AH will be initialized. EX-150AH will restart.

  • Page 88: Remote Restart From The Web Page

    EX-150AH User's Manual 7. Maintenance Functions 7-1-2. Remote Restart from the Web Page Display the EX-150AH's Web page. - For how to display the EX-150AH Web page, see 3-4. Displaying the EX-150AH's Web Page. Note Click Maintenance - Restart from the page menu. When the Restart page is displayed, click Yes.

  • Page 89: Updating Firmware

    EX-150AH User's Manual 7. Maintenance Functions 7-2. Updating Firmware This chapter explains how to update the EX-150AH firmware. - The firmware update takes a time if it is done over IEEE 802.11ah wireless network. 7-2-1. Downloading the Firmware The latest firmware file can be downloaded from our website. See the instructions below to download the firmware file.

  • Page 90: Updating The Firmware

    EX-150AH User's Manual 7. Maintenance Functions 7-2-2. Updating the Firmware Display the EX-150AH's Web page. - For how to display the EX-150AH Web page, see 3-4. Displaying the EX-150AH's Web Page. Note Click Maintenance - Firmware Update from the page menu.
  • Page 91 EX-150AH User's Manual 7. Maintenance Functions A confirmation dialog is displayed. Click OK The firmware update will begin. When the login page is displayed, the firmware update is completed. Check the version information at the bottom left of the login page.

  • Page 92: Factory Default Configuration

    EX-150AH User's Manual 7. Maintenance Functions 7-3. Factory Default Configuration This chapter explains how to reset EX-150AH to the factory default settings. 7-3-1. Initialization Using the Push Switch on EX-150AH Press and hold the push switch of EX-150AH and release it in 5 sec or longer to start the factory default configuration.

  • Page 93: Initialization From The Web Page

    EX-150AH User's Manual 7. Maintenance Functions 7-3-2. Initialization from the Web Page Display the EX-150AH's Web page. - For how to display the EX-150AH Web page, see 3-4. Displaying the EX-150AH's Web Page. Note Click Maintenance - Setting Initialization from the page menu.

  • Page 94: List Of All Settings

    EX-150AH User's Manual A. List of All Settings List of All Settings...

  • Page 95: A-1. Device Configuration

    EX-150AH User's Manual A. List of All Settings A-1. Device Configuration General Configuration Item Host Name Set the host name. Details Be sure to use a unique name that is not used by other devices. Range 1 to 32 characters Default Value EX150-xxxxxx (xxxxxx is the last 6 digits of the MAC address, and letters are uppercase) The following symbols and spaces cannot be used.
  • Page 96 EX-150AH User's Manual A. List of All Settings Item IP Address Set the IP address. Details If the DHCP Client is enabled on your network, the IP address obtained from it will be applied. 0.0.0.0 to 255.255.255.254 Range * IP addresses of "x.x.x.255", "0.x.x.x" (except for 0.0.0.0), and "127.x.x.x" cannot be used. Default Value 169.254.111.111 Item...

  • Page 97: A-2. 900Mhz Sta

    EX-150AH User's Manual A. List of All Settings A-2. 900MHz STA Wireless LAN Item SSID Set the SSID of the wireless network. Details The SSID is an ID that distinguishes a wireless LAN network from others. For wireless devices to communicate with each other on a wireless network, they must share the same SSID. Range 1 to 32 characters Default Value...
  • Page 98 EX-150AH User's Manual A. List of All Settings Item Tx Power(%) Set the transmission strength for wireless LAN. Details Lower transmission strength narrows the radio wave range of EX-150AH and reduces interference with other wireless networks. Range 10 to 100 ( Unit: 10) Default Value Item Weak RSSI threshold(dBm)

  • Page 99: A-3. 2.4/5Ghz Ap

    EX-150AH User's Manual A. List of All Settings A-3. 2.4/5GHz AP A-3-1. 2.4/5GHz AP Wireless LAN Item Location Select a location to use the IEEE 802.11ax wireless LAN. Details The available frequency bands and communication channels vary depending on the selected value.
  • Page 100 EX-150AH User's Manual A. List of All Settings Security Configuration Item Pre-Shared Key Set the Pre-Shared Key when the Network Authentication is WPA2-Personal, Details WPA3-Personal, WPA2/WPA3-Personal. Range 8 to 63 characters Default Value letmein-xxxxxx (xxxxxx is the last 6 digits of the MAC address, and letters are uppercase) Extension Configuration Item Weak RSSI threshold(dBm)

  • Page 101: A-3-2. Mac Address Filter

    EX-150AH User's Manual A. List of All Settings A-3-2. MAC Address Filter MAC Address Filter Item MAC Address Filter Configure the access control setting for all MAC addresses. DISABLE : MAC address filter function is disabled. Details ALLOW : Allows access only from the devices registered to MAC address filter list. DENY : Denies access from the devices registered to MAC address filter list.

  • Page 102: A-4. Wireless Bridge

    EX-150AH User's Manual A. List of All Settings A-4. Wireless Bridge Network Device Configuration Item Device Filter Enable/Disable filtering for the devices registered to the Network Device Address. Details Range ON / OFF Default Value Item Network Device Address This is a function to restrict the devices that can communicate over the IEEE 802.11ah network. Details Only devices with the registered MAC address can communicate with IEEE 802.11ah Access Point.

  • Page 103: A-5. Server Certificate

    EX-150AH User's Manual A. List of All Settings A-5. Server Certificate Server Certificate Create Item Common Name Details Set a name of EX-150AH. Range 1 to 64 characters Default Value EX150-xxxxxx (xxxxxx is the last 6 digits of the MAC address, and letters are uppercase) Item Organizational Unit Name Details...

  • Page 104: A-6. Login Password

    EX-150AH User's Manual A. List of All Settings A-6. Login Password Please input the password. Item New Password Set the login password for EX-150AH. Details The password is used for authentication when the user tries to update settings from a Web browser or to use AMC Manager®.

  • Page 105: Troubleshooting

    EX-150AH User's Manual B.Troubleshooting Troubleshooting This chapter provides the solutions for possible troubles you may experience when you are configuring or using the EX-150AH.

  • Page 106: B-1. Problems During The Setup

    EX-150AH User's Manual B.Troubleshooting B-1. Problems During the Setup I don't know the IP Address of EX-150AH. Use "AMC Manager®". AMC Manager® can search for EX-150AH units connected to a network. For Solution details, see 3-5. Configuration Using AMC Manager®. EX-150AH does not show up in the wireless network list on Windows.
  • Page 107 EX-150AH User's Manual B.Troubleshooting How should I determine the way to assign an IP address to EX-150AH? There are two ways to assign an IP address to EX-150AH; one is to Get IP address automatically from DHCP server and the other is to Assign IP address manually. Choose the way to assign an IP address according to your environment.

  • Page 108: B-2. Problems On Wireless Access Point Function

    EX-150AH User's Manual B.Troubleshooting B-2. Problems on Wireless Access Point Function I cannot connect to EX-150AH wirelessly. Please check the operation status and configuration of EX-150AH. The wireless LAN setting may differ between EX-150AH and the connected wireless station device. Connect a LAN cable to EX-150AH and check the wireless LAN settings.

  • Page 109: Product Information And Customer Services

    EX-150AH User's Manual C. Product Information and Customer Services Product Information and Customer Services C-1. Product Information The services below are available from the Silex Technology website. For details, please visit the Silex Technology website. https://www.silextechnology.com/ - Latest firmware download...
