User's Manual

MATX-I961

User's Manual

Ver.A1.0

Date:28, Oct, 2021

Table of Contents

Need help?

Do you have a question about the MATX-I961 and is the answer not in the manual?

Questions and answers

Summary of Contents for JHCTech MATX-I961

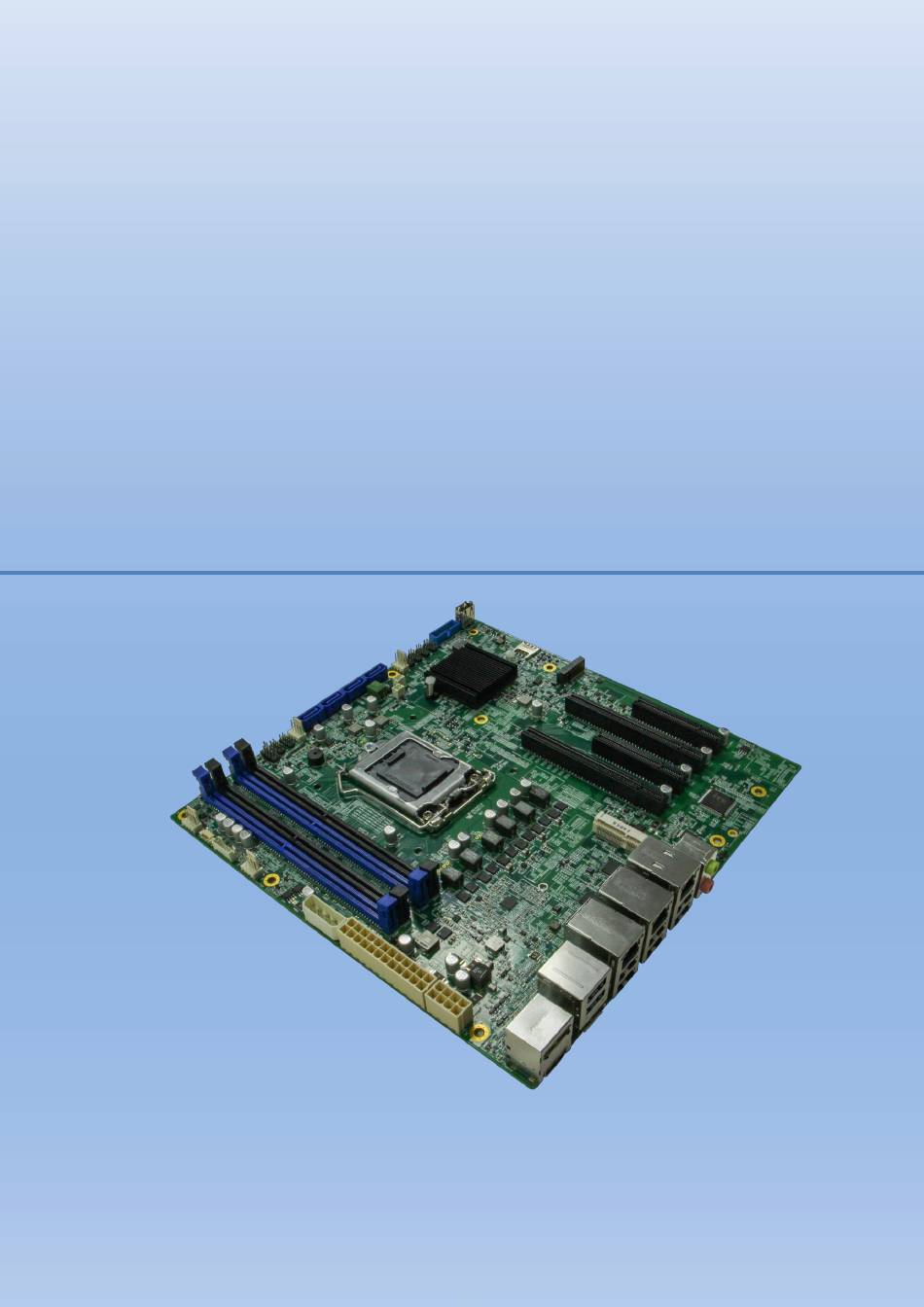

Page 1 User’s Manual MATX-I961 User’s Manual Ver.A1.0 Date:28, Oct, 2021...
Page 2 User’s Manual Version Note Ver. Note Date Writer A0.1 First publish 20200325 Echo Guo A1.0 Update 9 Gen CPU 20211028...
Page 3 Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. RTL is a trademark of Realtek Semi-Conductor Co., Ltd. All other product names or trademarks are properties of their respective owners. For more information on this and other JHC products, please visit our websites at: http://www.jhctech.com.cn...
Page 4 User’s Manual Product Warranty (2 years) JHC warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by JHC, or which have been subject to misuse, abuse, accident or improper installation.
Page 5 Technical Support and Assistance Step 1. Visit the JHC web site at www.jhctech.com.cn where you can find the latest information about the product. Step 2. Contact your distributor, sales representative, or JHC’s customer service center for technical support if you need additional assistance.
Page 6: Table Of Contents
User’s Manual CONTENTS General Information ....................1 1.1 Introduction ............................ 2 1.2 Features............................2 1.3 Specifications ..........................3 1.3.1 General ..........................3 1.3.2 Display ..........................3 1.3.3 Ethernet ..........................3 1.3.4 Audio............................. 3 1.3.5 Power Consumption......................4 1.4 Environmental Specifications ....................... 4 1.5 Model Specification ........................
Page 7 User’s Manual 3.2.4 DP port (J4/J_USB1) ......................17 3.2.5 Power Input Connector (ATX_PWR) ................. 18 3.2.6 CMOS battery connector (BAT1) ..................19 3.2.7 Serial ATA1/2/3/4 (S_SATA1/2/3/4)................... 19 3.2.8 SATA power connector (SATA_PWR1) ................20 3.2.9 Serial port connector1/2/3/4 (J_COM1/2/3/4) ..............20 3.2.10 CPU fan connector (CPU_FAN1/FAN2) ................
Page 8 User’s Manual 4.3 Updating the BIOS ........................43 Driver Installation ....................44 5.1 Follow the sequence below to install the drivers: ..............45 5.2 Installation: ..........................45 5.3 Utility Software Reference ......................46 SYSTEM RESOURCE .................... 47 6.1 WDT and GPIO ........................... 48...
Page 9: General Information
User’s Manual General Information...
Page 10: Introduction
The motherboard supports 4*DDR4 2666/2400MHz memory, up to 128GB. It features Intel UHD Graphics, Supports DirectX11.1, OpenGL 5.0 and OpenCL 2.1. MATX-I961 offers 1*HDMI,2* DP, VGA, multi-displays, 3*GbE LAN, 4*COM, 6*USB3.1，7*USB2.0，8-bit GPIO, 1*F-Mini PCIe with SIM slot, which supports 4G/LTE/Wifi/BT, 2*PCIe X16(or 2*PCIeX8）...
Page 11: Specifications
User’s Manual 1.3 Specifications 1.3.1 General Intel® Xeon® /8th/9 Gen Core I9/I7/I5/I3 LGA1151 CPU CPU: ® ® System chipset: Intel Q370, optional Intel C246 BIOS: AMI 128 Mbit SPI BIOS 4*288-Pin DIMM DDR4 2666/2400MHz, Up to 128GB System Memory: Watchdog Timer: 255-level interval timer, setup by software Serial Ports: 4*COM header...
Page 12: Power Consumption
User’s Manual 1.3.5 Power Consumption Input Voltage: 24-pin ATX/8-pin ATX 12V Power Consumption: 1.4 Environmental Specifications Operating temperature: -0~ 60° C Relative humidity: 10~90% @ 40° C (non-condensing) Storage temperature: -40 ~ 85° C (-40 ~ 185° F) EMC: CE, FCC Class B 1.5 Model Specification Model NO.
Page 13: Mechanical Specifications
User’s Manual 1.6 Mechanical Specifications MATX-I961 Dimension: Unit: mm Figure 1.1...
Page 14: Hardware Installation
User’s Manual Hardware Installation...
Page 15: Introduction
2.2 Jumpers and Connectors You can configure your MATX-I961 to match the needs of your application by setting the jumpers. The tables below list the function of each of the board jumpers and connectors. Later sections in this chapter give instructions on setting jumpers.
Page 16 User’s Manual USB10 1*USB2.0 connector CN10 2*USB3.0 connector,2x10pin header J_COM1/2/3/4 4*COM connector,2*5pin header CPU_FAN1 CPU fan pin header, 1*4pin header S_SATA1/2/3/4 4*SATA HDD/SSD connector CPU_FAN1 CPU fan pin header, 1*4pin J_GPIO 8-bit GPIO, 2*5pin header 2*USB2.0,2*5pin header F_PANEL1 Front panel signal, 2*5 pin header DIMM1/2/3/4 4*DDR4 connector1/2/3/4 GPU_FAN2...
Page 17: Board Layout: Jumpers And Connectors Location
User’s Manual 2.3 Board layout: Jumpers and Connectors Location The MATX-I961 Box Computer has a number of jumpers and connectors that allows you to configure your system to suit your application. Figure 2. 1 Jumpers and Connectors Location 1...
Page 18 User’s Manual Figure 2. 2 Jumpers and Connectors Location 2 Figure 2. 3 I/O Connector 1...
Page 19: Jumpers Settings
CMOS Clear CMOS Data Setting 3-Pin Jumper 2.4.2 CMOS - Clear CMOS Data Setting Figure 2. 4 The MATX-I961 motherboard contains a Jumper that can erase CMOS data and reset the system BIOS information. Normally this jumper should be set with pins 1-2 closed. If you want to reset the CMOS data, set SW2 to 2-3 closed for just a few seconds, and then move the jumper back to 1-2 closed.
Page 20: Atx At-Power On Mode At Or Atx Selection Jumpers
User’s Manual 2.4.3 ATX AT-Power on mode AT or ATX selection jumpers Figure 2. 5 The MATX-I961 motherboard provides a AT/ATX jumper, which users can set Power-on mode by it. When you dial it at AT, it means power on by AC Power; When you dial it at ATX, it means power on by...
Page 21: I/O Introduction
User’s Manual I/O Introduction...
Page 22: Introduction
This chapter will give the motherboard I/O interfaces introduction and Pin assignments. 3.2.1 Ethernet port (CN208/CN207/J7) The MATX-I961 is equipped with 2 Intel I210AT chip and 1 Intel I219LM for 10/100/1000Mbps Ethernet controllers. The product provides 3*RJ45, with LED indicators on the front side to show its Active/Link status and Speed status.
Page 23 User’s Manual Table 3.2 for USB3.1 pin assignments. Figure 3. 2 Table 3.2: USB3.1 type A Port Pin Assignments Signal Signal VBUS StdA_SSRX+ GND_DRAIN StdA_SSTX- StdA_SSTX+ StdA_SSRX- Shell Shield Table 3.3 for USB2.0 Type A pin assignments. Figure 3. 3 Table 3.3: USB2.0 Connector Signal USB_VCC...
Page 24: Hdmi Port (J4)
Table 3.5 for USB2.0(CN8) pin assignments. Table 3.5: USB2.0(CN8) pin assignments Signal Signal +5VSB UBS_z_P10 +5VSB UBS_z_N9 UBS_z_N10 UBS_z_P9 3.2.3 HDMI port (J4) The MATX-I961 provides high-resolution HDMI display ports. They can support the most resolution up to 3840*2160@30Hz. Table 3.6 for HDMI pin assignments.
Page 25: Dp Port (J4/J_Usb1)
DATA1_P CLK_N DETECT DATA1_N DATA0_P 3.2.4 DP port (J4/J_USB1) The MATX-I961 provides four high-resolution DP ports, it supports the most resolution up to 4096*2304@60Hz. Table 3.7 for DP pin assignments. Figure 3. 7 Table 3.7: DP Pin Assignments Signal Signal...
Page 26: Power Input Connector (Atx_Pwr)
User’s Manual 3.2.5 Power Input Connector (ATX_PWR) The MATX-I961 provides a ATX power input (3.3V/5V/12V) by a 24-pin terminal. The MATX-I961 also provides a CPU power input by a 8-pin terminal. Table 3.8 for ATX power input pin assignments. Figure 3. 8 Table 3.8:DC-IN（ATX_PWR）port pin assignments...
Page 27: Cmos Battery Connector (Bat1)
User’s Manual Table 3.9 for CPU power input pin assignments. Figure 3. 9 Table 3.9:J_CPU_PWR port pin assignments Signal Signal +V12S_CPU_R +V12S_CPU_R +V12S_CPU_R +V12S_CPU_R 3.2.6 CMOS battery connector (BAT1) Figure 3.10 Table 3.10 for pin assignments. Table 3.10: CMOS battery connector pin assignments Signal Signal +VBAT...
Page 28: Sata Power Connector (Sata_Pwr1)
Signal Signal 3.2.9 Serial port connector1/2/3/4 (J_COM1/2/3/4) The MATX-I961 provides 4 serial ports of COM1/2/3/4 by 2*5pin header.COM1/2 can be configured as RS232、RS422 or RS485 and COM3/4 can be configured as RS232 by BIOS setup. Figure 3. 13 Table 3.13 for pin assignments.
Page 29: Cpu Fan Connector (Cpu_Fan1/Fan2)
Table 3.15: CPU_FAN2 Pin Assignments Signal Signal FAN_TAC FAN_CTL 3.2.11 GPU fan connector (GPU_FAN1/FAN2) Figure 3. 15 Table 3.16: GPU_FAN1/FAN2 Pin Assignments Signal Signal +12V_FAN FAN_TAC3 FAN_CTL3 3.2.12 8-bit DIO connector（J_GPIO） The MATX-I961 provides 1 8-bit DIO connector by 2*5pin header.
Page 30: Audio Pin Header 2X5 P (F_Audio1)
GP75 GP71 GP76 GP72 GP77 GP73 3.2.13 AUDIO pin header 2X5 P (F_AUDIO1) The MATX-I961 provides 1*ADUIO connector by a 2X5 pin header. Figure 3. 17 Table 3.18 for Pin assignments. Table 3.18: AUDIO Connector Pin Assignments Pine Signal Signal...
Page 31: Kbms Connector (Kbms)
Table 3.19 for Pin assignments. Table 3.19: SMB1 Pin Assignments Pine Signal Signal 3.2.15 KBMS connector (KBMS) The MATX-I961 provides 1*KBMS connector by a 1*6 pin header. Figure 3. 19 Table 3.20 for Pin assignments. Table 3.20: KBMS Pin Assignments Pine Signal...
Page 32: Pcie X16 Connector (Pcie1/2)
+V3.3_MINICARD2 +V1.5 +V3.3_MINICARD2 3.2.17 PCIe X16 connector (PCIE1/2) MATX-I961 provides 2 standard PCIe X16 slots, which can support 2 PCIeX8 devices or 1 PCIeX16 device,when connecting 2 devices, it automatically switches to 2*PCIe X8) Figure 3. 21 Table 3.22 for...
Page 33 User’s Manual Table 3.22: PCIeX16 Pin Assignments Signal Signal +V12 PRSNT1# +V12 +V12 +V12 +V12 SMBSCL TCLK SMBDAT +3.3V TRST# +3.3V +3.3VAUX +3.3V WAKE# PERST# RSVD REFCLK+ PETp0 REFCLK- PETn0 PERp0 PRSNT2# PERn0 PETp1 RSVD PETn1 PERp1 PERn1 PETp2 PETn2 PERp2 PERn2 PETp3...
Page 34 User’s Manual PETn4 PERp4 PERn4 PETp5 PETn5 PERp5 PERn5 PETp6 PETn6 PERp6 PERn6 PETp7 PETn7 PERp7 PRSNT2# PERn7 PETp8 PETn8 PERp8 PERn8 PETp9 PETn9 PERp9 PERn9 PETp10 PETn10 PERp10 PERn10 PETp11 PETn11 PERp11 PERn11 PETp12 PETn12 PERp12...
Page 35: Pcie X4 Connector (Pcie3/4)
PETp15 PETn15 PERp15 PRSNT2# PERn15 RSVD 3.2.18 PCIe X4 connector (PCIE3/4) MATX-I961 provides 2 standard PCIe X4 slot, which can support PCIeX4 device. Figure 3. 22 Table 3. 23 for Pin assignments. Table 3.23: PCIeX4 Pin Assignments Signal Signal +V12...
Page 36 User’s Manual WAKE# PERST# RSVD REFCLK+ PETp0 REFCLK- PETn0 PERp0 PRSNT2# PERn0 PETp1 RSVD PETn1 PERp1 PERn1 PETp2 PETn2 PERp2 PERn2 PETp3 PETn3 PERp3 RSVD PERn3 PRSNT2# RSVD PETp4 RSVD PETn4 PERp4 PERn4 PETp5 PETn5 PERp5 PERn5 PETp6 PETn6 PERp6 PERn6...
Page 37: Sim Card Connector (Sim0)
M.2(NGFF) interface with PCIeX4 signal, Install M.2 2280 M-key modules such as SATA SSD module that comply to the M.2 2280 M-key specifications into the NGFF slot. 3.2.21 Audio connector (AUD1) MATX-I961 provides Two-In-One MIC/Line Out dual audio connector. Figure 3. 25 Table 3.24 for...
Page 38: Front Panel Signal Connector (F_Panel1)
User’s Manual Table 3.24: Audio (AUD1) Pin Assignments Signal Signal LOUT_L MCIN2_L LINE2_JD MIC2_JD LOUT_R MCIN2_R 3.2.22 Front panel signal connector (F_PANEL1) Figure 3. 26 Table 3.25: Front panel signal Connector Pin Assignments Pine Signal Signal HDD_LED+ PWR_LED+ HDDLED- PWR_LED- PWR_SW RST_SW SPK-...
Page 39: Bios Setup
User’s Manual BIOS Setup...
Page 40: Bios Description
User’s Manual 4.1 BIOS Description BIOS is the communication bridge between hardware and software. How to correctly set the BIOS parameters is crucial for the system to work stably and whether the system works at its best. This chapter describes how to change the system settings through the BIOS settings. Note: For the purpose of better product maintenance, the manufacture reserves the right to change the BIOS items presented in this manual.
Page 41: Bios Parameter Settings
User’s Manual 4.2 BIOS parameter settings When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options.
Page 42: Bios Navigation Keys
User’s Manual 4.2.1 BIOS Navigation Keys Enter the SETUP settings interface, The BIOS navigation keys are listed below: Table 3.1: The BIOS navigation keys FUNCTION Exit the current menu ↑↓→← Scrolls through the items on a menu Change Opt. Enter Select General Help Previous Values...
Page 43 User’s Manual BIOS Information This item shows the information of the BIOS vendor, version, build date and time etc. Board Information This item shows the basic information of the motherboard, including the Board ID and BIOS Version of the motherboard. Processor Information This item shows the basic information about the currently used processor, including name, type, speed, ID, core, Microcode version, etc.
Page 44: Advanced Menu
User’s Manual This item shows the ME firmware model number System Language Set the language interface of the BIOS. System Date Set the date. The format of the date is <week><month><day><year>. System Time Set the time. The format of the time is <hour><minute><second>. 4.2.3 Advanced Menu This page sets up more advanced information about your system.
Page 45 User’s Manual parameter. AMT Configuration This item contains the AMT configuration, enter this sub-menu, there will be detailed details of the ATM, as well as related settings of the configure intel (R) Active Management Technology parameters . Trusted Computing Trusted computing, enter this sub-menu, there will be the setting of the encryption security module (the motherboard will install the encryption module hardware will take effect) ACPI Settings Advanced configuration and power management interface settings, enter this submenu, there will be...
Page 46: Chipset Menu
User’s Manual SIO Configuration Super IO configuration, enter this sub-menu, there will be the port configuration of the serial/parallel port which are included in IO. CSM Configuration CSM (Compatibility Support Module) configuration, enter this sub-menu, there will be various settings to support UEFI startup and non-UEFI startup.
Page 47 User’s Manual System Agent (SA) Configuration Memory Configuration Memory configuration, enter this submenu, there will be detailed memory information. Graphics Configuration Image processing configuration, enter this sub-menu, there will be CPU-integrated graphics related settings. PEG Port Configuration PEG graphics configuration, enter this sub-menu, there will be related settings for the external graphics card.
Page 48: Security Menu
User’s Manual 4.2.5 Security menu Administrator Password This item sets the information of the administrator password. User Password This item sets the information of the normal user password. Secure Boot This item sets the information of the secure boot.Secure Boot feature is Actice if Secure Boot is Enabled,Platform key(PK) is enrolled and mode change requires platform reset...
Page 49: Boot Menu
User’s Manual 4.2.6 Boot menu Setup Prompt Timeout Setup prompts for waiting time. This option is to set the time to wait for the Del key to enter the BIOS setup after booting. Bootup NumLock State Set the state of the small numeric keypad at startup.
Page 50: Save & Exit Menu
User’s Manual Quiet Boot Switch full screen logo control Set Boot Priority Start device priority settings. If the user wants to install the operating system, please set "Boot Option #1" as your CD-ROM device or your U disk device (make sure that your CD-ROM drive has an operating system or your U disk has a PE system).
Page 51: Updating The Bios
User’s Manual Discard Changes; This item enables you to discard the changes that you have made. Restore Defaults; This item enables you to restore the system defaults. Save as User Defaults; This item enables you to save the changes as user defaults that you have made. Restore User Defaults;...
Page 52: Driver Installation
User’s Manual Driver Installation...
Page 53: Follow The Sequence Below To Install The Drivers
User’s Manual The MATX-I961 comes with a CD-ROM that contains all drivers and utilities that meet your needs. 5.1 Follow the sequence below to install the drivers: Figure 5. 1 Step 1 – Install Graphic Driver Step 2 – Install Audio Driver Step 3 –...
Page 54: Utility Software Reference
User’s Manual 2. Follow the instructions that the window shows 3. The system will help you install the driver automatically 5.3 Utility Software Reference All the utility software available from this page is Windows compliant. They are provided only for the convenience of the customer.
Page 55: System Resource
User’s Manual SYSTEM RESOURCE...
Page 56: Wdt And Gpio
User’s Manual 6.1 WDT and GPIO /* ====================================================================== * void jhctech_init(); * function description: library initializated, This function must be called before calling other functions * parameter description： * creation date： 5*======================================================================*/ /* ====================================================================== * void jhctech_init(); * function description: library release, Pair with jhctech_init, release the library's occupied resources when not needed * parameter description：...
Page 57 User’s Manual Parameter: port represents the number of the GPIO, 1 or 2 Mode 8 bit of a bit, each bit controls the input and output mode of a GPIO pin, Bit =1, the corresponding pin is used as the input port. Bit =0, the corresponding pin is used as an output port.
Page 58 User’s Manual /*========================================================================== * int sio_gpio_input(WORD port); * function description：read the motherboard GPIO input level * parameter description： Return value：return a byte (8 bit), each bit of the 8-bit corresponding to the level state of a GPIO Return value Bit7 Bit6 Bit5 Bit4...
