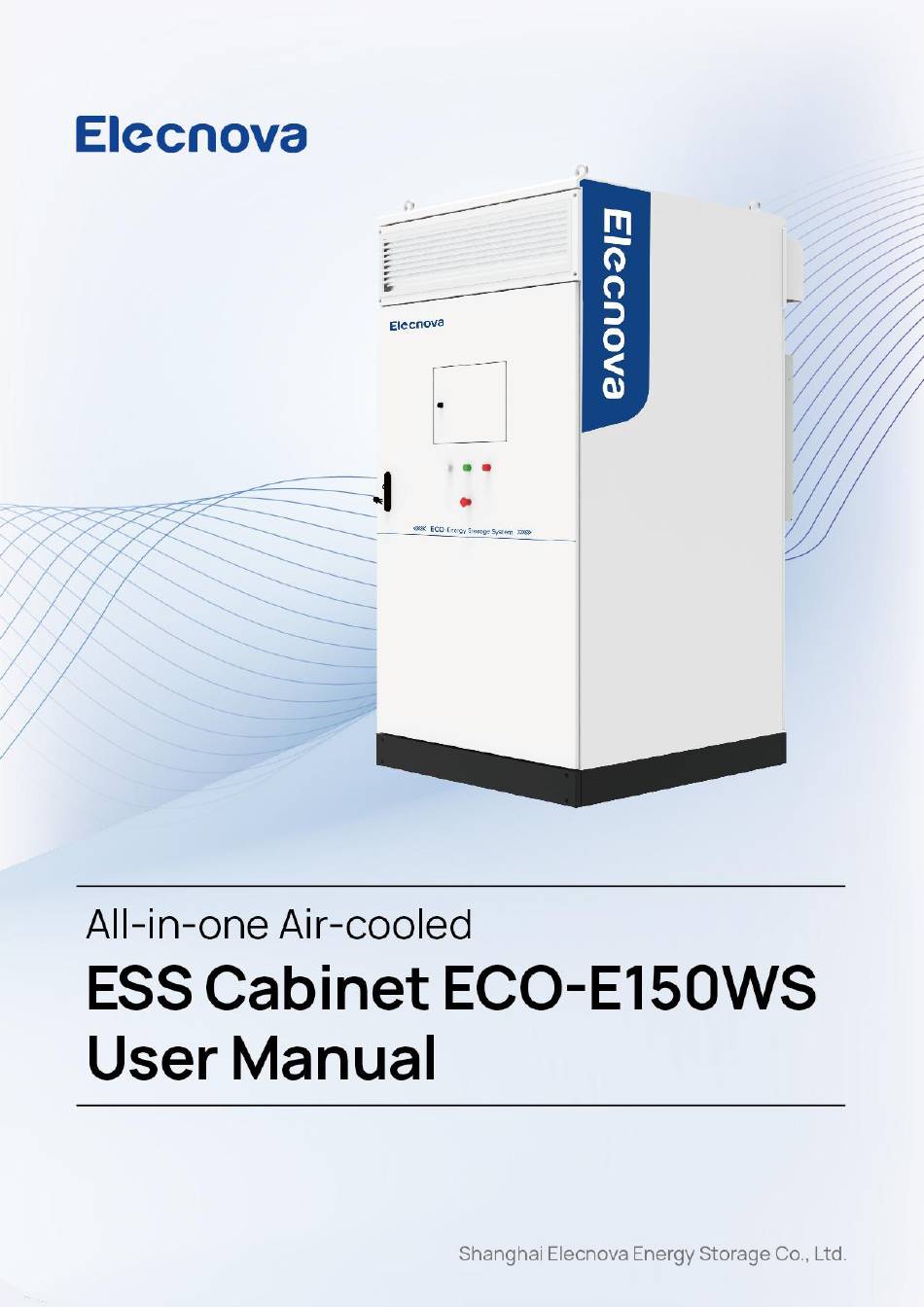

Elecnova ECO-E150WS User Manual

All-in-one air-cooled ess cabinet

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the ECO-E150WS and is the answer not in the manual?

Questions and answers

Summary of Contents for Elecnova ECO-E150WS

Page 2 The copyright and other intellectual property rights contained in this Manual belong to Elecnova. without the prior consent of Elecnova or its licensors, this Manual may not be modified or copied in whole or in part. The following are trademarks or registered trademarks of Elecnova in China and other countries: The use of other trademarks belonging to their respective owners in this Manual does not imply sponsorship or endorsement of their products or services by Elecnova.
Page 3: Table Of Contents
ECO-E150WS User Manual Table of Contents 1. About this manual ......................3 1.1 Preface ........................3 1.2 Applicable Product ....................3 1.3 Security Statement ....................3 1.4 Safety instructions ....................4 2. ESS Cabinet Introductions ....................5 2.1 System Overview ....................5 2.2 Technical parameters ....................6...
Page 4: About This Manual
Dear user, much appreciation for using the all-in-one air-cooled ESS Cabinet ECO-E150WS product (hereafter referred as ECO-E150WS, or the ESS Cabinet, or the Product) developed and produced by Shanghai Elecnova Energy Storage Co., Ltd. We sincerely hope that this product can meet your needs, and we also hope that you are satisfied with its performance and provide us with your valuable comments and suggestions.
Page 5: Safety Instructions
ECO-E150WS User Manual This label indicates that please read the user manual carefully before using the ESS Cabinet. This sign indicates that the battery is "prohibited from being discarded" or "prohibited from being thrown into the trash can". This label indicates that the product has passed relevant tests and evaluations and meets the safety, health, and environmental requirements of the European market.
Page 6: Ess Cabinet Introductions
HVAC and other components into a single ESS Cabinets. The ESS Cabinet has the characteristics of energy saving, small size, high energy density, high environmental flexibility, fast on-site installation, friendly-grid-access and easy capacity expansion etc. ECO-E150WS Cabinet appearance and the internal view are shown below as Figure 2-1 and Figure 2-2.
Page 7: Technical Parameters
ECO-E150WS User Manual Figure 2-1 ECO-E150WS Physical Image Figure 2-2 ECO-E150WS internal layout Note: EMS Control Box is named as BCQ box Product Advantages: Ingress Protection level IP55, supporting outdoor and indoor multi-scenario installation.  Fire early-warning + fully immersive Aerosol FSS ...
Page 8: System Diagram
Grid-tied operation mode  The AC side of ECO-E150WS is connected to the grid, and the DC side is internally connected to the lithium battery. It is applicable for scenarios such as power expansion, PV plus EV charging, peak shaving, demand management, power quality management. Based on the grid-tied P/Q operating mode,...
Page 9: Ports
ECO-E150WS User Manual Figure 2-4 ECO-E150WS Communication Diagram 2.5 Ports A-PACK Ports  Figure 2-5 A-PACK Panel...
Page 10 ECO-E150WS User Manual 1 2 3 4 5 6 7 Figure 2-6 7-pin plug Port Pin No. Pin Descriptions Pin Definitions External 24V power supply External 24V power supply BMS address automatic allocation Comm IN CAN0H BMS internal communication CAN0H...
Page 11 ECO-E150WS User Manual External 24V power supply CAN0L BMS internal communication CAN0L CAN0H BMS internal communication CAN0H BMS address automatic allocation External 24V power supply External 24V power supply High-voltage Box Ports  Figure 2-9 High-voltage Box Panel Port Device Name...
Page 12 ECO-E150WS User Manual Figure 2-11 GAM, GBM plug Ports Pin No. Pin Descriptions Pin Definitions BMU power supply BMU power supply BMU address allocation CAN0H BMS internal communication CAN0H CAN0L BMS internal communication CAN0L BMU power supply BMU power supply...
Page 13 ECO-E150WS User Manual BCQ Box Ports  Figure 2-11 BCQ box front panel Figure 2-12 BCQ box rear panel Port Device Name Function Description Remarks Symbol Connection control between AC main circuit breaker PCS and site AC 220V equipment power...
Page 14 Fire sprinkler trip QF3 Fire sprinkler trip QF3 Immersion signal feedback Smoke detection signal feedback Temperature detection signal feedback Sprinkling signal feedback Door/Access control signal feedback Emergency stop signal feedback Power supply switch trip signal feedback of POC cabinet corresponding to ECO-E150WS...
Page 15: Pcs
ECO-E150WS User Manual I/O signal common terminal HW-L1 Cabinet POWER indicator HG-L1 Cabinet RUN indicator HR-L1 Cabinet FAULT indicator Indicator power supply 24V- 485A2 Meter communication 485B2 Meter communication 485A3 PCS communication 485B3 PCS communication Main power supply switch trip signal feedback of...
Page 16 ECO-E150WS User Manual PCS Parameters  Item Technical Parameters Note DC Side Parameters Rated DC power (kW) Number of routes Max. input current (A) DC Voltage range (V) 672~950 Voltage stabilization accuracy ≤±2% Current stabilization accuracy ≤±5% Voltage limiting Support...
Page 17 ECO-E150WS User Manual Figure 2-16 PCS Panel Layout Item Description Indicator Steady-on in green when power is on; Fast flash in green at 0.5s intervals when standby; Slow flash in green at 1s intervals when power is off with no fault;...
Page 18: Fss
And Aerosol FSS device is simultaneously activated to extinguish the fire, meanwhile an electronic signals of FIRE emergency is transmitted to BMS, notifying all parties to take actions immediately. Figure 2-18 ECO-E150WS FSS logic block diagram FSS Components ...
Page 19: Ess Cabinet Operations
Personnel will be exposed to voltages up to 864 VDC from battery pack, and there is also the possibility of low- and medium-voltage AC exposure. Arc flash and electric shock hazards are common at ESS Cabinet sites. Elecnova encourages full compliance with the practices and procedures specified in NFPA 70E, including the use of personal protective equipment (PPE), to adequately mitigate hazards of arc flash.
Page 20 Emergency Stop in emergency situations. Do not start the ESS Cabinet until commissioning and inspection are completed by Elecnova on-site technicians. Do not restart ESS Cabinet before scheduled maintenance are completed. Do not modify or alter this manual without Elecnova's written permission.
Page 21: Cabinet Panel
ECO-E150WS User Manual 3.2 Cabinet Panel Hanging Ring Vents Grille Indicator Door Lock Emergency Stop Button Figure 3-1 ECO-E150WS Front View Item Quantity Remark Hanging ring For lifting the Cabinet Human machine Onsite parameters monitoring interface (HMI) Indicator light (white)
Page 22 ECO-E150WS User Manual Front door Indicator status Operation Conditions Remarks Indicator Status AC220V main power is on; control power is on. QF3 is switched on DC/DC power is on. 24V power is on. QF5 is switched on POWER indicator Both AC220V and DC/DC power are switched on, which means white QF2 and QF4 are both switched on.
Page 23 ECO-E150WS User Manual 17. Grid phase sequence fault; 18. Grid Phase missing fault; 19. Battery polarity reversal fault, reserved (for parallel use); 20. Module external CAN comm fault; 21. EEPROM read and write failure; 22. IGBT module over temperature fault;...
Page 24: Connection And Power-On
ECO-E150WS User Manual 1. IO module Fault; 2. 4G router Fault; 3. Industrial computer body fault; 4. Industrial switch fault; 5. IO module Communication fault; 6. 4G router Communication fault; 7. Industrial exchange Comm fault; 8. Comm fault with BMS (Indicator on, PCS running);...
Page 25: Charging And Discharging
Disconnect the breaker inside POC or DB to disconnect ESS Cabinet from Power Grid. The white  LED indicator on the Cabinet panel goes out, it indicates that ECO-E150WS, the ESS Cabinet, is successfully powered off. Note: Before powering off ECO-E150WS, please ensure that it has exited from the charge/discharge mode.
Page 26 ECO-E150WS User Manual model of CAN card. Examine the baud rate; Check the parameter configuration table: Be sure that EVBCM_Para_new.ini is consistent with  the design parameters of the battery system. Note: software installation package only recognizes ① “ControlCAN.dll”. Depending on file size, 52k is applicable to ZLG CAN card, and 36k is applicable to CAN analyzer (CANalyst-II).
Page 27 ECO-E150WS User Manual The CAN card device number needs to be distinguished when multiple CAN cards are ① shared on one computer System baud rate ② CAN card channel configuration, 0 represents "channel 1", 1 represents "channel 2" ③ The "master control mode" is suitable for working conditions with master control, while the ④...
Page 28 ECO-E150WS User Manual Region 3: Data status of battery system;  Region 4: Internal network alarm information of battery system;  Region 5: Manual simulation operation of battery system. The current system can simulate  "Do control": "Reset" is the upper computer restart button;...
Page 29: Operation Instructions For Hmi
ECO-E150WS User Manual columns to configuration table software for modification. Copy Default Value: Copy the data from “Default Value” column to “Actual Value” column. Battery system current, voltage op amp coefficient: ⑤ 1. "Read" is the current coefficient; 2. "Setting" is the modification factor.
Page 30: Ess Cabinet Fault Handling
If a fire is caused by abnormal charging or discharging, cut off the power supply immediately. Then extinguish the fire!!! 6. Warranty Statement Refer to Limited Warranty Letter for Elecnova ESS Products (Standard Edition). The warranty conditions are also subject to terms and conditions of a contract. 7. After-sales Services For any question about this product, find support with below contact info: Name: Shanghai Elecnova Energy Storage Co., Ltd.
Page 31 ECO-E150WS User Manual Https://www.Elecnova-ess.com To the extent permitted by laws, Elecnova has the final right of interpretation for this Manual. Elecnova reserves the right to modify this Manual without further notice.
Page 32 ECO-E150WS User Manual Annex 1: Yes –√ Abnormal Inspection Item Method -× Record N/A -O Is the fire extinguishing system complete Visual inspection Is the cooling system complete Visual inspection Is the air duct of cooling system blocked Visual inspection...
Page 33 ECO-E150WS User Manual Annex 2: Name Rated Voltage Rated Pole Number Current QF01 Mains circuit breaker AC415V/690V 225A 70KA 10In±20% 5～10In Power supply switch AC400V/415V 7.5KA inside the cabinet Air conditioning power AC400V/415V 7.5KA 5～10In switch Power control switch AC400V/415V 7.5KA...
