Summary of Contents for Appliance Desk EQUATOR EHC 20211

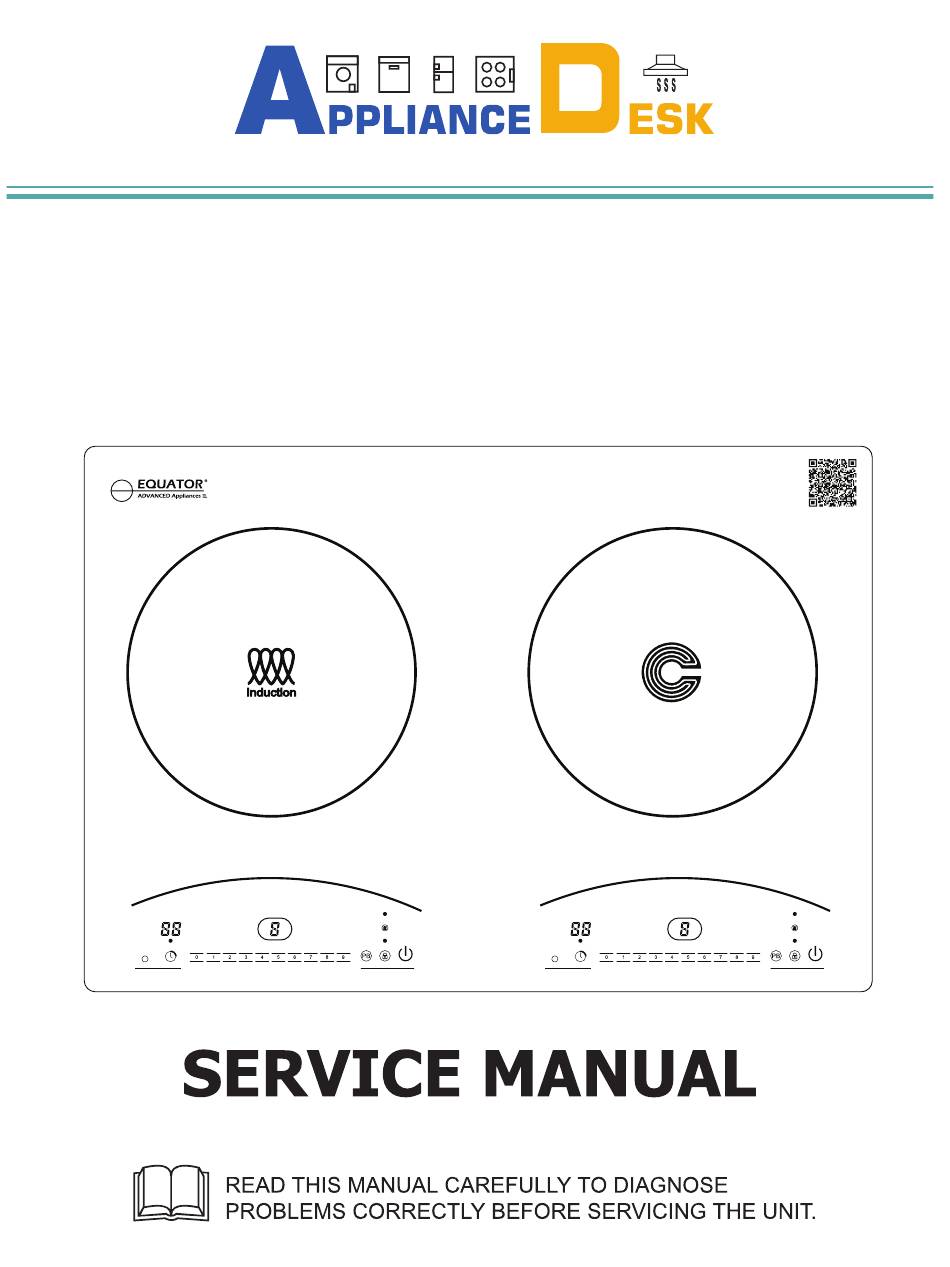

- Page 1 Built-In Electric Hybrid Cooktop Model: EHC 20211/ EHC 23422 / EHC 30422 / EHC 36532 Hybrid Induction-Ceramic Keep Warm Keep Warm POWER POWER Pause Pause...
- Page 2 Trouble Shooting For Ceramic Hob If you encounter a problem, it often will merely be something minor. Before you call customer service, review the charts on the following pages first and you may not to call for service. If an error occurs in the control operation, a fault code will flash in the display .Record the error code and call for service.
- Page 3 Trouble Shooting For Induction Hob If you encounter a problem, it often will merely be something minor. Before you call customer service, review the charts on the following pages first and you may not to call for service. If an error occurs in the control operation, a fault code will flash in the display .Record the error code and call for service.
- Page 4 The induction This is caused by the This is normal, but the noise should quieten hob makes a technology of down or disappear completely when you low humming induction cooking. decrease the heat noise when used on a high heat setting Fan noise A cooling fan built into...
- Page 5 Error code Possible Cause Remedy No Pan or did not detect the pan Put on the pan the sensor(NTC) is not fixed well NTC short or open voltage is higher than 260-275V,pls make it High voltage lower voltage is lower than 145-160V,pls make it Low voltage higher Change a main board...
- Page 6 CERAMIC HOB TEMPERATURE FOR ALL MODELS LEVEL TEMPERATURE(°C) 150~200 200~250 250~300 300~350 350~400 400~450 450~500 500~550 550~600 600~650 INDUCTION HOB WATT FOR EHC 20211 LEVEL 600W 600W 600W WATT intermittent intermittent intermittent 600W 700W 800W 1000W 1200W 1400W 1600W heating heating heating INDUCTION HOB WATT FOR EHC 23422...
- Page 7 Pls be noted that parts of different models will be a bit different. The below picts are the the sample of model EHC 20211. Change the control board 1. Unscrew the 4 screws of the control board 2. Pull out the wire connect on the control board. 3.
- Page 8 Change the main board 1. Unscrew the 3 screws of the coil 5. Screw the wires and connect the wires. 2. Unscrew the screws of the mainboard. 6. Tighten the screws of the main board. 3.Pull out the wires and unscrew the wires 7.
- Page 9 Change the filter board 1. Unscrew the filter board 2. Pull out the wires 3. Change a new filter board 4. Connect the wires 5. Tighten the filter board...
