- Page 1 User Guide MS-63DOC USB-C docking extension system – up to 100m Revision: 1.0 - Sept 2024...
-
Page 2: Table Of Contents
Do not disassemble either the Transmitter or Receiver units for any reason. Doing so will void the manufacturer’s warranty. • MSolutions reserves the right to change the specifications of this unit without prior notice. As a result of this, physical representations or graphical elements contained within this user guide may not be accurate. -
Page 3: Introduction
USB-C cable and extends it over a single Cat 6A cable up to 100 meters. More than a simple receiver, the MS-63DOC Device has an internal IP control unit that can manage all the third-party IP devices in the meeting room. -
Page 4: Connectivity Overview (Host And Device)

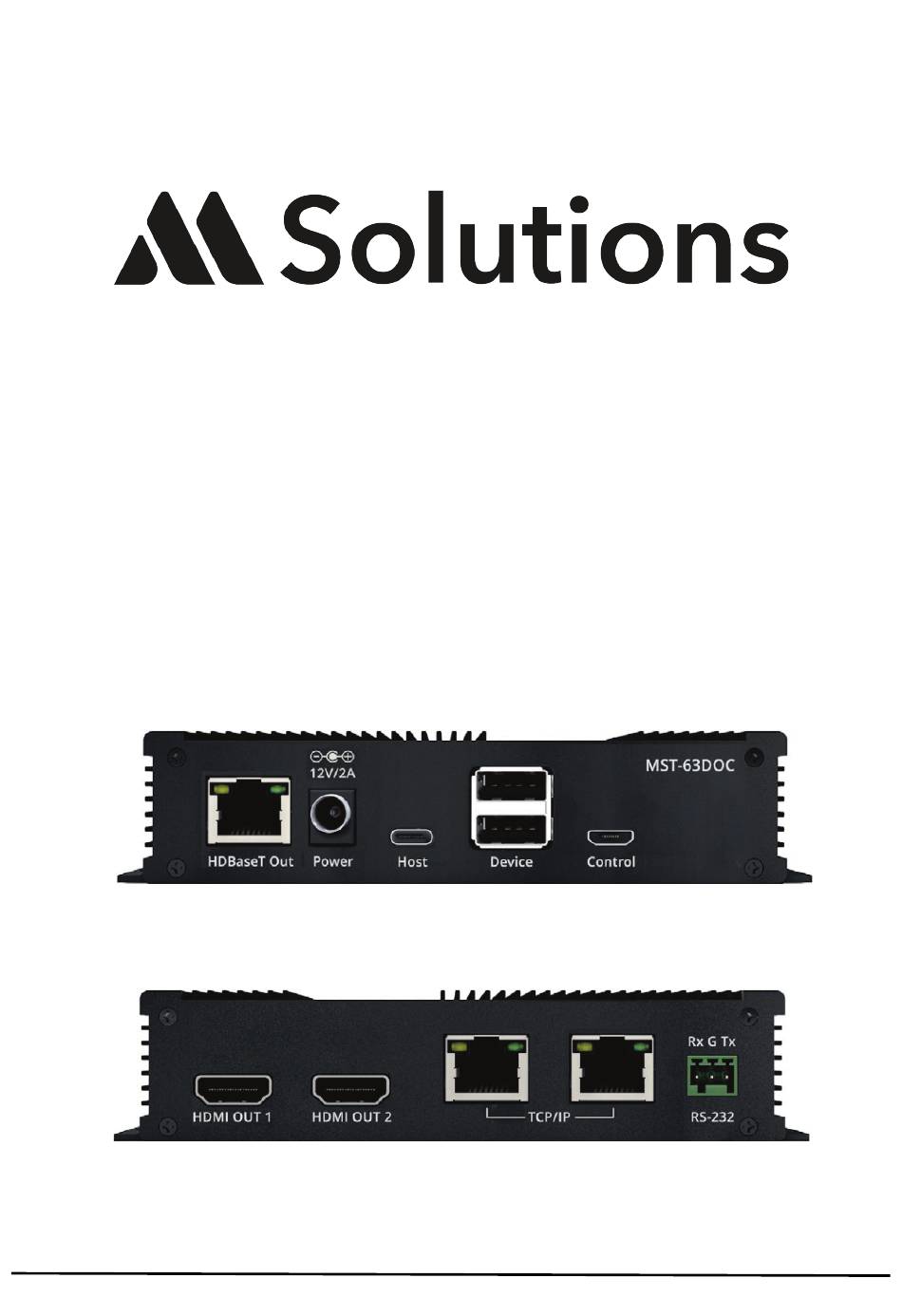

MS-63DOC USER GUIDE Connectivity Overview - Device ① ② ③ ④ ⑤ Front panel: ①+② - HDMI OUT 1,2 – 4K60FPS ③+④ - 1Gbps 2 port TJ45 Ethernet hub ⑤ - RS-232, 3-pin Phoenix connector to connect a serial device/controller ⑥... - Page 5 MS-63DOC USER GUIDE Connectivity Overview - Host ① ② ③ ④ ⑤ Front panel: ① - HDbaseT out – Link out ② - Power jack 12Vdc/2A ③ - USB-C – USB type C for the main connection to the Host PC (Full feature USB-C) ④...
-
Page 6: Understanding The Led's
T568B wiring standard as this format is less prone to EMI (Electro-Magnetic Interference). For the MS-63DOC it is recommended that a Category 6A minimum be used to get the best performance. -
Page 7: Hdmi, Usb, Ethernet Hub, Rs-232 Control
HDMI HDMI The MS-63DOC device has 2 ports of HDMI2.0 that support 4K60FPS resolution. The devices also support extended view for dual display work. Please note that some PCs may require Display Link drivers in order to transmit the video over the single USB-C. For details use the following links: Windows: www.synaptics.com/products/displaylink-graphics/downloads/windows-11.0-m0-public... -
Page 8: Power, Audio, Network Controller
12V/2A DC PSU supplied with the MSolutions MS-3doc to power the unit. Audio The MS-63DOC device has an analog stereo audio out 3.5mm port. The audio that plays is being transmitted over the same USB-C host connection. Built-in Network Controller The MS-63DOC system has a built-in network controller. -
Page 9: Specifications & Package Contents
• Operating humidity: 0-80% non condensing 60 x 84 x 25mm Package Contents • MS-63DOC Host & Device • 1 x 12V 2A power supply with US, UK & EU territory clips • 1 x 3-pin Phoenix connector • 1 x USB-C cable... -
Page 10: Schematic
MS-63DOC USER GUIDE Schematic... - Page 11 www.m4sol.com...
