AUTOOL C703
EV Charging Station
User Manual
www.autooltech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C703 and is the answer not in the manual?

Questions and answers

Summary of Contents for Autool C703

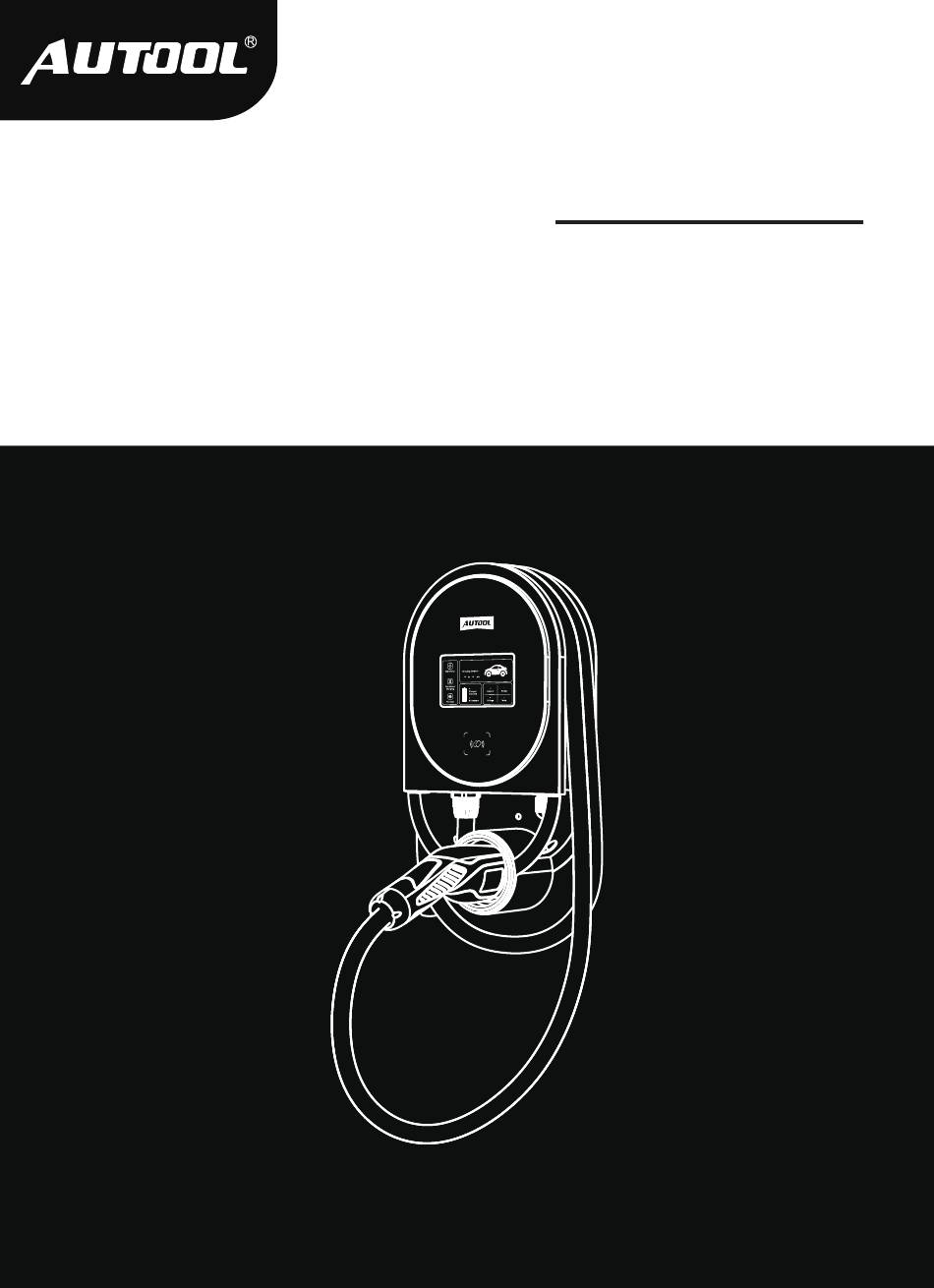

  • Page 1 AUTOOL C703 EV Charging Station User Manual www.autooltech.com...
  • Page 2 AUTOOL TECHNOLOGY CO.,LTD www.autooltech.com aftersale@autooltech.com +86-755-2330 4822 / +86-400 032 0988 Hangcheng Jinchi Industrial Park, Bao’an, Shenzhen,China Execution standard: GB/T 18487.1-2023...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Copyright Information..................3 Copyright......................3 Trademark ....................... 3 Important Guidelines..................4 Caution......................4 Safety guidelines..................... 4 Product Overview ....................6 Technical specifications................... 6 Product safety features ................... 6 Product Structure ....................8 Structure diagram.................... 8 Usage Instructions ..................... 9 Startup interface....................
  • Page 4 Wiring diagram ....................17 Maintenance Service ..................18 Maintenance....................18 Warranty ......................19 Warranty access....................19 Disclaimer ....................... 19 Return & Exchange Service ................20 Return & Exchange ..................20...
  • Page 5: Copyright Information

    COPYRIGHT INFORMATION Copyright ● All rights reserved by AUTOOL TECH. CO., LTD. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of AUTOOL.
  • Page 6: Important Guidelines

    IMPORTANT GUIDELINES Caution Before using this product, it is essential to pay close attention to the following instructions: When using this product, always adhere to essential safety measures, including the following instructions concerning fire and electric shock risks. Avoid installing or operating this product in proximity to flammable, explosive, chemical materials, or vapors.
  • Page 7 If there is any damage to the charging cable or the external shell of the charging gun, do not use the product. Please contact our aftersales service for assistance. When using this product for charging, ensure that the gun head is securely and properly connected to the vehicle.
  • Page 8: Product Overview

    PRODUCT OVERVIEW This product primarily consists of a charging station main unit, a charging gun, cables, and installation back brackets. It is an electric vehicle charging device that, when connected to the mains power supply, charges electric vehicles through the charging station and the charging gun's head.
  • Page 9 Overcurrent Protection ● If the current exceeds 35A, the charging station will shut off power and automatically resume after a 1-minute delay. Overvoltage Protection ● When the voltage exceeds 275V, the protection system activates and will automatically restore power once the voltage stabilizes.
  • Page 10: Product Structure

    PRODUCT STRUCTURE Structure diagram Display Screen Card Swipe Area Input Cable Charging Gun Head Charging Gun Cable Emergency Stop Switch...
  • Page 11: Usage Instructions

    USAGE INSTRUCTIONS Startup Connect the charging station to the electrical grid using the ● interface correct wiring method and supply power to the charging station. The display will appear as shown in the following image: Charging ● Use an IC card to access the charging interface (the default interface factory setting is card swipe mode to unlock the screen, and the screen will automatically turn off after 1 minutes of inactivity).
  • Page 12: Charging Methods

    Charging Standard Charging methods Insert the charging gun and tap the screen on “Start/Stop” to ● begin or terminate charging. Scheduled Charging ● Plug in the charging connector, tap “Schedule Charging” on the screen, set the future start and end times for charging, and click “Confirm.”...
  • Page 13: Unlocking Methods

    Unlocking Password Unlock methods ● Access the system settings, tap “Startup Mode”, and in the selection interface, double-tap “Input Password” Set a new password and tap “Confirm” to save and exit. On the standby screen, tap the screen to enter the password and access the main interface.
  • Page 14: Setting The Current

    Setting the ● Prior to initiating the charging process, go to the “System current Settings” interface, select “Current Setting”, and opt for the suitable current as required. Double-tap on the chosen current level, and the system will automatically save the current setting.
  • Page 15: Instructions For Connecting The Mobile Phone To The Device

    App usage Instant Charging instructions ● On the app homepage, tap “AUTOOL-C70X” to enter the device interface: Tap the switch and slide right to charge. Scheduled Charging ● On the app homepage, tap “AUTOOL-C70X” to enter the device interface: Tap “Charging Mode”, select the scheduled...
  • Page 16 ● The charging current must be between 6~32A; other values are invalid. Charging Record Inquiry and Export On the app homepage, tap “AUTOOL-C70X” to enter the ● device interface: To inquire records: Tap “Records“ to view. To export records: Tap “Settings > Export Charging Records >...
  • Page 17: Special Case Of The Product

    SPECIAL CASE OF THE PRODUCT Current The charger station has a rated current capacity of up to 32A. ● switching for It intelligently adapts its input current to match the specific charging power requirements of the vehicle, within the range of 0-32A. station However, if the power supply source cannot deliver the full (16A/32A)
  • Page 18: Installation

    INSTALLATION Installation ● This product must be installed by individuals who have been precautions trained and are qualified to work with electrical systems. ● Incorrect installation and testing of this product may result in damage to the vehicle's battery or the AC charging station itself.
  • Page 19: Wiring Diagram

    Wiring The input and output cables adhere to the national standard ● diagram 6-square copper core wire specifications. ● As shown in the diagram, connect the three wires at the input end of the charging station (L = Line, N = Neutral, PE = Protec- tive Earth) to the respective terminals on the circuit breaker.
  • Page 20: Maintenance Service

    MAINTENANCE SERVICE Our products are made of long-lasting and durable materials, and we insist on perfect production process. Each product leaves the factory after 35 procedures and 12 times of testing and inspec- tion work, which ensures that each product has excellent quality and performance.
  • Page 21: Warranty

    Disclaimer All information, illustrations, and specifications contained in this manual, AUTOOL resumes the right of modify this manual and the machine itself with no prior notice. The physical appearance and color may differ from what is shown in the manual, please refer to the actual product.
  • Page 22: Return & Exchange Service

    RETURN & EXCHANGE SERVICE ● If you are an AUTOOL user and are not satisfied with the Return & AUTOOL products purchased from the online authorized Exchange shopping platform and offline authorized dealers, you can return the products within seven days from the date of receipt;...
