Do you have a question about the TRAX 2025 and is the answer not in the manual?

Questions and answers

Tom
March 5, 2025

My rear camera is turned off. How do I turn it back on?

1 comments:
Mr. Anderson
May 14, 2025

In the 2025 Chevrolet Trax, the rear camera automatically activates when the vehicle is shifted into reverse.

This answer is automatically generated

Ruth
January 22, 2025

My engine light was on when I started the car this ****. This afternoon the engine light is no longer on.

1 comments:
Mr. Anderson
February 10, 2025

The engine light in a 2025 Chevrolet Trax could turn on and then off due to a detected malfunction that later resolves. This may happen if improper fuel was used, requiring at least one full tank of the correct fuel for the light to turn off. If the issue persists, diagnosis and service may be required.

This answer is automatically generated

Gregory Kruszeski
January 21, 2025

how long does a water pump last in a 2025 chevy trax?

1 comments:
Nunya
January 25, 2025

@Gregory Kruszeski It will likely outlast the wet belt that will take these engines out at around 60k miles. Avoid.

Kathy B Hall
June 2, 2025

Does the hatch back lock when you lock the doors

William A Gruver
May 30, 2025

where can you plug the fixd in my car

William A Gruver
May 30, 2025

were to plug a fixd in to a 2025 chev. trax

Lelia Taylor
May 29, 2025

What does the Bell Icon mean?

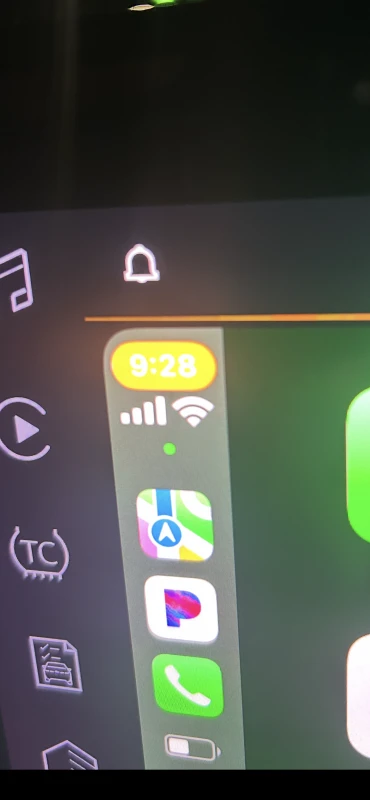

User image 6837ca66a91bd
Kathleen Schuck
March 8, 2025

How to adjust the Head Tilt on the Headrest

Kerry Britt
May 18, 2025

Is the 2025 Trax able to be flat towed behind an RV?

1 comments:
Mr. Anderson
May 23, 2025

No, the 2025 Chevrolet Trax cannot be flat towed behind an RV. Recreational vehicle towing requires the vehicle to be in Neutral and the Electric Parking Brake released, but the manual specifies using a flatbed tow truck for transporting the vehicle.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Chevrolet TRAX 2025

  • Page 1 2025 TRAX Owner’s Manual...
  • Page 2: Table Of Contents

    Contents Introduction California Proposition 65 Warning Introduction ............1 Keys, Doors, and Windows ........ 6 Seats and Restraints ..........29 Storage ..............72 Instruments and Controls ........ 76 Lighting ..............106 Infotainment System ........113 Climate Controls ..........156 Driving and Operating ........162 Vehicle Care ............216 Service and Maintenance .......285 Technical Data ..........
  • Page 3: Introduction

    Propriétaires Canadiens Warning messages found on vehicle labels and limited to, GM, the GM logo, CHEVROLET, the in this manual describe hazards and what to do On peut obtenir un exemplaire de ce guide CHEVROLET Emblem, and TRAX are trademarks to avoid or reduce them.
  • Page 4 Introduction : Lane Change Alert : Shown when there is more information on Caution another page — “see page.” : Lane Departure Warning Caution indicates a hazard that could result Vehicle Symbol Chart : Lane Keep Assist in property or vehicle damage. Here are some additional symbols that may be : Malfunction Indicator Lamp found on the vehicle and what they mean.
  • Page 5 Introduction   Instrument Panel Overview Uplevel Shown, Base Level Similar...
  • Page 6 Introduction 1. Air Vents 3 160. 9. USB Port (11 Inch Screen Radio) 3 120. 20. Cruise Control 3 189. Adaptive Cruise Control (Camera) 2. Turn Signal Lever. See Turn and Lane- 10. Wireless Charging 3 80 (If Equipped). 3 190 (If Equipped). Change Signals 3 109. 11.
  • Page 7: Keys, Doors, And Windows

    Keys, Doors, and Windows Keys, Doors, and Windows Keys and Locks Interior Mirrors Interior Rearview Mirrors ......25 Keys (Keyless Access) Manual Rearview Mirror .......26 Keys and Locks Automatic Dimming Rearview Mirror ..26 Keys (Keyless Access) ........6 Windows Warning Keys (Key Access) ..........
  • Page 8: Keys (Key Access)

    Keys, Doors, and Windows To remove the key, press the button on the side of the RKE transmitter and pull the key out. Never pull the key out without pressing the button. If it becomes difficult to turn the key, inspect the key blade for debris.
  • Page 9 Keys, Doors, and Windows It is important that any replacement ignition Interference from radio-frequency Warning (Continued) keys have a small hole. See your dealer if identification (RFID) tags may prevent the key a replacement key is required. from starting the vehicle. Keep RFID tags away do not change the way the ignition key and from the key when starting the vehicle.
  • Page 10: Remote Key

    Keys, Doors, and Windows If it becomes difficult to turn the key in the The turn signal indicators may flash and/or Remote Key Operation (Keyless ignition, inspect the key blade for debris. the horn may sound on the second press to Access) Periodically clean with a brush or pick.
  • Page 11 Keys, Doors, and Windows The turn signal indicators may flash to indicate Keyless Access can be programmed to unlock Pressing the lock/unlock button will cause all unlocking. To view available settings for this all doors on the first unlock/lock button press doors to lock if any of the following occur: •...
  • Page 12 Keys, Doors, and Windows Disabling Keyless Unlocking: lock with the RKE transmitter inside the is not detected, the Driver Information Center vehicle. Do not leave the RKE transmitter in (DIC) will display NO REMOTE DETECTED and With the vehicle off, press and hold an unattended vehicle.
  • Page 13 Keys, Doors, and Windows To program, the vehicle must be off and all 4. Press ENGINE START/STOP. When the 1. Remove the key lock cylinder cap on the of the transmitters, both currently recognized transmitter is learned the DIC display will driver door handle.
  • Page 14 Keys, Doors, and Windows 7. Put the key back into the transmitter. To start the vehicle: 8. Replace the key lock cylinder cap. See Door Locks 3 18. Operating on Vehicles with Transmitter in case of Failure When starting the vehicle, if the RKE transmitter battery is depleted or there is signal interference, the DIC may display NO REMOTE DETECTED, REPLACE BATTERY IN KEY...
  • Page 15: Remote Key Operation (Key Access)

    Keys, Doors, and Windows 3. Remove the battery by pushing on the Caution battery and sliding it toward the bottom of the transmitter. When replacing the battery, do not touch 4. Insert the new battery, positive side facing any of the circuitry on the transmitter. the back cover.
  • Page 16 Keys, Doors, and Windows three seconds to sound the panic alarm. The Pressing may also arm the alarm system. See horn sounds and the turn signal lamps flash for Vehicle Alarm System 3 23. 30 seconds, or until is pressed again or the : Press to unlock the driver door.
  • Page 17 Keys, Doors, and Windows 5. Insert the new key to be programmed and 5. Repeat Steps 2–4 two more times. After the turn the ignition on within five seconds. The third time, turn the ignition on; the key is security light will turn off once the key has learned and all previously known keys will been programmed.
  • Page 18: Remote Start

    Keys, Doors, and Windows 2. Remove the battery with a small tool Other conditions can affect the performance The rear window defogger and heated mirrors, by pushing it toward the top of of the transmitter. See Remote Key Operation if equipped, turn on during colder outside the transmitter.
  • Page 19: Door Locks

    Keys, Doors, and Windows A maximum of two remote starts or remote To lock/unlock the doors from the outside: Door Locks start with an extension are allowed between • Press on the Remote Keyless Entry ignition cycles. (RKE) transmitter. See Remote Key Warning After the vehicle's engine has been started two Operation (Keyless Access) 3 9 Remote Key...
  • Page 20 Keys, Doors, and Windows Keyless Access Driver Door Key Lock Cylinder Access (In To access the driver door key lock cylinder: Case of Dead Battery) 1. Pull the door handle (1) to the open position and hold it open until cap removal is complete.
  • Page 21: Power Door Locks

    Keys, Doors, and Windows To replace the cap: 2. Press and install the cap in place. : Press to lock the doors. 1. Insert the tab (5) at the back of the cap in the 3. Check that the cap is secure. : Press to unlock the doors.
  • Page 22: Lockout Protection

    Keys, Doors, and Windows To unlock the doors: Open Door Anti-Lockout If equipped, the safety lock is on the inside edge • of the rear doors. To use the safety lock: If Open Door Anti-Lockout has been turned on Press on the power door lock switch.
  • Page 23: Doors Liftgate

    Keys, Doors, and Windows Doors Warning (Continued) Liftgate • If the vehicle is equipped with a power liftgate, disable the power Warning liftgate function. See Engine Exhaust 3 182. Exhaust gases can enter the vehicle if it is driven with the liftgate or trunk/ hatch open, or with any objects that Caution pass through the seal between the body...
  • Page 24: Vehicle Security

    Keys, Doors, and Windows The liftgate has an electric latch. If the The indicator light, on the instrument panel The vehicle alarm system will not arm if the battery is disconnected or has low voltage, the near the windshield, indicates the status of doors are locked with the key.
  • Page 25: Immobilizer

    Keys, Doors, and Windows To avoid setting off the alarm by accident: The vehicle is automatically immobilized when If the vehicle will not change ignition • the vehicle is turned off. modes, and the RKE transmitter appears Lock the vehicle after all occupants have left to be undamaged, try another transmitter.
  • Page 26: Exterior Mirrors

    Keys, Doors, and Windows Exterior Mirrors Lane Change Alert (LCA) Power Mirrors The vehicle may have LCA. See Lane Change Convex Mirrors Alert (LCA) 3 207. Side Blind Zone Alert (SBZA) Warning Side Blind Zone Alert (SBZA) If equipped, See A convex mirror can make things, like other Side Blind Zone Alert (SBZA) 3 207.
  • Page 27: Manual Rearview Mirror

    Keys, Doors, and Windows Do not spray glass cleaner directly on the Warning (Continued) mirror. Use a soft towel dampened with water. a vehicle with children.  When there are Manual Rearview Mirror children in the rear seat, use the window If equipped, push the tab forward for daytime lockout switch to prevent operation of the use and pull it rearward for nighttime use to windows.
  • Page 28: Sun Visors

    Keys, Doors, and Windows Roof The windows may be temporarily disabled if Window Express Movement they are used repeatedly within a short time. All windows can be opened without holding Sunroof the window switch. Press the switch down Window Lockout fully and quickly release to express open If equipped, the ignition must be on or the window.
  • Page 29 Keys, Doors, and Windows Sunroof Switch Express-Open/Express-Close : If an object is in the path while express closing, debris. Wipe the sunroof seal and roof sealing To express-open the sunroof, fully press and the reversal system will detect an object, stop, area using a clean cloth, mild soap, and water.
  • Page 30: Seats And Restraints

    Seats and Restraints Seats and Restraints Head Restraints When Should an Airbag Inflate? ....46 What Makes an Airbag Inflate? ....47 Front Seats How Does an Airbag Restrain? ....47 Head Restraints What Will You See After an Airbag Inflates? ............48 Head Restraints ..........
  • Page 31 Seats and Restraints Adjust the head restraint so that the top of the Rear Seats Folding the Rear Head Restraint restraint is at the same height as the top of The vehicle’s rear seats have adjustable head The head restraint can be folded rearward to the occupant's head.
  • Page 32: Front Seats Seat Adjustment

    Seats and Restraints Front Seats 2. Slide the seat to the desired position and release the handle. Seat Adjustment 3. Try to move the seat back and forth to be sure it is locked in place. Seat Position Height Adjustment Warning You can lose control of the vehicle if you try to adjust a driver seat while the vehicle is...
  • Page 33: Power Seat Adjustment

    Seats and Restraints Power Seat Adjustment Reclining Seatbacks Warning Warning You can lose control of the vehicle if you try If either seatback is not locked, it could to adjust a driver seat while the vehicle is move forward in a sudden stop or crash. moving.
  • Page 34 Seats and Restraints 2. Move the seatback to the desired position, Power Seat Warning (Continued) then release the lever to lock the seatback in place. The lap belt could go up over your abdomen. 3. Push and pull on the seatback to make sure The belt forces would be there, not at it is locked.
  • Page 35: Lumbar Adjustment

    Seats and Restraints Press the control once for the highest setting. Lumbar Adjustment Warning (Continued) With each press of the control, the heated seat will change to the next lower setting, and then on the seat that insulates against heat, the off setting.
  • Page 36: Rear Seats

    Seats and Restraints Warning Warning If you fold the seatback forward to carry If either seatback is not locked, it could longer objects, such as skis, be sure any move forward in a sudden stop or crash. such cargo is not near an airbag. In a crash, That could cause injury to the person an inflating airbag might force that object sitting there.
  • Page 37 Seats and Restraints The feature is active only once each time the To fold the seatback: vehicle is turned on and off, and will require reactivation by opening and closing the rear doors. There may be an alert even when there is nothing in the rear seat;...
  • Page 38: Seat Belts

    Seats and Restraints Seat Belts This vehicle has indicators as a reminder to Warning buckle the seat belts. See Seat Belt Reminders This section describes how to use seat belts 3 89. A seat belt that is improperly routed, properly, and some things not to do. not properly attached, or twisted will not Why Seat Belts Work provide the protection needed in a crash.
  • Page 39: Buckle To Drive

    Seats and Restraints Questions and Answers About Seat Belts If the vehicle is on and the brake pedal is pressed If the driver, or on some vehicles, the present with the vehicle in P (Park) but the driver seat front passenger seat belt remains unbuckled, Will I be trapped in the vehicle after belt is not buckled, a message displays in the the DIC message will turn off after several...
  • Page 40 Seats and Restraints • There are important things to know about Wear the shoulder belt over the shoulder wearing a seat belt properly. and across the chest. These parts of the body are best able to take belt restraining forces. The shoulder belt locks if there is a sudden stop or crash.
  • Page 41: Lap-Shoulder Belt

    Seats and Restraints Warning You can be seriously injured or killed if the shoulder belt is worn behind your back, under your legs, or wrapped around your neck. The shoulder belt can tighten but cannot be loosened if it is locked. The shoulder belt locks when it is pulled all the way out of the retractor.
  • Page 42 Seats and Restraints on the seat, move the seat rearward or recline the seat until the shoulder belt retractor lock releases. Engaging the child restraint locking feature in the front outboard seating position may affect the passenger sensing system. See Passenger Sensing System 3 49.
  • Page 43: Seat Belt Use During Pregnancy

    Seats and Restraints To unlatch the belt, push the release Pretensioners work only once. If the pushbutton on the buckle. The belt should pretensioners activate in a crash, the return to its stowed position. pretensioners and probably other parts of the vehicle seat belt system will need to be Always stow the seat belt slowly.
  • Page 44: Seat Belt Extender

    Seats and Restraints But if a seat belt is not long enough, your dealer by reversing the latch plate on the webbing. If will order you an extender. Only a GM issued the twist cannot be corrected, ask your dealer extender should be used. When you go in to to fix it.
  • Page 45: Replacing Seat Belt System Parts After A Crash

    Seats and Restraints • may have been stressed or damaged. See A roof-rail airbag for the front outboard Warning your dealer to have the seat belt assemblies passenger and the rear passengers inspected or replaced. seated directly behind the front Do not bleach or dye seat belt webbing.
  • Page 46: Where Are The Airbags

    Seats and Restraints Warning (Continued) Warning You can be severely injured or killed in airbag, as you would be if sitting on the a crash if you are not wearing your seat belt, edge of the seat or leaning forward. Seat even with airbags.
  • Page 47: When Should An Airbag Inflate

    Seats and Restraints The driver frontal airbag is in the center of the Warning (Continued) steering wheel. The front outboard passenger frontal airbag is between an occupant and an airbag, and in the passenger side instrument panel. do not attach or put anything on the steering wheel hub or on or near any other airbag covering.
  • Page 48: What Makes An Airbag Inflate

    Seats and Restraints Frontal airbags are designed to inflate in Roof-rail airbags are designed to inflate in How Does an Airbag Restrain? moderate to severe frontal crashes to help moderate to severe side crashes depending on In moderate to severe frontal collisions, even reduce the potential for severe injuries, mainly the location of the impact.
  • Page 49: What Will You See After An Airbag Inflates

    Seats and Restraints What Will You See After an Airbag Warning (Continued) Warning Inflates? have breathing problems but cannot get A crash severe enough to inflate the After frontal and seat-mounted side impact out of the vehicle after an airbag inflates, airbags may have also damaged important airbags inflate, they quickly deflate, so quickly then get fresh air by opening a window...
  • Page 50: Passenger Sensing System

    Seats and Restraints • The vehicle has a crash sensing According to accident statistics, children are and diagnostic module which records safer when properly secured in a rear seat in the information after a crash. See Vehicle Data correct child restraint for their weight and size. Recording and Privacy 3 305 and Event Data Whenever possible, children aged 12 and under Recorders 3 306.
  • Page 51 Seats and Restraints When the passenger sensing system has Warning (Continued) Warning turned off the front outboard passenger frontal airbag, the OFF indicator will light and stay lit as Never put a rear-facing child restraint in If the airbag readiness light ever comes a reminder that the airbag is off.
  • Page 52 Seats and Restraints Restraints (With the Seat Belt in the Rear secure the child restraint in a rear seat. Never 2. Remove any additional material from the put a rear-facing child restraint in the front seat, seat, such as blankets, cushions, seat Seat) 3 67 Securing Child Restraints (With even if the ON indicator is not lit.
  • Page 53: Servicing The Airbag-Equipped Vehicle

    Seats and Restraints your specific vehicle. See Adding Equipment Warning Warning to the Airbag-Equipped Vehicle 3 52 for more information about modifications that If the front outboard passenger airbag is For up to 10 seconds after the vehicle is can affect how the system operates. turned off for an adult-sized occupant, the turned off and the battery is disconnected, The ON indicator may be lit if an object, such...
  • Page 54: Airbag System Check

    Seats and Restraints • Front seats, including stitching, seams sensing system from properly turning off the Caution or zippers passenger airbag(s). See Passenger Sensing • System 3 49. Seat belts If an airbag covering is damaged, opened, or • If the vehicle has rollover roof-rail airbags, broken, the airbag may not work properly.
  • Page 55: Child Restraints Older Children

    Seats and Restraints If an airbag inflates, you will need to replace The manufacturer instructions that come with What is the proper way to wear airbag system parts. See your dealer for service. the booster seat state the weight and height seat belts? limitations for that booster.
  • Page 56: Infants And Young Children

    Seats and Restraints Warning Warning Warning Never allow more than one child to wear Never allow a child to wear the seat Children can be seriously injured or killed the same seat belt. The seat belt cannot belt shoulder belt under both arms or if the shoulder belt is worn behind their properly spread the impact forces.
  • Page 57 Seats and Restraints Warning Warning Warning Children can be seriously injured or killed Never hold an infant or a child while riding Children who are up against, or very close if the shoulder belt is worn behind their in a vehicle. Due to crash forces, an infant to, any airbag when it inflates can be back, under their legs, or wrapped around or a child will become so heavy it is not...
  • Page 58: Child Restraint Systems

    Seats and Restraints Child restraints are devices used to restrain, Child Restraint Systems Warning seat, or position children in the vehicle and are sometimes called child seats or car seats. To reduce the risk of neck and head injury in a crash, infants and toddlers should There are three basic types of child restraints: be secured in a rear-facing child restraint •...
  • Page 59 Seats and Restraints Forward-Facing Child Restraint Booster Seats Backless Booster A forward-facing child restraint provides A belt-positioning booster seat is used for Backless booster fitment requirement: restraint for the child's body with the harness. children who have outgrown their forward- Some backless booster seats are not suitable facing child restraint.
  • Page 60: Where To Put The Restraint

    Seats and Restraints Securing an Add-On Child Restraint in When securing an add-on child restraint, see Securing the Child Within the the following: the Vehicle Child Restraint • Instruction labels provided on the child restraint Warning Warning • Instruction manual provided with the A child can be seriously injured or killed A child can be seriously injured or killed in child restraint...
  • Page 61: Lower Anchors And Tethers For Children (Latch System)

    Seats and Restraints When securing a child restraint with the Keep in mind that an unsecured child restraint Warning seat belts in a rear seat position, study the can move around in a collision or sudden instructions that came with the child restraint stop and injure people in the vehicle.
  • Page 62 Seats and Restraints can be done as long as the booster seat can be positioned properly and there is no interference with the proper positioning of the lap-shoulder belt on the child. Make sure to follow the instructions that came with the child restraint, and also the instructions in this manual.
  • Page 63 Seats and Restraints For a forward-facing 5-pt harness child restraint where the combined weight of the child and restraint are up to 29.5 kg (65 lb), use either the lower LATCH anchorages with the top tether anchorage, or the seat belt with the top tether anchorage. Where the combined weight of the child and restraint are greater than 29.5 kg (65 lb), use the seat belt with the top tether anchorage only.
  • Page 64 Seats and Restraints Restraints (With the Seat Belt in the Rear Seat) Top Tether Anchor Some child restraints with top tethers are designed for use with or without the top tether 3 67 Securing Child Restraints (With the Seat being attached. Others require the top tether Belt in the Front Seat) 3 69.
  • Page 65 Seats and Restraints The lower anchors are behind the vertical For models with a cargo cover, the top tether openings in the seat cushion trim located below anchors are on the back of the rear seatbacks. the anchor label. Remove the cargo cover before installing the top tether.
  • Page 66 Seats and Restraints Securing a Child Restraint Designed for the Caution Warning LATCH System Children can be seriously injured or Do not let the LATCH attachments rub Warning strangled if a shoulder belt is wrapped against the vehicle’s seat belts. This may around their neck.
  • Page 67 Seats and Restraints Find the lower anchors for the If the position you are using does If the position you are using has desired seating position. not have a head restraint and you an adjustable headrest or head are using a single tether, route the restraint, adjust it accordingly to Put the child restraint on the seat.
  • Page 68: Replacing Latch System Parts After A Crash

    Seats and Restraints using a dual tether, route the is secured in the vehicle using a seat belt and Warning (Continued) tether around the headrest or head it uses a top tether, see Lower Anchors and restraint posts. Tethers for Children (LATCH System) 3 60 for resulting in serious injury or even death top tether anchor locations.
  • Page 69 Seats and Restraints the seat belt webbing is routed as direct 5. To tighten the belt, push down on the child as possible, and is not caught on seat restraint, pull the shoulder portion of the handles or plastic trim. The child restraint belt to tighten the lap portion of the belt, instructions will show you how.
  • Page 70: Securing Child Restraints (With The Seat Belt In The Front Seat)

    Seats and Restraints 8. Before placing a child in the child restraint, Securing Child Restraints (With Warning (Continued) make sure it is securely held in place. To the Seat Belt in the Front Seat) check, firmly grip the child restraint at the or killed if the front outboard passenger seat belt path and attempt to move it side This vehicle has airbags.
  • Page 71 Seats and Restraints or if the instructions that come with the as possible, and is not caught on seat child restraint say that the top tether must handles or plastic trim. The child restraint be anchored. instructions will show you how. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached.
  • Page 72 Seats and Restraints 6. To tighten the belt, push down on the 8. Before placing a child in the child restraint, child restraint, pull the shoulder portion of make sure it is securely held in place. To the belt to tighten the lap portion of the check, firmly grip the child restraint at the belt, and feed the shoulder belt back into seat belt path and attempt to move it side...
  • Page 73: Storage

    Storage Storage Storage Compartments Warning Storage Compartments Storage Compartments ......... 72 Do not store heavy or sharp objects in Instrument Panel Storage ......72 storage compartments. In a crash, these Glove Box ............72 objects may cause the cover to open and Cupholders ............73 could result in injury.
  • Page 74: Cupholders

    Storage Cupholders Center Console Storage Warning Do not place objects on the cargo cover. Sudden stops or turns can cause objects to be thrown in the vehicle. You or others could be injured. If equipped, the cargo cover can be used to cover items in the rear of the vehicle.
  • Page 75: Cargo Management System

    Storage To install the cargo cover: Warning Triangle 1. Connect each end of cover to the pivot supports on the trim panel (2). 2. Reconnect both of the cords to the hooks at the top of the liftgate (1). Cargo Management System Sedan Load Floor The cargo management system has an angle adjustment to secure the load floor while...
  • Page 76 Storage lb) or the weight designated in the instructions Warning that came with the cross rails or other roof rack accessories, whichever is less. Before driving and occasionally during a trip, check that cargo is securely fastened, Warning rests evenly between the cross rails and does not block the vehicle's lamps or Never load the roof rack with more weight windows.
  • Page 77: Instruments And Controls

    Instruments and Controls Instruments and Controls Brake System Warning Light ....... 93 Information Displays Electric Parking Brake Light ......93 Driver Information Center (DIC) (Base Service Electric Parking Brake Light ....93 Level) ............. 99 Controls Antilock Brake System (ABS) Warning Driver Information Center (DIC) Light ...............94 Steering Wheel Adjustment ......77 (Uplevel) ............
  • Page 78: Controls

    Instruments and Controls Controls Heated Steering Wheel Windshield Wiper/Washer Steering Wheel Adjustment Windshield Wiper with Intermittent Wipes (INT Shown) : If equipped with a heated steering wheel, press to turn on or off. A light near the button To adjust the steering wheel: displays when the feature is turned on.
  • Page 79: Rear Window Wiper/Washer

    Instruments and Controls windshield, carefully loosen or thaw them. Wiper Arm Assembly Protection Rear Window Wiper/Washer Damaged blades should be replaced. See Wiper When using an automatic car wash, move the The rear wiper/washer controls are on the end Blade Replacement 3 236. Heavy snow or ice windshield wiper lever to OFF.
  • Page 80: Compass

    Instruments and Controls Rear Wiper Arm Assembly Protection Compass Power Outlets When using an automatic car wash, move the The vehicle may have a compass display on the rear wiper control to OFF to disable the rear Power Outlets 12-Volt Direct Current Driver Information Center (DIC).
  • Page 81: Wireless Charging

    Instruments and Controls If equipped and enabled, the vehicle has Wireless Charging Caution wireless charging in the storage bin at the front of the floor console . The system operates at 145 Leaving electrical equipment plugged in Warning kHz and wirelessly charges one Qi compatible for an extended period of time while the smartphone.
  • Page 82 Instruments and Controls A thick smartphone case may prevent battery. The phone may need to be removed the charger from working, or reduce the from its case to prevent overheating. The charging performance. See your dealer for may flash while the phone is cooling down additional information.
  • Page 83: Warning Lights, Gauges, And Indicators

    Instruments and Controls Freescale-WCT library ARE DISCLAIMED. IN NO EVENT SHALL THE gauges shows there may be a problem, check COPYRIGHT HOLDER OR CONTRIBUTORS BE the section that explains what to do. Waiting to Copyright (c) 2012-2014 Freescale LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, do repairs can be costly and even dangerous.
  • Page 84: Instrument Cluster (Base Level)

    Instruments and Controls Selecting menu and functions Instrument Cluster (Base Level) Use the controls to open and scroll through the different items and displays. : Press to set or clear the menu item when it is displayed : Turn the band to scroll through the menu items.
  • Page 85 Instruments and Controls See Driver Information Center (DIC) (Base Level) 3 99 Driver Information Center (DIC) (Uplevel) 3 101.
  • Page 86: Instrument Cluster (Uplevel)

    Instruments and Controls Infotainment: Displays one information zone Instrument Cluster (Uplevel) under the speedometer. Gauge: Displays no information zones and the gauges are located to the left and right of the speedometer. Use the right steering wheel control to open and scroll through the different items English Info Layout Shown, Other Layouts, and Metric Similar and displays.
  • Page 87: Speedometer

    Instruments and Controls The following conditional gauges may be The trip odometer on the uplevel instrument displayed while in a particular driver mode: cluster is accessed and reset through the • Vehicle Status. See Vehicle Status (Uplevel only) Engine Oil Temperature 3 102.
  • Page 88 Instruments and Controls The fuel gauge may: • Take a little more, or less fuel to fill up than it indicates. For example, the gauge may have indicated the tank is half full, but it actually will take a little more, or less than half the tank's capacity to fill the tank.
  • Page 89: Engine Coolant Temperature Gauge

    Instruments and Controls Engine Coolant Temperature Gauge English Base Level Metric Uplevel Info Layout Shown, Other Layouts Similar Metric Base Level...
  • Page 90: Seat Belt Reminders

    Instruments and Controls Seat Belt Reminders Driver Seat Belt Reminder Light There is a driver seat belt reminder light on the instrument cluster. When the vehicle is started, this light flashes and a chime may come on to remind passengers to fasten their seat belt.
  • Page 91: Passenger Airbag Status Indicator

    Instruments and Controls sensing system, the pretensioners, the airbag If there is a problem with the airbag system, When the vehicle is started, the passenger modules, the wiring, and the crash sensing and a Driver Information Center (DIC) message may airbag status indicator will light ON and OFF, or diagnostic module.
  • Page 92: Charging System Light

    Instruments and Controls When this light comes on, or is flashing, the Malfunctions are often indicated by the system Warning Driver Information Center (DIC) also displays before any problem is noticeable. Being aware a message. of the light and seeking service promptly when If the airbag readiness light ever comes it comes on may prevent damage.
  • Page 93 Instruments and Controls If the light is flashing: A malfunction has Check the following: Emissions Inspection and • been detected that could damage the emission Maintenance Programs If fuel has been added to the vehicle using control system and increase vehicle emissions. the capless funnel adapter, make sure that If the vehicle requires an Emissions Inspection/ Diagnosis and service may be required.
  • Page 94: Brake System Warning Light

    Instruments and Controls for inspection and might require several This light comes on briefly when the vehicle is Electric Parking Brake Light days of routine driving before the system is turned on to show that the light is working. If ready for inspection.
  • Page 95: Antilock Brake System (Abs) Warning Light

    Instruments and Controls • This light may come on briefly when the vehicle If the ABS warning light stays on, or comes White: Appears when the vehicle starts. is turned on. If it does not come on, have it fixed on again while driving, the vehicle needs A steady white light indicates that LKA is so it will be ready to warn if there is a problem.
  • Page 96: Automatic Emergency Braking (Aeb) Disabled Light

    Instruments and Controls If equipped, this indicator will display green This light comes on briefly when the vehicle is Automatic Emergency Braking when a vehicle is detected ahead and amber turned on to show that the light is working. If (AEB) Disabled Light when you are following a vehicle ahead much it does not come on then, have it fixed so it will too closely.
  • Page 97: Electronic Stability Control (Esc) Off Light

    Instruments and Controls If the light is on and not flashing, the TCS Control System (TCS) is also off. To turn ESC On some vehicles this light comes on briefly and potentially the StabiliTrak/ESC system off and on, see Traction Control/Electronic while starting the vehicle.
  • Page 98: Engine Oil Pressure Light

    Instruments and Controls When the Light Is On Steady If the light comes on and stays on when the Caution (Continued) engine is running, it may not have adequate oil This indicates that one or more of the tires are pressure.
  • Page 99: Auto Stop Indicator (Uplevel Only)

    Instruments and Controls It also comes on when the fuel gauge indicator If the light stays on and the engine does not If equipped, this light comes on when the nears empty. The light turns off when fuel is start, there could be a problem with the theft- IntelliBeam system is enabled.
  • Page 100: Adaptive Cruise Control Light (Uplevel Only)

    Instruments and Controls The light turns off when the cruise control is ACC automatically slows the vehicle down DIC Operation and Displays while navigating the curve and may increase turned off. See Cruise Control 3 189. Some of the displayed functions differ between speed out of the curve, but will not exceed the vehicle driving and standstill and some Adaptive Cruise Control Light...
  • Page 101 Instruments and Controls Trip/Fuel Menu (TRIP) Items an average of the vehicle's fuel economy over approximate average fuel economy that the recent driving history and the amount of fuel vehicle has right now, and will change as Press SELECT on the turn signal lever until the remaining in the fuel tank.
  • Page 102: Driver Information Center (Dic) (Uplevel)

    Instruments and Controls the oil has just been changed. It cannot be reset Following Distance: When Adaptive Cruise accurately until the next oil change. To reset, Control (ACC) is not engaged, the current follow time to the vehicle ahead is displayed as a time see Engine Oil Life System 3 225.
  • Page 103: Vehicle Status (Uplevel Only)

    Instruments and Controls DIC Information Displays Battery Voltage: Shows the current per square inch (psi). If the pressure is low, battery voltage. the value for that tire is shown in amber. See The following is the list of all possible DIC Tire Pressure Monitor System 3 255 and Tire Oil Life: Displays an estimate of the remaining information displays and their locations.
  • Page 104 Instruments and Controls Selecting vehicle status content on the The following options may be chosen: Relearn displays, the engine air filter should be replaced infotainment display shows the available Tire Pressure, and Show in Cluster. at the time of the next oil change. When the options.
  • Page 105: Vehicle Messages

    Instruments and Controls • gallon  (mpg). This number is calculated based The following options may be chosen: Change Brakes • on the number of L/100 km  (mpg) recorded Distance, Reset Best Score, and Show in Cluster. Steering since the last time this menu item was The distance for average fuel economy and the •...
  • Page 106: Vehicle Speed Messages

    Instruments and Controls the next time the vehicle is driven. The vehicle may be driven while this message is on, but maximum acceleration and speed may be reduced. Anytime this message stays on, or displays repeatedly, the vehicle should be taken to your dealer for service as soon as possible.
  • Page 107: Lighting

    Lighting Lighting Exterior Lighting : Turns on the parking lamps including all lamps, except the headlamps. Exterior Lamp Controls : Turns on the headlamps together with the Exterior Lighting parking lamps and instrument panel lights. Exterior Lamp Controls ........106 High-Beam Systems ........106 High-Beam Systems Headlamp High/Low-Beam Changer ..
  • Page 108 Lighting Turning On and Enabling IntelliBeam The high-beam headlamps remain on, under the automatic control, until one of the following situations occurs: • The system detects an approaching vehicle's headlamps. • The system detects a preceding vehicle's taillamps. • The outside light is bright enough that high-beam headlamps are not required.
  • Page 109: Headlamp High/Low-Beam Changer

    Lighting • The other vehicle's lamps are covered with When the DRL are on, only the low-beam dirt, snow, and/or road spray. headlamps, at a reduced level of brightness, • will be on. The taillamps, sidemarker, The other vehicle's lamps cannot be instrument panel, and other lamps will not detected due to dense exhaust, smoke, be on.
  • Page 110: Hazard Warning Flashers

    Lighting wipers are not operating, these lamps turn off. Turn and Lane-Change Signals Move the exterior lamp control to to disable this feature. Hazard Warning Flashers Move the lever all the way up or down to signal a turn. The vehicle has a light sensor on top of the An arrow on the instrument cluster flashes in instrument panel.
  • Page 111: Interior Lighting Instrument Panel Illumination Control

    Lighting Replace any burned out bulbs. If a bulb is not Courtesy Lamps : Press to turn on the dome lamps. burned out, check the fuse. See Fuses and Circuit The courtesy lamps come on when any door is Breakers 3 243. opened, on the Remote Keyless Entry (RKE) Interior Lighting...
  • Page 112: Exit Lighting

    Lighting All lamps will eventually turn off. EPM works to prevent excessive discharge of Battery Load Management the battery. It does this by balancing the Entry lighting can be disabled manually by The vehicle has Electric Power Management generator's output and the vehicle's electrical closing all doors, pressing on the remote (EPM) that estimates the battery's...
  • Page 113 Lighting on. This protects against draining the battery. To restart the 10-minute timer, turn the exterior lamp control to the position and then back to the position. To keep the lamps on for more than 10 minutes, the vehicle must be on or in accessory mode.
  • Page 114: Infotainment System

    Infotainment System Infotainment System Bluetooth (Pairing And Using A Phone Settings 8 Inch Screen Radio) ......... 144 Settings (11 Inch Screen Radio) ....127 Apple CarPlay and Android Auto (8 Inch Teen Driver (11 Inch Screen Radio) .....128 Introduction Screen Radio) ..........147 Trademarks and License Agreements Introduction (11 Inch Screen Radio) ...
  • Page 115: Introduction (11 Inch Screen Radio)

    Infotainment System Introduction Before driving: Overview (11 Inch Screen Radio) • Become familiar with the operation, center Introduction (11 Inch Screen Radio) Infotainment System stack controls, steering wheel controls, and The infotainment system is controlled by infotainment display. Read the following pages to become familiar using the infotainment display, controls on •...
  • Page 116: Steering Wheel Controls (11 Inch Screen Radio)

    Infotainment System moving. The Application Tray contains up to Move an Icon to the Application Tray : Press to open the audio source list. 5. The Home app icon in the Application Tray To move an icon to the application tray on the : Press to decline an incoming call, end cannot be moved.
  • Page 117: Using The System (11 Inch Screen Radio)

    Infotainment System Android Auto Touch/Tap Using the System (11 Inch Screen If equipped, touch the Android Auto icon to Radio) activate Android Auto after a supported device Audio is connected. See Apple CarPlay and Android Auto (11 Inch Screen Radio) 3 125. Touch the Audio icon to display the active audio source page.
  • Page 118: Software Updates (11 Inch Screen Radio)

    Infotainment System Drag Nudge is used to move items a short distance Periodically hand wash the microfiber cloth on a list or a map. To nudge, hold and move the separately, using mild soap. Do not use bleach selected item up or down to a new location. or fabric softener.
  • Page 119 Infotainment System Finding a Station Audio Settings Radio Data System (RDS) Seeking a Station Audio settings vary by region. RDS relies on receiving specific RDS information from radio stations and only works when the From the AM or FM screen, touch the back or From the now playing screen, touch information is available.
  • Page 120: Satellite Radio (11 Inch Screen Radio)

    Infotainment System Browse will include available channels you SiriusXM Satellite Radio Service Satellite Radio (11 Inch Screen can select. If equipped, SiriusXM Satellite Radio Service Radio) provides digital radio reception. Tall buildings Radio Reception (11 Inch Screen SiriusXM Radio Service or hills can interfere with satellite radio signals, Radio) causing the sound to fade in and out.
  • Page 121: Audio Players

    Infotainment System Audio Players USB Audio 3. Supported media content will appear on the display. To play music via USB: Avoiding Untrusted Media 1. On the audio now playing screen, touch Manage Bluetooth Devices Devices (11 Inch Screen Radio) source and select USB. Managing Bluetooth devices allows you to add, Only use trusted media devices.
  • Page 122: Bluetooth (Pairing And Using A Phone 11 Inch Screen Radio)

    Infotainment System • Notify receipt of text messages. Controls controls for the infotainment system. The adjusted volume level remains the same for To minimize driver distraction, before driving, Use the controls on the infotainment display later calls. The volume cannot be lowered and with the vehicle parked: and the steering wheel to operate the beyond a certain level.
  • Page 123 Infotainment System • A Bluetooth smartphone with music 3. If no mobile device is connected, select 8. If the vehicle name does not appear on your capability can be paired to the vehicle as Manage Phones and the Phones screen cell phone, there are a few ways to start the a smartphone and a music player at the will display.
  • Page 124 Infotainment System 10. To pair additional cell phones, select Accessing the Device List Screen Deleting a Paired Phone Settings, select the Systems tab, and then There are two ways to access the device To delete a paired phone: select Phones. list screen: 1.
  • Page 125 Infotainment System Switching to Handset or Hands-Free Mode To make a call using the Contacts menu: 2. Select Keypad and enter a phone number. 1. Select the Phone icon on the infotainment To switch between handset or hands- 3. Select the phone icon on the infotainment home screen or on the shortcut tray near free mode: display to start dialing the number.
  • Page 126: Apple Carplay And Android Auto (11 Inch Screen Radio)

    Infotainment System • • data port. For best performance, it is highly Press on the steering wheel controls. Select on the infotainment display, next recommended to use the device’s factory- • to a call, to end only that call. Select Decline on the infotainment display. provided USB cable, which should be replaced after significant wear to maintain Dual Tone Multi-Frequency (DTMF) Tones...
  • Page 127 Infotainment System 1. For Android 9 smartphones and older, Wireless CarPlay and/or Wireless Android Auto and is subject to Apple’s terms and privacy download the Android Auto app to your may experience occasional service disruption policy. Data plan rates apply. For Android phone from the phones Google Play Store.
  • Page 128: Settings (11 Inch Screen Radio)

    Infotainment System Settings Phones Teen Driver Allows connecting to a different cell phone See Teen Driver (11 Inch Screen Radio) 3 128. Settings (11 Inch Screen Radio) or mobile device source, disconnecting a cell Rear Seat Reminder phone or media device, or deleting a cell phone To access the Settings menus: or media device.
  • Page 129: Teen Driver (11 Inch Screen Radio)

    Infotainment System • Power Door Locks Access or delete Report Card data. Teen Driver (11 Inch Screen Radio) Allows adjustment of different door If equipped, this allows multiple keys to be Set up/Add keys to activate Teen Driver and lock settings. registered for beginner drivers to encourage assign restrictions to the key: safe driving habits.
  • Page 130 Infotainment System • If the remote key has not previously 3. From the Settings menu, touch Vehicle and Set Audio Volume Limit : Use the arrows to been registered, the option to add then Teen Driver. choose the maximum allowable level for the the key displays.
  • Page 131 Infotainment System • • When Teen Driver is Active: Enhanced Low Fuel Warning (if equipped) Forward Collision Alerts (if equipped) – the • – When the vehicle is low on fuel, the number of times the driver was notified If equipped, the radio will mute when the low fuel light on the instrument cluster when approaching a vehicle ahead too driver seat belt, and in some vehicles the...
  • Page 132: Trademarks And License Agreements Trademarks And License Agreements

    Infotainment System Report Card Data to continue service. If you do not wish to enjoy your trial, you can cancel by Cumulative Data is saved for all trips until the calling the number below. All SiriusXM Report Card is reset or until the maximum count services require a subscription, each sold is exceeded.
  • Page 133 Infotainment System SiriusXM, Pandora, Stitcher, and all related General Requirements: Bose logos are trademarks of SiriusXM Radio Inc. and 1. A License Agreement from SiriusXM is Bose AudioPilot and Bose Centerpoint surround its respective subsidiaries. required for any product that incorporates are registered trademarks of Bose Corporation SiriusXM satellite service is only available in the SiriusXM Technology and/or for use of any...
  • Page 134 Infotainment System IMPLIED FOR ANY OTHER USE. ADDITIONAL Warning (Continued) INFORMATION MAY BE OBTAINED FROM MPEG MPEG Layer-3 audio coding technology LA, L.L.C. SEE HTTPS://WWW.MPEGLA.COM. licensed from Fraunhofer IIS and Thomson. tasks while driving. Limit your glances at the vehicle displays and focus your VC-1 WMV/WMA attention on driving.
  • Page 135: Overview (8 Inch Screen Radio)

    Infotainment System • Active Noise Cancellation Press to exit Android Auto or Apple Steering Wheel Controls (8 Inch CarPlay. To enter back into Android If equipped, Active Noise Cancellation (ANC) Screen Radio) Auto or Apple CarPlay, press and reduces engine noise in the vehicle’s hold.
  • Page 136: Radio)

    Infotainment System Apple CarPlay Using the System (8 Inch Screen : Press to answer an incoming call. If equipped, touch the Apple CarPlay icon to Radio) activate Apple CarPlay after a supported device Infotainment Display Icons is connected. See Apple CarPlay and Android Auto (8 Inch Screen Radio) 3 147.
  • Page 137 Infotainment System Touch/Tap Drag Nudge is used to move items a short distance on a list. To nudge, hold and move the selected item up or down to a new location. Fling or Swipe Touch/Tap is used to select an icon or option, or Drag is used to move applications on the activate an application.
  • Page 138: Am-Fm Radio (8 Inch Screen Radio)

    Infotainment System Periodically hand wash the microfiber cloth Fade/Balance : Touch to adjust by using the If equipped, touch Update Station List to separately, using mild soap. Do not use bleach controls on the infotainment display or by update the active stations in your area. or fabric softener.
  • Page 139: Radio Data System (Rds)

    Infotainment System Touch the (X) to the right side of the station AM, FM, and SiriusXM Categories AM, FM, SiriusXM (if equipped), and HD Radio digits to delete one number at a time. Touch Stations (if equipped): Touch and hold a preset and hold (X) to delete all numbers.
  • Page 140: Satellite Radio (8 Inch Screen Radio)

    Infotainment System To turn RDS features on or off, select Settings SiriusXM radio has a wide variety of Radio Reception (8 Inch Screen > Apps > Audio > RDS > Select ON or OFF. programming and commercial-free music, Radio) coast to coast, in digital-quality sound. The following core and region specific In the U.S., see www.siriusxm.com RDS features may be supported by radio...
  • Page 141: Audio Players

    Infotainment System Audio Players addition, traveling or parking under heavy Caution (Continued) foliage, bridges, garages, or tunnels may cause Avoiding Untrusted Media loss of the SiriusXM signal for a period of Accessory cables left plugged into the time. Some cellular services may interfere with Devices (8 Inch Screen Radio) vehicle, unconnected to a device, could SiriusXM reception causing signal loss.
  • Page 142 Infotainment System 2. Touch Audio from the infotainment USB Sound Menu 2. Touch an artist name to view a list of all home screen. albums by the artist. See “Infotainment System Sound Menu” under 3. Select USB device. AM-FM Radio (11 Inch Screen Radio) 3 117. 3.
  • Page 143: Bluetooth Audio

    Infotainment System Composers: File System and Naming Volume and song selection may be controlled by using the infotainment controls or the 1. Touch to view the composers on the USB. File systems supported by the USB mobile device. If Bluetooth is selected and no may include: 2.
  • Page 144: Phone Bluetooth (Overview 8 Inch Radio Screen)

    Infotainment System Phone When touching Bluetooth, the radio may not phone calls. The infotainment system and voice be able to launch the audio player on the recognition are used to control the system. Bluetooth (Overview 8 Inch Radio connected device to start playing. When the The system can be used while the ignition is vehicle is not moving, use the mobile device to on or in accessory mode.
  • Page 145: Bluetooth (Pairing And Using A Phone 8 Inch Screen Radio)

    Infotainment System Infotainment System Controls Pairing Information which was used last. To link to a different • paired cell phone, see “Linking to a Different For information about how to navigate the If no mobile device has been connected, Phone” later in this section. menu system using the infotainment controls, the Phone main page on the infotainment display will show the Connect Phone...
  • Page 146 Infotainment System 7. Start the pairing process on the cell First to Connect Paired Phones 2. Touch Phones. phone to be paired to the vehicle. See If multiple paired cell phones are within range Disconnecting a Connected Phone the cell phone manufacturer's user guide of the system, the system connects to the for information on this process.
  • Page 147 Infotainment System Linking to a Different Phone Making a Call Using Contacts and 2. Touch Recents. Recent Calls To link to a different cell phone, the new cell 3. Touch the name or number to call. phone must be in the vehicle and paired to the Calls can be made through the Bluetooth Making a Call Using the Keypad Bluetooth system.
  • Page 148: Apple Carplay And Android Auto (8 Inch Screen Radio)

    Infotainment System Accepting a Call Switching Between Calls (Call Waiting Dual Tone Multi-Frequency (DTMF) Tones Calls Only) There are two ways to accept a call: The in-vehicle Bluetooth system can send • To switch between calls, touch Phone on the numbers during a call. This is used when calling Press on the steering wheel controls.
  • Page 149 Infotainment System replaced after significant wear to maintain 2. For first time connection, make sure 2. Select Phones. connection quality. Aftermarket or third- Bluetooth and WiFi are turned on in 3. Select or the pencil icon next to the phone party cables may not work.
  • Page 150: Settings (8 Inch Screen Radio)

    Infotainment System Google Play, and other marks are trademarks If a 4G LTE data package is not active on 4. Touch to turn off or on a feature. of Google Inc.; Apple CarPlay is a trademark of the vehicle, the infotainment system can 5.
  • Page 151 Infotainment System Apps Climate and Air Quality Teen Driver Allows adjustment of different The menu may contain the following: See Teen Driver (8 Inch Screen Radio) 3 128. climate settings. Android Auto Teen Driver (8 Inch Screen Radio) Collision/Detection Systems Allows interacting directly with a mobile device If equipped, this allows multiple keys to be Allows adjustment of different driver on the infotainment display.
  • Page 152 Infotainment System • • Change Teen Driver settings. If the remote key has not previously 3. From the Settings menu, touch Vehicle and • been registered, the option to add then Teen Driver. Change or clear the Teen Driver PIN. the key displays.
  • Page 153 Infotainment System • Set Audio Volume Limit : Use the arrows to When Teen Driver is Active: Enhanced Low Fuel Warning (if equipped) • choose the maximum allowable level for the – When the vehicle is low on fuel, the If equipped, the radio will mute when the audio volume.
  • Page 154: Trademarks And License Agreements

    Infotainment System • Forward Collision Alerts (if equipped) – the Report Card Data number of times the driver was notified Cumulative Data is saved for all trips until the when approaching a vehicle ahead too Report Card is reset or until the maximum count quickly and at potential risk for a crash.
  • Page 155 Infotainment System to continue service. If you do not wish SiriusXM, Pandora, Stitcher, and all related General Requirements: to enjoy your trial, you can cancel by logos are trademarks of SiriusXM Radio Inc. and 1. A License Agreement from SiriusXM is calling the number below.
  • Page 156 Infotainment System Bose IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG Bose AudioPilot and Bose Centerpoint surround MPEG Layer-3 audio coding technology LA, L.L.C. SEE HTTPS://WWW.MPEGLA.COM. are registered trademarks of Bose Corporation licensed from Fraunhofer IIS and Thomson. in the U.S.
  • Page 157: Climate Controls

    Climate Controls Climate Controls Climate Control Systems Temperature Control : Turn clockwise or counterclockwise to increase or decrease the temperature. Climate Control Systems : Turn clockwise or counterclockwise to Climate Control Systems ......156 increase or decrease the fan speed. The fan Automatic Climate Control System ..
  • Page 158 Climate Controls In defrost or defog mode, excessive air Caution conditioning use can cause the windows to fog. If this happens, change the air delivery mode Do not try to clear frost or other material and reduce the fan speed. from the inside of the front windshield and A/C : Press to turn the air conditioning system rear window with a razor blade or anything...
  • Page 159 Climate Controls Automatic Operation Automatic Climate Control System The system automatically controls the fan speed, air delivery, air conditioning, and recirculation in order to heat or cool the vehicle to the desired temperature. When AUTO is lit, all four functions operate automatically.
  • Page 160 Climate Controls ON/OFF : Press to turn the fan off or on. When humidity is detected, the climate control : Air is directed to the floor outlets. off, no air will flow into the vehicle. Turning the system may adjust to outside air supply MAX : Air is directed to the windshield and fan on, pressing any other button, or turning and turn on the air conditioner.
  • Page 161 Climate Controls If the vehicle is equipped with heated outside If the vehicle has heated seats, they may come Operation Tips • mirrors, they turn on when the rear window on during a remote start. See Remote Start 3 17 Clear away any ice, snow, or leaves from defogger button is on and help to clear fog or and Heated Front Seats 3 34.
  • Page 162 Climate Controls vehicle. It should only be replaced by Caution (Continued) a new evaporator to ensure proper and safe operation. any plastic or painted surface in the vehicle, During service, all refrigerants should be blot immediately and clean with a soft reclaimed with proper equipment. Venting cloth dampened with a mild soap solution.
  • Page 163: Driving And Operating

    Driving and Operating Driving and Operating Shifting Into Park ......... 180 Park Assist ............201 Shifting out of Park ........181 Rear Cross Traffic Alert (RCTA) System ..202 Parking over Things That Burn ....181 Assistance Systems for Driving ....202 Driving Information Extended Parking ..........
  • Page 164: Driving Information Driver Behavior

    Driving and Operating • Driving Information Avoid idling the engine for long periods Vehicle Design of time. Driver Behavior Utility vehicles have a significantly higher • When road and weather conditions are rollover rate than other types of vehicles. This appropriate, use cruise control. Driving is an important responsibility.
  • Page 165: Defensive Driving

    Driving and Operating • Do not use a phone in demanding driving Impaired Driving Warning situations. Use a hands-free method to Death and injury associated with impaired place or receive necessary phone calls. Taking your eyes off the road too long or too driving is a global tragedy.
  • Page 166: Braking

    Driving and Operating Electric Power Steering Braking Steering The vehicle has electric power steering. It Braking action involves perception time and does not have power steering fluid. Regular Caution reaction time. Deciding to push the brake maintenance is not required. pedal is perception time.
  • Page 167: Off-Road Recovery

    Driving and Operating Steering in Emergencies The vehicle's right wheels can drop off the Defensive drivers avoid most skids by taking • edge of a road onto the shoulder while driving. reasonable care suited to existing conditions, There are some situations when steering Follow these tips: and by not overdriving those conditions.
  • Page 168: Driving On Wet Roads

    Driving and Operating Hydroplaning Driving on Wet Roads Hill and Mountain Roads Hydroplaning is dangerous. Water can build up Rain and wet roads can reduce vehicle traction Driving on steep hills or through mountains is under the vehicle's tires so they actually ride and affect your ability to stop and accelerate.
  • Page 169: Winter Driving

    Driving and Operating Cold Weather Mode Snow or ice between the tires and the road Warning creates less traction or grip, so drive carefully. In very low temperatures, a cold weather Wet ice can occur at about 0 °C (32 °F) when message may display on the Driver Coasting downhill in N (Neutral) or with freezing rain begins to fall.
  • Page 170: If The Vehicle Is Stuck

    Driving and Operating If it takes time for help to arrive, when running Rocking the Vehicle to Get it Out Warning (Continued) the engine, push the accelerator pedal slightly Turn the steering wheel left and right to clear so the engine runs faster than the idle speed. the area around the front wheels.
  • Page 171 Driving and Operating weight it may properly carry, the Tire Tire and Loading Information Label cold tire inflation pressures (4). For more and Loading Information label and the information on tires and inflation see Tires Certification/Tire label. 3 248 and Tire Pressure 3 253. There is also important loading Warning information on the vehicle Certification/...
  • Page 172 Driving and Operating amount equals 1400 lbs. and there will be five 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs. (1400-750 (5 x 150) = 650 lbs.) Determine the combined weight of luggage and cargo being loaded on the vehicle.
  • Page 173 Driving and Operating Certification/Tire Label The Certification/Tire label may also show the maximum weights for the front and rear axles, called the Gross Axle Weight Rating (GAWR). To find out the actual loads on the front and rear axles, weigh the vehicle at a weigh station.
  • Page 174: Starting And Operating New Vehicle Break-In

    Driving and Operating Electrical systems will adapt and calibrate Warning (Continued) Caution (Continued) during the break-in period. A one-time occurrence of clicks and similar vehicle noises is • • Never stack heavier things, like Do not drive at any one constant speed, normal during this process.
  • Page 175 Driving and Operating The ignition switch has four different positions. 3. Push the key all the way in towards the In an emergency, if the vehicle cannot be pulled steering column, then turn the key to over and must be turned off while driving: To shift out of P (Park), the ignition must be in LOCK/OFF.
  • Page 176: Ignition Positions (Keyless Access)

    Driving and Operating malfunction indicator lamp as may be The Remote Key must be in the vehicle for the Caution required for emission inspection purposes. system to operate. If the pushbutton start is The switch stays in this position when not working, the vehicle may be near a strong Use the correct key, make sure it is all the the engine is running.
  • Page 177: Starting The Engine

    Driving and Operating If the vehicle is not in P (Park), the ignition 3. Come to a complete stop. Hold the brake on. Once engine cranking begins, release the will return to accessory mode and display pedal down and shift to P (Park). The vehicle button.
  • Page 178 Driving and Operating Operate the engine and transmission Caution Caution gently until the oil warms up and lubricates all moving parts. Do not try to shift to P (Park) if the vehicle Cranking the engine for long periods of is moving. If you do, you could damage the time, by returning the ignition to the Starting Procedure (Keyless Access) transmission.
  • Page 179: Stop/Start System

    Driving and Operating • The vehicle battery needs to charge. Caution (Continued) Warning • The vehicle battery has recently been disconnected. cranking motor, and drain the battery. Wait The automatic engine Stop/Start feature • at least 15 seconds between each try, to let causes the engine to shut off while the Minimum vehicle speed has not been the cranking motor cool down.
  • Page 180: Engine Heater

    Driving and Operating Auto Stop Disable Switch internal thermostat in the plug end of the cord Engine Heater will prevent engine coolant heater operation at temperatures above −18 °C (0 °F). To Use the Engine Heater 1. Turn off the engine. 2. Remove the heater cord from the rear compartment.
  • Page 181: Retained Accessory Power (Rap)

    Driving and Operating The length of time the heater should remain Shifting Into Park Warning (Continued) plugged in depends on several factors. Ask a dealer in the area where you will be parking • Plug the cord into a three-prong Warning the vehicle for the best advice on this. electrical utility receptacle that is It is dangerous to get out of the vehicle if protected by a ground fault detection...
  • Page 182: Shifting Out Of Park

    Driving and Operating Leaving the Vehicle with the Torque Lock 3. Move the shift lever. Engine Running Torque lock is when the weight of the vehicle If you still cannot move the shift lever from puts too much force on the parking pawl in the P (Park), see your dealer for service.
  • Page 183: Engine Exhaust

    Driving and Operating The vehicle could turn off sooner if it is parked If the vehicle is left with the engine running, Warning (Continued) on a hill, due to lack of available fuel. follow the proper steps to be sure the vehicle will not move.
  • Page 184 Driving and Operating Caution Caution Warning It is dangerous to get out of the vehicle if Shifting to R (Reverse) while the vehicle Shifting out of P (Park) or N (Neutral) with the shift lever is not fully in P (Park) with the is moving forward could damage the the engine running at high speed may parking brake set.
  • Page 185: Manual Mode

    Driving and Operating • When driving in hot temperatures or at Caution high altitude. If the vehicle does not shift gears, the Manual Mode transmission could be damaged. Have the vehicle serviced right away. Electronic Range Select (ERS) Mode ERS or manual mode allows for the selection of the range of gear positions.
  • Page 186: Electric Brake Boost

    Driving and Operating L (Manual Mode) will prevent shifting to ABS performs a system check when the vehicle Braking in Emergencies a lower gear range if the engine speed is too is first driven. A momentary motor or clicking ABS allows steering and braking at the same high.
  • Page 187: Brake Assist

    Driving and Operating If the EPB is applied while the vehicle is moving, Electric Parking Brake Light 3 93. There are Caution the vehicle will decelerate as long as the switch also EPB-related Driver Information Center is pulled. If the switch is pulled until the vehicle (DIC) messages.
  • Page 188: Hill Start Assist (Hsa)

    Driving and Operating apply the brake pedal as the driving situation HSA is available when the vehicle is facing selectively applies braking pressure to any one dictates. Brake Assist disengages when the uphill in a forward gear, or when facing of the vehicle wheel brakes to assist the driver brake pedal is released.
  • Page 189 Driving and Operating The indicator light for both systems is in the Turning the Systems Off and On 2. Turn the band to scroll Traction & Stability instrument cluster. This light will: to select Traction and Stability on the DIC •...
  • Page 190: Cruise Control

    Driving and Operating • Cruise Control A collision alert occurs. See Forward SET− : Press briefly to set the speed and engage cruise control. If cruise control is already Collision Alert (FCA) System 3 202. Cruise control allows the vehicle to maintain engaged, use to decrease vehicle speed.
  • Page 191: Adaptive Cruise Control (Camera)

    Driving and Operating When cruise control is engaged, the cruise The speedometer reading can be displayed in Using Cruise Control on Hills control indicator light displays green on the either English or metric units. See Instrument How well cruise control works on a hill depends instrument cluster.
  • Page 192 Driving and Operating section before using this system. The following Warning (Continued) Warning gap is the following time between your vehicle and a vehicle detected directly ahead in your • ACC has limited braking ability and may not When visibility is poor due to rain, path, moving in the same direction.
  • Page 193 Driving and Operating When ACC is engaged, a green indicator : Press to disengage ACC without erasing will be lit on the instrument cluster and the the selected set speed. following gap will be displayed. When the : Press to select a following gap setting for regular cruise control is engaged, a green ACC of Far, Medium, or Near.
  • Page 194 Driving and Operating Select the set speed desired for ACC. This is the Be mindful of speed limits, surrounding traffic Increasing Speed While ACC Is at vehicle speed when no vehicle is detected in speeds, and weather conditions when selecting a Set Speed its path.
  • Page 195 Driving and Operating When it is determined that there is no vehicle Selecting the Follow Distance Gap Alerting the Driver ahead or the vehicle ahead is beyond the When a slower moving vehicle is detected selected following gap, then the vehicle speed ahead within the selected following gap, ACC will increase to the set speed.
  • Page 196 Driving and Operating • The vehicle ahead indicator is in the instrument Vehicles on which extremely heavy cargo is Warning (Continued) cluster. It only displays when a vehicle is loaded in the cargo area or rear seat detected in your vehicle’s path moving in can occur in stop-and-go traffic or when the same direction.
  • Page 197 Driving and Operating Cruise Control” in this section. Always consider Warning Warning driving conditions before using either cruise control system. If ACC has stopped the vehicle, and if ACC The ACC will not automatically apply the is disengaged, turned off, or canceled, the brakes if your foot is resting on the Notification to Resume ACC vehicle will no longer be held at a stop.
  • Page 198 Driving and Operating ACC will not detect a vehicle ahead until it is Warning (Continued) completely in the lane. The brakes may need to be manually applied. into a vehicle ahead of you, or lose control of your vehicle. Give extra attention in curves Objects Not Directly in Front of and be ready to use the brakes if necessary.
  • Page 199 Driving and Operating • Do Not Use ACC on Hills and When Towing Weather Conditions Affecting ACC There are multiple changes in brightness or shadows along the vehicle roadway. a Trailer If the interior temperature is extremely high, • the instrument cluster may indicate that ACC In a tunnel without the headlamps on, or in is temporarily unavailable.
  • Page 200: Advanced Driver Assistance Systems

    Driving and Operating Cleaning the Sensing System Warning (Continued) Warning (Continued) The camera sensor on the windshield behind • the rearview mirror can become blocked by or feel alerts or warnings provided by Work if the area surrounding the snow, ice, dirt, mud, or debris. This area needs these systems.
  • Page 201: Assistance Systems For Parking Or Backing

    Driving and Operating • Driver Information Center (DIC) messages may Front and rear bumpers and the area below Rear Vision Camera (RVC) display when the systems are unavailable the bumpers When the vehicle is shifted into R (Reverse), • or blocked. Front grille and headlamps the RVC displays an image of the area behind •...
  • Page 202: Park Assist

    Driving and Operating RPA operates at speeds less than 8 km/h (5  mph), and the sensors on the rear bumper detect objects up to 2.5 m (8 ft) behind the vehicle, and at least 25 cm (10 in) off the ground. The distance objects can be detected may be less during warmer or humid weather.
  • Page 203: Rear Cross Traffic Alert (Rcta) System

    Driving and Operating Turn off RPA when towing a trailer. If equipped, the FCA system may help to Assistance Systems for Driving avoid or reduce the harm caused by front-end If equipped, when driving the vehicle in Rear Cross Traffic Alert (RCTA) crashes.
  • Page 204 Driving and Operating Collision Alert The vehicle ahead indicator will display amber Warning (Continued) when you are following a vehicle ahead too closely. headlamps or windshield are not cleaned or in proper condition. Keep the windshield, Selecting the Alert Timing headlamps, and FCA sensors clean and in The Collision Alert control is on the steering good repair.
  • Page 205: Automatic Emergency Braking (Aeb)

    Driving and Operating Following Distance Indicator Automatic Emergency Braking Warning If equipped, the following distance to (AEB) a moving vehicle ahead in your path is AEB is an emergency crash preparation If the vehicle has Forward Collision Alert (FCA), indicated in following time in seconds on the feature and is not designed to avoid it also has AEB, which includes Intelligent Brake Driver Information Center (DIC).
  • Page 206: Front Pedestrian Braking (Fpb) System

    Driving and Operating • AEB may slow the vehicle to a complete stop to There is a problem with the StabiliTrak/ Warning try to avoid a potential crash. If this happens, Electronic Stability Control (ESC) system. AEB may engage the Electric Parking Brake The AEB system does not need service.
  • Page 207 Driving and Operating Detecting the Pedestrian Ahead deceleration. Continue to apply the brake pedal Warning as needed. Cruise control may be disengaged when the Front Pedestrian Alert occurs. FPB does not provide an alert or automatically brake the vehicle, unless it Automatic Braking detects a pedestrian.
  • Page 208: Side Blind Zone Alert (Sbza)

    Driving and Operating Side Blind Zone Alert (SBZA) Warning (Continued) Warning If equipped, the SBZA system is a lane-changing alert or brake for objects similar in shape or LCA does not alert the driver to vehicles aid that assists drivers with avoiding crashes size to pedestrians, including shadows.
  • Page 209 Driving and Operating The LCA sensor covers a zone of approximately When the System Does Not Seem to one lane over from both sides of the vehicle, Work Properly or 3.5 m (11 ft). The height of the zone is The LCA system requires some driving for the approximately between 0.5 m (1.5 ft) and 2 m (6 ...
  • Page 210: Lane Keep Assist (Lka)

    Driving and Operating LCA may not operate when the LCA sensors in Lane Keep Assist (LKA) Warning (Continued) the left or right corners of the rear bumper are covered with mud, dirt, snow, ice, or slush, or a lane marking. Even with LKA and Warning in heavy rainstorms.
  • Page 211: Top Tier Fuel

    Driving and Operating marking. LKA will not assist or alert if the Additionally, there may be three beeps on the LKA assistance and/or LDW alerts may turn signal is active in the direction of the right or left, depending on the lane departure occur due to tar marks, shadows, cracks in lane departure, or if it detects that you are direction.
  • Page 212: Recommended Fuel (1.2L L3 Lbp Engine)

    Driving and Operating Regular unleaded gasoline meeting ASTM Do not use any fuel labeled E85 or FlexFuel. specification D4814 with a posted octane rating Do not use gasoline with ethanol levels greater (R+M)/2 of 87 or greater is recommended. than 15% by volume. Do not use gasoline with a posted octane Prohibited Fuels rating of less than 87, as this will result in...
  • Page 213: Fuels In Foreign Countries

    Driving and Operating The use of E85 or FlexFuel is encouraged when E85 or FlexFuel (1.2L L3 LBP Engine) Caution (Continued) the vehicle is designed to use it. E85 or FlexFuel is made from renewable sources. • Caution Fuel with a posted octane rating of To help locate fuel stations that carry less than the recommended fuel.
  • Page 214: Filling The Tank

    Driving and Operating To help keep the engine running efficiently, fill Warning (Continued) the tank with gasoline, up to E15, after filling the tank with E85 one or two times. • Do not re-enter the vehicle while pumping fuel. Filling the Tank •...
  • Page 215: Filling A Portable Fuel Container

    Driving and Operating Be careful not to spill fuel. Wait five seconds Warning (Continued) Warning after you have finished pumping before removing the fill nozzle. Clean fuel from • Attempting to refuel from a portable fuel Do not fill a container while it is inside painted surfaces as soon as possible.
  • Page 216: Conversions And Add-Ons Add-On Electrical Equipment

    Driving and Operating Conversions and Add-Ons The vehicle has an airbag system. Before attempting to add anything electrical to the Add-On Electrical Equipment vehicle, see Servicing the Airbag-Equipped Vehicle 3 52 and Adding Equipment to the Airbag-Equipped Vehicle 3 52. Warning The Data Link Connector (DLC) is used for vehicle service and Emission Inspection/ Maintenance testing.
  • Page 217: Vehicle Care

    Vehicle Care Vehicle Care Windshield Replacement ......237 Tire Inspection ..........259 Gas Strut(s) ............ 237 Tire Rotation ..........259 When It Is Time for New Tires ....260 Headlamp Aiming General Information Buying New Tires ..........261 Front Headlamp Aiming ......238 Different Size Tires and Wheels ....262 General Information ........217 Bulb Replacement Uniform Tire Quality Grading ....
  • Page 218: General Information

    Vehicle Care General Information materials. Perchlorate Material – special GM Accessories are designed to complement handling may apply. See www.dtsc.ca.gov/ and function with other systems on the vehicle. For service and parts needs, visit your dealer. hazardouswaste/perchlorate. See your dealer to accessorize the vehicle You will receive genuine GM parts and GM- using genuine GM Accessories installed by Accessories and Modifications...
  • Page 219: Hood

    Vehicle Care To order the proper service manual, see Warning Publication Ordering Information 3 304. This vehicle has an airbag system. Before Components under the hood can get hot attempting to do your own service work, see from running the engine. To help avoid Servicing the Airbag-Equipped Vehicle 3 52.
  • Page 220 Vehicle Care 3. Lift the hood and release the hood prop from its retainer, above the radiator. Securely place the hood prop into the slot on the underside of the hood. To close the hood: 1. Before closing the hood, be sure all filler caps are on properly.
  • Page 221: Engine Compartment Overview

    Vehicle Care   Engine Compartment Overview 1.2L L3 Engine (LBP)
  • Page 222 Vehicle Care 1. Windshield Washer Fluid Reservoir. See 5. Engine Oil Fill Cap. See Engine Oil 3 223. 9. Battery. See Battery - North America 3 234. Washer Fluid 3 232. 6. Engine Air Filter. See Engine Air Cleaner/ 10. Fuse Block. See Engine Compartment Fuse 2.
  • Page 223 Vehicle Care 1.2L L3 Engine (LIH)
  • Page 224: Engine Oil

    Vehicle Care 1. Windshield Washer Fluid Reservoir. See Engine Oil Warning Washer Fluid 3 232. To ensure proper engine performance and long 2. Engine Coolant Surge Tank and Pressure The engine oil dipstick handle may be hot; life, careful attention must be paid to engine it could burn you.
  • Page 225 Vehicle Care When to Add Engine Oil Caution (Continued) oil or limit driving of the vehicle and seek a service professional to remove the excess amount of oil. See Engine Compartment Overview 3 220 for Caution the location of the engine oil fill cap. If the oil is below the cross-hatched area at the tip of the dipstick and the engine has been off Add enough oil to put the level somewhere in...
  • Page 226: Engine Oil Life System

    Vehicle Care Engine oil system flushes are not of factors which include engine revolutions, How to Reset the Engine Oil Life System recommended and could cause engine damage engine temperature, and miles driven. Based Reset the system whenever the engine oil is not covered by the vehicle warranty.
  • Page 227: Automatic Transmission Fluid

    Vehicle Care If the CHANGE ENGINE OIL SOON message on driving conditions. It is possible an air 3. Press or the thumbwheel to move to the comes back on when the vehicle is started, filter change may not be indicated for up to Reset/Disable display area.
  • Page 228 Vehicle Care When to Inspect the Engine Air Removing the Engine Air Cleaner/Filter Cleaner/Filter To remove the air cleaner/filter for inspection or replacement: For intervals on inspecting and replacing the engine air cleaner/filter, see Maintenance Schedule 3 286. How to Inspect the Engine Air Cleaner/Filter Do not start the engine or have the engine running with the engine air cleaner/filter...
  • Page 229: Cooling System

    Vehicle Care 4. Inspect or replace the engine air Cooling System Warning cleaner/filter. The cooling system allows the engine to 5. Lower the cover, slide it into the assembly, An underhood electric fan can start up maintain the correct working temperature. then secure with the screws.
  • Page 230 Vehicle Care What to Use Caution Warning Do not use anything other than a mix of DEX-COOL coolant that meets GM Plain water, or other liquids such as alcohol, Standard GMW3420 and clean, drinkable can boil before the proper coolant mixture water.
  • Page 231 Vehicle Care How to Add Coolant to the Coolant Warning Surge Tank Spilling coolant on hot engine parts can Warning burn you. Coolant contains ethylene glycol and it will burn if the engine parts are Steam and scalding liquids from a hot hot enough.
  • Page 232: Engine Overheating

    Vehicle Care If the coolant still is not at the proper level Caution when the system cools down again, see your dealer. Do not run the engine if there is a leak in the engine cooling system. This can cause Caution a loss of all coolant and can damage the system and vehicle.
  • Page 233: Washer Fluid

    Vehicle Care If No Steam Is Coming from the warning does not come back on, continue to Open the cap with the washer symbol on drive normally and have the cooling system it. Add washer fluid until the tank is full. Engine Compartment checked for proper fill and function.
  • Page 234: Brakes

    Vehicle Care Replacing Brake System Parts Caution (Continued) Caution Always replace brake system parts with new, • approved replacement parts. If this is not done, Fill the washer fluid tank only three- Continuing to drive with worn-out brake the brakes may not work properly. The braking quarters full when it is very cold.
  • Page 235: Battery - North America

    Vehicle Care There are only two reasons why the brake fluid When the brake fluid falls to a low level, Caution level in the reservoir may go down: the brake warning light comes on. See Brake • System Warning Light 3 93. Normal brake lining wear.
  • Page 236: Starter Switch Check

    Vehicle Care Stop/Start System Infrequent Usage: Remove the black, negative  Automatic Transmission Shift Lock (−) cable from the battery to keep the battery The vehicle has a Stop/Start system to shut off Control Function Check from running down. the engine to help conserve fuel. See Stop/Start Extended Storage: Remove the black, negative ...
  • Page 237: Park Brake And P (Park) Mechanism Check

    Vehicle Care Contact your dealer if service is required. To replace the front wiper blades: Park Brake and P (Park) 1. Lift the wiper arm from the windshield until Mechanism Check Wiper Blade Replacement no further movement is possible. Warning Caution When you are doing this check, the vehicle Allowing the wiper arm to touch the could begin to move.
  • Page 238: Windshield Replacement

    Vehicle Care Rear Wiper Blade Replacement work properly, they may display messages, or they may not work at all. See your dealer for The rear wiper blade and wiper arm have proper windshield replacement. a cover for protection. The cover must be removed before the wiper blade can Gas Strut(s) be replaced.
  • Page 239: Headlamp Aiming Front Headlamp Aiming

    Vehicle Care If the vehicle is damaged in a crash, the Caution Caution headlamp aim may be affected. If adjustment to the headlamps is necessary, see your dealer. Do not apply tape or hang any objects from Do not replace incandescent bulbs with gas struts.
  • Page 240: Led Lighting

    Vehicle Care Base level Headlamps, Front Turn Signal, Exterior Lamp Bulb Number Sidemarker, and Parking Lamps Back Up Lamps W16W Headlamp Assembly Front Turn Signal/ WY28/8W Parking Lamps Tail/Stop/Turn W21W LL LED Lighting This vehicle has several LED lamps. For replacement of any LED lighting assembly, contact your dealer.
  • Page 241: Taillamps, Turn Signal, Sidemarker, Stoplamps, And Back-Up Lamps

    Vehicle Care Front Turn Signal Lamp Taillamps, Turn Signal, 1. Remove the bulb socket from the Sidemarker, Stoplamps, and Back- headlamp assembly. Up Lamps 2. Remove the old bulb from the bulb socket by pulling it straight out. Caution 3. Insert a new bulb into the bulb socket. 4.
  • Page 242: Electrical System Electrical System Overload

    Vehicle Care When the current electrical load is too heavy, the circuit breaker opens and closes, protecting the circuit until the current load returns to normal or the problem is fixed. This greatly reduces the chance of circuit overload and fire caused by electrical problems.
  • Page 243 Vehicle Care 4. If the fuse must be replaced immediately, borrow a replacement fuse with the same amperage from the fuse block. Choose a vehicle feature that is not needed to safely operate the vehicle. Repeat Steps 2-3. 5. Insert the replacement fuse into the empty slot of the blown fuse.
  • Page 244: Fuses And Circuit Breakers

    Vehicle Care If the overload is caused by an electrical To remove the fuse block cover, squeeze the clip Warning problem and not snow or ice, be sure to get and lift it up. it fixed. Installation or use of fuses that do not Caution meet GM’s original fuse specifications is Fuses and Circuit Breakers...
  • Page 245 Vehicle Care Micro Fuses Usage Micro Fuses Usage L/GATE RELEASE HTD/SEAT_1 A/C CLUTCH HTD/SEAT_2 HTD OSRVM CAC SHUTTER HORN – – FTZM ECM PT_1 TCM BATT IGNITION COIL ESCL RUN/CRANK ENG COMPONENT_2 – ENG COMPONENT_1 – ECM PT_2 ECM TCM RUN/CRANK –...
  • Page 246: Instrument Panel Fuse Block

    Vehicle Care Micro Fuses Usage M-case Fuses Usage Mini Relays Usage CNSTR VENT SOL STARTER SOL COOLING FAN HIGH RELAY – – Micro Relays Usage REAR WIPER PARK RR DEFOG STARTER SOL RELAY – COOLING FAN MID – – – POWERTRAIN RELAY –...
  • Page 247 Vehicle Care The instrument panel fuse block is on the underside of the driver side instrument Fuse Usage panel. To access the fuses, remove the OnStar storage compartment. To remove the storage compartment, open the compartment and pull Sunshade Motor it out.
  • Page 248 Vehicle Care Fuse Usage Fuse Usage Fuse Usage Side Blind Zone SDM – Sensing Headlamp Low Beam Alert Module/Camera Diagnostic Module Lamp RIGHT Module/Ultrasonic Park – – Assist Module Discrete Logic – HVAC Module IGN Ignition Switch Seat Position Switch DRIVER Wireless Charger Module/ Power Tailgate Module 1 Remote Electronic...
  • Page 249: Wheels And Tires Tires

    Vehicle Care regarding the tire warranty and where Warning (Continued) to get service. For additional information Circuit Usage Breaker • refer to the tire manufacturer. Overinflated tires are more likely to be cut, punctured, or broken by Auxiliary DC Power Outlet Warning a sudden impact —...
  • Page 250: All-Season Tires

    Vehicle Care See Tire Pressure for High-Speed Operation covered roads is expected. See your dealer for Tire Sidewall Labeling details regarding winter tire availability and 3 254 for inflation pressure adjustment for Useful information about a tire is molded proper tire selection. Also, see Buying New Tires high-speed driving.
  • Page 251 Vehicle Care (2) TPC Spec (Tire Performance Criteria code, tire size, and date the tire was Specification) Original equipment tires manufactured. The TIN is molded onto designed to GM's specific tire performance both sides of the tire, although only one criteria have a TPC specification code side may have the date of manufacture.
  • Page 252: Tire Designations

    Vehicle Care (3) Tire Identification Number (TIN) (7) TPC Spec (Tire Performance Criteria (2) Tire Width The 3-digit number letters and numbers following the DOT Specification) Original equipment tires indicates the tire section width in (Department of Transportation) code are designed to GM's specific tire performance millimeters from sidewall to sidewall.
  • Page 253: Tire Terminology And Definitions

    Vehicle Care DOT Markings A code molded into the Load Index An assigned number ranging Tire Terminology and Definitions sidewall of a tire signifying that the tire from 1 to 279 that corresponds to the load Air Pressure The amount of air inside is in compliance with the U.S.
  • Page 254: Tire Pressure

    Vehicle Care Recommended Inflation Pressure Treadwear Indicators Narrow bands, equipment tire size and recommended Vehicle manufacturer's recommended tire sometimes called wear bars, that show inflation pressure. See “Tire and Loading inflation pressure as shown on the tire across the tread of a tire when only 1.6 mm Information Label”...
  • Page 255: Tire Pressure For High-Speed Operation

    Vehicle Care When to Check inflation pressure is high, press on the Warning (Continued) metal stem in the center of the tire valve to Check the pressure of the tires once release air. a month or more. Do not forget the spare, Overinflated tires, or tires that have too if the vehicle has one.
  • Page 256: Tire Pressure Monitor System

    Vehicle Care As an added safety feature, your vehicle has continuously illuminated. This sequence will Warning (Continued) been equipped with a tire pressure monitoring continue upon subsequent vehicle start-ups as system (TPMS) that illuminates a low tire long as the malfunction exists. high-speed operation.
  • Page 257 Vehicle Care monitor the air pressure in the tires and The low tire pressure warning light may come Caution (Continued) transmit the tire pressure readings to a receiver on in cool weather when the vehicle is first located in the vehicle. started, and then turn off as the vehicle is Always use only the GM approved tire driven.
  • Page 258 Vehicle Care • The TPMS sensor matching process was If the TPMS is not functioning properly it Warning not done or not completed successfully cannot detect or signal a low tire pressure after rotating the tires. The malfunction condition. See your dealer for service if the Overinflating a tire could cause the tire to light and the DIC message should go off TPMS malfunction light and DIC message come...
  • Page 259 Vehicle Care • The air pressure from the inflation device is front tire, passenger side front tire, passenger 4. Uplevel DIC: Touch Maintenance and touch not sufficient to inflate the tire. side rear tire, and driver side rear. See your Tire Pressure in Maintenance.
  • Page 260: Tire Inspection

    Vehicle Care A horn chirp confirms that the sensor Tire Inspection Tire Rotation identification code has been matched to We recommend that the tires, including Tires should be rotated according to the this tire and wheel position. the spare tire, if the vehicle has one, be interval specified in the Maintenance 9.
  • Page 261: When It Is Time For New Tires

    Vehicle Care Check that all wheel nuts are properly Warning tightened. See “Wheel Nut Torque” under Capacities and Specifications 3 294, and Do not apply grease to the wheel “Removing the Flat Tire and Installing the mounting surface, wheel conical seats, Spare Tire”...
  • Page 262: Buying New Tires

    Vehicle Care Treadwear indicators are one way to tell when Vehicle Storage performance, ride and handling, traction it is time for new tires. Treadwear indicators control, and tire pressure monitoring Tires age when stored normally mounted on appear when the tires have only 1.6 mm performance.
  • Page 263: Different Size Tires And Wheels

    Vehicle Care Winter tires with the same speed rating Warning (Continued) Warning (Continued) as the original equipment tires may not be available for H, V, W, Y and ZR speed death. Only your dealer or authorized systems developed for the vehicle, and rated tires.
  • Page 264 Vehicle Care only to vehicles sold in the United States. Treadwear traction tests, and does not include The grades are molded on the sidewalls acceleration, cornering, hydroplaning, or The treadwear grade is a comparative of most passenger car tires. The Uniform peak traction characteristics.
  • Page 265: Wheel Alignment And Tire Balance

    Vehicle Care excessive loading, either separately or in leaks air, replace it. Some aluminum wheels Warning can be repaired. See your dealer if any of these combination, can cause heat buildup and conditions exist. possible tire failure. Replacing a wheel with a used one is Your dealer will know the kind of wheel that dangerous.
  • Page 266: If A Tire Goes Flat

    Vehicle Care In the event of a blowout, follow these tips: Warning (Continued) Warning • A front tire blowout causes the vehicle to pull toward the side of the flat. Take your cause damage to the brakes, suspension, or Lifting a vehicle and getting under it to foot off the accelerator pedal and grip the other vehicle parts.
  • Page 267: Tire Changing

    Vehicle Care Warning Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall causing injury or death. Find a level place to change the tire. To help prevent the vehicle from moving: 1. Set the parking brake firmly. 1.
  • Page 268 Vehicle Care 4. If the vehicle does not have a subwoofer, Warning (Continued) Warning turn the wing nut counterclockwise to remove the spare tire. Getting under a vehicle when it is lifted if the vehicle slips off the jack. If a jack is 5.
  • Page 269 Vehicle Care 6. Turn the wheel wrench clockwise to raise Caution the vehicle far enough off the ground so there is enough room for the spare tire to fit Make sure that the jack lift head is in the underneath the wheel well. correct position or you may damage your 7.
  • Page 270 Vehicle Care Storing a Flat or Spare Tire and Tools 12. Lower the vehicle by turning the wheel wrench counterclockwise. Lower the jack completely. Warning Storing a jack, a tire, or other equipment in Warning the passenger compartment of the vehicle Wheel nuts that are improperly or could cause injury.
  • Page 271: Compact Spare Tire

    Vehicle Care When using a compact spare tire, the AWD (if Compact Spare Tire equipped), ABS, and Traction Control systems may engage until the spare tire is recognized by Warning the vehicle, especially on slippery roads. Adjust driving to reduce possible wheel slip. Driving with more than one compact spare tire at a time could result in loss of braking Caution...
  • Page 272: Jump Starting Jump Starting - North America

    Vehicle Care Jump Starting Caution Warning Jump Starting - North America Batteries can hurt you. They can be If the jumper cables are connected or For more information about the vehicle dangerous because: removed in the wrong order, electrical • battery, see Battery - North America 3 234.
  • Page 273 Vehicle Care 3. Good Battery Negative (−) Terminal 3. Set the parking brake firmly and put the Warning shift lever in P (Park) with an automatic 4. Discharged Battery Negative (−) Terminal transmission, or Neutral with a manual Using a match near a battery can cause The discharged battery positive (+) terminal transmission.
  • Page 274: Towing The Vehicle Transporting A Disabled Vehicle

    Vehicle Care Towing the Vehicle 7. Connect one end of the black negative  Caution (Continued) (–) cable to the good battery negative  Transporting a Disabled Vehicle (–) terminal. tires to prevent damage while loading/ 8. Connect the other end of the black negative  unloading the vehicle.
  • Page 275: Recreational Vehicle Towing

    Vehicle Care If equipped, a tow eye may be located near Front Tow Eye Install the tow eye into the socket and turn it the spare tire or emergency jack. Do not use until it is fully tightened. When the tow eye is the tow eye to pull the vehicle from the snow, removed, reinstall the cover with the notch in mud, sand, or ditch.
  • Page 276 Vehicle Care • Whether the vehicle has the proper towing Dinghy Towing 7. Open the hood and disconnect the negative equipment. See your dealer or trailering battery terminal. See Battery - North professional for additional advice and America 3 234 and Jump Starting - North equipment recommendations.
  • Page 277: Appearance Care Exterior Care

    Vehicle Care 7. Release the parking brake. 8. Disconnect the negative battery cable at the battery. See Battery - North America Dolly Towing 3 234. 9. Cover the negative battery post with a non- conductive material to prevent any contact with the negative battery terminal. Towing the Vehicle from the Rear Caution Towing the vehicle from the rear could...
  • Page 278 Vehicle Care Washing the Vehicle and tar, tree sap, bird droppings, chemicals Caution from industrial chimneys, etc., can damage To preserve the vehicle's finish, wash it often the vehicle's finish if they remain on painted and out of direct sunlight. Do not power wash any component under surfaces.
  • Page 279 Vehicle Care Protecting Exterior Bright Metal Moldings Cleaning Exterior Lamps/Lenses, Caution Emblems, Decals, and Stripes Caution Use only lukewarm or cold water, a soft cloth, Failure to clean lamps properly can cause and a car washing soap to clean exterior lamps, damage to the lamp cover that would not be Failure to clean and protect the bright metal lenses, emblems, decals, and stripes.
  • Page 280 Vehicle Care Shutter System Replace the wiper blades if they are worn or Wheels and Trim — Aluminum or Chrome damaged. Damage can be caused by extreme Use a soft, clean cloth with mild soap and water dusty conditions, sand, salt, heat, sun, snow, to clean the wheels.
  • Page 281: Interior Care

    Vehicle Care Body Component Lubrication Original manufacturer replacement parts Caution (Continued) will provide the corrosion protection while Lubricate all key lock cylinders, hood hinges, maintaining the vehicle warranty. liftgate hinges, and the steel fuel door hinges, automatic car wash that uses silicone unless the components are plastic.
  • Page 282 Vehicle Care Caution Caution (Continued) Caution (Continued) • Immediately remove cleaners, hand Never use a brush with stiff bristles. vehicle, blot immediately and clean with lotions, sunscreen, and insect repellent • a soft cloth dampened with a mild soap Never rub any surface aggressively or from all interior surfaces or permanent and water solution.
  • Page 283 Vehicle Care Coated Moldings Fabric/Carpet/Suede 5. If the soil is not completely removed, use a mild soap solution followed only by Clean coated moldings. Start by vacuuming the surface using a soft plain water. • brush attachment. If a rotating vacuum brush When lightly soiled, wipe with a sponge or attachment is used, only use it on the floor If the soil is not completely removed, it soft, lint-free cloth dampened with water.
  • Page 284: Floor Mats

    Vehicle Care Cargo Cover and Convenience Net Caution Caution If equipped, wash with warm water and mild detergent. Do not use chlorine bleach. Rinse Do not attach a device with a suction Use of air fresheners may cause permanent with cold water, and then dry completely. cup to the display.
  • Page 285 Vehicle Care • Do not place one floor mat on top Cleaning Rubber Floor Mats (All-Weather Warning (Continued) of another. Mats and Floor Liners) The driver side floor mat is held in place by increased stopping distance which can See “Vinyl/Rubber” under Interior Care 3 280 a button-type retainer.
  • Page 286: Service And Maintenance

    Service and Maintenance Service and Maintenance General Information Caution Your vehicle is an important investment. This Damage caused by improper maintenance General Information section describes the required maintenance for can lead to costly repairs and may not the vehicle. Follow this schedule to help protect General Information ........
  • Page 287 Service and Maintenance • Because of the way people use vehicles, Used for taxi, police, or delivery service. the rotation, check the wheel alignment. See maintenance needs vary. There may need to When It Is Time for New Tires 3 260 and Wheel Refer to the information in the Maintenance be more frequent checks and services.
  • Page 288 Service and Maintenance Additional Required Services — convenience. Reset the engine air filter life Every 240 000 km (150,000 mi) • system after the engine air filter is replaced. Normal Service Change rear axle fluid, if equipped with See Engine Air Filter Life System 3 226. AWD.
  • Page 289 Service and Maintenance – Recovery vehicles such as tow trucks Extreme service is for vehicles mainly Every Seven Years • and flatbed single vehicle carriers or driven off-road in four-wheel drive or Replace Air Conditioning Desiccant every any vehicle that is consistently used used in farming, mining, forestry, or seven years.
  • Page 290 Service and Maintenance • • Diagnostics Transfer case Engine air filter • • • OnStar active, if equipped Engine cooling system Hoses • • • Service history/recall check Power steering, if equipped Belts • • Fuel system Shocks and struts Engine Oil and Filter •...
  • Page 291 Service and Maintenance • Have underbody flushing service performed. See "Underbody Maintenance" in Exterior Care 3 276.
  • Page 292 Service and Maintenance Recommended Fluids, Lubricants, and Parts Recommended Fluids and Lubricants Fluids and lubricants identified below by name or specification, including fluids or lubricants not listed here, can be obtained from your dealer. Usage Fluid/Lubricant Automatic Transmission DEXRON VI Automatic Transmission Fluid. Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant.
  • Page 293 Service and Maintenance Maintenance Records After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. Retain all maintenance receipts. Date Odometer Reading Serviced By Services Performed  ...
  • Page 294: Technical Data

    Technical Data Technical Data Vehicle Identification Service Parts Identification Vehicle Identification Number There may be a large barcode on the certification label on the center pillar that you Vehicle Identification (VIN) can scan for the following information: Vehicle Identification Number (VIN) ..293 •...
  • Page 295 Technical Data Vehicle Data Capacities and Specifications Capacities Application Metric English For the air conditioning system refrigerant type and charge amount, Air Conditioning Refrigerant see the refrigerant label under the hood. See your dealer for more information. Engine Cooling System* 6.0 L 6.3 qt Engine Oil with Filter...
  • Page 296 Technical Data Engine Specifications Engine VIN Code Transmission Spark Plug Gap 1.2L L3 Gas Engine (LIH) Automatic 0.6 - 0.7 mm (0.024-0.028 in) 1.2L L3 Gas Engine (LBP) Automatic 0.6 - 0.7 mm (0.024-0.028 in) Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage the spark plug. Engine Drive Belt Routing 1.2L L3 Engine...
  • Page 297: Customer Information

    Customer Satisfaction Procedure Customer Information Your satisfaction and goodwill are important Customer Satisfaction Procedure .....296 to your dealer and to Chevrolet. Normally, Customer Assistance Offices ..... 298 any concerns with the sales transaction or the Customer Assistance for Text operation of the vehicle will be resolved by Telephone (TTY) Users ......298...
  • Page 298 Vehicle delivery date and present mileage. address, Vehicle identification number (VIN), vehicle service claims. The program provides When contacting Chevrolet, remember that the Year, Make, Model, mileage of the vehicle for the review of the facts involved by an your concern will likely be resolved at a dealer's and provide a description of the concern.
  • Page 299: Customer Assistance Offices

    500 Wentworth Street W Learn more about your vehicle features, shop Oshawa, ON L1J 0C5  for and manage your connected services Chevrolet is committed to assisting customers. 1-800-263-3777 (English) and OnStar plans, and access diagnostic Visit us online at www.chevrolet.com/support information specific to your vehicle.
  • Page 300: Gm Mobility Reimbursement Program (U.s. Only)

    : Manage your profile and payment • information. View your GM Rewards Card Telephone number of your location earnings and My Chevrolet Rewards points. • This program is available to qualified Location of the vehicle applicants for cost reimbursement, up to •...
  • Page 301 • and properly inflated. It is the owner's General Motors North America and Chevrolet Vehicles stranded due to off-road driving responsibility for the repair or replacement reserve the right to limit services or payment Service is not provided if a vehicle is in an area...
  • Page 302: Scheduling Service Appointments

    Customer Information Roadside Assistance advisor will help to If your dealer requests you to bring the vehicle Transportation Options make arrangements and explain how to for service, you are urged to do so as early Warranty service can generally be completed receive payment.
  • Page 303: Collision Damage Repair

    Customer Information a rental vehicle. Reimbursement is limited of these parts is not known. Such parts are Collision Damage Repair and must be supported by original receipts not covered by the GM New Vehicle Limited If the vehicle is involved in a collision and as well as a signed and completed rental Warranty, and any related failures are not it is damaged, have the damage repaired...
  • Page 304 Customer Information Insuring the Vehicle If a Crash Occurs Choose a reputable repair facility that uses quality replacement parts. See “Collision Parts” Protect your investment in the GM vehicle If there has been an injury, call emergency earlier in this section. with comprehensive and collision insurance services for help.
  • Page 305: Publication Ordering Information

    Customer Information If another party's insurance company is paying Current and Past Models Operation is subject to the following for the repairs, you are not obligated to accept two conditions: Service manuals and customer literature are a repair valuation based on that insurance 1.
  • Page 306: Reporting Safety Defects To The Canadian Government

    Chevrolet Motor Division technician service the vehicle or to help GM Chevrolet Customer Assistance Center Reporting Safety Defects to the improve safety or features. Some modules P.O. Box 33170 may also store data about how the vehicle Detroit, MI 48232-5170 ...
  • Page 307: Event Data Recorders

    Customer Information information to provide, evaluate, improve, normal driving conditions and no personal Event Data Recorders and troubleshoot our products and services data (e.g., name, gender, age, and crash This vehicle is equipped with an Event Data and to develop new products and services. location) are recorded.
  • Page 308: Onstar

    Customer Information OnStar If the vehicle is equipped with OnStar and has an active service plan, additional data may be collected and transmitted through the OnStar system. This includes information about the vehicle’s operation; collisions involving the vehicle; the use of the vehicle and its features, including infotainment;...
  • Page 309 OnStar OnStar OnStar Overview Software Terms for more details including system limitations at www.onstar.com (U.S.) or www.onstar.ca (Canada). OnStar Overview The OnStar system status light is next to the OnStar Overview ..........308 OnStar buttons. If the status light is: • OnStar Services Solid Green: System is ready.
  • Page 310 OnStar OnStar With Roadside Assistance, Advisors can locate > Press to get a priority connection to an a nearby service provider to help with a flat tire, OnStar Advisor available 24/7 to: Additional Information a battery jump, or an empty gas tank. •...
  • Page 311 OnStar How OnStar Service Works services may not work if the OnStar equipment TTY Users is not properly installed or it has not been Automatic Crash Response, Emergency OnStar has the ability to communicate to deaf, properly maintained. If equipment or software Services, Crisis Assist, Stolen Vehicle hard-of-hearing, or speech-impaired customers is added, connected, or modified, OnStar...
  • Page 312 OnStar • Languages In emergency situations, OnStar can use features to function properly. These systems the last stored GPS location to send to may not operate if the battery is discharged The vehicle can be programmed to respond in emergency responders. or disconnected.
  • Page 313 OnStar or changes may also cause a system to https://opensource.lge.com. In addition to automatically communicate with GM servers the source code, all referred license terms, to collect information about vehicle system warranty disclaimers, and copyright notices status, identify whether updates or changes are available for download.
  • Page 314 Connected Services Connected Services Connected Services Using Voice Commands During a Planned Route Navigation Functionality of the Voice Command button, if Connected Services Navigation requires a specific OnStar or equipped, may vary by vehicle and region. For Navigation ............313 connected service plan. some vehicles, press to open the OnStar app Connections ............313...
  • Page 315 Wi-Fi Hotspot menu. 1. To retrieve Wi-Fi hotspot information, press • Connect with Chevrolet on social media. to open the OnStar app on the MyChevrolet Mobile App (If Available) Features are subject to change. For...
  • Page 316 OnStar Advanced Diagnostics, if equipped, provides a way to keep up on maintenance. Capabilities vary by model. See www.onstar.com for details and system limitations. Features are subject to change. For updates on feature capabilities, see https:// www.chevrolet.com/owners. Message and data rates may apply.
  • Page 317 INDEX Index Passenger Sensing System......49 What Makes an Airbag Inflate?....47 About Driving the Vehicle......... 2 What Will You See after an Airbag Accessories and Modifications...... 217 Inflates?............48 Accessory Power..........180 When Should an Airbag Inflate?....46 Adaptive Where Are the Airbags?......
  • Page 318 INDEX Forward Collision Alert (FCA) System..202 Load Management........111 Front Pedestrian Braking (FPB)....205 Power Protection.......... 111 Calibration Lane Change Alert (LCA)......207 Battery - North America......234, 271 Compass............79 Lane Keep Assist (LKA)......209 Blade Replacement, Wiper......236 California Parking............
  • Page 319 INDEX Lower Anchors and Tethers for Control Children............60 Traction and Electronic Stability..... 187 Damage Repair, Collision......302 Older Children..........54 Control of a Vehicle........164 Danger, Warning, and Caution......2 Securing........... 67, 69 Controls Dashboard............. 4 Systems............57 Steering Wheel........115, 134 Data Collection Child Safety Locks..........
  • Page 320 INDEX Information Center (DIC)....99, 101 Fuses and Circuit Breakers......243 Exterior Teen............128, 150 Instrument Panel Fuse Block....245 Lamp Controls..........106 Driving Electronic Stability Control (ESC) Off Lighting Battery Saver........ 111 Assistance Systems........202 Light..............96 Better Fuel Economy........163 Emergency Defensive............
  • Page 321 INDEX Filling a Portable Fuel Container..... 214 Horn..............77 Filling the Tank..........213 How to Wear Seat Belts Properly....38 Halogen Bulbs..........238 Foreign Countries........212 HVAC............156, 158 Hazard Warning Flashers......109 Gauge............. 86 Headlamps Low Fuel Warning Light......97 Aiming............
  • Page 322 INDEX Lighting Traction Control System (TCS)/ Entry.............. 110 Electronic Stability Control Light....95 Jump Exit..............111 Traction Off........... 95 Starting - North America......271 Illumination Control........110 Locks LED..............239 Automatic Door..........20 Lights Delayed Locking........... 20 Keys..............6, 7 Adaptive Cruise Control......
  • Page 323 INDEX Vehicle............104 Online Account and Customer Support..298 Perchlorate Materials Requirements, Vehicle Speed..........105 OnStar..............307 California............217 Mirrors Additional Information......309 Phone Automatic Dimming Rearview....26 Overview............308 Apple CarPlay and Android Auto..125, 147 Convex............. 25 OnStar Emergency......... 309 Bluetooth......
  • Page 324 INDEX AM-FM Radio..........117 Reporting Safety Defects Care..............43 Data System (RDS)........138 Canadian Government......305 Extender............43 Frequency Statement....... 304 General Motors........... 305 How to Wear Seat Belts Properly..... 38 Reception..........119, 139 U.S. Government........304 Lap-Shoulder Belt......... 40 Satellite..........
  • Page 325 INDEX Parts Identification........293 Wheel Adjustment........77 Scheduling Appointments......301 Wheel Controls..........115 Tachometer............86 Services Steering Wheel Controls........ 134 Taillamps Special Application........289 Stop/Start System........... 178 Bulb Replacement........240 Servicing the Airbag.......... 52 Stoplamps and Back-Up Lamps Teen Driver..........128, 150 Settings............
  • Page 326 INDEX Wheel Replacement........264 Ventilation, Air..........160 When It Is Time for New Tires....260 Visors..............27 Uniform Tire Quality Grading...... 262 Winter............249 Updates Top Tier Fuel............. 210 Software............117 Towing Warning USB Port............ 120, 140 General Information........214 Brake System Light........
  • Page 327: Connected Services

    Scan to Access • Owner’s Manuals • Warranty Information United States Canada • Connected Services • My Chevrolet Rewards • myChevrolet Mobile App • How-To Videos • Vehicle Diagnostics • Scheduled Maintenance • Vehicle Features • Many Additional Resources United States...

Table of Contents

Save PDF
