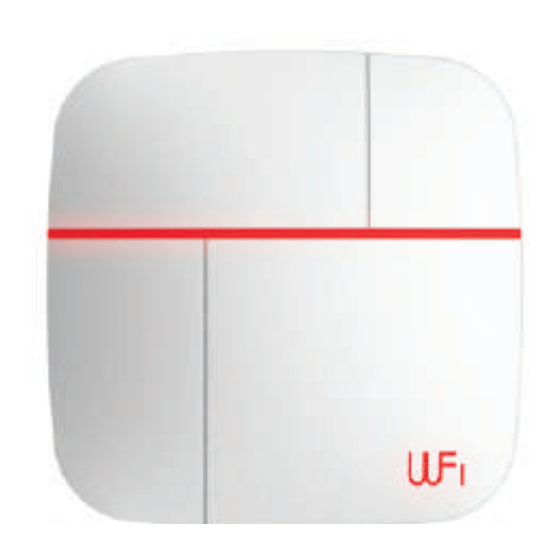

WFI Vcare10 Installation And User Manual

Smart security alarm system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Ver.240815
Wi-Fi/4G - APP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vcare10 and is the answer not in the manual?

Questions and answers

Summary of Contents for WFI Vcare10

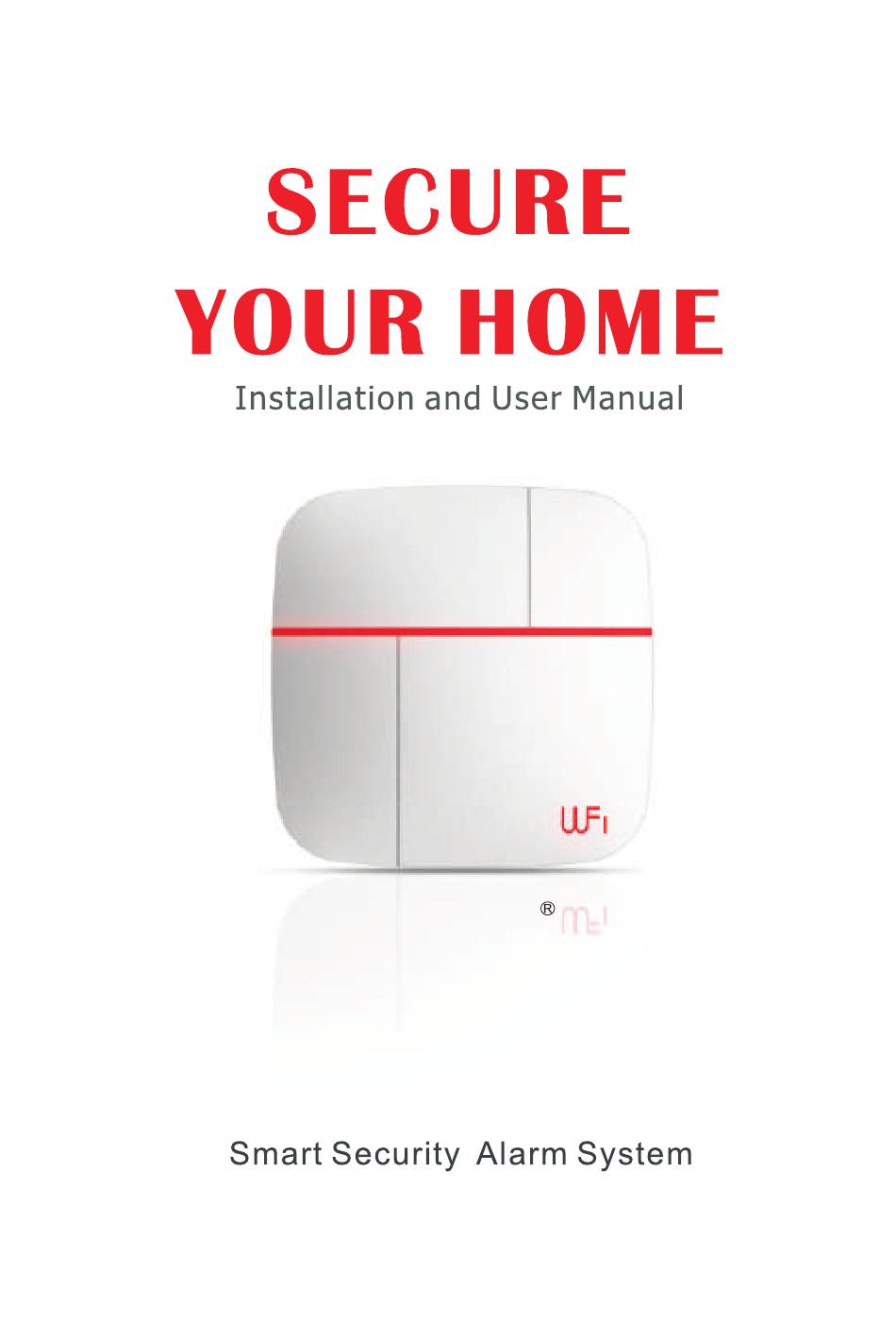

  • Page 1 Ver.240815 Wi-Fi/4G - APP...

  • Page 2: Table Of Contents

    Foreword Features 1. Content of Package 2.Preparation before Use ----------- ---------2 Control Panel-------------------- 2.1.1 Control Panel: Front---------------------------------2 2.1.2 Control Panel:Back----------------------------------3 2.2 Inserting a SIM card----------------------------------3 2.3 Turning on the system---------------------------------4 3.Adding Users on APP ----------------------- 3.1 Download App and Installation--- 3.2 Adding Users----------------------------------------5 3.2.1 Adding the Main User--------------------------------5 3.2.2 Additional Users------------------------------------8...
  • Page 3 -------------------------------18 4.6.1 Change Host Password 4.6.2 Switch Host's Wi-Fi--------------------------------- 18 4.6.3 SMS Number and Phone Number-----------------------19 4.6.4 Modifying Language for the Gateway---------------------19 4.6.5 Modifying Time of Gateway---------------------------20 4.7 Changing Additional Settings---------------------------20 4.8 Handing APP Alarm Messages and Precautions-------------21 4.9 Handing Phone Call Alarm------------------------------22 5.
  • Page 4 Thank you for selecting Vcare10 alarm system. This system is designed to transmit alarm notifications via Wi-Fi to mobile phone apps, and also to make calls and send text messages to phone numbers of your choice using 4G. The unique dual network provides stability and speed for added safety measures.

  • Page 5: Content Of Package

    Alarm Panel*1 Other accessories: Power adapter*1, alarm panel mounting bracket*1, user manual*1. 2.1 Control Panel 2.1.1 Control Panel: Front Wi-Fi Signal Indicator (Blue)

  • Page 6: Control Panel:back

    2.1.2 Control Panel: Back （≥ ） Siren 80dB Wi-Fi Record button Wi-Fi Setting Button 4G signal indicator Learning accessories signal indicator 2.2 Inserting a SIM card When using the innovative Wi-Fi and 4G system, all alarm signals and notifications are sent to the users via Wi-Fi. When it detects a failed request, the network host will automatically switch to 4G and alert users by making calls and sending text messages.

  • Page 7: Turning On The System

    2.3 Turning on the system 1. Plug power adaptor into the power port. 2. Push power switch from OFF to ON for turning on the system. 3. Adding Users on App Within your Play Store, type “Vcare” into the search box and download the app to your Android smartphone or iPhone..

  • Page 8: Adding Users

    3.2 Adding Users Vcare Alarm allows one main user and up to unlimited additional users. 3.2.1 Adding the Main User To create the main user first, please complete the following steps. 1. Click to open Vcare 2. On the main interface, click Alarm app on your mobile...
  • Page 9 3. Click “Admin” 4. Scan the QR code on the back of the panel and fill in the gateway name and installation address. 5. After clicking next, 6. After clicking next, enter choose the correct network the host password. (Note: for the gateway.
  • Page 10 WIFI 7. Quick press the “Wi-Fi Setting Button” on the back of the panel. (As shown above). Once you hear one beep sound from the host, click “Next” on the app, and the progress bar will confirm configuration. Wait for about ten seconds to successfully configure.

  • Page 11: Additional Users

    3.2.2 Additional Users. (Use the same server's Apps to add users) Please complete all the following steps for additional users. Please note: Access is the same, however only the main user can amend the parameters for the host. 1. Click “admin user” to 2.
  • Page 12 6. When in the “choose users” 7. Enter the invitation code interface, click “member”. and click confirm. 8.Enter user name. Click to confirm and follow successfully.

  • Page 13: App Introduction

    4. App Introduction Main Interface All the added devices will be listed here. Each device will display name, MAC, model, and status. Also displays the current arm/disarm/ stay at home status. Control Panel Management Interface 4G network status Enter edit device name and delete device Gateway name Backup battery power...

  • Page 14: Disarm/Arm/Home Stay Arm/Siren

    4.1 Disarm/Arm/Home Stay Arm/Siren Disarmed: After disarming, all the intrusion type sensors cannot be triggered. Detectors such as the panic button, smoke detector, and water and gas leakage detector are still able to activate the alarm. Arm: Once armed, the alarm will be activated if any sensor is triggered.

  • Page 15: Accesory Management

    4.2 Accesory Management This includes assorted types of intrusion detectors and emergency detectors. 20 remote controllers/keyboards, 8 emergency buttons, 99 PIR/door detectors, 30 gas/smoke detectors, 8 medical buttons, and 4 water leakage detectors can be added. Please refer to the following description for details.

  • Page 16: Modify Name Of The Accessory

    4. The successfully added 5. The successfully added accessories device will be displayed on all will display the name of the accessory, devices and the device type. the number of zones, and the status. For intrusion accessories, it will also display garrison area.

  • Page 17: Delete Accessories

    3. Input a new name, for example, “Remote control”. Click confirm to modify successfully. 4.2.3 Delete Accessories 1. Click here to delete 2. Click here to delete sensors detectors of the same type. one by one.

  • Page 18: Check Accessories Qr Code

    4.2.4 Check Accessories QR code Click here to check the QR code and number of the accessories 4.2.5 Check Accessory History Events Click here to check the accessory history events...

  • Page 19: Set Up Home Saty Zones

    4.2.6 Set up Home Saty Zones 1. Enter into sensor management 2. In pop up window, turn off interface, click the zone you want the garrison area. to set. 3. After set up, the sensors are not in home stay status. Please note: home stay prevents the alarms from being triggered when indoors.

  • Page 20: Devices Status

    1. Click on history events. 2. Each alarm record will display the device name, alarm event, MAC address, and alarm time. 4.4 Devices Status Host arm/ disarm status/arm at home External power supply connected/disconnected Backup battery power WiFi signal strength 4G signal strength(Note:If no SIM card is inserted, the signal strength is 0.) SIM card status...

  • Page 21: Setting Interface

    1. Display the names and accounts of added family members. 2. Delete the family member. 3. Invite Family Members. (Note: please refer to 3.2.2.) 4.6 Setting Interface 4.6.1 Change Host Password 1. Click host password. 2. Enter the old and new passwords, and click confirm to complete the modification.

  • Page 22: Sms Number And Phone Number

    4.6.3 SMS Number and Phone Number Inputting a phone number for text message and calls. Please note: This special function is for the 4G edition of Vcare 10 Alarm. When Wi-Fi fails, it will automatically switch to this network. 1. Click on the “SMS Number 2.

  • Page 23: Modifying Time Of Gateway

    Please note that changing the language of the gateway will not change the language of the App. If you want to change the app's language, please change the smartphone's language. 4.6.5 Modifying Time of Gateway: Modifying the time of gateway: It is recommended that all users reset the time for a new gateway.

  • Page 24: Handing App Alarm Messages And Precautions

    If accessories are in low battery, App will push an alert message. If the host in low battery, App will push an alert message. Available to set, the default is open for this function. When arming/disarming by remote control, buzzer sound prompt. If there are doors/windows that are not closed, the host cannot be armed.

  • Page 25: Handing Phone Call Alarm

    5. There is an option to turn on the “Wi-Fi network breakdown, auto change to 4G network” function. If the Wi-Fi fails, the host will send 5 SMS reminders to the phone numbers provided. 6. When detectors such as door/window, PIR, smoke, and water leakage are disconnected using the alarm host, the app will push alert messages(without the use of SMS) and the related icon will appear in grey on the sensor management interface.

  • Page 26: Introduction For Sensors

    This will continue in a cycle of 5 until a call is answered. It will eventually stop automatically if there is a lack of response. 5. Introduction for Sensors 5.1 PIR Motion Sensor Alarm Indicator Lens Installation: 1.Open the shell, remove the insulation strip. 2.Mount onto the wall at a height of 2.2 meters.

  • Page 27: Remote Controller

    Alarm Indicator Transmitter Magnet Installation: Open the shell, remove the insulation strip. 2. Using double sided adhesive tape, affix both parts of the sensor to a door or window. 3. When the magnet is moved 1.5cm away from the transmitter, the alarm will be triggered. 5.3 Remote Controllers Signal Indicator Disarm...

  • Page 28: Medical Panic Button

    5.4 Medical Panic Button Wearable Cable Usage: 1.Pull the wearable cable to activate Buckle SOS alarm. 2.Press SOS button to activate SOS Button alarm. (Will activate siren to alarm) 5.5 Emergency Panic Button Usage: 1.Affix the button to any suitable surface or place it where it is needed.

  • Page 29: Smoke Detector

    Notice 1. Fix the sensor on the area of water leakage easily happens. 2. Do not fix the sensor with plenty of water vapor or rain. 3. Do not fix the sensor in the water immersion place. 4. Though the water detector can reduce accident. it does not insure perfectly safe.

  • Page 30: Sms/ Phone Call Settings(Option)

    Normal work indicator Alarm indicator Fault indicator Gas convection windows Usage: 1. Mount the detector on to the wall and place the plug in a power adapter. 2. Install the device in a place where a gas leak is most likely to take place.

  • Page 31: Delete Phone Numbers

    123456DD13688888888,,,,,13988888888 1234DD13688888888,,,,,13988888888 SMS: 1.13688888888 TEL: 3.13988888888 Host reply: SMS: 1.13688888888 TEL: 3.13988888888 Please Note: . The user can set up all SMS and phone call numbers by sending just one text message command. . The certain amount of numbers set up depends on the user’s preference.

  • Page 32: Current Phone Numbers

    6.3 Current Phone Numbers SMS Format: ‘Password+DD’ A list of the active phone numbers available for alarm notifications will be sent to the phone number that was input first. Send: 123456DD 6.4 Arm/ Disarm Arm SMS Format: ‘Password+A1’ (123456A1) Disarm SMS Format: ‘Password+A2’ (123456A2) The alarm host will reply “Panel Armed”...

  • Page 33: Reset Gateway To Factory Default

    7. Do not install the host next to objects with strong interference such as televisions and computers. 8. Regularly check the SIM card within the alarm host (signal strength, balance etc). 9. Ensure the alarm system is running efficiently on a regular basis.
