R+W Antriebselemente GmbH
Hattsteinstraße 4
63939 Wörth am Main

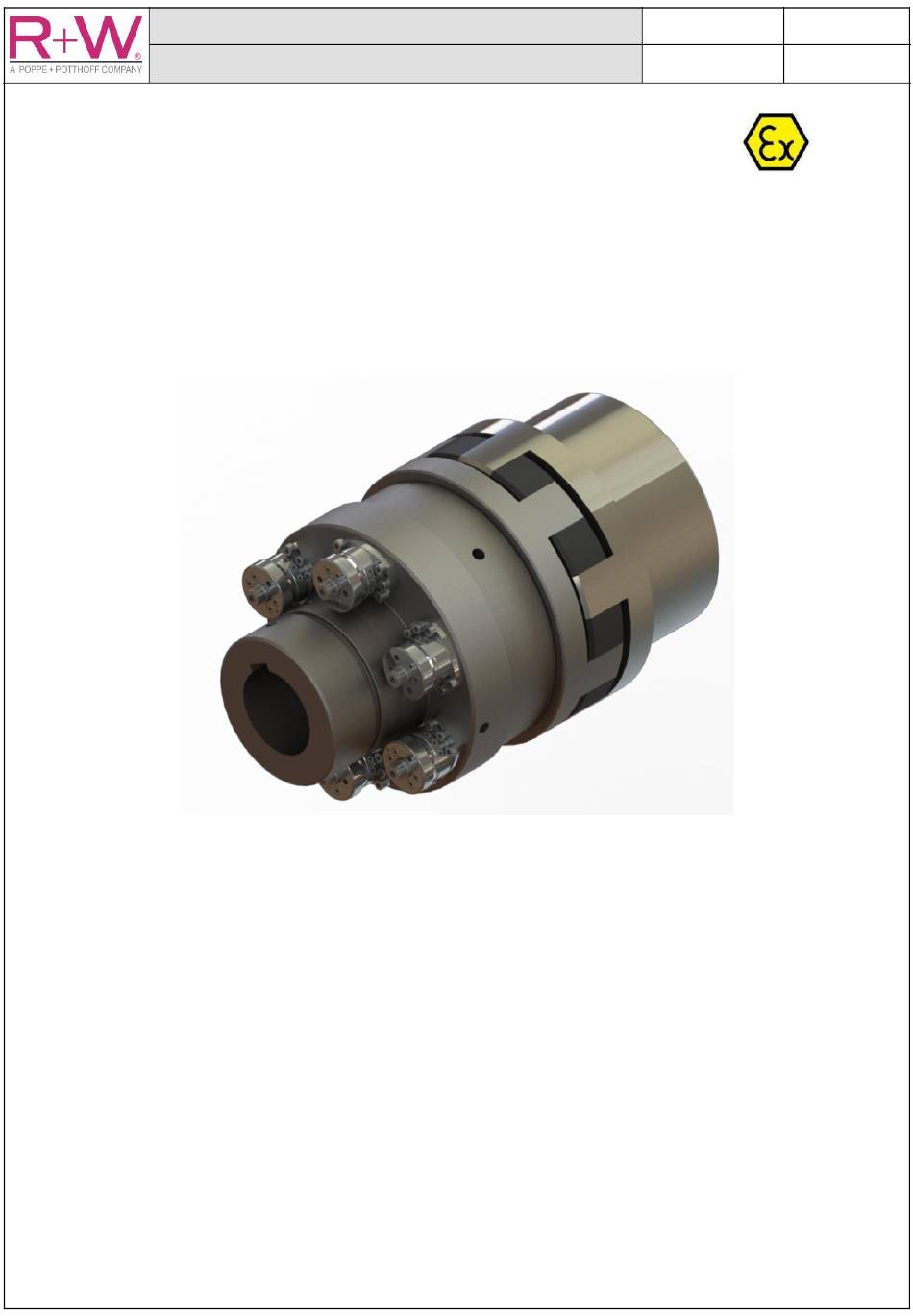

R+W STE Elastomer Coupling
Type STE/xxx/D/xx/xx for use in hazardous area
Translation of Original operating instructions in German
STE 2-10 englisch
The operating instructions are an essential part of the STE
maintenance. Please read them carefully and observe all instructions. Failure to do so may lead to malfunctions or failure of the STE
safety
coupling. The installation of the coupling may only be carried out by trained personnel.
STE
safety
coupling may only be used in accordance with the technical data specified here.
Operation Manual
STE Safety Coupling series 2 to 800
FIRST COMMISSIONING AND OPERATION
SPARE PARTS AND CUSTOMER SERVICE
GENERAL INFORMATION, USE
PLANNING AND TECHNICAL DATA
ASSEMBLY AND DISASSEMBLY
MAINTENANCE AND REPAIR
safety
coupling. It provides information for proper assembly, operation and
Page
1
Created
2020-06-18
SAFETY AND
1
2
3
4
5
6
Of
12
Version
2021-03-05
Advertisement
Table of Contents
Related Manuals for R+W STE Series
Summary of Contents for R+W STE Series
- Page 1 STE Safety Coupling series 2 to 800 2020-06-18 2021-03-05 R+W Antriebselemente GmbH Hattsteinstraße 4 63939 Wörth am Main R+W STE Elastomer Coupling Type STE/xxx/D/xx/xx for use in hazardous area Translation of Original operating instructions in German STE 2-10 englisch SAFETY AND GENERAL INFORMATION, USE...
-
Page 2: Signal Words
Page Operation Manual Created Version STE Safety Coupling series 2 to 800 2020-06-18 2021-03-05 1. SAFTY AND ALL INFORMATION, USE This manual enables the appropriate personnel for the respective activity to handle the STE safety coupling over their lifetime phases. Residual risks to persons and materials exist in certain activities. -
Page 3: Warning Signs
Page Operation Manual Created Version STE Safety Coupling series 2 to 800 2020-06-18 2021-03-05 Warning signs These warning signs are used in the alerts. Symbol Importance General warning Warning of explosive atmosphere Warning of floating loads Warning of hand injuries caused by rotating parts with danger of inflow Warning of hot surface Warning of electrical voltage... - Page 4 Page Operation Manual Created Version STE Safety Coupling series 2 to 800 2020-06-18 2021-03-05 Safety-conscious working All persons carrying out work concerning installation, commissioning, operation and maintenance must read this manual in full and attentively and observe all the safety rules and warnings described. •...
- Page 5 Page Operation Manual Created Version STE Safety Coupling series 2 to 800 2020-06-18 2021-03-05 Coupling protection The installer shall provide suitable coupling protection in order to prevent contact between personal body parts or the retraction of parts with the rotating STE safety coupling. The cover housing must be sufficiently robust as it is intended to protect the coupling from falling objects.
- Page 6 3 / 0 550706 Grub screw Coupling hub EK1 410026 Elastomer insert 4000803 Adapter flange 492291 R+W STE safety couplings combine two functions: Flexible elastomer coupling They are characterized by • Compact • play-free and • vibration damping execution. lateral offset...
- Page 7 2020-06-18 2021-03-05 R+W STE safety couplings shall compensate lateral, angular and axial offset of two horizontal shafts by means of an elastomer insert consisting of several segments. Zero backlash of the coupling is given by pre-tensioning of this elastomer insert.
- Page 8 Page Operation Manual Created Version STE Safety Coupling series 2 to 800 2020-06-18 2021-03-05 Technical data Size, Series Adjustment range available from – to 0,2 - 0,5 - 1,0 - 0,6 - 1,1 - 1,6 - 0,7 - 1,2 - 3,2 - 2,0 - 4,0 -...
-
Page 9: Assembly And Disassembly
R+W STE safety couplings have an H7 fit. The fit play of the shaft / hub connection must be in the tolerance of 0.01 to 0.05mm. STE Safety couplings compensate lateral, axial and angular shaft offsets. - Page 10 Page Operation Manual Created Version STE Safety Coupling series 2 to 800 2020-06-18 2021-03-05 The elastomer inserts are damaged by improper heat input and cannot safely separate the hubs. The result is a smashing of the hubs with ignition-effective sparks and explosion. The temperature of the hubs when installing the elastomer insert shall not be higher than 80°C.
- Page 11 Page Operation Manual Created Version STE Safety Coupling series 2 to 800 2020-06-18 2021-03-05 Exceeding the maximum offset compensation of the STE safety coupling leads to overloading of the coupling with ignition of an explosive atmosphere. In the total of the individual offsets, 100% must not be exceeded.
-
Page 12: Maintenance And Repair
When snapping in and out, the switching modules wear out. Therefore, after 20 rests, the switching modules must be exchanged. Have the switching modules replaced by R+W. Worn switching modules lead to sparks and explosions. Limit the resting to 20 and change switching modules.
