Installation Instructions
for Washers
CACSHD-30 / CACSHD-40
CACSHD-55 / CACSHD-60
CACSHD-70 / CACSHD-80

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CACSHD-30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Circul-Air CACSHD-30

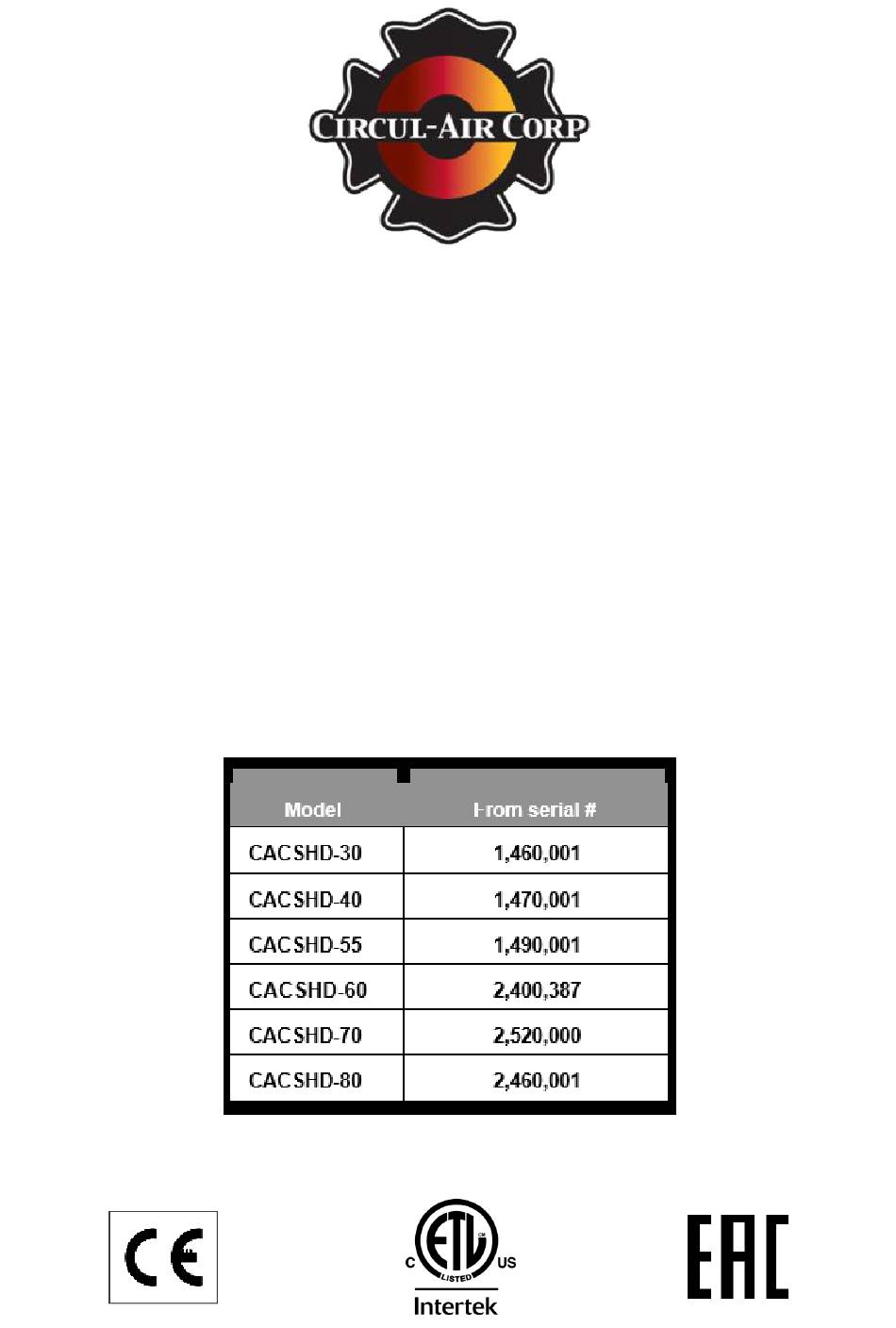

  • Page 1 Installation Instructions for Washers CACSHD-30 / CACSHD-40 CACSHD-55 / CACSHD-60 CACSHD-70 / CACSHD-80...
  • Page 2: Installation

    ROUTINES ON CIRCUL-AIR EQUIPMENT The actions described in these instructions are strictly reserved for contractually AUTHORISED TECHNICAL SERVICES (ATS) and personnel who have successfully completed training by Circul-Air Corp The company responsible for the Authorised Technical Service accepts full liability for the work done and any possible consequences that may derive from it.
  • Page 3 Installation - Before beginning any procedure on machines equipped with an inverter or equipment with capacitative loads, wait for at least five minutes (10 minutes on equipment with a power rating greater than 25 kW) after the electrical disconnection, to eliminate risk of residual voltage. - Close and mechanically lock the manual WATER, GAS, STEAM, THERMAL OIL, COMPRESSED AIR, etc.
  • Page 4: Safety Instructions

    Safety Instructions SYMBOLS USED IN MACHINE LABELLING Electrical risk High temperature risk Handle with caution. Protective guard for elements carrying an electric current. Use adequate protection. Risk of inhaling harmful or irritant Mechanical risk vapors Keep the doors/covers closed. Protective guard for moving parts. Use adequate protection.
  • Page 5: Technical Specifications

    Technical specifications TECHNICAL SPECIFICATIONS 1.1. Tools needed for installation CACSHD-30; CACSHD-40 • Shipping restraints ......open end wrench 11/16 inch. (17mm) • Shipping restraints ......tubular wrench 11/16 inch. (17mm) CACSHD-55; CACSHD-60; CACSHD-70; CACSHD-80 • Shipping restraints ......open end wrench 3/4 inch. (19mm) •...
  • Page 6 Technical specifications Legend DIMENSIONS (Figures 1, 2, & 3) CONNECTIONS Height from the machine base Water supply Distance from the center of symmetry of the unit Drain Depth Electrical connection inlet Height to the door bottom Electrical connection inlet external dosing Gravity center (GC) Product inlets external dosing Steam inlet connection...
  • Page 7: Use Copper Conductors Only

    Installation Environment and positioning conditions +41 (+104) MAXIMUM TEMPERATURE ºC (ºF) +5 (+40) MINIMUM TEMPERATURE ºC (ºF) LIGHTING 300 (0.4) VENTING OPENING (sq.ft.) MAXIMUM RELATIVE HUMIDITY 1000 (39.4) WORKING AREA mm (in) 500 (19.7) REAR MAINTENANCE AREA (*3) mm (in) *3.
  • Page 8: Receipt, Transport And Location

    Installation RECEIPT, TRANSPORT AND LOCATION Check that the product has not suffered any damage in transit. (Any damage caused in this way will not • be attributable to the manufacturer, and the appropriate claim should be made against the party responsible for transporting the product.) THE MACHINE’S PACKAGING MUST BE DISPOSED OF IN ACCORDANCE WITH THE ENVIRONMENTAL REGULATIONS IN FORCE IN THE COUNTRY OR AREA IN WHICH THE MACHINE IS...
  • Page 9: Washer Location Conditions

    Installation 2.3. Safety doors unlock (CACSHD-60/70/80 models only) To open the door in case of power failure, completely insert a rod of a diameter of 0.2 in (3 mm) and an approximate length of 4 inches (100 mm) into the bottom side of the safety lock cover, and at the same time turn the knob downwards.
  • Page 10 Installation TO REDUCE VIBRATION AND SOUND AND TO ENSURE THAT THE MACHINE IS CORRECTLY BALANCED, IT IS ESSENTIAL THAT THE FOUR BASE LEGS OF THE WASHING MACHINE REST UNIFORMLY UPON THE FLOOR. DO NOT PLACE ANY TYPE OF ANTI-VIBRATORY DEVICE BETWEEN THE WASHER AND THE FLOOR.
  • Page 11 Transport & location 2.5. Installing more than one washer If the installation calls for more than one washer, align them with each other. The minimum distance between adjacent machines and the user and maintenance areas (values I, S and T of Figure 2.3) are specified on the table below.
  • Page 12: Removal Of Shipping Braces

    NON-COMPLIANCE WITH THIS PRECAUTION MAY CAUSE SERIOUS PHYSICAL DAMAGE TO PEOPLE AND IRREPARABLE DAMAGE TO THE WASHER. THE WARRANTY DOES NOT COVER THIS INCIDENCE. 2.6.1. CACSHD-30/40/60/70/80 models Steps to follow (Fig. 2.4 and 2.5). Disassemble the lower cover A, by removing screws B.
  • Page 13 Transport & Location 2.6.2. CACSHD-55 models • Remove the screws (Fig. 2.6/A) holding the lower front cover and loosen the three screws (Fig. 2.6/B) holding the base of the chassis. Separate the rubber profile (Fig. 2.6/C) at the two small side guards and remove the front cover •...
  • Page 14 Installation INSTALLATION ALL CONNECTIONS FOR ELECTRICAL POWER AND PLUMBING MUST COMPLY WITH THE STATUTORY SAFETY STANDARDS APPLICABLE TO EACH COUNTRY, AND BE MADE BY AUTHORISED INSTALLATION CONTRACTORS ONLY. ALL THE WASHER CONNECTIONS MUST BE CARRIED OUT BY THE AUTHORIZED TECHNICAL SERVICE.
  • Page 15 Installation Direct connection of the washer drain to the manifold (Fig. 3.3) Facilities preferring this option to the open box option (recommended option) must respect the following precautions: Provide next to the connection point of each machine to the manifold, with a manifold ventilation outlet A reaching the outside, set at a height of 40 in (1000 mm) and of a diameter of 2 in (50 mm).
  • Page 16 Installation 3.2. Water supply IMPORTANT! The local or national regulations concerning the water supply system in the country where the washing machine is installed must be followed. Hoses and pipes should be flushed through before being connected to the machine. Install at each water supply and in an accessible location, a mechanically interlocked water valve.
  • Page 17: Grounding Instructions

    CONNECTED TO THE GROUND INSTALLATION WITH A CONDUCTOR CONNECTED TO THE EQUIPMENT GROUNDING TERMINAL. CACSHD-30 AND CACSHD-40 WASHING MACHINES ARE DESIGNED TO OPERATE IN SINGLE-PHASE AND THREE-PHASE LINES. MODELS OF VOLTAGE BETWEEN 380 AND 415 V REQUIRE IN ADDITION A CONNECTION TO THE NEUTRAL WIRE.
  • Page 18 Installation Safety switch. Install an Automatic on/off Switch, outside the washer, with individual protection for each machine. Characteristics: • number of poles and intensity: consult ELECTRICAL CONNECTION table (section 1.5) • C type with top opening greater than 0.12 in (3 mm) •...
  • Page 19: Steam Connection

    Installation 3.4. Steam connection In some models the body of the steam solenoid valve and the filter are shipped inside the drum of the washing machine, separate from the electrical wiring system. The coil is connected to the end of the electrical installation. In other models, the assembly solenoid valve and filter are supplied connected to the electrical wiring system.
  • Page 20 Installation 3.5.1. External dosing electrical connection 3.5.1.a. Steps prior to connection: • Disconnect and mechanically lock the external automatic switch. • Open the machine’s terminal box. On the entry hole of the external dosing electrical supply (Ed identified in figure 2) install a lock mechanism •...
  • Page 21 Installation 3.5.1.d. Dosing equipment connection. RELAY CONTACTS POWERED FROM THE WASHER CONTROL CIRCUIT. (Fig. 3.14) IMPORTANT This connection allows for the maximum strength at each of the 50mA outputs. Higher consumption can prevent the washer from functioning correctly. This connection can aggravate any problems produced by a fault in the grounding connection, both of the washer itself and of the external dosing equipment.
  • Page 22 Installation 3.5.2. External dosing hoses connection The external dosing inlets are perforated and protected by a tube cap. Refer dimensions dosing inlets diameter INSTALLATION SPECS, section 1.4. To connect the product cables: • Locate the dosing inlets in the back of the machine. •...
  • Page 23 5 kg (11 lb) and tighten until obtaining the values shown in the table below. Fig. 3.18 BELTS NEW BELTS IN USE CACSHD-30 10 mm (0.39 in) 12 mm (0.47 in) 7 mm (0.28 in) 9 mm (0.35 in) CACSHD-40 18 mm (0.71 in)
  • Page 24: Initial Start-Up

    Installation 3.8. Initial start-up THE WASHER MUST BE PUT INTO SERVICE BY AN AUTHORIZED TECHNICAL SERVICE. Before the initial START-UP, make sure that you accomplish the following points: • Remove all packing materials. (Break them down in order to appropriately recycle them) •...
