Dacor 24 Planning Manual

CombINATIoN INsTALLATIoNs
081705
"A" Cabinet
Models Cutout Width
24" 22 1/2" (572mm)
27"
25 1/2" (648mm)
30"
36" 34 3/8" (873mm)
IOWO24 22 9/16" (573mm)
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
warming oven/
Drop-In Cooktop
Preference™/Millennia™ Cooktop
36"
(914mm)

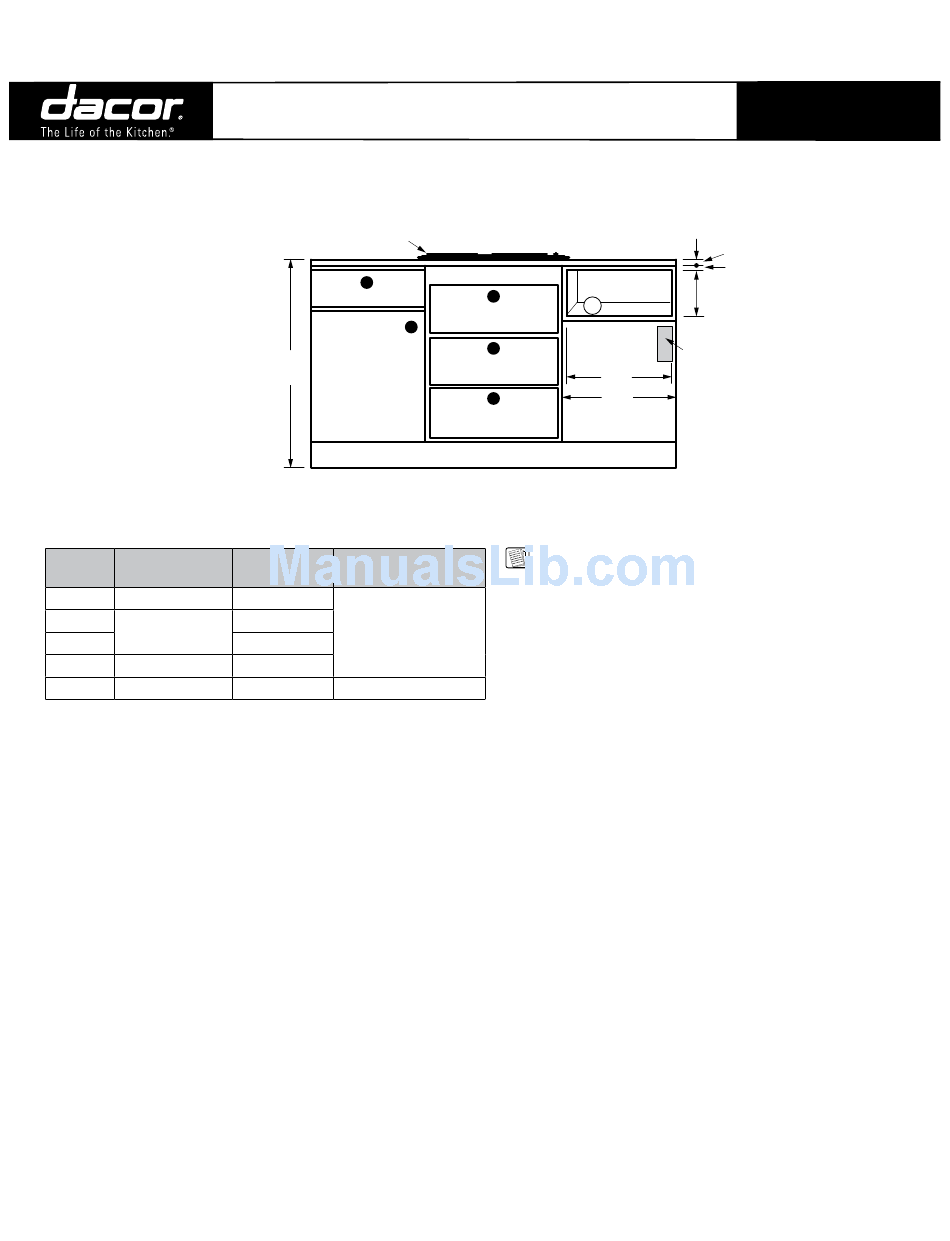

PrEfErENCE™/ mILLENNIA™ CookToP wITH wArmING ovEN
"B" Min.
Cabinet Width Oven Overlays
24" (610mm)
3/4" (19mm) Each Side;
27" (686mm)
1/2" (13mm) Top;
30" (762mm)
1/2" (13mm) Bottom
36" (914mm)
27" (686mm) N/A
Warming Oven
2
"A"
"B"
NOTES:
1. 24" (610mm) minimum interior cabinet depth.
2. 3/4" (19mm) support platform (flush with cutout).
3. 1/8" (3mm) minimum clearance to adjacent cabinet
doors/drawers.
4. For stacked warming ovens, see CI.20.
5. The IOWO model cannot be stacked.
Specifications are subject to change without notice.
See installation instructions for additional details.
PLANNING
GUIDE
1/1
1 1/2" (38mm) Typical counter top
3/4" (19mm) Min.
9 1/8" (232mm) (All models except IOWO)
12 1/8" (308mm) (IOWO model only)
120VAC
Electrical
receptacle
CI.15
