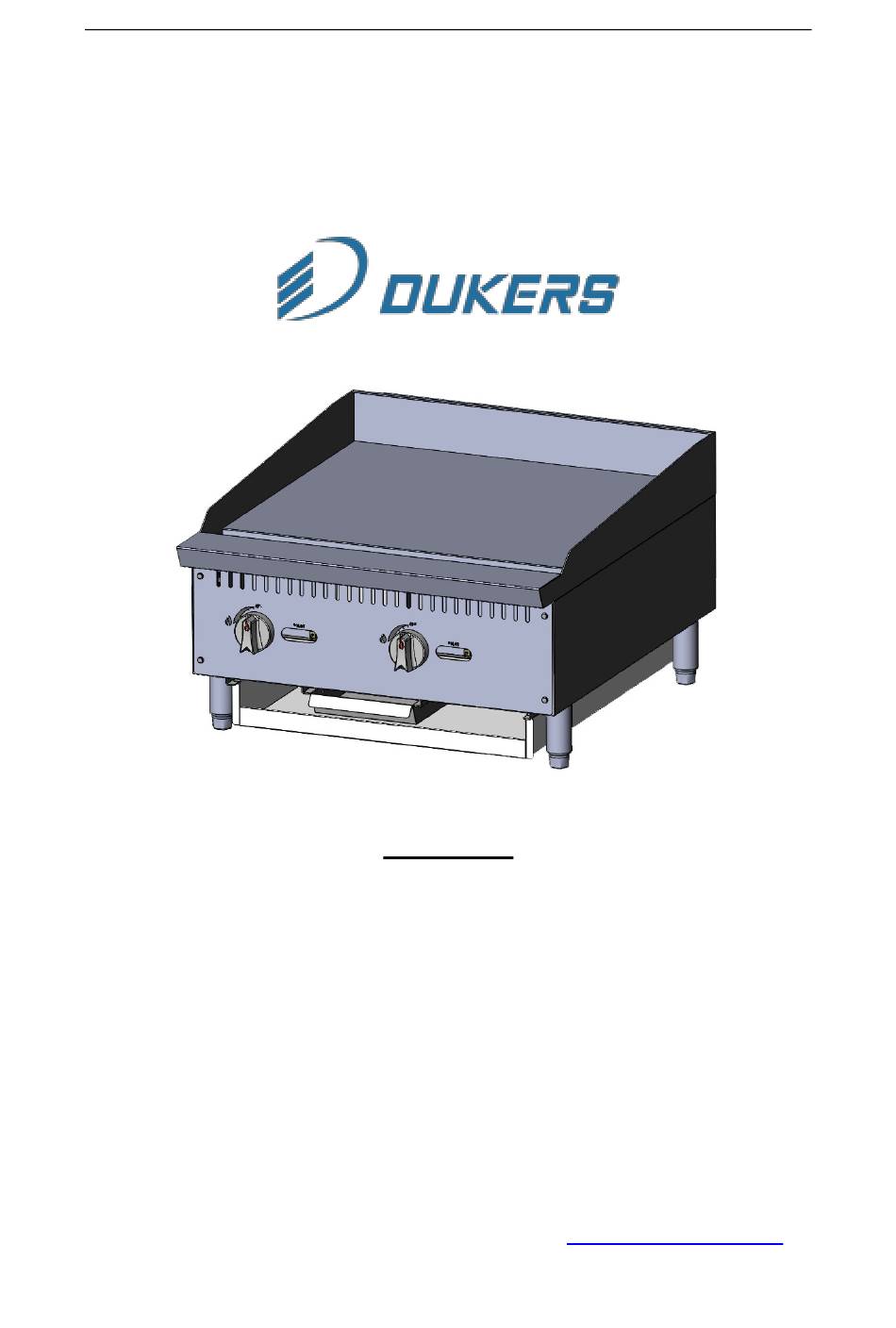

DUKERS
GAS GRIDDLE
INSTALLATION & OPERATION MANUAL
Gas Griddle
Models
DCGMA24
DCGMA36
DCGMA48
DCGM24
DCGM36
DCGM48
-IMPORTANT SAFETY NOTICE-
This manual contains important safety instructions which must be strictly followed
when using this equipment. Please retain this manual for future reference.
1-800-931-8628 | WARRANTY@DUKERSUSA.COM |
WWW.DUKERSUSA.COM
1
Advertisement
Table of Contents
Related Manuals for DUKER DCGMA24
Summary of Contents for DUKER DCGMA24
- Page 1 DUKERS GAS GRIDDLE INSTALLATION & OPERATION MANUAL Gas Griddle Models DCGMA24 DCGMA36 DCGMA48 DCGM24 DCGM36 DCGM48 -IMPORTANT SAFETY NOTICE- This manual contains important safety instructions which must be strictly followed when using this equipment. Please retain this manual for future reference.
-
Page 2: Table Of Contents
DUKERS GAS GRIDDLE FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors or liquids in vicinity of this or any other appliance WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury of death. Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment. -
Page 3: Attention Oweners And Operators
DUKERS GAS GRIDDLE Attention owner and Operators The equipment is designed to provide safe and productive processing, cooking and warming of food products as long as the equipment is used in accordance with the instructions in this manual and is properly maintained. Unless the operator is adequately trained and supervised there is a possibility of serious injury. -
Page 4: Unpacking & Installation
DUKERS GAS GRIDDLE Unpacking & Installation △ WARNING TO AVOID SERIOUS PERSONAL INJURY AND PROPERTY DAMAGE: ALWAYS install equipment in a work area with adequate light and space. ONLY operate on a solid, level, nonskid surface that is nonflammable and away from sinks and water hazards ... - Page 5 DUKERS GAS GRIDDLE Unpacking & Installation INSTALLATION 1. Read this manual thoroughly before installation and operation. DO NOT proceed with installation and operation if you have any questions of do not understand anything in this manual. Contact your local representative. 2.
- Page 6 DUKERS GAS GRIDDLE COMMISSIONING: Commissioning of your new griddle is of the utmost imporatance. Commissioning is the thorough and methodical testing of the equipment, sub systems, and systems to ensuore that the final product functiongs properly and safely at the work site. By identifying any potential problems(i.e.:equipment location, ventilation, local fire/electrical codes, installation, operator training and certification) prior to equipment being placed into service, costly outages and potential damages may be avoided.
-
Page 7: Warnings & Safeguards For Operation
DUKERS GAS GRIDDLE Warnings and Safeguards for Operation △ WARNING TO AVOID SERIOUS PERSONAL INJURY AND PROPERTY DAMAGE △ WARNING For your safety, do not store or use gasoline or other flammable vapors or liquids in the vicinity of this of any other appliances. Keep thearea free and clear fo combustible.(See ANSI Z83.14B.1991). -
Page 8: Operating Instructiongs
DUKERS GAS GRIDDLE Doing so may create hazards and will void warranty Supplier takes every care to ensure that all products are safe. Steal cutting procedures used to however, we insist the operator take care when in contact with this piece of equipment. ... - Page 9 DUKERS GAS GRIDDLE Do not permit fans to blow directly at the unit. Wherever possible, avoid open windows next to the unit’s sides or back. Avoid wall type fans which create air cross-currents within a room. It is also necessary that sufficient air should be allowed to enter the room to compensate for the amount of air, removed by any ventilating system.
-
Page 10: Cleaning Instructiongs
DUKERS GAS GRIDDLE Cleaning Instructions CAUTION DO NOT use any abrasive or flammable cleaning fluids; DO NOT hose down immerse or pressures wash any part of the griddle, excluding the catch tray. NEVER use a scrubber pad, steel wool or abrasive material, or cleaners containing chlorine, iodine and ammonia or bromine chemicals as these will deteriorate the stainless steel and shorten the life of the unit. - Page 11 DUKERS GAS GRIDDLE seasoned again. If the griddle usage is very high, the weekly cleaning procedures may be done more often than once a week. Do not put ice on the griddle plate as this may damage the plate Catch Tray Once the unit has cooled, remove the catch tray and Per use or at discard the wastes, debris and crumbs.
- Page 12 DUKERS GAS GRIDDLE Troubleshooting ISSUE CAUSE SOLUTION Griddle not lighting Main gas line is closed Open valve Pilot light is not lit Ignite pilot light Cause unknown Call for service Flame is too high or too low Adjustment knob is turned up Adjust flame with control knob or down Pilot light not staying lit...
- Page 13 DUKERS GAS GRIDDLE Conversion Kit Instructions for the Gas Griddle IMPORTANT SAFETY NOTICE These conversion instructions are for conversion of the griddle. The instructions provide in this kit are for the conversion of Natural Gas to LP gas and refer to the conversion of the unit and kit provided. An properly convert this unit, can result in serious injury, property damage or death and will void warranty.
- Page 14 DUKERS GAS GRIDDLE 3. Replace the front panel and knobs 4. Before installing the included convertible regulator, unscrew the octagon cap. You can read (NAT) on the plastic insert attached to the head of the cap; flip it over and snap back in place. Pictured is the plastic insert.
-
Page 15: Limited Warranty
DUKERS GAS GRIDDLE Limited Warranty DUKERS warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or workmanship for a period of 1 year. - Page 16 DUKERS GAS GRIDDLE THE FOREGOING WARRANTY PROVISIONS ARE A COMPLETE AND EXCLUSIVE STATEMENTETWEEN THE BUYER AND SELLER. DUKERSNEITHER ASSUMES NOR AUTHORIZES ANYPERSONS TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH SAIDEQUIPMENT Example of items not covered under warranty, but not limited to just these items 1 Acts of God, fire, water damage, burglary, accident, theft 2 Freight damage 3 Improper installation or alteration of equipment...
