Summary of Contents for AEM LAMBRECHT meteo powercube

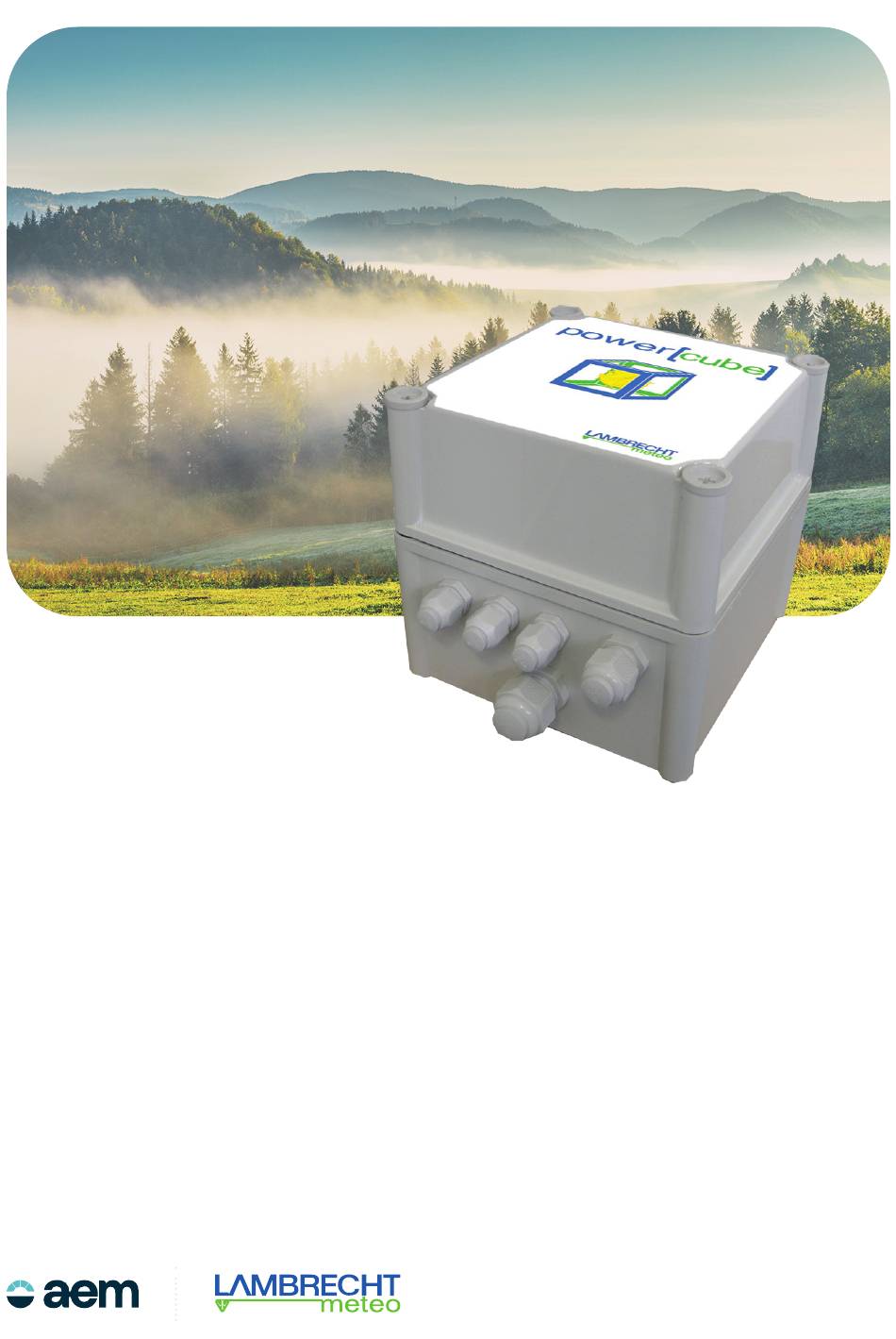

- Page 1 USER MANUAL power[cube] Power Supply Unit...
-
Page 2: Table Of Contents
6. Integration in an existing network with an own DHCP server via WiFi Reset WiFi module to factory settings 7.1. Factory setting via configuration webpage 7.2. Factory settings via hardware button at the outside of the housing 8. Disposal Technical data page – aem.eco... -
Page 3: Versions With Data Logger Met[Log]
Connect power[cube] to mains power In condition as delivered to the customer the WiFi module works with address area 10.10.100.100 to 10.10.100.253 and assigns met[LOG] an appropriate IP address. The WiFi module has the IP address 10.10.100.254 when it’s delivered. aem.eco page –... -
Page 4: Setting Of A Secured Wifi With Met[Log]
3) The website of the WiFi module is available in English and Chinese. In condition as delivered to the customer English is set as standard. In case Chinese is set the language can be changed via the link ”English” which is located in the upper right side. page – aem.eco... - Page 5 6) Activate the network security via the button next to ”Security Mode”. We suggest ”WPA2-PSK”. According to the choice further buttons will be shown. We suggest choosing ”AES” as ”WPA Algorithm”. 7) Set a password for the network in the field next to ”Pass Phrase”, e.g. ”met[LOG”. Note the password here: Password: Keep the password safe from unauthorized access! 8) To save the configuration press ”Apply”. aem.eco page –...
-
Page 6: Integration In An Existing Network With An Own Dhcp Server Via Wifi
Destination WiFi name: Password destination WiFi: Free IP address (fix) in destination WiFi for WiFi module Subnet mask of destination network (e.g. 255.255.255.0) Security mode of destination network (e.g. WPA2PSK) Encryption type of destination network (e.g. AES) page – aem.eco... - Page 7 5) Change the WiFi mode in ”STA Mode” (Station Mode). According the choice further fields will be shown. 6) Start the search for available networks by confirming the button ”Search” next to ”AP‚s SSID). Another window will open. 7) Choose the WiFi network in which the power[cube] WiFi shall be integrated. In the present example it is the network with SSID (Name) ”FB-Lm”. 8) To save press the button ”Apply”. aem.eco page –...
- Page 8 Chosen security mode of the network, e.g. ”WPA2PSK” (can be found in the upper search window) Encryption Type Chosen encryption code, e.g. ”AES” (can be found in the upper search window) Network password, e.g. ”1234567890” 10) To save the configuration press the button ”Apply”. page – aem.eco...
- Page 9 Disable – Deaktivieren Sie den DHCP-Ser- ver des WiFi-Moduls. (Rest) (Unverändert) 13) All other settings in ”AP Interface Setting” can remain unchanged. 14) To save the configuration press ”Apply”. 13) Alle weiteren Einstellungen in der „AP Interface Setting“ können unverändert bleiben. aem.eco page – ________________________________________________________________________________________________...
- Page 10 Note the MAC address of the WiFi module and the IP address of the met[LOG] here: MAC address WiFi module: IP address met[LOG]: 19) By entry of the met[LOG] IP address in a browser you make the connection to met[LOG]. (See also the met[LOG] handbook) page – aem.eco...
-
Page 11: Reset Wifi Module To Factory Settings
(the name ends with the last 4 signs of the MAC address (without ”:” or ”-”) Open the page ”Device Management” via the corresponding link. 2) By pushing the ”Load Default Button” the device returns to factory settings. aem.eco page –... -
Page 12: 7.2. Factory Settings Via Hardware Button At The Outside Of The Housing
(Waste Electrical and Electronic Equipment). Do not dispose the old device in the household waste! For an environmentally friendly recycling and disposal of your old device, contact a certified disposal company for electronic waste. Outside the EU Please follow the regulations in your country regarding the appropriate disposal of waste electronic equipment. page – aem.eco... -
Page 13: Technical Data
Copyright © 2024 LAMBRECHT meteo GmbH. All rights reserved. Information in this document subject to change without notice. Photo copyright: © Viliam - Adobe stock power[cube]_b-de.indd 31.24 LAMBRECHT meteo GmbH +49-(0)551-4958-0 Friedländer Weg 65-67 +49-(0)551-4958-312 37085 Göttingen E-Mail info@lambrecht.net Germany Internet www.lambrecht.net aem.eco page –...
