Summary of Contents for Parrot Products HV-I683

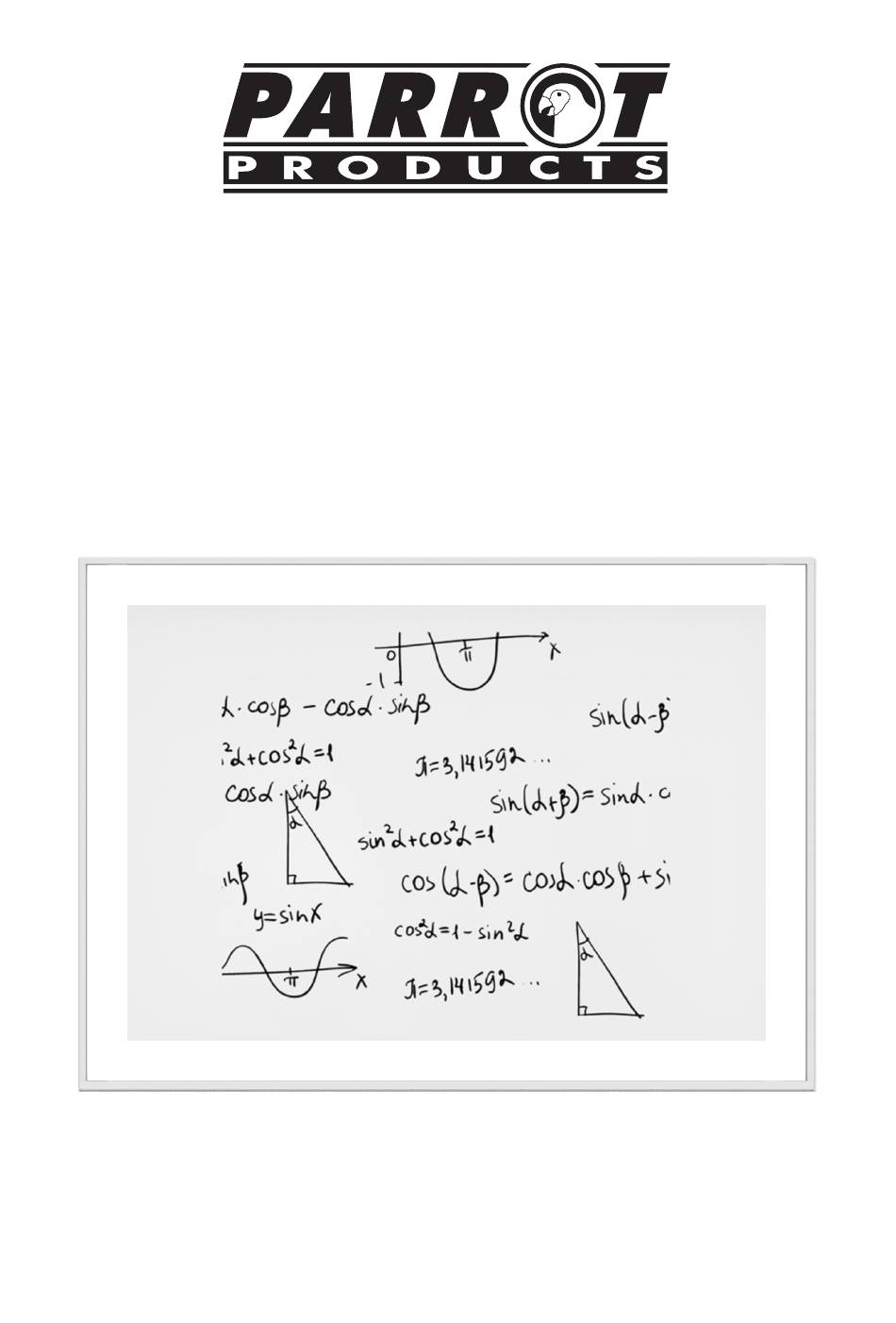

- Page 1 83” & 93" Multi Touch Interactive Board HV-1683A & HV-1693A User Manual Tel: (RSA) 010 140 4900 / Email: sales@parrot.co.za www.parrot.co.za...
- Page 2 Storage Requirement General storage conditions: Temperature: -10 - 60, relative humidity: 0% - 95% warehouse should be clean, tidy, safe and comply with regulations; products should not be placed directly on the ground, but on pallets; the environment around the warehouse should be free of acidic, alkaline or other corrosive gases;...
- Page 3 Step 1. Follow the below distance reference information for different IWB sizes and drill 6 holes where required. (Top 4 holes for M6*50 expansion screws) Model HV-I683 80.0 1650 1268 1712 HV-I693 80.0 1964 1268 2026 Step 2 . Use M6*50 expansion screw to x the wall mount bracket as below illustration on the wall.
- Page 4 Step 4. Hold the interactive whiteboard with the hook on the back, to the wall mount bracket on the wall. Step 5. Connect the USB cable to the PC and mapping the projector image to the interactive whiteboard for calibration setting. Make sure the projector image is centered in the interactive area of the interactive whiteboard.
