Summary of Contents for Certa CTFOURTHPWA

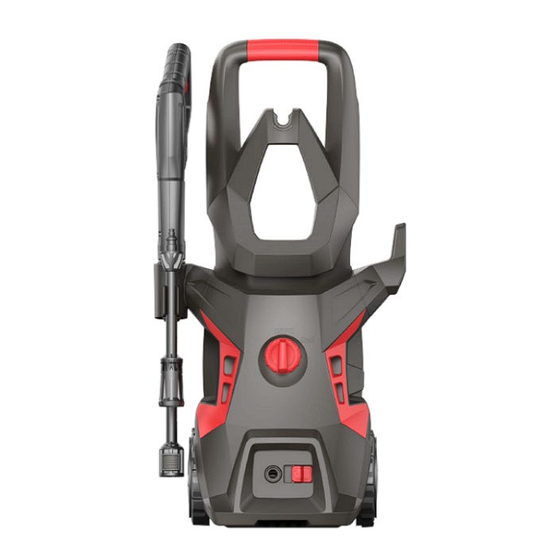

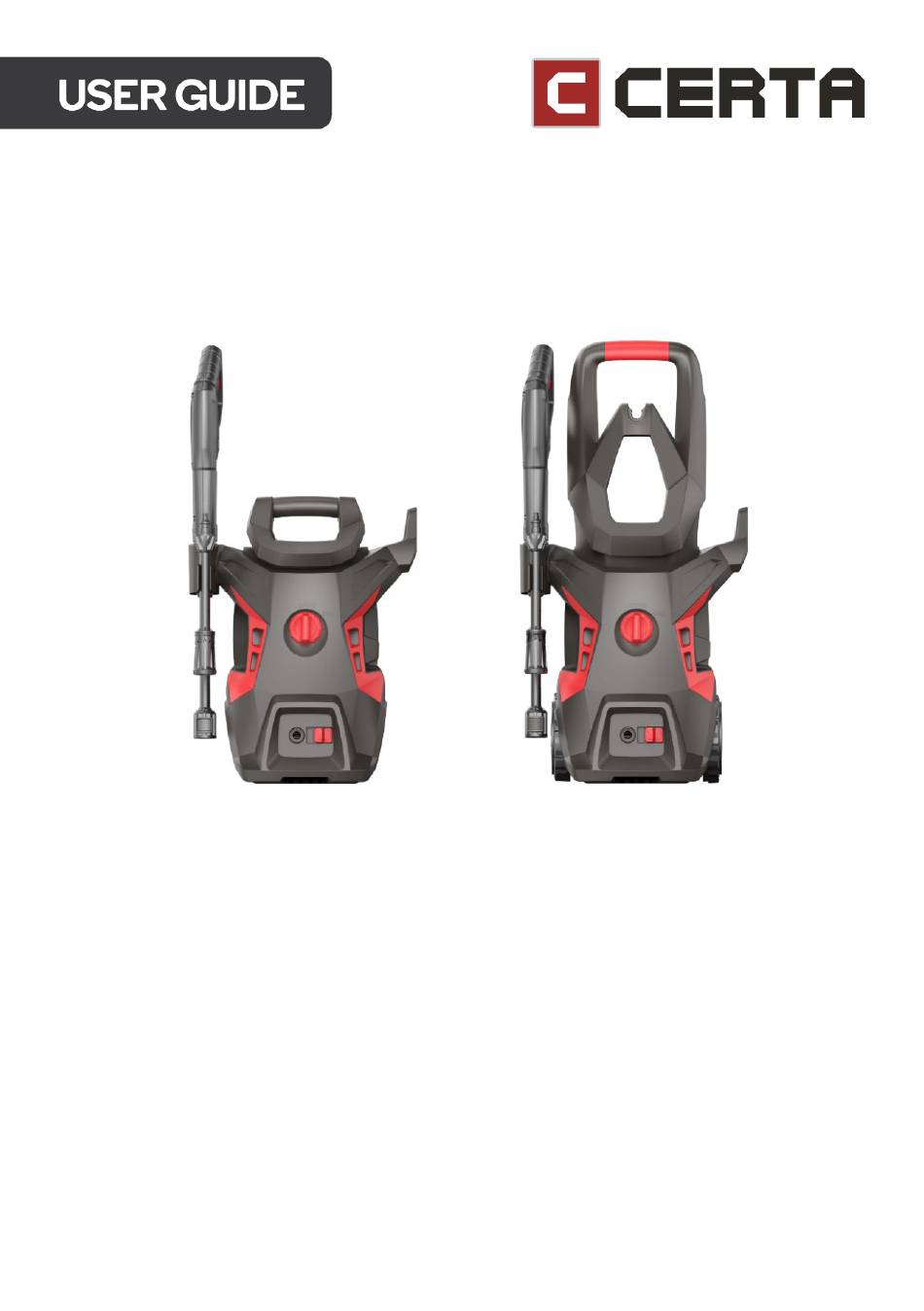

- Page 1 HIGH PRESSURE WASHER (1400W & 1800W) CTFOURTHPWA & CTEIGHTHPWA...
-
Page 2: Table Of Contents
Safety & Warnings Overview Assembly Operation Cleaning & Care Specifications Troubleshooting Notes... -
Page 3: Safety & Warnings
SAFETY & WARNINGS READ ALL SAFETY WARNINGS AND INSTRUCTIONS BEFORE USING THIS PRODUCT FOR THE FIRST TIME AND RETAIN THIS USER GUIDE FOR FUTURE REFERENCE. Important Safety Tips • Never point the high-pressure nozzle at people, animals, the machine body, power supply or any electric appliances •... - Page 4 • Caution: Danger of recoil forces and the suddenly occurring torque on the nozzle when the spray gun is opened. • Warning: This machine is developed for use with the detergent supplied or recommended by Kogan.com. The use of other cleaning agents or chemicals can affect the safety of the machine.
- Page 5 Overload Protection: When the nozzle is clogged or the high-pressure hose is knotted, the overload protection function activates, and the machine is switched off. After resolving the fault, turn the switch back on and restart the machine. Additional Safety Instructions •...
- Page 6 General Safety Precautions • Intended for outdoor and household use only. • High-pressure hoses can develop leaks from wear, abuse, kinking, etc. Do not use a damaged hose. • Do not use the pressure cleaner in areas near combustible materials, combustible fumes, or dust.
- Page 7 Use of Extension Cords Use of an extension cord with this product is not recommended. If you must use an extension cord, use only extension cords that are intended for outdoor use. These cords are identified by a marking “Acceptable for use with outdoor appliances, store indoors while not in use.”...
-
Page 8: Overview
OVERVIEW Gun holder Extension Wand Accessory holder* Handle Cleaning pin Power Cable Hook High pressure hose Water inlet connector Power washer unit Adjustable nozzle Wheel * for 1800W model only. Note: Due to transportation and packaging, some of the accessories may be supplied disassembled. -
Page 9: Assembly
ASSEMBLY Step 1: Gun Lance • Insert the extension wand (7) into the gun (8). Push and turn the extension wand (7) clockwise onto the gun (8) until hand-tight to lock it in place. When properly joined, you cannot separate the two components by pulling straight out on the gun (8). •... - Page 10 Step 2: Accessories Install the gun holder, power cord hook, and wheels (not available on all models) by screwing the accessories holder to the main body as shown below. Note: The screws required for this assembly are packed together with this user guide. Ensure these are located and retained when unpacking.
- Page 11 Step 4: Attach High-Pressure Hose Attach the high-pressure hose (10) to the pressure • cleaner water outlet using the quick-connect coupling. When the pieces are properly joined, you cannot separate the two components by pulling straight out from the water outlet. •...
- Page 12 Step 7: Attach Hose Connector to Pressure Washer • Attach the hose connector to the pressure washer. Before attaching the connector to the male fitting, remove the plastic cap that is inserted onto the male fitting on the pressure washer. This plastic cap can be discarded once removed. •...
-
Page 13: Operation
OPERATION WARNING: This unit is intended to be used with cold water only! do not use hot water in this pressure cleaner! High pressure hose must not loop. IMPORTANT: Always turn off the unit's motor before turning off the unit's water supply. Serious damage could occur to the motor if the unit is run without water. - Page 14 Stopping the Washer WARNING: Always place the power switch to the off “O” position before turning off the unit's water supply. Serious damage could occur to the motor if the unit is run without water. Release the trigger, and the motor will stop operation. Set the power switch to the off position "O".
- Page 15 Safety Button To operate the spray, the operator needs to press the unlock button and then squeeze the trigger. When trigger is released, it automatically returns to the off position. When not using the pressure cleaner, press the lock button to prevent accidentally engaging the high- pressure spray.
- Page 16 The use of detergents can dramatically reduce cleaning time and assist in the removal of difficult stains. Some detergents have been customized for pressure washer use on specific cleaning tasks. These detergents are approximately as thick as water. Using thicker detergents, such as dish soap, will clog the chemical injection system and prevent the application of the detergent.
-
Page 17: Cleaning & Care
CLEANING & CARE Shutting Down the Pressure Cleaner When finished using the pressure cleaner, follow these steps to shut down the unit: • Turn the pressure cleaner to the off position. Unplug the power cord from the electrical outlet. • Turn off the water supply. •... - Page 18 Winterising and Long-term Storage Follow all the above shut-down procedures, adding the following steps: • After disconnecting the water supply and before disconnecting the high-pressure hose, turn the pressure cleaner on for 2-3 seconds until any remaining water in the pump exits.
- Page 19 inches) from the cleaning surface. Maintain a further distance from the cleaning area when using a direct spray. Caution: For softer woods, increase the distance from the cleaning area. Cement Patios, Stone and Brick: Rinse the cleaning area and surrounding area with fresh water. If using detergent, fill the detergent reservoir and apply to the area being cleaned at low pressure.
-
Page 20: Specifications
SPECIFICATIONS 1400W Model - CTFOURTHPWA Rated voltage AC220-240V~50/60Hz Rated power 1400W Rated pressure 80bar Max. pressure 110bar Rated flow 5.5 L/min Maxflow 6.5 L/min Max. water inlet pressure 1.2 MPa Max. water inlet temperature 50°C Sound pressure level(K=3dB(A)): LpA 74.3dB... -
Page 21: Troubleshooting
TROUBLESHOOTING Probable Cause Solution Electrical outlet is faulty Check plug, socket, fuses The switch is in the “I” Check whether the voltage position the machine will Voltage is inadequate is adequate not start Power cord is not plugged in Plug in power cord Water inlet filter is clogged Remove and clean filter Tighten connections/bleed... -
Page 22: Notes
NOTES... - Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
