Summary of Contents for HEQ G-PORT

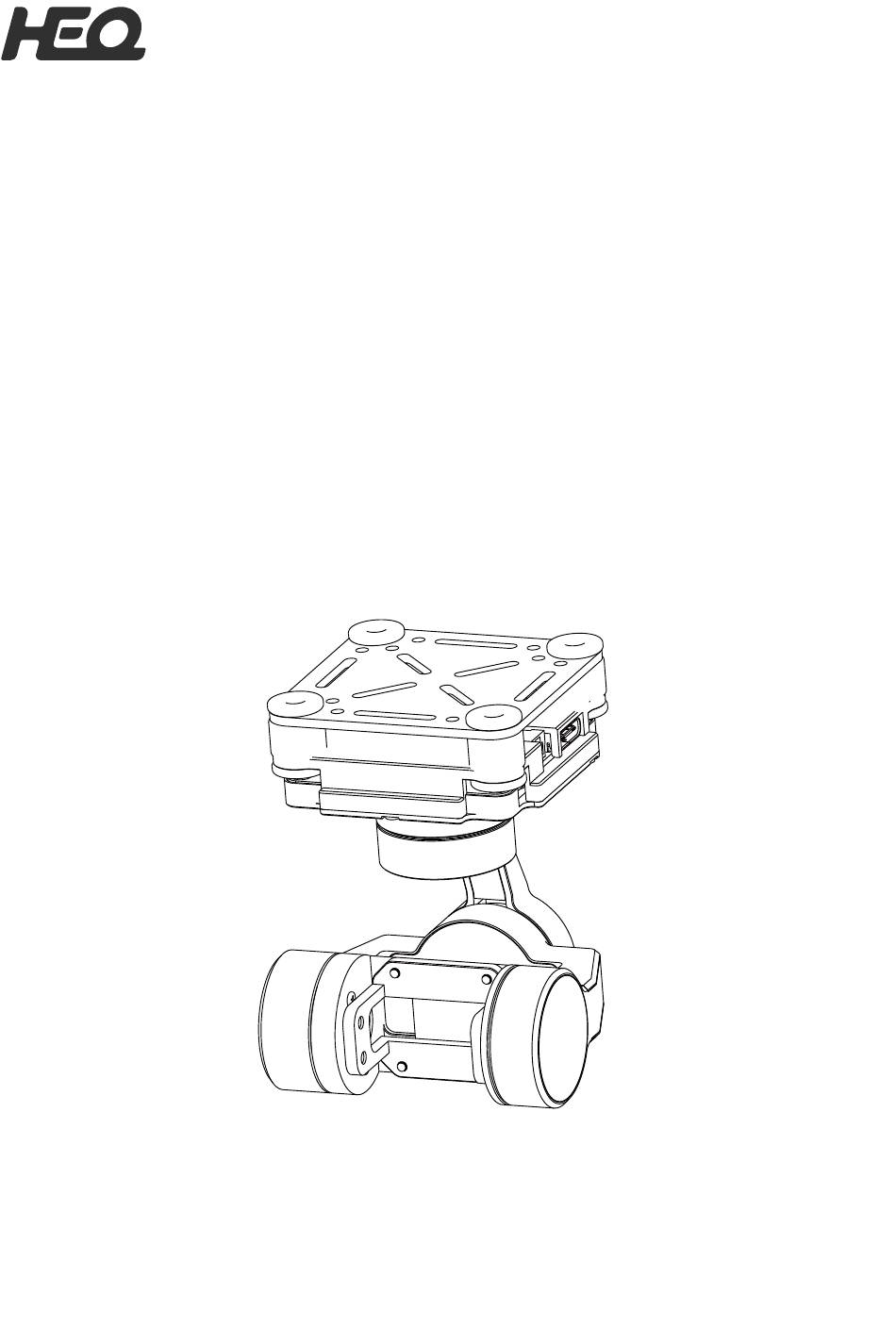

- Page 1 G-PORT Quick Start Guide V1.0 Shenzhen HEQ Intelligent Technology Co.,Ltd.
- Page 2 1、 PRODUCT INTRODUCTION G-port is a 3-axis gimbal component developed by HEQ for FPV enthusiasts and fixed-wing drone hobbyists. G-port boasts high stability and supports both upright and inverted installations. It is compatible with DJI O3 or CADDX , supports three inputs: mavlink, sbus, and pwm. It is adaptable to various flight platforms.
-
Page 3: Installation Dimensions(Mm)
2、 Installation Dimensions(mm) Mounting Holes: Hole diameter Φ2.1mm; Spare hole dimensions are shown in the pic below 34.5 25.5 Shock Absorbing Ball 24.2 20.2 M1.6 15.95... - Page 4 3、 G-Port Interface Definitions Power Interface Type-C Interface SBUS Interface Interface...
- Page 5 4、 Assistant Usage Instructions Open the G-PORT Assistant folder, find "G-PORT.exe", and double-click to open the Assistant software. G-PORT Assistant 类型 修改日期 大小 名称 文件夹 2024-03-08 10:25 styles 文件夹 2024-03-08 10:25 translations 文件夹 2024-03-08 10:25 virtualkeyboard 4077KB 应用程序扩展 D3Dcompiler_47.dll 2014-03-11 18:54 应用程序...
- Page 6 03、G-PORT Firmware Upgrade: Click "Select File", select the BIN file to upgrade (HEQ official will provide when need to upgrade, you can also contact HEQ official to get the BIN file), then click "Start Upgrade", when the progress bar goes to 100%, the firmware upgrade is completed.
-
Page 7: Support Contact
Online store: https://store.hequavtech.com SUPPORT CONTACT support@hequavtech.com Follow HEQ to get the latest information in time bilibili WeChat Official Account...
