Subordinate New Brand

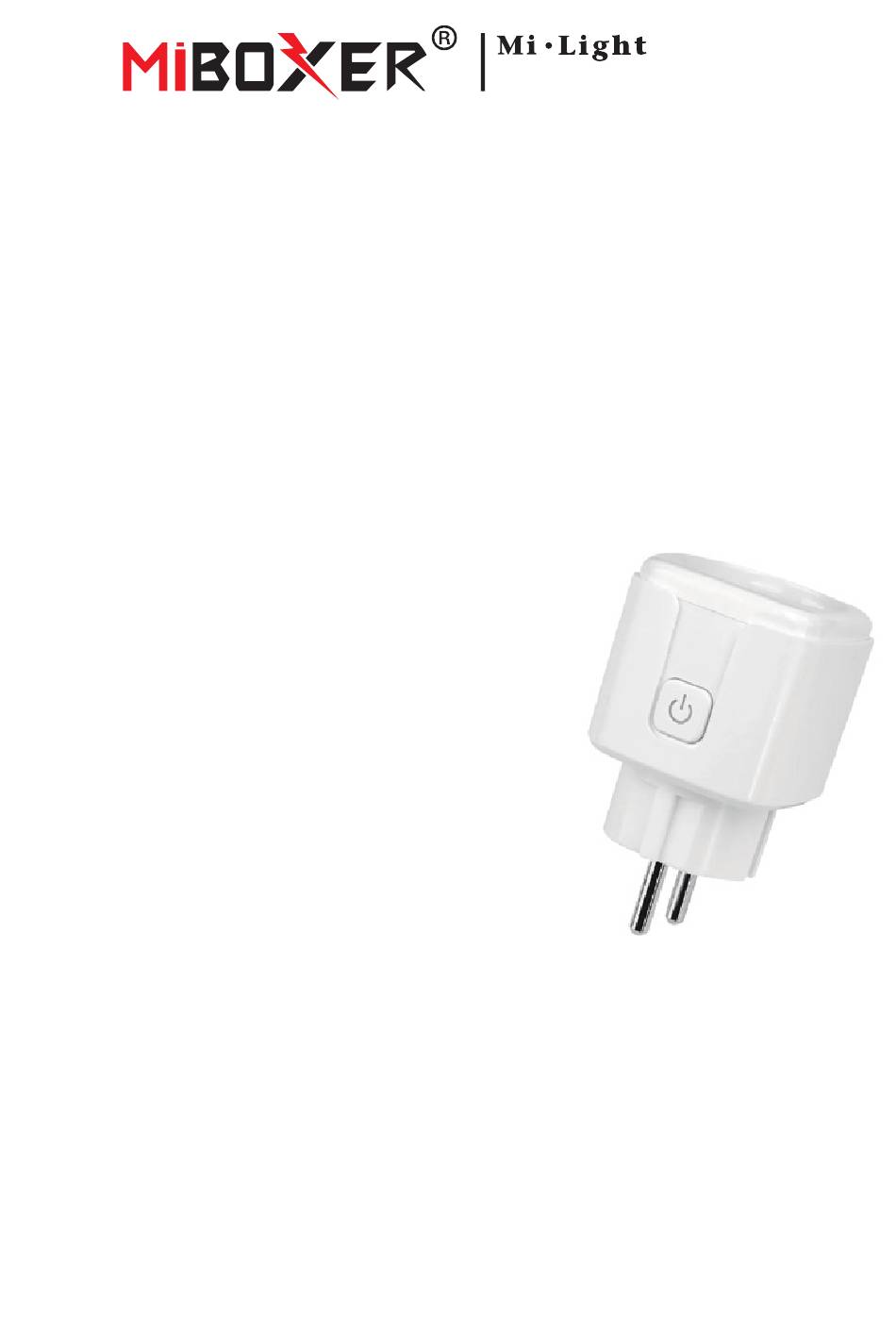

WiFi+2.4G 16A Smart Plug (EU and FR)
Model No.: SWEW
1. Feature
Uses WiFi + Bluetooth + 2.4G wireless
transmission technology, low power
consumption, strong anti-interference
ability. WiFi + Bluetooth connect
network can greatly enhance the
connect network experience. When
the router is disconnected, Bluetooth
can also directly connect and control
equipment at close range. After
successful network configuration
using [Tuya Smart] app to achieve remote control, group control,
timing control, one key execution, automation, etc. functions. And it
supports 2.4G remote control.
In addition, the product also has an intelligent power statistics function
to monitor your power consumption in real time. Whether it is a
traditional electrical appliance such as a fan, humidifier or electric
fireplace, it can realize smart switch and timing control, easily manage
household energy consumption, and make your life more convenient
and smart!

Advertisement

loading
Need help?

Need help?

Do you have a question about the SWEW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Miboxer SWEW

Summary of Contents for Miboxer SWEW

  • Page 1 Subordinate New Brand WiFi+2.4G 16A Smart Plug (EU and FR) Model No.: SWEW 1. Feature Uses WiFi + Bluetooth + 2.4G wireless transmission technology, low power consumption, strong anti-interference ability. WiFi + Bluetooth connect network can greatly enhance the connect network experience. When...
  • Page 2 Turn off the power after the countdown turn on/off power is less than 3W for 40 minutes 2. Parameters Product Name: WiFi+2.4G 16A Smart Plug (EU and FR) Model No.: SWEW Input Voltage: 180-240V~ 50/60Hz 50mm Output Voltage: 180-240V~ 50/60Hz Output Current: Max 16A WiFi Standard: IEEE 802.11b/g/n 2.4GHz...

  • Page 3: Remote Control

    3. Remote Control Used with C2 remote controller, it can provide timed on/off, two-way communication, vibration feedback and other functions. Linking instruction Power Device Link / Unlink Power Device Model No.: C2 Power off 10 seconds and Short press " I " 3 times Light flashing 3 times power on again or short within 3 second when...

  • Page 4: Download And Install App

    4. Smartphone APP control 4.1. Download and install app Search for “Tuya smart” or “Smart life” in the app store; you can also scan the QR code below to download and install the APP. Please open the app click “ Register ” button to create account while using it in the first time, Log in directly if you already had account.
  • Page 5 4.2. Pairing Network (5G router is useless) 1). Plug the product into an outlet and turn it on. 2). Confirm that the indicator light is flashing fast (2 flashes per second). If the indicator light is not flashing quickly, press and hold the “ ”...

  • Page 6: Power On Status

    4.3. Power On Status Click single device——Click “setting”——Click “Relay Status”—— select status. Power On Status OFF: Device shutdown in any status if power source is off. On: Device turn on in any status if power source is on. Remember last status: Memorize the status before power off. Eg: Device is working and power failure happened, device is on while power source recovered.

  • Page 7: Child Lock

    4.4. Overcharge protection and child lock settings Click on the device to be set - click “setting” Turn on overcharge protection: When it detects that the power is less than 3W for 40 minutes, it will automatically turn off the power to protect the charging device and prevent overcharging.
  • Page 8 4.5. Timer Setting Click single device or group——Click “Timer”——select timer types. Attention： 1. The timer add max quantities is 30 pcs. 2. “Countdown” “Circulate”“Random” will be stopped if there is power failure (use APP or “ ” to turn on or off) in current period, timer function recovered in next period.

  • Page 9: Alexa Voice Control

    5. Alexa voice control Please add device into “Tuya Smart” app (check details in page 3) and start following steps: 1). Open Alexa App 2). Click “More” on the bottom of right corner 3). Click “Skills & Games” 4). Click “ ”...
  • Page 10 6. Google Home voice control Please add device into “Tuya Smart” app (check details in page 3) and start following steps: 1). Open Google Home App 2). Click “+” on the top of left corner 3). Click “Set up device” 4).
  • Page 11 7. Attention 1. Please ensure input voltage to be same as requirements from device. 2. The smart plug needs a secure 2.4G WiFi network to work. If your router has 5G network enabled at the same time, please turn off the 5G network first, or modify the SSID to distinguish 2.4G or 5G WiFi.
