Summary of Contents for ZeKat SAPELEM Ze
- Page 1 Ze Controller Electronic control on the vertical Z axis Instruction manual: • Description • Operation • 00026717...
- Page 2 Ze ™ Instruction manual Certification 00026717...

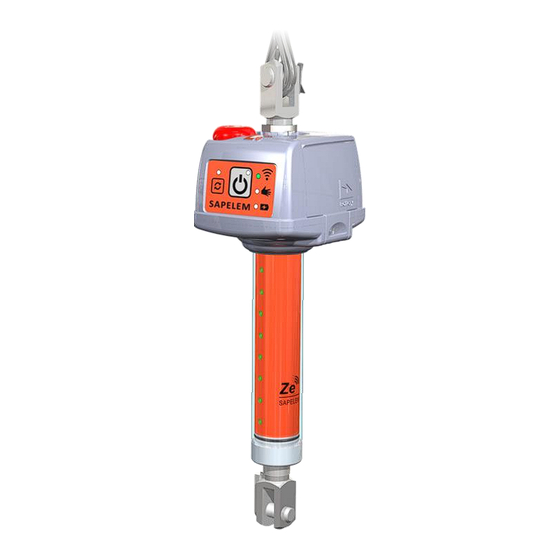

- Page 3 Ze ™ Instruction manual THE “Ze” CONTROLLER DESCRIPTION The “Ze” controller is the main interface between the operator and the lifting device. The “Ze” controller features type 10 clevises (DIN 71752). Rotating clevis at the top and fixed clevis on the lower part.
- Page 4 Ze ™ Instruction manual THE “Ze” KEYPAD DESCRIPTION The keypad enables you to: ■ Activate the connection with the lifting system (ELS-M). ■ Authorise the usage of the lifting system. ■ Get information about system status in real time. Various buttons and indicators enable you to display information and to respond depending on the need.
- Page 5 Ze ™ Instruction manual THE “Ze” CONTROLLER INSTALLATION 3.1 Positioning of the battery in the “Ze” controller 1 - Lock the emergency safety stop button. 4 - Slide the battery into the case, checking 2 - Lower the latch to open the battery cap. the contact side.
- Page 6 Ze ™ Instruction manual 3.2 Charging the battery The battery must be charged using the certified SAPELEM charger: • Connect to the charger using a type C connector, (250V max) • Internal usage, from 0°C to 40°C • At 25°C, the battery has a minimum of 300 charge/discharge cycles with a capacity of roughly ≥80% initial capacity.
-
Page 7: Operation
Ze ™ Instruction manual OPERATION 4.1 Setting up the “Ze” Controller Before turning on: nstruction manual (#00026714), Check the attachment of the ELS-M on its approved mount. I Check the connection of the electrical connector on the ELS-M Activate the ELS-M circuit breaker using “ON”. Pairing with the “Ze”... - Page 8 Ze ™ Instruction manual 4.3 Using the “Ze” controller Using the system is simple and intuitive. As soon as you have it in hand, the load will follow the movements of the operator’s hand, upwards or downwards. “Operator presence” safety is ensured when the “Ze” controller is in hand. The system will be automatically shut off when the operator releases the controller.
- Page 9 Ze ™ Instruction manual 4.4 Using the emergency safety stop button The emergency safety stop button enables you to turn the “Ze” controller off. ▪ Activating this button enables you to lock the position of the ZE’Solution- M lifting system. It can be used in the following situations: - Need to immediately stop any movement.
- Page 10 Ze ™ Instruction manual 4.6 Accessories for the “Ze” controller The “Ze” controller features standard type 10 attachment interface clevises (DIN 71752). Rotating clevis at the top and fixed clevis on the lower part. This enables a large number of handling accessories to be attached quickly, by attaching them directly or by using a secure quick release system or ball lock pin.
-
Page 11: Maintenance
Ze ™ Instruction manual INFORMATION : All tools must comply with the directives defined by SAPELEM. (Refer to Tool Integration Guidelines in ELS-M Instruction manual #00026714). Poor attachment of tools will alter performance and lead to premature faults in the device. MAINTENANCE 5.1 Batterie : It is advisable to recharge the battery as soon as the light signal appears. - Page 12 E-Mail : ◼ You can find more contact details on the SAPELEM website : https://www.sapelem.com/formContact/ ◼ Downloadable documentation: https://www.sapelem.com/cobotiques/manipulateurs/ze-solution-m/ SAPELEM Groupe ZEKAT 4 rue des Ajoncs 49070 Beaucouzé FRANCE SIREN : 538 783 762 SIRET : 53878376200015 Manufacture of handling and lifting equipment (2822Z) www.sapelem.com...
