Summary of Contents for Squareled NPQ818 -18x8W-RGBW

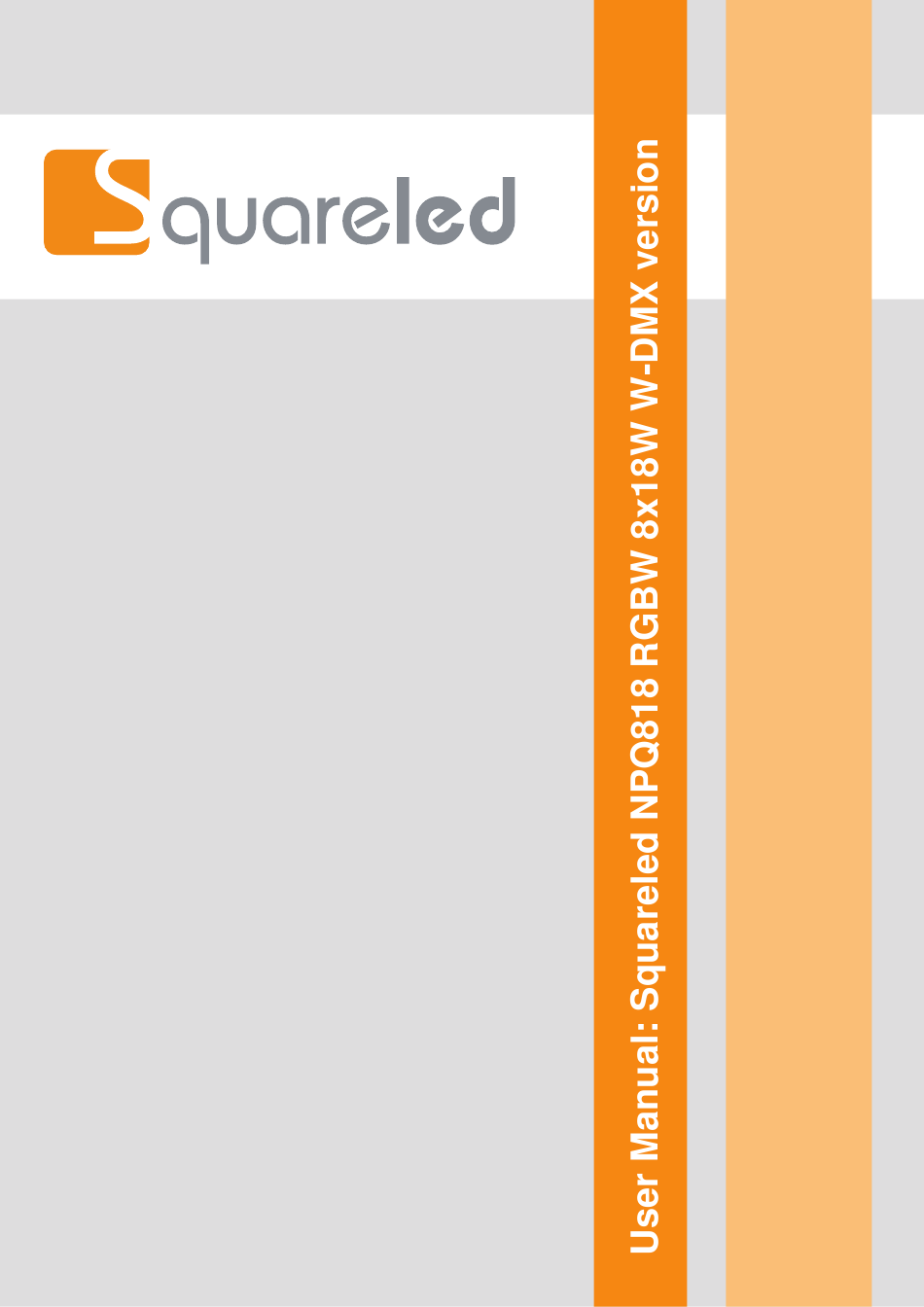

Page 2 Squareled NPQ818 -18x8W-RGBW W-DMX version USER MANUAL...
Page 4: Table Of Contents
Catalogue Summary ............................... 1 Safety Instruction ............................2 Outside Size Picture ............................3 Main Function ............................... 4 DMX Control Function ..........................5 Display Operation instruction ........................7 DMX ADDRESS SETTING ........................9 STATIC SETTING ............................ 9 COLOR CAST CALIBRATION SETTING ....................9 CHANNEL MODE SETTING ........................
Page 5: Summary
Summary  Summary  Thank you for purchasing our NPQ818. Please read these instructions carefully before begin and operate the fixtures according to these instructions to avoid any possible damages and accidents causes by misusage  Product introduction casting aluminum housing LED NPQ818 light uses , designed in a fashion of hydrodynamic form.
Page 6: Safety Instruction
2. Safety Instruction  Safety Notes ! Enquire the skilled people before any repair; ! Always make sure disconnect from the power source before setting up, serving and moving;. ! Avoid direct eye exposure to the fixture when it is on; ...
Page 7: Outside Size Picture
3. Outside Size Picture...
Page 8: Main Function
4. Main Function  Input voltage: AC 100V-264V/47-63HZ  Consume：150W  Lamp Type：8W LED 4-in-1 R、G、B、W(18PCS)  Life span: 50000~100000hours  PWM Dimmer：1500HZ(16666 grades)  Control Signal：DMX512  Control mode：standalone / sound activated  Channel：10CH、7CH、5CH、4CH、3CH  Function Effect: dimmer, strobe, gradual change ...
Page 9: Dmx Control Function
5. DMX Control Function  DMX Channels 10CH VALUE FUNCTION 0-255 Dimming all 0-255 0-255 Green 0-255 Blue 0-255 White No strobe 6-20 Random burst strobe(slow to fast) 21-60 Normal strobe(slow to fast) 61-100 Electronic Sinewave(slow to fast) 101-140 Random Strobe(slow to fast) 141-180 Opening pulse(slow to fast) 181-220...
Page 10 106-110 SOUND 2:Sound Strobe(white color only) R:111-115,G:116-120,B:121-125,W:126-130,RGW: 131-135,RGB:136-140,YELLOW:141-145,PINK:1 46-150,CYAN:151-155,ORANGE:156-160,VIOLE 111-200 T:161-165,GOLDEN:166-170,2700K:171-175,3200 K:176-180,4000K:181-185,5500K:186-190,6500K: 191-195,RGBW:196-200 201-255 Reserved 0-255(S),(speed of AUTO,fast to slow，when 0-255 AUTO1-AUTO5 effective） 0-10 No effect Blue (Blue=full, Red+Green=0)(step) 12-50 Red=0, Green->up,Blue =full(proportional) Light Blue (Red=0, Green=full, Blue =full)(step) 52-90 Red=0, Green=full, Blue->down(proportional) (RGB Green (Red=0, Green=full, Blue =0)(step)
Page 11: Display Operation Instruction
6. Display Operation instruction  MENU : access the menu or return to a previous menu option  ENTER: select the current menu option  UP: menu selection or parameter increments  DOWN: menu selection or parameters decrease Menu Tree Level 1 Level 2 Level 3...
Page 12 DIM(Dimming LIN/SQR/ISQR/SCUR/LIN. mode) /SQR./ISQR/SCUR. DISY(Display ON(Permanent on) set) 2MIN (2 minutes off) LOCK(Key 2 YES/NO minutes lock) SIGN(DMX 2.4G(wirelsee)/CABL(Cable) signal selection) WIRE(Wireless REST(reset) set) CTST(Custom CT01 0-255 color set) 0-255 0-255 0-255 CT10 AUTO(Auto) AT01 RUN..* AT02 RUN..* AT03 RUN..* AT04 RUN..* AT05...
Page 13: Dmx Address Setting
ATSP 0-255(S) TIME 0-255(S) WAIT 0-25.5(S) YES/NO SC20（Scene 20） CHS3（Chase 3） INFO SOFT(Software Vx.x （Information） version) POW(Power 100%/80%/50% reduction) ST L（Setting LOAD(Load) YES/NO load) PR L（Program YES/NO load) SEND(Send) YES/NO Instructions： When enter to the “*” position displayed on the LED, the light will automatically set as master and send data to external.
Page 14: Channel Mode Setting
4) On the【USE】interface, pressing【YES】button means valid,【NO】means invalid. 5) Press the【ENTER】button to escape and save. Illustrations: When pressing the【YES】button which means valid on the【USE】interface, the actual output value of RED，GREEN，BLUE，WHITE is output in accordance with the percentage which the color cast calibration value divides 255.
Page 15: Dmx Signal Selection Setting
2) Press the【UP/DOWN】button to select【YES】,【NO】 3) Press the【ENTER】button to escape and save. Instructions: When set to [YES], it will lock automatically after two minutes to prevent accidental triggering flood flushing, and then press any key keep 10 seconds to unlock. 6.8 DMX signal selection setting 1) Press the【ENTER】button in【SIGN】menu, then enter to the DMX signal selection setting.
Page 16: Check The Lighting Information
6) Then press the【UP/DOWN】button to select【RED】…【SHUT】，【TIME】，【WAIT】，【USE】 7) Press the【UP/DOWN】button to set up the parameter which are needed. 8) Press the【ENTER】button t o escape and save. Illustrations：When 【USE】 is set to be 【NO】，or the parameter of 【 TIME】 is 0, it will not run this scene.When 【WAIT】is set to be FADE time, the running process isas the following chart showing.
Page 17: Operating Control Instruction
3) Press the【ENTER】button to confirm sending. Illustrations： 1)Please disconnect the connection of projector and DMX console before sending the parameter. 2)The information of【ADDR】、【CAL】can’t be sent, can’t be downloaded each other. 3)There will be an automatic reset of the other projectors after receiving parameter correctly. 7.
Page 18: Xlr Cable Connecting
DMX512 signals. The signal lines are longer than 60 meters (20 lamps), should increase a signal amplifier. 9. XLR cable connecting  XLR cable： The standard connection way of the XLR is: one end connects to the male plug, and the other connects to the female.
Page 19: Connecting Picture
10. Connecting picture  Light connecting picture： 11. Trouble Shooting PROBLEM REASON AND ACTION  Check the power connection is correct or not.  Please detect the voltage. The lightin g can’t be  Power supply is damaged or incorrect connected. Call a started normally qualified personnel to fix it.
Page 20  Please check whether the DMX line is near to the high voltage wire or not. In that case, it will damage or interfere the DMX electric circuit.  Check whether the 【CAL】is started or not and the set value is The beam appears too small.
Page 21 Das Lichttechnikhaus Vertriebs GmbH Rudolf-Diesel-Str. 3, D-89312 Günzburg Telefon +49 (0) 82 21 207 98-0 +49 (0) 82 21 207 98-69 E-Mail info@lth-gmbh.de www.lth-gmbh.de...
