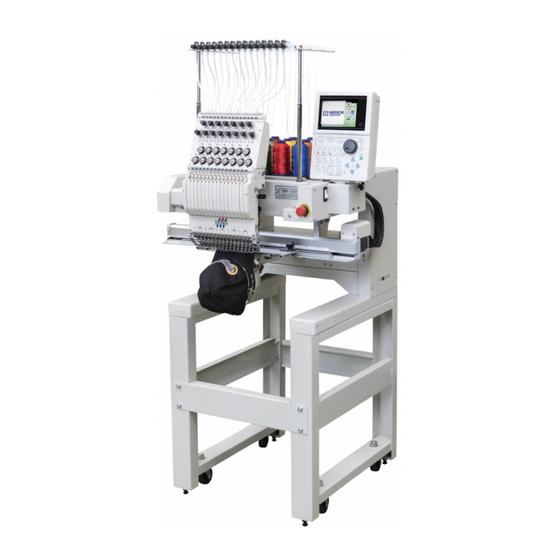

TAJIMA TMBR-SC User Manual

Quick Links

USER'S MANUAL

TMBR-SC

TMBP-SC

How to perform embroidery

1. To turn ON the power .................................... 30

2. Thread passing, fabric setting ....................... 32

3. Registration of a design into the machine memory ...36

4. Decision of an embroidery design and the color change sequence. 47

5. Decision of the design start position.............. 56

6. Check items before embroidering.................. 62

7. Embroidery starts .......................................... 66

Original Instructions

M-BR-BP12-E

(2020.09)

Chapters

Need help?

Do you have a question about the TMBR-SC and is the answer not in the manual?

Questions and answers

PEDRO CUEVAS

February 18, 2025

por que no se mantiene en su posicion y quiebra las agujas , aveces queda vien pero se regresa y queda asi

1 comments:

Mr. Anderson

February 18, 2025

The TAJIMA TMBR-SC may not stay in position and break needles due to several possible causes:

1. Improper Thread Tension – Adjust the tension appropriately.
2. High Design Density – Modify the design by reducing unnecessary underlay stitching.
3. Thick or Hard Material – Use a material suitable for embroidery.
4. Deformed Bobbin – Replace the bobbin if it touches the needle.
5. Worn or Incorrect Needle – Use a high-quality needle that matches the embroidery conditions.
6. Machine Vibration – Adjust the leveling to reduce vibrations.
7. Abrasion of Needle Catcher or Hook Clearance Issues – Check and adjust the clearance between the needle and hook point.
8. Improper Needle Location – Ensure the needle is correctly positioned.
9. Needle Bar Case Play – If excessive play exists, it may need adjustment.
10. Floor Vibration – Ensure the machine is placed on a stable surface.
11. Frame Play – Inspect if there is any movement around the frame that may cause instability.

If these issues persist, consulting a distributor for further inspection may be necessary.

This answer is automatically generated

Kyle Coats

February 10, 2025

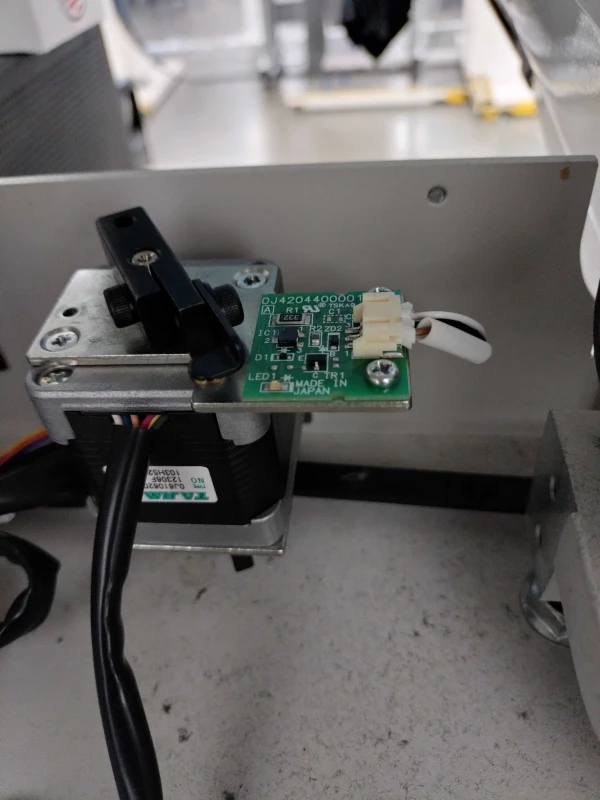

Hi, I’m getting an icon showing that my needle bar is turned off and isn’t allowing the needle to go down. I’ve looked for a setting everywhere. It will start the design, but nothing comes down. I was wondering if there was a separate power switch somewhere or if I just missed the setting. Thank you in advance!!

1 comments:

Mr. Anderson

February 11, 2025

Check the condition of the head and the FS mode lock status. If the needle bar is not allowing the needle to go down, ensure that the machine is not in a locked state. If necessary, adjust the settings to allow operation. If the issue persists, check the presser foot setting and confirm that the machine is not in a suspended state.

This answer is automatically generated

Summary of Contents for TAJIMA TMBR-SC

Page 1: Table Of Contents
USER’S MANUAL TMBR-SC TMBP-SC How to perform embroidery 1. To turn ON the power ........30 2. Thread passing, fabric setting ....... 32 3. Registration of a design into the machine memory ...36 4. Decision of an embroidery design and the color change sequence. 47 5.
Page 2 TISM...
Page 3 This manual may contain discrepancies in detailed specifications as compared with the actual production model. If you have any questions about this manual, consult your TAJIMA distributor. We believe that "BASICS TAJIMA EMBROIDERY MACHINES" and "MACHINE SETUP INSTRUCTIONS" are useful to deepen your knowledge about this product.
Page 4 Functional Limit Level Functional Limit Level Various types of machine operations are controlled by each functional limit level. This functional limit level will not display some operation and it has the purpose to protect design data from taking out unnecessarily or prevent incorrect parameter setting.
Page 5 Functional Limit Level Functional Limit Level Menu key Function (Network (Operation (Initial value) mode) mode) 1 Auto Color Change (AC) / Auto Start (AS)..54 Not to display 2 Needle Bar Selection ........50 3 Data Conversion ..........99 4 Repeat ............105 5 Automatic offset ..........173 Key is invalid 6 Automatic Start after Automatic Data Set ..108 Not to display...
Page 6 8 Auto Clamp Frame .........216 Key is invalid Key is invalid 10 Lochrose embroidery device ......206 1 Presser foot Up/Down ........153 (TMBR-SC only) 2 Presser Foot ............63 (TMBR-SC only) 4 Setting in units of Needle bar ......113 Not to display 8 Multi Cording Device 2 ........207...
Page 7 10 Needle Bar Information........147 SET+C 6 Presser foot/Needle bar Up at tracing ...154 Not to display Key is invalid SET+E Presser foot Up/Down (TMBR-SC only) .....19 1 Password (Functional Limit) ......139 Password Password Password 2 Functional limit level ........143 SET+F1 6 Frame Limit Setting..........97...
Page 8 Emergency stop switch......................16 2-3. Needle Base LED Lamp ......................18 2-4. To suspend a head ........................ 18 2-5. Presser foot Up/Down (TMBR-SC only) ................19 2-6. Laser Crosshair Marker (option) .................... 20 Chapter 3 Screen Screen display ..........................22 1-1.
Page 9 To check if design fits in embroidery space (Trace) .............. 60 Check items before embroidering ....................62 6-1. Maximum speed (Maximum RPM) ..................62 6-2. Presser foot setting (TMBR-SC only) ..................63 Embroidery starts ........................... 66 7-1. Start and stop ........................66 7-2.
Page 10 Table of contents Chapter 5 Functions concerning embroidery To change color ..........................74 1-1. To change color manually (Manual Color Change) ............... 74 1-2. To light the laser crosshair marker manually (Manual return to marker position)....76 To trim thread ..........................77 2-1.
Page 11 Table of contents 7-3. To divide a long stitch (Auto Jump) ..................112 7-4. To change stitching condition in every needle bar (Setting in units of Needle bar)..... 113 7-5. To delete tiny stitch (Cleanup)..................... 117 7-6. To change thread tension (Frame Start Timing) ..............118 7-7.
Page 12 To display/Not to display the screen for reading Condition data (Input confirmation of condition file)................152 11-9. To lower / raise presser foot (TMBR-SC only)..............153 11-10. To move down/up the presser foot and needle bar before tracing ........154 Chapter 6 Functions concerning frame movement To return the frame (Frame Back) / to advance the frame (Frame Forward) .......
Page 13 Table of contents To move the frame to the position registered................173 5-1. To move the frame automatically at the start and the end of embroidery (Automatic Offset)......................173 5-2. To move the frame automatically at the start, in the middle and the end of embroidery ..175 5-3.
Page 14 Seed Beads Device ......................203 1-3. Network..........................205 1-4. Lochrose embroidery device....................206 1-5. Multi cording device 2 (TMBR-SC only)................207 1-6. Multi cording device (TMBR-SC only).................. 209 1-7. To turn ON/OFF LED lamp ....................210 1-8. Laser Crosshair Marker ....................... 211 To set details of optional device ....................
Page 15 Table of contents Chapter 10 Maintenance and Inspection Items that must be followed carefully ................... 230 Cleaning ............................231 2-1. TMBR-SC, TMBP-SC......................231 Lubrication............................ 234 3-1. TMBR-SC ..........................235 3-2. TMBP-SC ..........................238 Greasing............................240 4-1. TMBR-SC ..........................241 4-2.
Page 16 Table of contents...
Page 17 Chapter 1 Items that must be followed carefully 1. Safety Precautions................2 2. Important warning items for safe operation (UL and CSA-spec.) ..6 3. Warning labels ..................9 4. Inspection before starting work............10 SQ06...
Page 18: Safety Precautions
Safety Precautions Chapter 1 Safety Precautions 1-1. Warning To prevent accidents resulting in injury or death and physical damage, the following items must be observed strictly when operating the machine. WARNING This machine is designed for industrial use. Use this machine for semi- or finished textile products and similar materials.
Page 19 Safety Precautions Chapter 1 WARNING Stop the machine before threading into the needle and checking the finish of embroidery. Do not damage, modify or heat the power or other cables. Do not exert undue force to them, either. Otherwise the cables will be damaged causing fire and electric shock. Insert the power cable plug fully.
Page 20: Caution
TAJIMA distributor. For actual product names of breaker of electric current leakage and leak current relay for which measures are taken against harmonics and surge, please consult your local TAJIMA distributor or electric engineers. To prevent the machine from property damages (the power decline of the main shaft motor, etc., stop position error and its color change error, design displacement, etc), one embroidery machine should be connected to one no fuse breaker in regard to connecting power harness.
Page 21 Safety Precautions Chapter 1 CAUTION Control the operation noise in the environment. This machine is designed to reduce noise during operation. To improve the sound insulation performance in a factory still more, use the interior finish materials which show high sound insulating performance for the walls, ceiling, and floor of the factory.
Page 22: Important Warning Items For Safe Operation (Ul And Csa-Spec.)
Important warning items for safe operation (UL and CSA-spec.) Chapter 1 Important warning items for safe operation (UL and CSA-spec.) The following contents explains about UL, and CSA spec. machines. IMPORTANT SAFETY INSTRUCTIONS (applied to UL-spec. and CSA-spec. machines) UL is safety standard applied to USA and CSA is safety standard applied to Canada. Read all instructions before using this appliance.
Page 23 Important warning items for safe operation (UL and CSA-spec.) Chapter 1 WARNING Never drop or insert any object into any opening. Do not use outdoors. Do not operate where aerosol (spray) products are being used or where oxygen is being administrated.
Page 24 Important warning items for safe operation (UL and CSA-spec.) Chapter 1 DANGER This product is for use on a nominal 120V circuit, and has a grounding plug that looks like the plug illustrated in sketch A in Figure-1. A temporary adaptor, which looks like the adaptor illustrated in sketches B and C, may be used to connect this plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not available.
Page 25: Warning Labels
Pay attention not to be clipped into the machine. There could be danger of electric shock, burning, or death. Persons except the service personnel designated by Tajima should not open the covers. When you open the cover, turn OFF the power Pay attention to dropping.
Page 26: Inspection Before Starting Work
Inspection before starting work Chapter 1 Inspection before starting work Before starting work, execute inspection (including cleaning, lubrication) of each part. Place Checking Covers Covers might have been attached incorrectly. The thread might have been passed incorrectly to each part. The tension might have been inadequate.
Page 27: Chapter 2 Name And Way To Use Of Each Part
Chapter 2 Name and way to use of each part 1. Name of each part ................12 2. How to use each part................13 SQ06...
Page 28: Name Of Each Part
Name of each part Chapter 2 Name of each part Only main sections are shown here. For details, refer to the separate parts list. 1. Thread course 8. Emergency stop switch (18-needle machine only) (p.16) 2. Tension base 9. Power cord 3.
Page 29: How To Use Each Part
How to use each part Chapter 2 How to use each part 2-1. Operation panel AS FB START STOP 1. Thread breakage indicator lamp (p.70) 3. Design confirming mode key (i key in this manual) (p.25) To suspend a head (p.18) It is possible to check the detail of the design to be To trim thread (p.77) embroidered from now.
Page 30 How to use each part Chapter 2 AS FB START STOP 6. Escape key (E key in this manual) 8. Frame Travel key (p.58) The screen will return to the original screen. Move the frame manually. Release the stop factor. 9.
Page 31 Some type and/or capacity of the USB memory could not be used for this machine. In this case, buy the USB memory recommended by Tajima. For details, consult the distributor. For using the USB memory, observe the items to notice described below.
Page 32: Emergency Stop Switch
How to use each part Chapter 2 2-2. Emergency stop switch The emergency stop switch is equipped as a measure for safety. Pressing this switch will lock the switch and stop the machine. [Process after pressing emergency stop switch to lock release] CAUTION Wait for five seconds or more while the power is turned OFF and it is turned ON next.
Page 33 How to use each part Chapter 2 1. The switch will be locked, and the machine will stop due to the power shut OFF. However, the power switch will be kept ON. Power switch Excluding EN-spec., 2. Wait for five seconds or more, and turn the switch and Japanese clockwise.
Page 34: Needle Base Led Lamp
How to use each part Chapter 2 2-3. Needle Base LED Lamp The needle base LED lamp can be lit or unlit by the operation panel. How to turn ON or OFF needle base LED lamp Press D2 key to select "9 Needle base LED light".
Page 35: Presser Foot Up/Down (Tmbr-Sc Only)
Chapter 2 2-5. Presser foot Up/Down (TMBR-SC only) When the machine stops, the movement of the presser foot can be switched to three steps by the operation panel. It is also possible to start the operation in the state that the presser foot has lowered.
Page 36: Laser Crosshair Marker (Option)
How to use each part Chapter 2 2-6. Laser Crosshair Marker (option) It is possible to irradiate laser beam to fabric and check the position to embroider. (p.211) CAUTION Do not watch irradiation aperture of the laser beam directly or do not interrupt the laser beam with your hand or finger.
Page 37: Chapter 3 Screen
Chapter 3 Screen 1. Screen display ..................22 2. Message display ................26 SQ06...
Page 38: Screen Display
To return to the main screen from other screen, press E key until the main screen appears. 1-1-1. Explanation on the screen 14 is displayed only in the case of TAJIMA_W 14117 TMBR-SC. 1000 12. Automatic Offset (p.173) 1:23:45 With setting Without setting 13. Design start position setting (p.180) 1. Functional Limit Level (p.143) 14.
Page 39 Screen display Chapter 3 TAJIMA_W 14117 Displayed only in the case of TMBR-SC. 1000 1:23:45 Without repeat setting With repeat setting 1:23:45 3/50 11:32 / 4:32:50 19. Current set frame 26. Without repeat setting The display shown below will appear if...
Page 40: List Screen
Screen display Chapter 3 1-2. List screen Cursor The screen shown left will be displayed if B key is pressed. 1 Auto Color Change (AC) / Auto Start (AS) 2 Needle Bar Selection Selected item (cursor) will be displayed in yellow. 3 Data Conversion To lower the cursor, press B key or 4 Repeat...
Page 41: Design Confirmation Screen
Screen display Chapter 3 1-5. Design confirmation screen It is possible to check the setting content of the design to embroider from now and the occurrence record of stop factors (Error Stack). To switch to the design confirmation screen, press i key. i key E key Pressing again i key will switch to the next screen.
Page 42: Message Display
Data integrating CT0, DGF and TBF of T2 TAJIMA_W.CT0 Color change sequence, design start point TAJIMA_W.DGF Size-reduced design (Thumbnail) TAJIMA_W.TBF Stitch data of TAJIMA binary format TAJIMA_W.DST Stitch data of TAJIMA ternary format [About T2] One design consists of three types of file (TAJIMA_W.CT0, TAJIMA_W.DGF, TAJIMA_W.TBF). UO04...
Page 43: Start Point Of Design
Message display Chapter 3 2-1-2. Saving or reading of condition data (file) Condition data (file) can be saved or cannot be saved depending on its place to save. O: Can be saved / : Unable to save Saving into USB Saving into Saving from DG/ML by memory...
Page 44 Message display Chapter 3...
Page 45 Chapter 4 How to perform embroidery 1. To turn ON the power................30 2. Thread passing, fabric setting............32 3. Registration of a design into the machine memory......36 4. Decision of an embroidery design and the color change sequence .47 5. Decision of the design start position ..........56 6.
Page 46: To Turn On The Power
To turn ON the power Chapter 4 To turn ON the power CAUTION Do not turn ON the machine power in the state that the USB memory is connected to the operation panel except when installing the software in the machine. The system sometimes may not start up.
Page 47: To Turn On The Power
When you do not want to display this message, set to "NO". "YES">>SET Press SET. The frame will move and return to the original position. If the screen (main screen) as shown left is TAJIMA_W 14117 displayed, preparation is completed. The screen is for TMBR-SC. 1200 SQ06...
Page 48: Thread Passing, Fabric Setting
Thread passing, fabric setting Chapter 4 Thread passing, fabric setting 2-1. Thread passing If the thread does not pass to each section correctly, it could cause trouble such as the deterioration of embroidery or the thread breakage, etc. Pass the thread correctly referring to the figure below. Place the thread cone on the thread stand blade.
Page 49 Thread passing, fabric setting Chapter 4 Put the thread into the groove of the tension stud. (Indicated by an arrow) To perform threading through the spiral tube, use the threader (accessory). Threading through spiral tube Groove Threader Spiral tube Groove SQ06...
Page 50 Thread passing, fabric setting Chapter 4 It is possible to perform threading easily by just hooking the thread here. After threading, adjust the thread tension. For the detail, refer to the separate manual "BASICS". UO12...
Page 51: To Set Fabric To Embroidery Frame
Thread passing, fabric setting Chapter 4 2-2. To set fabric to embroidery frame To make embroidery results beautiful or to perform efficient works by reducing the thread breakage, it is important to stretch the fabric correctly on the embroidery frame. Fix fully stretched fabric without any wrinkle.
Page 52: Registration Of A Design Into The Machine Memory
Registration of a design into the machine memory Chapter 4 Registration of a design into the machine memory Register designs in the machine memory by the following methods. Use USB memory Use personal computer (DG/ML by Pulse is necessary) 3-1. To use USB memory (Data Input USB) Register designs saved in the USB memory into the machine memory.
Page 53 Registration of a design into the machine memory Chapter 4 3-1-2. How to operate The following is an example of registering a design saved in the USB memory into the machine memory. To set USB memory To open screen 4 Data Input (USB) To select a design The operation differs depending on the storing place of the design.
Page 54 Registration of a design into the machine memory Chapter 4 To read condition data (file) If the saving format of the selected design is T3 or T2, the following message will appear. Condition file means Color Change Sequence and Design Start Position. Read condition file? To move frame to the design start position...
Page 55 Registration of a design into the machine memory Chapter 4 When some message is written for the design (****.TCF), the below screen will be displayed. To write the message into the design data (****.TCF), DG/ML by Pulse is necessary. Display after data set Display after completion of embroidery A message will be A message will be...
Page 56: To Use Personal Computer (Data Input Lan)
Registration of a design into the machine memory Chapter 4 3-2. To use personal computer (Data Input LAN) Register designs (saved in the personal computer) into the machine memory. Besides, it is possible to more easily resister the designs into the machine memory using a commercially available bar code reader (*). The maximum number of stitches per design is 800,000 stitches.
Page 57 Registration of a design into the machine memory Chapter 4 To select a design ****** **** To read condition data (file) If the saving format of the selected design is T3 or T2, the following message will appear. Condition file means Color Change Sequence and Design Start Position. Read Condition File? To move frame to the design start position...
Page 58 Registration of a design into the machine memory Chapter 4 3-2-3. How to operate (to use bar code reader) The following is an example of registering a design (saved in a personal computer) into the machine memory. After connecting the LAN cable to the LAN port at the right side of the machine, start up DG/ML by Pulse first.
Page 59 Registration of a design into the machine memory Chapter 4 3-2-4. How to use a bar code reader during machine operation Read the bar code of the next embroidery design by a bar code reader. (Pre-reading of the next design) The pre-read design is set right after the current embroidery design is completed, and then a yellow bar will be displayed.
Page 60 Registration of a design into the machine memory Chapter 4 If the bar code cannot be read, error code No.BC1 will be displayed. The following points are given as factors. (a) Selected design is not stored in Spooler Spooler: Area to store the design temporarily in a personal computer (b) Misreading by bar code reader Deal with above troubles with the following procedure.
Page 61: To Use Personal Computer (Data Input "Name")
Registration of a design into the machine memory Chapter 4 3-3. To use personal computer (Data input "name") Enter the design file name saved on the personal computer and register the design file in the machine memory. Software sold separately (DG/ML by Pulse) and setting of IP address are necessary to perform this operation.
Page 62 Registration of a design into the machine memory Chapter 4 3-3-2. How to operate The following is an example of registering a design (file name: ROSE) saved on the personal computer in the machine memory. After connecting the LAN cable to the LAN port on the right side of machine, start up DG/ML by Pulse first. Next, turn ON the machine power and check that the network setting is set to "Normal".
Page 63: Decision Of An Embroidery Design And The Color Change Sequence
Decision of an embroidery design and the color change sequence Chapter 4 Decision of an embroidery design and the color change sequence 4-1. To decide embroidery design (Data Setting) Select the design in the machine memory and enable to embroider. 4-1-1.
Page 64 Decision of an embroidery design and the color change sequence Chapter 4 4-1-2. How to operate This is an example of selecting the design in the memory of the machine and enabling to embroider. To open screen 1 Data Input (Memory) To select a design The operation differs depending on the storing place of the design.
Page 65 Decision of an embroidery design and the color change sequence Chapter 4 To move frame to the design start position CAUTION When performing this operation, do not put your hands, etc. on the table. Moving the frame could injure you. OK to move a Pressing SET will move the frame, then data set will be frame to the Start...
Page 66: To Decide Color Change Sequence (Needle Bar Selection)
Step No. The color can be changed per each needle bar. It is displayed when performing the presser foot step unit setting. (TMBR-SC only) (p.52) The setting value here is give priority to over "Setting in units of needle bar". Also, the value set here is not reflected in "Setting in units of needle bar".
Page 67 Decision of an embroidery design and the color change sequence Chapter 4 Presser foot F.B. lower dead point The distance from the presser foot lower dead point to the presser foot at the time of frame back Setting range: +5 to +22 (mm) Presser foot stroke Stroke mode of presser foot Setting range: Auto, 2.0 to 22.0 (mm)
Page 68 To delete offset mark Blinking 4-2-4. How to operate (TMBR-SC only) The following is an example of setting the presser foot FB lower dead point to "+15 mm" in step 2. To select Step 2 To move the cursor to the presser foot setting column...
Page 69 Decision of an embroidery design and the color change sequence Chapter 4 To move the cursor to the original needle bar selection column, perform the following operation. To select the presser foot FB lower dead point Select +15. To delete the setting, perform the following operation. To move the cursor to the setting deletion column To delete the setting XL08...
Page 70: To Change Color Automatically / To Start Operation Automatically (Auto Color Change "Ac" / Auto Start "As")
Decision of an embroidery design and the color change sequence Chapter 4 4-3. To change color automatically / to start operation automatically (Auto Color Change "AC" / Auto Start "AS") 4-3-1. Explanation on the screen 1 Auto Color Change (AC) / Auto Start (AS) YES/NO YES/NO YES/NO...
Page 71 Decision of an embroidery design and the color change sequence Chapter 4 4-3-2. How to operate This is an example of setting in the following conditions. Auto Color Change (AC) Auto Start (AS) Automatic Start at the same color To open screen 1 Auto Color Change / Auto Start Auto Color Change (AC) Auto Start (AS)
Page 72: Decision Of The Design Start Position
Use the checking result as rough standard when deciding the design start position. This function will be explained in detail on the other page. (p.25) 5-1-1. Explanation on the screen Size of design (mm) G0041 W-Tajima 14117 st Design to be Tiny stitch 214st embroidered from now...
Page 73: To Move Frame To The Design Start Position (Manual Frame Travel)
This operation is unnecessary when the frame has already come to the start position of the design by the operation described previously. 5-2-1. Explanation on the screen Main screen The screen is for TMBR-SC. TAJIMA_W 14117 The current frame position is displayed by the numerical value (mm). The frame position is based on the Frame Origin.
Page 74 Decision of the design start position Chapter 4 5-2-2. How to operate There are following two methods. CAUTION When performing this operation, do not put your hands, etc. on the table. Moving the frame could injure you. To use Frame Travel key (a) Switch to the main screen Press E key plural times to switch to the main screen.
Page 75 Decision of the design start position Chapter 4 (c) To move frame to the design start position Turn the jog dial (low speed) / the jog shuttle (high speed). The frame will move. Jog shuttle Jog dial SQ06...
Page 76: To Check If Design Fits In Embroidery Space (Trace)
Decision of the design start position Chapter 4 5-3. To check if design fits in embroidery space (Trace) Since the frame moves according to the size of the design, you can check whether the design fits in the embroidery space or not. The number in the left figure indicates the orbit of the frame.
Page 77 Decision of the design start position Chapter 4 To execute When the tracing is impossible due to the design size exceeding the embroidery space, follow the procedure below after checking the size of the design. (a) The frame will move again after temporary stop. (b) Code No.225 will be displayed.
Page 78: Check Items Before Embroidering
Check items before embroidering Chapter 4 Check items before embroidering 6-1. Maximum speed (Maximum RPM) The value set here will be the maximum speed of the machine. It is automatically increased/decreased depending on stitch length in the middle of embroidery. Speed display column 1000 During stop: The maximum speed is displayed.
Page 79: Presser Foot Setting (Tmbr-Sc Only)
The number described in [ ] is the maximum speed. [850] 6-2. Presser foot setting (TMBR-SC only) Adjust the height of the presser foot according to thickness of fabric to use. "Presser foot step unit setting" is given priority to over the set value here.
Page 80 Check items before embroidering Chapter 4 The distance from the presser foot lower dead point to the presser foot at the time of frame back Setting range: +5 to +22 (mm) When "N" is displayed, FB lower dead point differs per needle bar. When "N" is changed to a numerical value, all the needl bars become the same value.
Page 81 Check items before embroidering Chapter 4 To select FB lower dead point 10.0 UO04...
Page 82: Embroidery Starts
Embroidery starts Chapter 4 Embroidery starts 7-1. Start and stop CAUTION Before starting the machine, pay enough attention to the surrounding safety. Moving needle bar and/or frame could injure you. To start operation, press the start switch for a few seconds. To start slow operation, keep on pressing the start switch.
Page 83: To Return Frame/To Advance Frame (Frame Back/Frame Forward)
Embroidery starts Chapter 4 7-2. To return frame/To advance frame (Frame Back/Frame Forward) [To return frame] This function will return the frame to the direction of stitches returning in the state that the needle bar is stopped. The frame will be returned when thread breaks, and the repair stitches will be performed from that position.
Page 84 Embroidery starts Chapter 4 You want to return the frame for several (2 to 10) stitches. Keep on pressing the stop switch. The frame will return stitch by stitch up to 10 stitches. To stop, release stop switch. Current frame position Embroidery direction →...
Page 85 Embroidery starts Chapter 4 You want to advance the frame for several (2 to 10) stitches. Keep on pressing the stop switch. The frame will advance stitch by stitch up to 10 stitches. To stop, release stop switch. The frame will advance. Embroidery direction →...
Page 86: Handling Of Thread Breakage
Embroidery starts Chapter 4 7-3. Handling of thread breakage The machine will stop automatically. Besides, the thread breakage indicator lamp will be lit or blinking in red. Code No.291 or No.293 will be also displayed on the operation panel. Thread breakage indicator lamp Lit: The upper thread has broken.
Page 87 Embroidery starts Chapter 4 [Procedure from thread breakage to repair stitches] a. After thread breakage occurs, the frame will move some stitches and then stop. Occurrence of thread breakage Position with missing stitches Embroidery direction Position where the frame stopped b.
Page 88: Completion Of Embroidery
Embroidery starts Chapter 4 7-4. Completion of embroidery Destination of the frame movement differs depending on setting of the machine. Setting of Automatic Offset The frame will not move. The frame will move to the offset start position. However, when Automatic Origin Return is set, the frame will move to the design start position.
Page 89 Chapter 5 Functions concerning embroidery 1. To change color ................74 2. To trim thread..................77 3. To set the embroidery speed ............90 4. To stop the machine................93 5. To change the direction and the size of the design......99 6. To embroider the same design repeatedly........105 7.
Page 90: To Change Color
To change color Chapter 5 To change color 1-1. To change color manually (Manual Color Change) [When the laser crosshair marker (option) is equipped] The needle bar No. becomes as the table below because the laser crosshair marker is equipped on the center of the needle bar case.
Page 91 To change color Chapter 5 1-1-1. Explanation on the screen 2 Manual Color Change Current needle bar No. 1-1-2. How to operate CAUTION When performing this operation, do not put your hands etc. around the needle bar case. Moving needle bar case could injure you. The following is the example of the color change that the needle bar is set to the 5th needle.
Page 92: To Light The Laser Crosshair Marker Manually (Manual Return To Marker Position)
To change color Chapter 5 1-2. To light the laser crosshair marker manually (Manual return to marker position) 1-2-1. Explanation on the screen 3 Manual return to marker position : To execute 1-2-2. How to operate CAUTION When performing this operation, do not put your hands etc. around the needle bar case. Moving needle bar case could injure you.
Page 93: To Trim Thread
To trim thread Chapter 5 To trim thread 2-1. To trim thread manually (Thread breakage indicator lamp) 2-1-1. How to operate CAUTION When performing this operation, do not put your hands etc. near the needle or on the machine table. Moving down of the needle bar could injure you. In the main screen and in the state of operation possible, press the thread breakage indicator lamp longer and release your finger.
Page 94: To Trim Thread Automatically (Ath)
To trim thread Chapter 5 The following is the example of executing thread trimming. To open screen 3 Manual Thread Trimming To execute thread trimming Pressing SET key will move the needle bar up/down and trim thread. 2-3. To trim thread automatically (ATH) It is the setting to trim thread.
Page 95 To trim thread Chapter 5 Remaining length of upper thread after thread trimming (1 in the right figure) Short Long When upper thread remains on the fabric, select the value of "-". If the thread does not link at the start of sewing due to short of remaining length of upper thread, select the value of "+".
Page 96 To trim thread Chapter 5 Tie stitching at thread trimming Setting more tie stitches prevent the thread from pulling out. Not to perform tie stitching To perform tie stitching (once) Thread trimming position Thread trimming position To perform tie stitching after lowering the To perform tie stitching (twice) needle twice on the same position at the end of the stitch...
Page 97: To Change Thread Breakage Detecting Sensitivity (Thread Detection)
To trim thread Chapter 5 To select thread trim length When "N" is displayed, changing "N" to a value will set the detecting sensitivity in all needle bars to the same. To select "M.shaft Inching after ATH". 2-4. To change thread breakage detecting sensitivity (Thread Detection) Use this function in the following cases.
Page 98 To trim thread Chapter 5 The relationship between the number of detecting times and sensitivity is shown as follows. High [Sensitivity] Setting how many consecutive times of detection of "Under (Step Ratio)" of [c] are regarded as thread breakage to stop the machine 0: Not to stop even if under thread is broken When idling the machine, set "Upper"...
Page 99: To Trim Thread By The Number Of Consecutive Jump Stitches (Jump Convert)
To trim thread Chapter 5 To select the number of upper thread breakage detecting times When "N" is displayed, changing "N" to a value will set the detecting sensitivity in all needle bars to the same. To select number of under thread breakage detecting times (unit) 2-5.
Page 100: To Add Thread Trimming Code To The Design And Trim Thread (Data Edit "Insert")
To trim thread Chapter 5 2-5-2. How to operate The following is the example of setting the number of consecutive jump code to "4". To open screen 1 Jump Convert To select number of consecutive jump codes 2-6. To add thread trimming code to the design and trim thread (Data Edit "Insert") This function always executes automatic thread trimming at the same position by adding thread trimming code to the design.
Page 101 To trim thread Chapter 5 2-6-2. How to operate CAUTION The original design will be overwritten after editing. Back up design data as necessary. The following is an example that thread trimming code is added to 20th stitch. To open screen 1 Data Edit To select a design ******...
Page 102 To trim thread Chapter 5 To select "ATH" To decide Are you ready ? PT10...
Page 103: To Change Thread Trim Timing (Ath Start Timing)
To trim thread Chapter 5 2-7. To change thread trim timing (ATH Start Timing) This function is for the purpose to improve thread trimming by changing moving timing of the thread trimming knife. 2-7-1. Explanation on the screen 4 ATH Start Timing Timing to start moving thread trimming knife (Value is of main shaft angle) Fast...
Page 104: To Set The Sensitivity Of Ath Error Detection (Sensitivity Of Ath Error Detection)
To trim thread Chapter 5 2-8. To set the sensitivity of ATH error detection (Sensitivity of ATH error detection) 2-8-1. Explanation on the screen 17 Sensitivity of ATH error detection Skip stitches YES/NO Thread separation NO/H/M/L The sensitivity of detection of fault in thread trimming coccured due to skip stitches YES: To detect NO: not to detect If the fault in thread trimming by skip stitches is deteced, the code No.
Page 105 To trim thread Chapter 5 To select "YES" XL03...
Page 106: To Set The Embroidery Speed
To set the embroidery speed Chapter 5 To set the embroidery speed 3-1. To limit embroidery speed by stitch length (Min. Revolution) 3-1-1. Explanation on the screen 1 Min. Revolution 600 rpm Maximum speed at stitch of which stitch length 12.0 mm or more 3-1-2.
Page 107: To Set Embroidery Speed Within Speed Limit Section (Revolution Limit)
To set the embroidery speed Chapter 5 3-2. To set embroidery speed within speed limit section (Revolution limit) Set the maximum speed of the section where the embroidery speed is restricted.The area where speed was restricted in the design is surrounded by the following function code. Function Name Function Code Low Speed Start Stitch...
Page 108: To Decide Upper Limit Value Of The Maximum Speed (Max. Revolution Limit)
To set the embroidery speed Chapter 5 3-3. To decide upper limit value of the maximum speed (Max. Revolution Limit) This operation requires input of the password. 3-3-1. Explanation on the screen 1 Max. Revolution Limit Inputting column of current password Password: 1 Max.
Page 109: To Stop The Machine
To stop the machine Chapter 5 To stop the machine 4-1. To stop the machine automatically when reaching the set value (Preset Halt) 4-1-1. Explanation on the screen 6 Preset Halt Stitch 0-999999[st] Data 0-99999[cm] Design 0-999[Designs] Lubrication 0-99*10000[st] YES/NO Just before End Code 1000 ATH cleaning...
Page 110: To Stop The Machine Before Needle Bar Hits The Frame (Software Frame Limit)
To stop the machine Chapter 5 4-1-2. How to operate The following is an example that the halt by the number of stitch is set to "15000". To open screen 6 Preset Halt To select value of halt by number of stitch 15000 4-2.
Page 111 To stop the machine Chapter 5 4-2-2. How to operate CAUTION When performing this operation, do not put your hands, etc. on the table. Moving the frame could injure you. The following is the example of setting the tubular frame as "Software Frame Limit". To open screen 6 Software Frame Limit To make software frame limit effective...
Page 112: To Stop The Machine With Needle Bar Stuck In The Material (Stop At Lower D.point)
To stop the machine Chapter 5 4-3. To stop the machine with needle bar stuck in the material (Stop at Lower D.Point) This setting stop the machine with needle stuck in the material at the end of embroidery. This function is effective for embroidering to consecutive design using AFC (option) mainly.
Page 113: To Stop At Frame Limit (Frame Limit Setting)
To stop the machine Chapter 5 4-4. To stop at Frame Limit (Frame Limit setting) This is the setting to stop the frame at Flame Limit (movable limit position). To stop at Frame Limit, it is necessary to memorize the frame origin correctly in the machine. The position where the frame stops differs in every "Frame Type".
Page 114 To stop the machine Chapter 5 To press F1 key 6 Frame Limit Setting To make Frame Limit setting effective PT10...
Page 115: To Change The Direction And The Size Of The Design
To change the direction and the size of the design Chapter 5 To change the direction and the size of the design 5-1. To perform enlargement, rotation, reversion (Data Conversion) Set this function after data set. Setting contents here will be added in a design. So, when you embroider this design next time, setting again will be unnecessary.
Page 116 To change the direction and the size of the design Chapter 5 5-1-2. How to operate The following is the example that horizontal scale ratio and vertical scale ratio are set to "120". To open screen 3 Data Conversion To select horizontal scale ratio To select vertical scale ratio PT10...
Page 117: Tilt The Design, Change The Placement (Design Position Adjustment)
To change the direction and the size of the design Chapter 5 5-2. Tilt the design, change the placement (Design position adjustment) It is the setting to adjust the position by rotating the design according to the inclination of the fabric. •...
Page 118 To change the direction and the size of the design Chapter 5 Desing position Place the design based on the interval of P1 and P2. If P1 and P2 have a different Y coordinate, the Y coordinate of the design position will be as follows.
Page 119 To change the direction and the size of the design Chapter 5 Alignment adjustment (vertical) Rotate the design by the angle (A) between the diagonal line (P1 - P2) and the vertical line. The design is rotated with respect to the center of the design size. (Y1) Diagonal line Vertical line...
Page 120 To change the direction and the size of the design Chapter 5 5-2-2. How to operate CAUTION When performing this operation, do not put your hands, etc. on the table. Moving the frame could injure you. The following is an example of "Alignment adjustment". To cancel the setting, perform the data set of the design.
Page 121: To Embroider The Same Design Repeatedly
To embroider the same design repeatedly Chapter 5 To embroider the same design repeatedly 6-1. To repeat to horizontal and vertical direction (Repeat) Set this function after data set. Setting contents here will be added in a design. So, when you embroider this design next time, setting again will be unnecessary.
Page 122 To embroider the same design repeatedly Chapter 5 Number of repeats in vertical Interval in vertical (mm) Repeat direction will be decided by code. Selecting "-" will (No display) perform embroidering at front. Priority embroidering direction (horizontal/vertical) It is the setting which direction is given priority to embroider, horizontal(X) or vertical(Y). 6-1-2.
Page 123 To embroider the same design repeatedly Chapter 5 To select interval in horizontal (mm) The frame will move. To select number of repeats in vertical To select interval in vertical (mm) The frame will move To select priority embroidering direction After that, switching the screen will return the frame to the original position.
Page 124: To Repeat At The Same Place (A.s. After Auto Data Set)
To embroider the same design repeatedly Chapter 5 6-2. To repeat at the same place (A.S. after Auto Data Set) This setting makes the machine start automatically after finishing embroidery and embroider the same design repeatedly. This function is effective only when "Auto Start (AS)" is set to "YES". (p.54) 6-2-1.
Page 125: To Adjust Finishing Of Embroidering
To adjust finishing of embroidering Chapter 5 To adjust finishing of embroidering 7-1. To adjust driving error of the frame (Backlash) This function corrects error of finished stitching generated by Backlash. Backlash means the play generated by the shock in the parts at the drive system or around the frame when return stitches are executed. 7-1-1.
Page 126: To Adjust Stitch Length Of Satin Stitch (Satin Stitch)
To adjust finishing of embroidering Chapter 5 7-1-2. How to operate The following is an example that correcting value of horizontal direction is set to "0.3". To open screen 4 Backlash To select correcting value in horizontal 7-2. To adjust stitch length of satin stitch (Satin Stitch) 7-2-1.
Page 127 To adjust finishing of embroidering Chapter 5 7-2-2. How to operate The following is the example of that the applicable range is set to "part" and the expansion amount is set to "+0.4". To open screen 3 Satin Stitch To select applicable range Part To select adding amount +0.4...
Page 128: To Divide A Long Stitch (Auto Jump)
To adjust finishing of embroidering Chapter 5 7-3. To divide a long stitch (Auto Jump) This function makes the frame movement to divide by jump automatically when a stitch length exceeds a setting value. This function reduces the load generated at the frame drive due to heavy weight of the material to be embroidered.
Page 129: To Change Stitching Condition In Every Needle Bar (Setting In Units Of Needle Bar)
To change stitching condition in every needle bar (Setting in units of Needle bar) 7-4-1. TMBR-SC screen If the TMBR-SC is equipped with the optional "Multi Cording Device" or "Multi Cording Device 2", the screen display will partially differ. For details, refer to the separate optional device manual. [TMBR-SC]...
Page 130 To adjust finishing of embroidering Chapter 5 Needle bar No. applied to sewing condition Perform the following setting for this needle bar. Maximum speed Setting how many consecutive detections of upper thread breakage are regarded as thread breakage 0: Not to stop even if upper thread breaks When idling the machine, set "Upper"...
Page 131 To adjust finishing of embroidering Chapter 5 Length of remaining upper thread at thread trimming (1 in the right figure) Short Long When upper thread remains on the fabric, select the value of "-". If the thread does not link at the start of sewing due to short of remaining length of upper thread, select the value of "+".
Page 132 To adjust finishing of embroidering Chapter 5 7-4-2. How to operate The following is the example that the needle bar No. is set to "3", the maximum speed is set to "950", and the upper thread breakage detecting sensitivity is set to "3". Set to main screen.
Page 133: To Delete Tiny Stitch (Cleanup)
To adjust finishing of embroidering Chapter 5 7-5. To delete tiny stitch (Cleanup) This function removes tiny stitch that causes thread breakage and it is added to the next stitch. This function has an effect to decrease thread breakages. 7-5-1. Explanation on the screen 2 Cleanup Indicated value or less stitches will be removed.
Page 134: To Change Thread Tension (Frame Start Timing)
To adjust finishing of embroidering Chapter 5 7-6. To change thread tension (Frame Start Timing) 7-6-1. Explanation on the screen 2 Frame Start Timing 280° Timing to start moving the frame (Value is main shaft angle) Thread tension Loose Tight 7-6-2.
Page 135: Not To Stand Out The Edge Of Upper Thread (Upper Thread Lock Timing)
To adjust finishing of embroidering Chapter 5 7-7. Not to stand out the edge of upper thread (Upper thread lock timing) 7-7-1. Explanation on the screen 10 Upper thread lock timing Release Lock Timing to open upper thread lock Perform adjustments if the edge of upper thread Upper thread lock remains on the fabric after start of sewing.
Page 136: To Embroider By Using Badly Passing Thread Or Loosely Twisted Thread (Fs Mode Lock)
To adjust finishing of embroidering Chapter 5 7-8. To embroider by using badly passing thread or loosely twisted thread (FS mode Lock) This function will improve finish of sewing even in case of using badly passing threads (the tinsel, the thick thread) or loosely twisted thread.
Page 137: To Perform Return Stitches At Start Of Sewing (Forced Return Stitches)
To adjust finishing of embroidering Chapter 5 7-9. To perform return stitches at start of sewing (Forced Return Stitches) The value of "F2-9: ATH" will be applied for the method of return stitches. (p.78) After start of the machine, the value will return to "NO" (Not to perform return stitches) . 7-9-1.
Page 138: To Increase Embroidering Efficiency
To increase embroidering efficiency Chapter 5 To increase embroidering efficiency 8-1. To change number of lowering needle bar at slow operation (Main Shaft Inching) This function targets slow operation when the machine stops in the middle of embroidery and then the machine restarts.
Page 139: To Set Embroidery Speed At Slow Operation (Inching R
To increase embroidering efficiency Chapter 5 8-2. To set embroidery speed at slow operation (Inching r.p.m) 8-2-1. Explanation on the screen 15 Inching r.p.m Inching r.p.m. 180：180 rpm [rpm] 250：250rpm 8-2-2. How to operate The following is an example of setting start inching r.p.m to "180". Set to main screen.
Page 140: To Collect Up Frame Moving Amount Of Consecutive Jump Stitches In A Batch To Feed The Frame All At Once (Jump Code Combination)
To increase embroidering efficiency Chapter 5 8-3. To collect up frame moving amount of consecutive jump stitches in a batch to feed the frame all at once (Jump code combination) This function reduces the number of stitches by combining frame moving amount of consecutive jump stitches (up to 5 stitches) and by feeding the frame all at once.
Page 141: To Change Travel Speed Of The Frame (Frame Travel Speed)
To increase embroidering efficiency Chapter 5 8-4-2. How to operate The following is the example of setting the color change speed to "High". Press C key within ten seconds after turning ON the power and keep on pressing it. If C+PW screen is displayed, release it.
Page 142: To Set Data Of The Design Automatically After The Embroidery Is Finished (Automatic Data Set After Finishing Embroidery)
To increase embroidering efficiency Chapter 5 8-6. To set data of the design automatically after the embroidery is finished (Automatic Data Set after finishing embroidery) 8-6-1. Explanation on the screen 9 Automatic data set after end of embroidery YES/NO Data deletion YES/NO Perform Automatic Data Set of the design embroidered after finishing the embroidery.
Page 143: Embroidering Multiple Name Designs (Continuous Names)
To increase embroidering efficiency Chapter 5 To select NO (Not to perform Automatic Data Set of the design) To select YES (Delete the design automatically) 8-7. Embroidering multiple name designs (continuous names) This function allows you to embroider multiple names saved in a single design based on the stop code. •...
Page 144 To increase embroidering efficiency Chapter 5 8-7-2. How to operate The following is an example of setting continuous names. To open screen 8 Continuous name To set continuous names WM03...
Page 145: To Edit Design
To edit design Chapter 5 To edit design 9-1. To modify the stitch (Data Edit "Modify") When this operation is performed in the middle of embroidery, data set will be canceled. If stitch length after change is different from that before change, a design will displace hereafter. 9-1-1.
Page 146 To edit design Chapter 5 After that, select the stitch No. to change. There are following two types of selecting patterns. (a) To select stitch No. by using search function, refer to the detail page. (p.131) (b) To select the stitch No. by the jog dial/jog shuttle, follow the explanation below. [To select stitch No.
Page 147 To edit design Chapter 5 Decide the modification. Are you ready ? [To select stitch No. by using search function] To make search function effective Stitch To search stitch by function code Color Pressing SET key will search the stitch including a function code "Color".
Page 148: To Insert The Stitch (Data Edit "Insert")
To edit design Chapter 5 To edit Y data To modify the function code Jump Decide the modification. Are you ready ? 9-2. To insert the stitch (Data Edit "Insert") When this operation is performed in the middle of embroidery, data set will be canceled. If the stitch with a length is inserted, a design will be displaced hereafter.
Page 149 To edit design Chapter 5 9-2-2. How to operate CAUTION The original design will be overwritten after editing. Back up design data as necessary. The following is an example that non-data (X: 0.0, Y:0.0) jump code is added to 120th stitch. To open screen 1 Data Edit To select a design...
Page 150 To edit design Chapter 5 To execute insertion Are you ready ? To select "Modify" to move the cursor Modify Press SET key three times. To select "Jump". Jump To decide insertion Are you ready ? PT10...
Page 151 To edit design Chapter 5 [To select stitch No. by using search function] To make search function effective Stitch To search stitch by function code Color Pressing SET key will search the stitch including a function code "Color". Pressing SET key further will search the next stitch.
Page 152: To Delete The Stitch (Data Edit "Delete")
To edit design Chapter 5 To select "Jump". Jump To decide insertion Are you ready ? 9-3. To delete the stitch (Data Edit "Delete") When this operation is performed in the middle of embroidery, data set will be canceled. If the stitch having length is deleted, a design will displace hereafter.
Page 153 To edit design Chapter 5 9-3-2. How to operate CAUTION The original design will be overwritten after editing. Back up design data as necessary. The following is an example that 20th stitch is deleted. To open screen 1 Data Edit To select a design ****** ****...
Page 154 To edit design Chapter 5 To decide deletion Are you ready ? [To select stitch No. by using search function] To make search function effective Stitch To search stitch by function code Color Pressing SET key will search the stitch including a function code "Color".
Page 155: Setting And Resetting Of Password
Setting and resetting of password Chapter 5 Setting and resetting of password 10-1. To change password (Functional Limit of Password) The password is set to "0000" at shipment of the machine. The password changed at that time will not be changed even after installing the software.
Page 156 Setting and resetting of password Chapter 5 10-1-2. How to operate The following is an example that the password is changed from "0000" to "ZY98". Set to main screen. Press F1 key while pressing SET key, and press SET key further. 1 Password (Functional Limit) To input the current password (a) To select "0"...
Page 157: To Cancel The Password
Setting and resetting of password Chapter 5 (c) To select the remaining password "9", "8" in the same procedure (d) To decide Enter To input password again after change (a) To input password in the same procedure (b) To decide Enter 10-2.
Page 158 Setting and resetting of password Chapter 5 10-2-2. How to operate The following is an example that the password "0000" is canceled. To select the password "0" To select the remaining password "0", "0", "0" in the same procedure To decide Enter TP09...
Page 159: Not To Display Some Operation (Functional Limit Level)
Setting and resetting of password Chapter 5 10-3. Not to display some operation (Functional limit level) Various types of machine operations are controlled by each functional limit level. This functional limit level will not display some operation and it has the purpose to protect design data from taking out unnecessarily or prevent incorrect parameter setting.
Page 160 Setting and resetting of password Chapter 5 To press F1 key 2 Functional limit level To cancel the password Regarding canceling method, refer to the detail page. (p.141) To select "NWM" TP09...
Page 161: Various Functions
Various functions Chapter 5 Various functions 11-1. To check the number of total stitches up to now (Total Stitch Counter) 11-1-1. Explanation on the screen 2 Total Stitch Counter / Design Timer The number of total stitches embroidered up to now. When resetting the value, select "0"...
Page 162: To Color In Every Needle Bar (Needle Bar Color)
Various functions Chapter 5 11-2. To color in every needle bar (Needle Bar Color) Matching needle bar color with thread color used actually will display an image similar to the embroidered product. 11-2-1. Explanation on the screen 10 Needle Bar Color Pallet 32 colors Cursor (selected color) Needle bar No.
Page 163: To Display The Setting Color When Making The Design (Needle Bar Information)
Various functions Chapter 5 11-3. To display the setting color when making the design (Needle bar information) 11-3-1. Explanation on the screen 10 Needle Bar Information YES: Display the setting color when making the design. When the information about the setting color is not included in the design data, the setting of "B-10 Needle bar color"...
Page 164: To Check Version Of Current Sdoftware (Software Version)
Various functions Chapter 5 11-4. To check version of current sdoftware (Software Version) 11-4-1. Explanation on the screen 8 Software Version TMBR Software version of system software System software Software version of firmware Firmware 8 Software Version TMBR Software version of firmware of optional card Firmware Machine library version of the network software Machine library...
Page 165: To Switch Display Language (Language)
Various functions Chapter 5 11-5. To switch display language (Language) 11-5-1. Explanation on the screen 10 Language Spanish Language displayed now 11-5-2. How to operate The following is the example of changing the language to "English". Set to main screen. To press F4 key while pressing SET 2 Date and Time To press F4 key...
Page 166: To Release Fixing Of Main Shaft Motor (Main Shaft Brake)
Various functions Chapter 5 11-6. To release fixing of main shaft motor (Main shaft brake) It is the setting to release the fixing of the main shaft motor temporarily while the main shaft stops. This function is used for the maintenance of the machine mainly. 11-6-1.
Page 167: To Read /Not To Read Condition Data (Condition Data)
Various functions Chapter 5 11-7. To read /Not to read Condition data (Condition data) When performing the data input from USB memory, set to read or not to read the condition data (file). 11-7-1. Explanation on the screen 7 Condition data YES: To read NO: Not to read Selecting "NO"...
Page 168: 8 Input Confirmation Of Condition File
Various functions Chapter 5 11-8. To display/Not to display the screen for reading Condition data (Input confirmation of condition file) When inputting data from USB memory, set to display or not to display the following message. Read Condition data (file) ? 11-8-1.
Page 169: To Lower / Raise Presser Foot (Tmbr-Sc Only)
Chapter 5 11-9. To lower / raise presser foot (TMBR-SC only) When the machine stops, the movement of the presser foot can be switched to three steps by the operation panel. It is also possible to start the operation in the state that the presser foot has lowered.
Page 170: To Move Down/Up The Presser Foot And Needle Bar Before Tracing
Various functions Chapter 5 11-10. To move down/up the presser foot and needle bar before tracing 11-10-1. Explanation on the screen 6 Presser foot/Needle bar Up at tracing No: As it is (in the lowered state) YES: To move up 11-10-2.
Page 171 Chapter 6 Functions concerning frame movement 1. To return the frame (Frame Back) / to advance the frame (Frame Forward)..156 2. Necessary works after replacing the frame ............163 3. To return the frame to the original position .............165 4. To return the frame to the design start position ..........171 5.
Page 172: To Return The Frame (Frame Back) / To Advance The Frame (Frame Forward)
To return the frame (Frame Back) / to advance the frame (Frame Forward) Chapter 6 To return the frame (Frame Back) / to advance the frame (Frame Forward) 1-1. To switch Frame Back / Frame Forward 1-1-1. Explanation on the screen 3 Frame Back/Frame Forward Switching of FB (Frame Back) / FF (Frame Forward) FB/FF...
Page 173: To Execute By Stop Code, To Specify Number Of Stitches To Execute
To return the frame (Frame Back) / to advance the frame (Frame Forward) Chapter 6 1-2. To execute by Stop code, to specify number of stitches to execute 1-2-1. Explanation on the screen 3 Frame Back/Frame Forward FB/FF Stop code Stitches 1/3/5 FB/FF Stitch Unit...
Page 174 To return the frame (Frame Back) / to advance the frame (Frame Forward) Chapter 6 To select FF (Frame Forward) To move the cursor to "Stop code" To perform Frame Forward in Stop code Pressing SET key will move the frame. 1-2-3.
Page 175: To Specify The Needle Position (Stitch Number) And Perform Fb/Ff (Needle Position Specification Fb/Ff)
To return the frame (Frame Back) / to advance the frame (Frame Forward) Chapter 6 To move the cursor to "Specification by the number of stitches" To input the number of stitches and execute Pressing SET key will move the frame. 1-3.
Page 176 To return the frame (Frame Back) / to advance the frame (Frame Forward) Chapter 6 1-3-2. How to operate CAUTION When performing this operation, do not put your hands, etc. on the table. Moving the frame could injure you. The following is an example of performing frame back to the 150th stitch. To open screen 4 Needle position specification FB/FF Turn the jog dial or jog shuttle to the left.
Page 177: To Perform Frame Forward Using The Usb Key (Usb Button)
To return the frame (Frame Back) / to advance the frame (Frame Forward) Chapter 6 1-4. To perform frame forward using the USB key (USB button) 1-4-1. Explanation on the screen 10 USB button USB： Used as a USB function setting key. FF：...
Page 178: To Change A Frame Feed Amount Of Frame Back / Frame Forward
To return the frame (Frame Back) / to advance the frame (Frame Forward) Chapter 6 1-5. To change a frame feed amount of frame back / frame forward Set the frame feed amount when Frame Back/Forward by the stop switch is performed for 11 or more stitches continuously.
Page 179: Necessary Works After Replacing The Frame
Necessary works after replacing the frame Chapter 6 Necessary works after replacing the frame 2-1. Change of frame type, Rotation of design by 180° 2-1-1. Explanation on the screen 7 Frame type Select the frame type from items below. Border, Tubular, Cap, A. Clamp T, X-EXT Frame Type Tubular For the pocket frame, select "Tubular".
Page 180 Necessary works after replacing the frame Chapter 6 To set the frame type to "A. clamp T" (Auto Clamp T), follow the procedure below. CAUTION To perform "Frame Origin Memory", follow the procedure below. The frame could hit the machine depending on the position of the frame, and it might cause the damage of the parts.
Page 181: To Return The Frame To The Original Position
To return the frame to the original position Chapter 6 To return the frame to the original position 3-1. To return the moved frame to the previous position (Manual Offset) This function is effective only when the frame is moved manually after stopping the machine in the middle of embroidery.
Page 182: To Return Moved Frame To Original Position And Start Operation (Return The Frame After Manual Frame Travel)
To return the frame to the original position Chapter 6 3-2. To return moved frame to original position and start operation (Return the frame after manual frame travel) This function is effective only when the frame is moved manually after stopping the machine in the middle of embroidery.
Page 183: To Prevent Displacement Of Design When The Power Is Shut Off During Operation (Power Resume)
To return the frame to the original position Chapter 6 3-3. To prevent displacement of design when the power is shut off during operation (Power resume) This function works on condition that the frame origin is memorized correctly. If it is wrong, the frame will not return to the correct position.
Page 184: To Memorize Frame Origin (Frame Origin Memory)
To return the frame to the original position Chapter 6 To execute after thread trimming Pressing SET will perform thread trimming and move the frame. 3-4. To memorize frame origin (Frame origin memory) Frame origin is an anchoring point (X:0.0, Y:0.0) to calculate the current frame position. Position of frame origin differs depending on model.
Page 185: To Perform Frame Origin Memory When The Power Is Turned On
To return the frame to the original position Chapter 6 3-4-2. How to operate CAUTION When performing this operation, do not put your hands, etc. on the table. Moving the frame could injure you. The following is an example of executing frame origin memory. Set to main screen.
Page 186 To return the frame to the original position Chapter 6 3-5-1. Explanation on the screen 7 Frame origin memory with the power-ON Display of the message to urge frame origin memory YES: To display NO: Not to display Even if the power is turned ON again in the middle of the embroidery at the setting of "YES", any message will not be displayed.
Page 187: To Return The Frame To The Design Start Position
To return the frame to the design start position Chapter 6 To return the frame to the design start position 4-1. To return the frame to the design start position manually (Return to the design start position) This function makes the frame return to the design start position in the middle of embroidery when you stopped the machine.
Page 188: To Return The Frame To The Design Start Position Automatically (Auto Origin Return)
To return the frame to the design start position Chapter 6 4-2. To return the frame to the design start position automatically (Auto Origin Return) This is the setting to return the frame to the design start position automatically after embroidery is finished. When Automatic offset is set, the frame will return to an offset start position.
Page 189: To Move The Frame To The Position Registered
To move the frame to the position registered Chapter 6 To move the frame to the position registered 5-1. To move the frame automatically at the start and the end of embroidery (Automatic Offset) This is the setting to move the frame automatically so that replacement of the frame and the fabric to be stretched can be performed easily.
Page 190 To move the frame to the position registered Chapter 6 5-1-2. How to operate CAUTION When performing this operation, do not put your hands, etc. on the table. Moving the frame could injure you. At the start and the end of embroidery, do not put your hands etc. on the table. Moving frame could injure you.
Page 191: To Move The Frame Automatically At The Start, In The Middle And The End Of Embroidery
To move the frame to the position registered Chapter 6 5-2. To move the frame automatically at the start, in the middle and the end of embroidery This function is the setting to move the frame automatically so that replacement of the frame, works for applique and change of fabric to be stretched can be performed easily.
Page 192 To move the frame to the position registered Chapter 6 5-2-2. How to operate The following is an example of inserting the offset mark between step 2 and step 3. To open screen 2 Needle Bar Selection To select step to insert offset mark To insert offset mark Blinking To delete offset mark...
Page 193: To Return The Frame To The Offset Start Position Manually (Return To The Offset Origin)
To move the frame to the position registered Chapter 6 5-3. To return the frame to the offset start position manually (Return to the offset origin) This function makes the frame return to the offset start position in the middle of embroidery when you stopped the machine.
Page 194: To Move Frame To Registered Position (Frame Travel To Optional Position)
To move the frame to the position registered Chapter 6 5-4. To move frame to registered position (Frame travel to optional position) This function will move the frame to the position registered by "SET+F2-7: Arbitrary position". 5-4-1. Explanation on the screen 9 Frame Travel to an arbitrary position To return the frame to the registered position...
Page 195: To Register The Frame Position
To register the frame position Chapter 6 To register the frame position 6-1. To register your desired frame position (arbitrary position) This function is to register the frame position after performing "D1-9 Frame Travel to an arbitrary position". (p.178) 6-1-1. Explanation on the screen 7 Arbitrary position Previous...
Page 196: To Register The Design Layout (Design Start Position)
To register the frame position Chapter 6 6-2. To register the design layout (Design start position) The design is placed according to the selected point with reference to the design start point. 6-2-1. Explanation on the screen 9 Design start position Design start position YES: To set NO: Not to set...
Page 197 To register the frame position Chapter 6 To register the design start point To select the point. XL03...
Page 198 To register the frame position Chapter 6...
Page 199: Chapter 7 Function Concerning Storing And Deleting Of Design
Chapter 7 Function concerning storing and deleting of design 1. Design stored in the machine memory ...........184 2. Design stored in USB memory ............196 PT10...
Page 200: Design Stored In The Machine Memory
Design stored in the machine memory Chapter 7 Design stored in the machine memory 1-1. To delete a design (Memory Delete) 1-1-1. Screen 8 Memory Delete How to delete a design One/All One: The selected design is deleted one by one. All: All designs are deleted at once.
Page 201: To Move A Design (Movement Of Design)
Design stored in the machine memory Chapter 7 1-2. To move a design (Movement of design) 1-2-1. Screen 4 Move a design Selection of design to move the saving location Group 1 Group 2 Group 3 ****** Group 4 Group 5 **** 4 Movement of the design >...
Page 202: To Copy A Design (Copy A Design)
Design stored in the machine memory Chapter 7 (b) Design on screen The screen will be switched. ****** **** To select destination to move and decide Are you ready? Group 3 1-3. To copy a design (Copy a design) 1-3-1. Screen 5 Copy a design Selection of design to copy...
Page 203 Design stored in the machine memory Chapter 7 1-3-2. How to operate The following is an example of copying a design and storing it in the folder (Group 3). To open screen 5 Copy a design To select a design The operation differs depending on the storing place of the design.
Page 204: To Change The File Name Of The Design (Changing Design Name)
Design stored in the machine memory Chapter 7 1-4. To change the file name of the design (Changing design name) 6 Changing design name Selection of design to change the file name Group 1 Group 2 Group 3 ****** Group 4 Group 5 **** 6 Changing design name...
Page 205 Design stored in the machine memory Chapter 7 (b) Design on screen The screen will be switched. ****** **** To change file name (a) To return the cursor to the top of the file name Press SET key four times. (b) To select "A"...
Page 206: To Change A Folder Name (Changing Folder Name)
Design stored in the machine memory Chapter 7 1-5. To change a folder name (Changing folder name) 7 Changing folder name Selection of folder to change the name Group 1 Group 2 Group 3 ****** Group 4 Group 5 **** 7 Changing folder name Change column of folder name (up to 8 characters) Delete and input letters.
Page 207 Design stored in the machine memory Chapter 7 To change a folder name (a) To return the cursor to the top of the folder name (b) To select "D" (c) To set to make small letters possible to be input (d) To select "e"...
Page 208: To Sort A Design (Design Sort "In Memory")
Design stored in the machine memory Chapter 7 1-6. To sort a design (Design sort "in memory") This function sorts designs in the machine memory by turns from the front. The folder is displayed in advance of design. 1-6-1. Screen 1 Design sort (in memory) Time Priority...
Page 209 Design stored in the machine memory Chapter 7 1-6-2. How to operate The following is an example of setting sort of the design giving the priority to "Time" and to "New → Old". Set to main screen. To press A key while pressing SET key, and press SET key further 1 Design sort (in memory) To select priority to sort Time...
Page 210: To Store A Design To A Usb Memory (Usb "Save")
Design stored in the machine memory Chapter 7 1-7. To store a design to a USB memory (USB "Save") This operation requires input of the password. 1-7-1. Screen 6 USB (Save) Inputting column of password Password: 6 USB (Save) Selection of design to store into the USB memory Group 1 Group 2 Group 3...
Page 211 Design stored in the machine memory Chapter 7 1-7-2. How to operate The following is an example of saving designs into the USB memory. To set USB memory To open screen 6 USB (Save) To cancel the password Regarding canceling method, refer to the detail page. (p.141) To select a design The operation differs depending on the storing place of the design.
Page 212: Design Stored In Usb Memory
Design stored in USB memory Chapter 7 Design stored in USB memory 2-1. To delete a design (USB Delete) 2-1-1. Screen 7 USB (Delete) Selection of design to delete in the USB memory ****** for cap for tubular **** ****** ****** ****** ****...
Page 213 Design stored in USB memory Chapter 7 (b) Design on screen G001.TCF G001.TCF TAJIMA_W TAJIMA_W 14117 14117 Pressing i key will display the design confirmation screen. (p.25) To return to the original screen, press E key. To delete Are you ready? RR06...
Page 214: To Sort A Design (Design Sort "Usb")
Design stored in USB memory Chapter 7 2-2. To sort a design (Design sort "USB") This function sorts designs in the USB memory by turns from the front. The folder is displayed in front of the design. 2-2-1. Screen 4 Design sort (USB) Time Priority Time/File name...
Page 215 Design stored in USB memory Chapter 7 2-2-2. How to operate The following is an example of setting sort of the design giving the priority to "Time" and to "New → Old". To set USB memory Set to main screen. To press A key while pressing SET key 1 Design sort (in memory) To press A key...
Page 216 Design stored in USB memory Chapter 7...
Page 217: Chapter 8 Setting For Optional Device
Chapter 8 Setting for optional device 1. To make optional device available for use ........202 2. To set details of optional device............213 3. Functions concerning optional device..........217 PT10...
Page 218: To Make Optional Device Available For Use
To make optional device available for use Chapter 8 To make optional device available for use Before using optional devices, be sure to check the setting condition for each device. 1-1. Sequin device IV This is the setting to make Sequin device available for use. For details of the device, refer to the separate manual "Sequin device IV".
Page 219: Seed Beads Device
To make optional device available for use Chapter 8 To press F3 key 6 Sequin device To select type of sequin Proceed to the following operation continuously. Proceed to "2-1. Sequin device IV" (p.213). 1-2. Seed Beads Device This is the setting to make Seed beads device available for use. For details of the device, refer to the separate manual "Seed Beads Device".
Page 220 To make optional device available for use Chapter 8 Moving up of device at frame stepping YES: To perform NO: Not to perform CAUTION Selecting "NO" will increase manufacturing efficiency. However, the device could interfere with the frame resulting in its breakage depending on design or frame type to use. 1-2-2.
Page 221: Network
To make optional device available for use Chapter 8 1-3. Network This is the setting to make the network available for use by LAN connection. 1-3-1. Explanation on the screen 10 Network NO: Not to connect Normal: Input the design from DG/ML by Pulse or Autograph.
Page 222: Lochrose Embroidery Device
To make optional device available for use Chapter 8 1-4. Lochrose embroidery device This setting makes Lochrose embroidery device available for use. For details of the device, refer to the separate manual "Lochrose embroidery device". 1-4-1. Explanation on the screen 10 Lochrose embroidery device NO/L/R/L+R Before feed...
Page 223: Multi Cording Device 2 (Tmbr-Sc Only)
Proceed to "To make the air compressor available for use (Air Pressure Sensor).(p.217) 1-5. Multi cording device 2 (TMBR-SC only) This is the setting for making Multi cording device 2 available for use. For details of the device, refer to the separate manual "Multi cording device 2"...
Page 224 To make optional device available for use Chapter 8 Multi Cording Device 2 Yes: To set NO: Not to set Height of the cord presser when passing through the cord Setting range: 10 to 22 (mm) Height of the cord presser after the operation of ATH with cording completed Setting range: 10 to 22 (mm) Set the cord presser to a height easy to cut the cord.
Page 225: Multi Cording Device (Tmbr-Sc Only)
To make optional device available for use Chapter 8 1-6. Multi cording device (TMBR-SC only) This is the setting for making Multi cording device available for use. For details of the device, refer to the separate manual "Multi cording device"...
Page 226: To Turn On/Off Led Lamp
To make optional device available for use Chapter 8 1-7. To turn ON/OFF LED lamp 1-7-1. Explanation on the screen 10 LED lamp ON: Lit OFF: Unlit 1-7-2. How to operate The following is an example of turning OFF the LED lamp. To open screen 10 LED lamp To turn OFF...
Page 227: Laser Crosshair Marker
To make optional device available for use Chapter 8 1-8. Laser Crosshair Marker This is the setting to make sure that Laser crosshair marker can be used. 1-8-1. Explanation on the screen 5 Laser Crosshair Marker YES / NO Automatic return YES / NO Laser Crosshair Marker YES: To equip...
Page 228 To make optional device available for use Chapter 8 To press F3 key 5 Laser crosshair marker To equip VN03...
Page 229: To Set Details Of Optional Device
To set details of optional device Chapter 8 To set details of optional device 2-1. Sequin device IV The detail of the device will be set. 2-1-1. Explanation on the screen 2 Sequin Sequin (L) [mm] 2.0 23.0 Sequin (R) [mm] 2.0 23.0 Jump Insertion...
Page 230 To set details of optional device Chapter 8 2-1-2. How to operate This is an example of setting in the following conditions. Feed amount of sequin chips of device at left side: 4.0 Insertion of jump data: To perform Moving up of device at frame stepping: To perform To open screen 2 Sequin To select feed amount of sequin chips of device at left side...
Page 231 To set details of optional device Chapter 8 2-1-3. How to operate CAUTION When performing this operation, do not put your hands etc. near the needle or on the machine table. You could be injured by up/down of the device or moving right and left of the needle bar case.
Page 232: Auto Clamp Frame
To set details of optional device Chapter 8 2-2. Auto Clamp Frame After finishing of the embroidery, move the frame to the position where the frame does not interfere with the needle bar case. This function can be used only when "C-7: Frame type Auto Clamp Frame T" is set. 2-2-1.
Page 233: Functions Concerning Optional Device
Functions concerning optional device Chapter 8 Functions concerning optional device 3-1. To make the air compressor available for use (Air Pressure Sensor) Set this function when the following optional devices are equipped. Auto Clamp Frame Sequin device IV Lochrose embroidery device 3-1-1.
Page 234 Functions concerning optional device Chapter 8...
Page 235: Chapter 9 Troubleshooting
Chapter 9 Troubleshooting 1. What to do when the machine stopped ..........220 2. Trouble examples and Corrective actions ........226 PT10...
Page 236: What To Do When The Machine Stopped
What to do when the machine stopped Chapter 9 What to do when the machine stopped When the machine stops during embroidery, a code No. indicating stop factor will be displayed on the screen (the illustration below is an example). Restoring method differs depending on the code Nos.
Page 237: Abnormal Stop
Perform Power Resume again. 251 Oil of lubricating pump is lacking. Lubricate to the lubrication tank. Turn "OFF/ON" the power. Check or replace the 274 Presser foot error (TMBR-SC) control card. Upper thread breakage is detected. Check thread. TC sensor card error Replace TC sensor card.
Page 238 What to do when the machine stopped Chapter 9 Stop factor How to restore Delete unnecessary design(s) registered in the 2BA Memory capacity exceeded memory. Available range to perform Frame Back was Do not perform Frame Back any more. exceeded. No design is registered in the memory at all.
Page 239: Stop Due To Malfunction
What to do when the machine stopped Chapter 9 Stop factor How to restore Check connecting status of cable, setting status of 5B2 Network does not work normally. device such as personal computer. Data set was performed without Frame Origin Memory after installation of software.
Page 240 Turn OFF/ON the power. Check and/or replace the overcurrent head card. Decrease R.P.M. 362 Jump motor overcurrent 376 Presser foot position error(TMBR-SC) Turn "OFF/ON" the power. Check or replace the control card. 378 Presser foot driver error(TMBR-SC) Check the power supply circuit for the color change The needle position signal status during color motor.
Page 241 What to do when the machine stopped Chapter 9 Stop factor How to restore Contact error of the bar switch or start/stop switch, Check the connector and the connecting terminal. breakage of the switch harness, or bad connection Replace the limit switch/switch assembly. of the connector There is abnormality in the program or in the CPU Check the CPU card.
Page 242: Trouble Examples And Corrective Actions
Trouble examples and Corrective actions Chapter 9 Trouble examples and Corrective actions 2-1. Thread often breaks. Cause Troubleshooting Adjust tension. Improper thread tension Upper thread: 120 to 140g, under thread: 20 to 30g Poor thread flow Use good quality thread. Spray silicone. Adjust to face to the front or to the right a bit.
Page 243: Needle Breaks
Trouble examples and Corrective actions Chapter 9 2-2. Needle breaks Cause Troubleshooting Improper thread tension Adjust tension. Density of design data is very high. Correct data. Delete unnecessary underlay stitching. The material is too thick or hard. Use material suitable for embroidery. Bobbin is deformed and it touches the needle.
Page 244 Trouble examples and Corrective actions Chapter 9 QS10...
Page 245 Chapter 10 Maintenance and Inspection 1. Items that must be followed carefully..........220 2. Cleaning..................221 3. Lubrication ..................224 4. Greasing ..................230 5. Inspection, Repair................235 6. Adjustment of Snap-fit middle thread guide........236 UO12...
Page 246: Items That Must Be Followed Carefully
"Repair" and "Replacement of electrical component" must be done only by the service personnel assigned and trained by Tajima or qualified technician. (Consult your distributor.) When starting operation again, attach all the detached covers as they originally were.
Page 247: Cleaning
Main cleaning spots are indicated by an arrow in the figure below. If dirt is highly visible at other spots besides these spots, clean up there accordingly. 2-1. TMBR-SC, TMBP-SC ATH, rotary hook Cleaning cycle: Every day An example when using an air compressor...
Page 248 Cleaning Chapter 10 Head Cleaning cycle: Once/week An example when using a cleaner Brush Drive system Cleaning cycle: Once/week SQ06...
Page 249 Cleaning Chapter 10 Presser foot shaft (TMBR-SC) The motion of the presser foot shaft may be getting poor because of adhering thread and dust. Clean the surrounding of the presser foot shaft using an air compressor or an brush periodically.
Page 250: Lubrication
Lubrication Chapter 10 Lubrication WARNING To perform lubrication, turn OFF the power switch. You may sustain severe injuries by being caught in the machine. Select TF oil (packed with the machine), or the equivalent (viscosity grade = equivalent to VG20) to this one for use.
Page 251: Tmbr-Sc
Lubrication Chapter 10 3-1. TMBR-SC Inside of head Lubrication cycle: Once/week Needle bar lever Connecting rod Presser foot drive shaft Connecting rod Lubricating spot A: Needle bar B: Needle bar C: Needle bar drive shaft D: Wick of stepped pin...
Page 252 Lubrication Chapter 10 [How to lubricate presser foot shaft] a. Remove screws at two spots. Screw b. Lubricate the presser foot shaft (upper, lower). Upper Presser foot shaft (upper row) Lower Presser foot shaft (lower) TP02...
Page 253 Lubrication Chapter 10 Rotary hook There are two lubricating spots (lubrication hole and raceway). When lubricating to the lubrication hole, attach the nozzle (accessory) to the tip of the oiler. Cut the tip of the nozzle according to necessary length. Lubrication cycle: Once/5 to 6 hours Lubrication hole Raceway...
Page 254: Tmbp-Sc
Lubrication Chapter 10 3-2. TMBP-SC Inside of head Lubrication cycle: Once/week Lubricating spot Needle bar drive shaft (Either one spot) Needle bar (spot indicated by red mark) Lubrication hole of connecting part Needle bar (all needles) Lubrication hole of needle bar lever Wick of stepped pin VN03...
Page 255 Lubrication Chapter 10 Rotary hook There are two lubricating spots (lubrication hole and raceway). When lubricating to the lubrication hole, attach the nozzle (accessory) to the tip of the oiler. Cut the tip of the nozzle according to necessary length. Lubrication cycle: Once/5 to 6 hours Lubrication hole Raceway...
Page 256: Greasing
CAUTION Use a grease specified(described below) by TAJIMA or equivalent to keep the lubricity inside of the head normally. Use of the grease except these could cause trouble due to deterioration of the lubricity. Regarding how to obtain it, consult the distributor.
Page 257: Tmbr-Sc
Greasing Chapter 10 4-1. TMBR-SC Inside of head Greasing cycle: Once/3 months Greasing spot Grease to use A: Take-up lever shaft holder Bearing case lid Hole Inject grease from the hole of the bearing NIG LUBE PG: 300ML case lid by using the syringe.
Page 258 Greasing Chapter 10 Cylinder bed Greasing cycle: Once/3 months Grease to use Gear KING STAR EP NO.2: 400G SQ06...
Page 259: Tmbp-Sc
Greasing Chapter 10 4-2. TMBP-SC Inside of head Greasing cycle: Once/3 months Greasing spot Grease to use A: Take-up lever shaft holder Bearing case lid Hole Inject grease from the hole of the bearing NIG LUBE PG: 300ML case lid by using the syringe. B: Take-up lever drive lever roller C: Presser foot cam D: Take-up lever cam...
Page 260 Greasing Chapter 10 Cylinder bed Greasing cycle: Once/3 months Grease to use Gear KING STAR EP NO.2: 400G SQ06...
Page 261: Inspection, Repair
If the machine needs the repair, the repair must be done only by the service personnel assigned and trained by Tajima or qualified technician. (Consult your distributor.) Do not change the specification nor modify the parts of the machine without due consultation with Tajima. Such modification may have the risk against the operational safety.
Page 262: Adjustment Of Snap-Fit Middle Thread Guide
Adjustment of Snap-fit middle thread guide Chapter 10 Adjustment of Snap-fit middle thread guide To adjust the stroke amount of the thread take-up spring inside the snap-fit middle thread guide, follow the procedure below. Snap-fit middle thread guide Thread take-up spring [How to adjust] Push the pawl with some thin-tipped stick (Fig.
Page 263 Adjustment of Snap-fit middle thread guide Chapter 10 Detach the snap-fit middle thread guide. Snap-fit middle thread guide To adjust stroke of the thread take-up spring, put some coin, etc. in the groove of the spring shaft and turn the spring shaft. Minimum stroke Standard stroke Maximum stroke...
Page 264 Adjustment of Snap-fit middle thread guide Chapter 10 Put the pawl in the slit (Photo A), push up the locking pawl with your thumb and put it in the hole (Photo B). Slit Pawl Enlarged Photo A Photo B Hole Locking pawl Push the snap-fit middle thread guide securely to fit until it clicks into place.
Page 265 Chapter 11 Appendix 1. Machine specifications..............250 2. Function Code ................251 3. FS Mode Lock.................253 4. How to attach LED Lamp (Option)..........257 5. Electrical system diagram...............258 6. Terminology ..................260 TP09...
Page 266: Machine Specifications
Machine specifications Chapter 11 Machine specifications 1-1. Electrical specifications TMBR-SC TMBP-SC Rated current 1.3 A (120 V) 1.6 A (120 V) Maximum power 160 W 190 W Apparent power 180 VA 210 VA Allowable voltage Within ±10% of the rated voltage...
Page 267: Function Code
Function Code Chapter 11 Function Code 2-1. Function codes that can be edited by this machine In case of saving designs to the USB memory Function Code Function Name and selecting "T", data will be converted to the following function codes. Stitch Stitch Stitch...
Page 268: Function Codes That Cannot Be Edited By This Machine (Display Only)
Function Code Chapter 11 2-2. Function codes that cannot be edited by this machine (display only) In case of saving designs to the USB memory Function Code Function Name and selecting "T", data will be converted to the following function codes. Color_J Color Change Jump Stop...
Page 269: Fs Mode Lock
FS Mode Lock Chapter 11 FS Mode Lock Operation of this function will improve finish of sewing even in case of using badly passing thread (the tinsel, the thick thread) or loosely twisted thread. (Conventional ratio) This function is specially effective for the embroidery using loosely twisted thread that was improper for the embroidery machine.
Page 270: Sewing Comparison
FS Mode Lock Chapter 11 3-1. Sewing comparison Sewing comparison by the difference between standard mode and FS Mode Lock THREAD TYPE :RAYON 300d/1 Standard mode FS Mode Lock TP02...
Page 271 FS Mode Lock Chapter 11 Sewing comparison by the difference of threads Sewing samples (A, B, C) as below are embroidered by FS Mode Lock. It is possible to embroider like samples A, B even if loosely twisted thread is used. If the sample A and B (specially A) are embroidered by standard mode, problems such as fluffing and looping could occur.
Page 272: To Improve Embroidery Results Further
FS Mode Lock Chapter 11 3-2. To improve embroidery results further We prepares the following optional parts to improve the embroidery finish further. Select the optional parts according to the embroidery condition such as the thread and the fabric, etc. The parts below (1) to (2) are not the set parts.
Page 273: How To Attach Led Lamp (Option)
How to attach LED Lamp (Option) Chapter 11 How to attach LED Lamp (Option) When attaching the LED Lamp (Option) to the machine, follow the procedure below. Attach the LED lamp to the bottom of the electrical component base by using screws (hexagon socket head cap screw: M4*10, spring washer, plain washer).
Page 274: Electrical System Diagram
Electrical system diagram The harness number in the figure accords with the table number on the next page. XL03...
Page 275 Part No. Name HARNESS :COLOR CHANGE H0E102000001 POTENTIOMETER HARNESS :AC INLET-NOISE FILTER H0E100100000 HARNESS :UPPER THREAD LOCK :ETL H0E102200001 SOLENOID HARNESS :NOISE FILTER H0E104001000 H0E102300001 HARNESS :PICKER SOLENOID EMERGENCY STOP :ETL HARNESS :AC INLET GROUNDING H0E102400000 HARNESS :NEEDLE BASE LED LAMP H0E100200000 :ETL H0E102500001...
Page 276: Terminology
X-axis driver, Y-axis driver, main shaft driver etc. are included. <B> Stitch data of Tajima ternary format. Data saving Backlash format is T. A play (gap) generated by shock at drive system and/or around the frame when a stitch returns <E>...
Page 277 Terminology Frame coordinates <J> Frame position in embroidery space. It is indicated Jump such as "X: -153.2, Y: +120.4". To make only the frame move in the state that Frame Forward needle bar does not move down during operation. To move the embroidery frame only to the It is possible to make a longer stitch exceeding advancing direction of stitches with the needle the maximum stitch length.
Page 278 Driving shaft to change needle height (TCMX etc. series). Zigzag cord needle Stitch data of Tajima binary format. Data saving Needle that embroiders with the cord by zigzag format is T2. It can support much more function cording device. It indicates the first needle or the codes compared with DST.
Page 279 Terminology...
Page 280 1st Edition December, 2015 12th Edition September, 2020...

This manual is also suitable for:

Tmbp-sc
