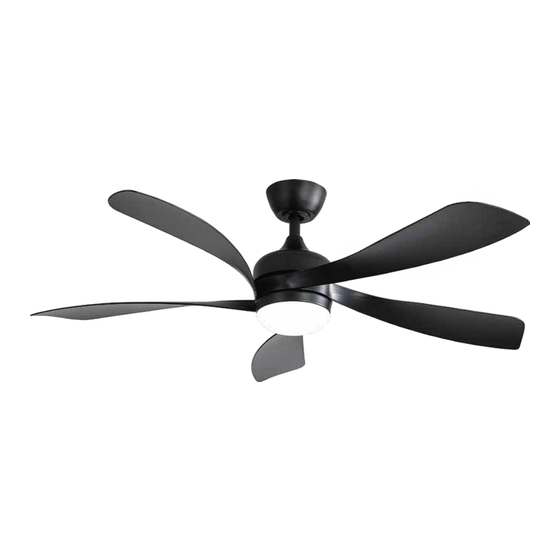

Summary of Contents for KBS 52K096
- Page 2 Safety Information Warranty 5. Do not place objects in the path of the blades. 9. All set screws must be checked and re-tightened where neccessary before installation.
- Page 6 1.Place one blade on the motor and 2.Place the reinforcement gasket align the screw holes on the blade 4.Place the other blades one by one and 3.Tighten the blade screws tighten the screws 5.Loosen and remove the 3 silver lamp panel screws pre-locked on the 6.Put on the lamp panel and feed the wire motor(They will be needed later)
- Page 7 8.Loosen and remove the 3 brass light kit screws pre-locked on the lamp 7.Tighten the 3 silver lamp panel screws panel(They will be needed later) 10.Align the screw holes and tighten 9.Connect the light source with the wires the 3 brass light kit screws from the motor 12.Loosen the 2 brass screws pre-locked on the top of the motor...
- Page 8 15.Select one downrod and pass all 16.Insert the bolt motor wires/light cables through it 3 holes 2 holes 18.Tighten the 2 screws to prevent fan 17.Fix the bolt with the lock pin shaking during operation 19.Put the decorative cover through 20.Put the canopy cover through the downrod the downrod...
- Page 9 24.Fix the green ground wire with screw. Align the screw hole and tighten the screw 23.Insert the bolt 25.Insert another screw and tighten 26.Connect the wire from the ceiling fan to the screw the receiver(Blue and White wires) 28.Install the ceiling bracket with four self 27.Connect the wire from the ceiling fan tapping screws to the receiver(Red,White and Black wires)
- Page 10 31.Put the receiver into the mounting 32.Lift the cannopy into place so that the bracket screw holes are aligned 33.Wrap keyhole slots around the screws, 34.Lift the canopy cover to the canopy twist clockwise and tighten 2 screws 35.Install the lampshade and rotate it to lock...
- Page 12 Turn off the light and fan at the same time Light on/off Light color temperature switch (Press twice with an interval of 2 seconds to switch a color temperature after turning on the light.) 6 Wind Speeds Fan off 3 Kinds of Timing Turning off the light and the fan when the time is over...
- Page 13 1.Turn on the main switch. 2.Pressing and holding this key for 5 seconds. 3.The pairing is successful when the LED light flashes...
