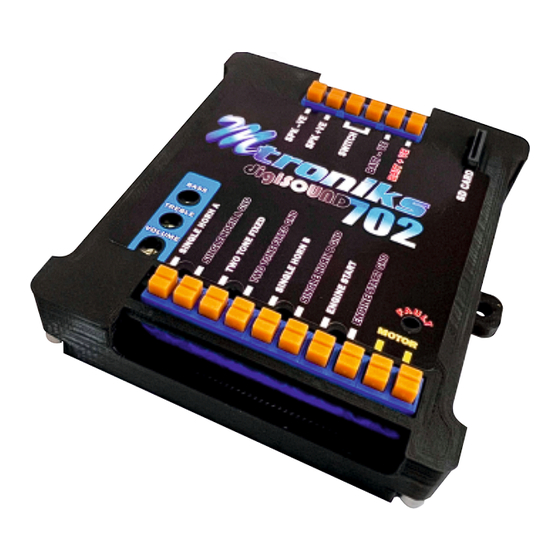

Mtroniks digiSOUND702 Manual

3rd generation sound module with tone control 3rd generation sound module with tone control
Thank you for choosing Mtroniks. The digiSOUND702 is our third generation of sound
system. It uses a powerful digital signal processor and high output digital hi-fi class-D
25W amplifier to realise a small and highly efficient solution for larger models.
The sounds reproduced by the module are sampled from actual locomotives, they are
not synthesized sounds. This is what allows it to produce such realistic audio. The
digiSOUND702 benefits from bass and treble controls employing boost and cut of
12dB; this allows speakers of different types and sizes to achieve the best sound
Installation
Push Button Connector
Bass Control
Treble Control
Volume Control
Push Button Connector
Connect the yellow cables to your motor terminals either way round.
Connect the +VE and -VE battery cables to a separate 12.0V battery with a capacity of 7-12Ah.
WE DO NOT RECOMMEND taking a tap from the main traction battery.
Referring to the above picture, the other connections allow triggering of the various sounds
including the horn or whistle. Linking the wire pairs activates the sounds.
A mute function can be achieved by momentarily opening and closing the engine start connection.
This lowers the volume and is useful when entering stations.
Momentarily opening and closing the connection again returns the system to the full pre-set
volume.
All these connections must be made by ISOLATED switches or relay contacts, NOT by
connections directly on a speed controller as this can damage the sound system.
If you have an Mtroniks speed control system these connections can be made via the Mtroniks
solid state relay board so that the button and switches on the speed control handset fully control
the operation of the sound module.
Designed and manufactured in the UK by Mtroniks Ltd. Designed and manufactured in the UK by Mtroniks Ltd.
Mtroniks Ltd. 41A Ilkley Road - Otley - West Yorkshire - LS21 3LP - UK Mtroniks Ltd. 41A Ilkley Road - Otley - West Yorkshire - LS21 3LP - UK
Introduction
possible for your model.
digiSOUND digiSOUND
702
BASS BASS
TREBLE TREBLE
VOLUME VOLUME
Sound triggers
digiSOUND digiSOUND
SD Card Slot
Fault light
- Lights in event
MOTOR MOTOR
of a short circuit
To traction motor
Tel: 0044(0)1943 461482 web: www.mtroniks.net Tel: 0044(0)1943 461482 web: www.mtroniks.net
702 702
Cable connection to the
unit
The installed push button
connector is simple to use,
requiring no tools or soldering.
Press the orange button, feed
the cable into the slot found on
the edge of the connector, then
release the button to secure
the cable in place.
Notes on speaker
performance
The speaker included with your
module is not supplied with an
enclosure, however, you
should always install your
speaker into a suitable
enclosure to ensure the best
power handling and frequency
response.
The minimum speaker
impedance is 4ohms. (2x8ohm
speakers in parallel)
