Button definition
3 buttons: power button, light/up button and push-assist/down button
Switching the Lighting On/Off.
In this manual we use "ON/OFF", "up" and "down" to represent these 3 buttons.
To switch on bike light, hold the up button for 2s. The lighting icon comes out and display
backlight brightness is automatically reduced.
Likewise, hold the up button for 2s again, the bike light switches off. The lighting icon is
gone and display resumes backlight brightness.
Assist Level selection
Press up or down button to switch between the assist levels and change the motor
output power, The default assist level ranges from level "0"to level "5", The output
power is zero on Level "0". Level "1" is the minimum power. Level "5" is the maximum
power.

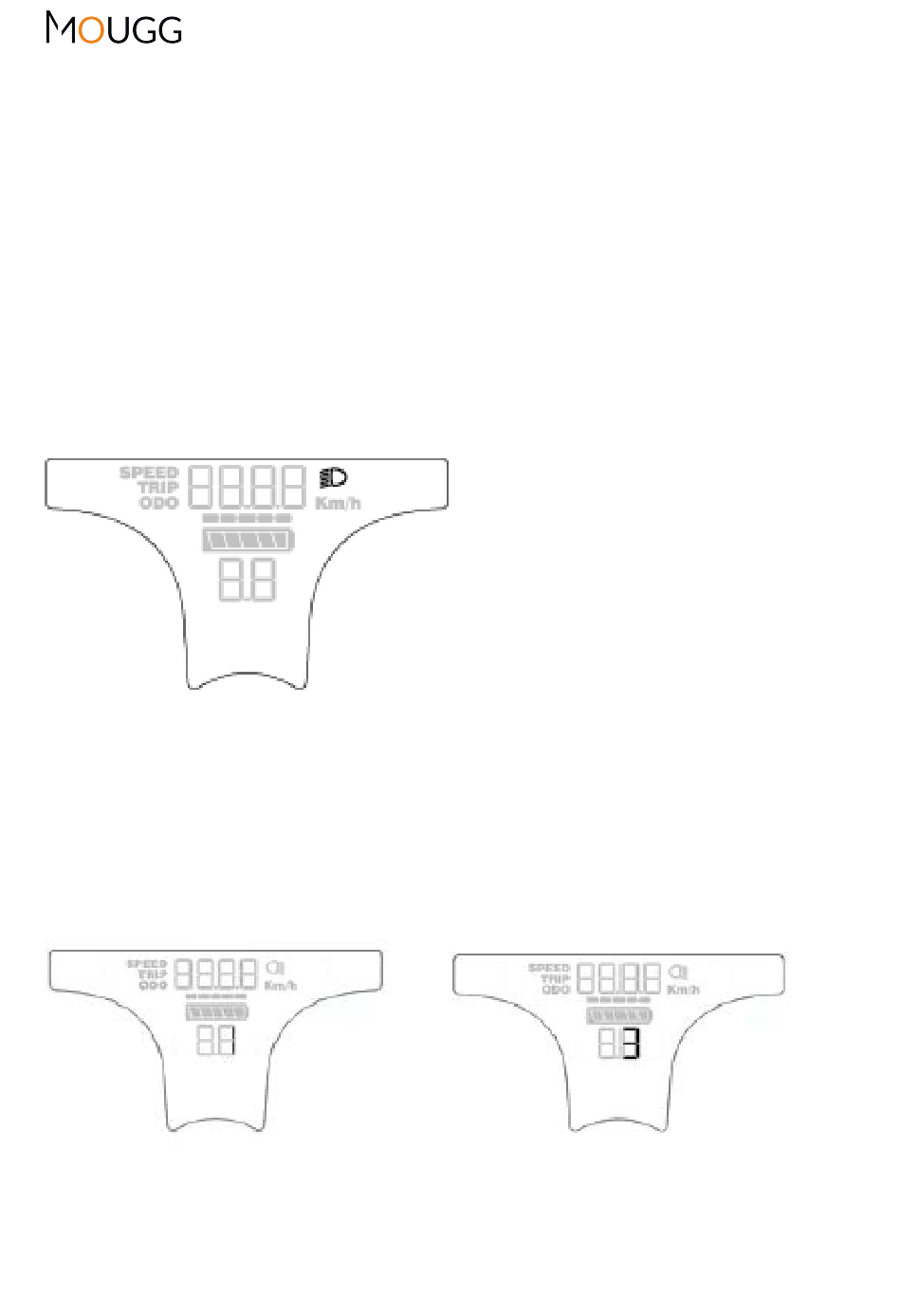

Assist ‚1' Lever Interface
Assist ‚3' Lever Interface
MOUGG integriertes Display EN V3.0.1 120824
Advertisement
Summary of Contents for MOUGG Star
- Page 1 The default assist level ranges from level “0”to level “5”, The output power is zero on Level “0”. Level “1” is the minimum power. Level “5” is the maximum power. Assist ‚1‘ Lever Interface Assist ‚3‘ Lever Interface MOUGG integriertes Display EN V3.0.1 120824...
- Page 2 Trip Distance, Trip time and TO GO. ODO (km) Current Speed (km/h) Trip (km) Press the “ON/OFF” button will switch between: Current Speed (km/h) → ODO(km) →Trip Distance(km) → Trip time (h:m) → TO GO (h) MOUGG integriertes Display EN V3.0.1 120824...
- Page 3 The images contained in these instructions have symbolic value only. The illustration and product may differ in detail. The instructions must be implemented accordingly. Visual deviations are not a reason for non-compliance with the warranty/guarantee guidelines and are not considered a reason for a complaint MOUGG integriertes Display EN V3.0.1 120824...
