CHP ATX Series Instruction Sheet

Instruction Sheet
(1) General precautions
Thank you for purchasing this product. This instruction sheet provides information about the CHP ATX series
transducer screwdrivers. Before using this product, read the instruction sheet to ensure the correct use of the
product. Keep this sheet handy for quick reference whenever needed. Before finishing reading this sheet, follow
these instructions:
 Make sure the installation location is free of corrosive and inflammable gas or vapor.
 Do not disassemble the transducer screwdriver or change the wiring when the power is on.
For more information about the ATX series servo screwdrivers, refer to the Transducer Screwdriver System user
manual. To download the user manual, visit CHP website at www.CHPTools.com. If you have any questions
during operation, contact our local distributors or CHP Customer Service. The instruction sheet may be revised
without prior notice. Contact our distributors or download the latest version at CHP website.
(2) Safety precautions
Pay special attention to the following safety precautions at all times during inspection, installation, wiring,
operation, maintenance, and examination of the screwdriver.
The product is marked with following safety symbols:
Danger. It might have potential danger to cause severe or fatal injures for
personnel if the instructions are not followed.
Warning. It might cause moderate injury to personnel, or lead to severe
damage, malfunction of product if the instructions are not followed.
WAR NING
Absolutely prohibited activities. It might cause serious damage or malfunction
of product if the instructions are not followed.
ST OP
Installation
Do not expose the product to an environment containing corrosive and inflammable gas

or vapor, or other foreign matter to reduce the risk of electric shock or fire.
The controller for the transducer screwdrivers must be correctly grounded.

Before connecting or removing the DC cable, ensure to turn off controller power.

Operation
This product can be operated only by qualified personnel receiving the training for

industrial assembly.
This product is designed for intermittent use. Generally, operate the tool for 1 second and

then stop it for 4 seconds. The allowable duty cycle is determined by the torque value
WAR NING
and operating time. The built-in protection mechanism of this product ensures the
allowable duty cycle is not exceeded.
Do not touch any rotating parts when the tool is operating, since it might cause personnel

injury.
ST OP
Maintenance and inspection
Do not use the cleaning fluid that contains solvents to clean the tool parts and tool cable.

Only authorized personnel can repair and restart the system.

WAR NING
High Performance
Precision Control
General Purpose Transducer Screwdriver
(3) Ambient conditions of installation
Ambient conditions for installing and operating the transducer screwdriver system: the
environment should be free of devices that generate excessive heat; no water, vapor, dust, and
oily dust; no corrosive and inflammable gas or liquids; no airborne dust or metal particles; and
the environment should be solid without vibration and interference of electromagnetic noise.
Ambient conditions for operating the transducer screwdriver: the ambient temperature for
WAR NING
operation is between 0°C (32°F) and 40°C (104°F). The environment should be free of devices
that generate excessive heat; no water, vapor, dust, and oily dust; no corrosive and
inflammable gas or liquids; no airborne dust or metal particles.

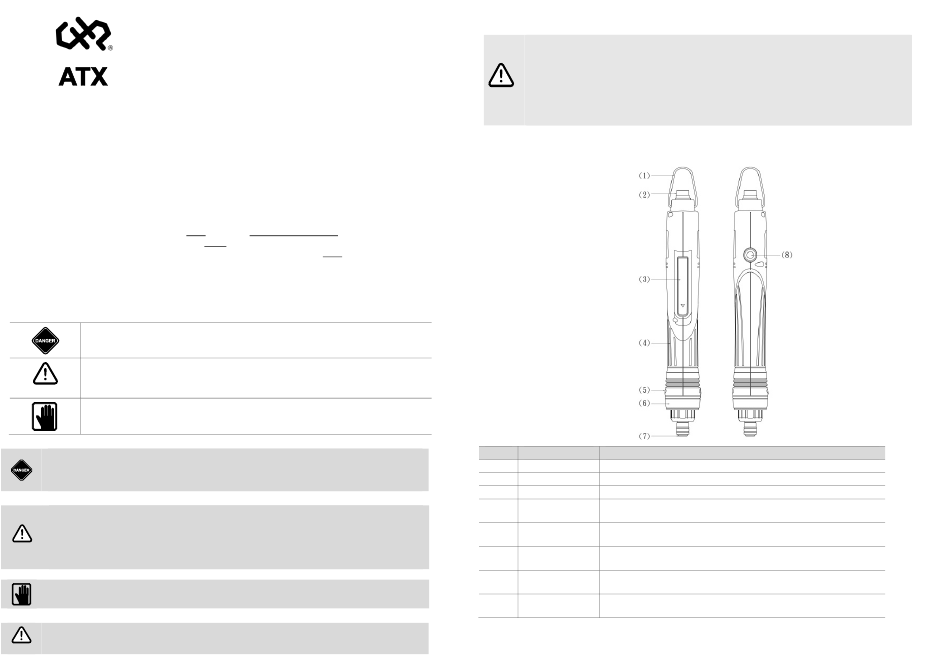

(4) How to use and install the transducer screwdriver
No. Item
(1) Hanger For securing the transducer screwdriver for easier operation.
(2) Connector Connects the transducer screwdriver to its controller.
(3) Lever to start Press this lever to start the transducer screwdriver.
When holding the transducer screwdriver during operation, this
(4) Non-slip grip
non-slip grip prevents the screwdriver from slipping off.
LED status
(5) Instantly shows the transducer screwdriver status:
indicator
LED illuminating The light is white and steady on when the power is supplied. You
(6)
light can set and adjust its functions and brightness via the controller.
Screwdriver
(7) For changing the bits. Use 1/4" (6.35 mm) hex bits.
shaft
Forward / Change the direction of rotation (forward or reverse) for the
(8)
reverse switch transducer screwdriver to tighten or loosen the screws.
Description
