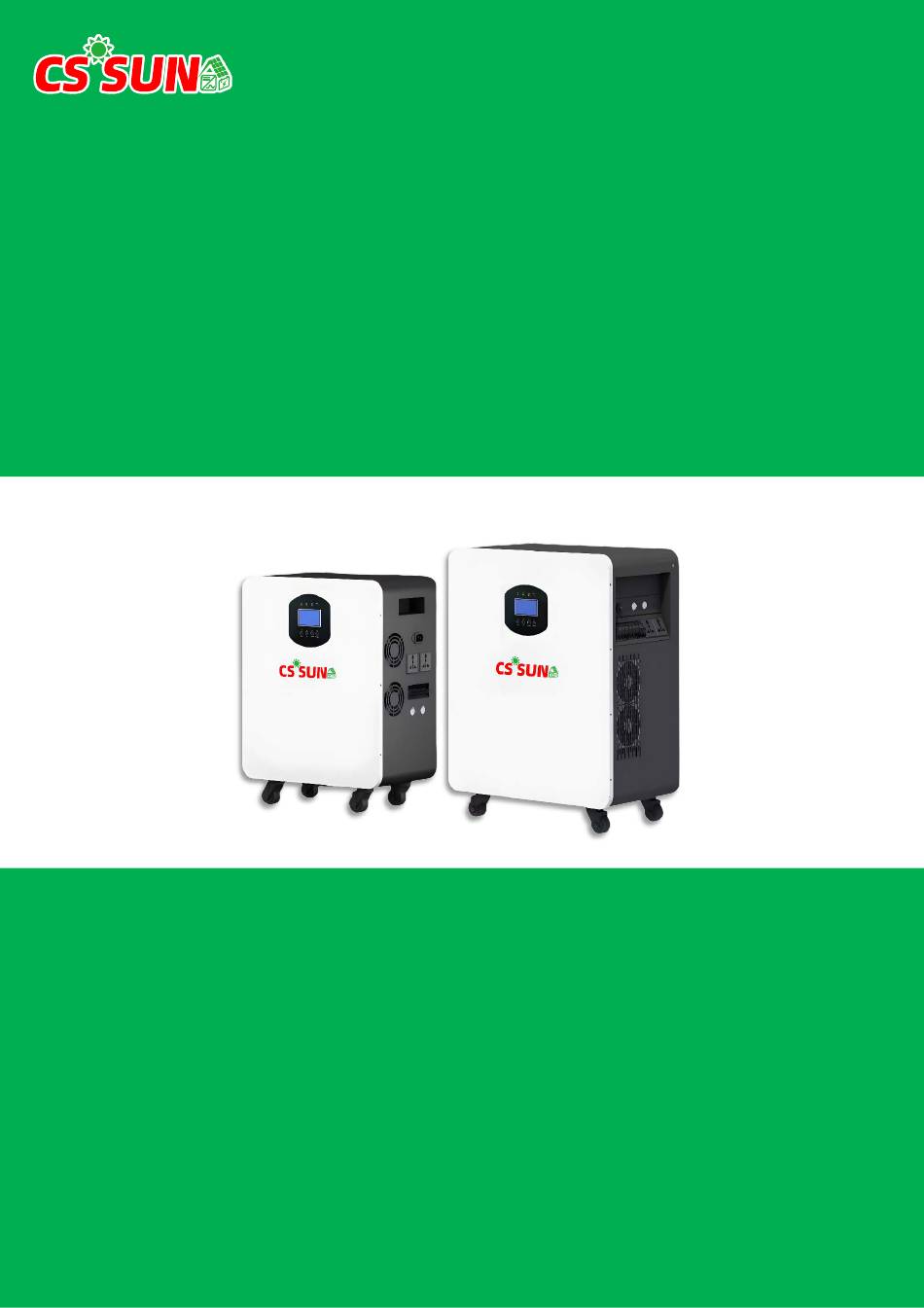

CSSUN LPWONEW 1.28KW+1KW User Manual

All-in-one ess off-grid energy storage system lifepo4 battery + smart inverter + wheels

Advertisement

All-In-One ESS
Off-grid
Energy Storage System
LiFePO4 Battery + Smart Inverter + Wheels
LPWONEW 1.28KW+1KW
LPWONEW 2.25KW+3KW
LPWONEW 5.12KW+5KW
LPWONEW 10.24KW+5KW
User
Manual
CSSUN Energy Co., LTD
2024.8.15V1.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPWONEW 1.28KW+1KW and is the answer not in the manual?

Questions and answers

Summary of Contents for CSSUN LPWONEW 1.28KW+1KW

  • Page 1 All-In-One ESS Off-grid Energy Storage System LiFePO4 Battery + Smart Inverter + Wheels LPWONEW 1.28KW+1KW LPWONEW 2.25KW+3KW LPWONEW 5.12KW+5KW LPWONEW 10.24KW+5KW User Manual CSSUN Energy Co., LTD 2024.8.15V1.02...
  • Page 2 All-In-One ESS Energy Storage System 1.Information 1.1 System Introduction LPWONW ESS with wheels (including Pack 1.28 up 10.24KWh and 1KW up 5KW Inverter ) can be used in DC coupled systems (mainly newly installed), Ac coupling system (mainly transformation) and off- grid system (mainly transformation, photovoltaic capacity increase), the scheme is as follows: Configuration Solution...
  • Page 3 All-In-One ESS Energy Storage System 1.3 Safety Instructions 1.3.1 This sign indicates a hazardous situation which, if not avoided, could result in death or serious injury. 1.3.2 The All-In-One must not be touched or put into service until 5 minutes after it has been switched off or disconnected to prevent an electric shock or injury.
  • Page 4 All-In-One ESS Energy Storage System This product is a Lithium Iron Phosphate Battery with certified compliance under the UN Recommendations on Transport of Dangerous Goods, Manual of Tests and Criteria, Part III, subsection 38.3. For the battery cell, chemical materials are stored in a hermetically sealed metal case, designed to withstand temperatures and pressures encountered during normal use.
  • Page 5 All-In-One ESS Energy Storage System ◆If moisture has penetrated the system (e.g. due to a damaged enclosure), do not install or operate ◆Do not move the system when it is already connected with battery modules.Secure the the system. ◆The transportation of product must be made by the manufacturer or an instructed personal. These system to prevent tipping with restraining straps in your vehicle.
  • Page 6 All-In-One ESS Energy Storage System 1.7 Specifications Item Model 1.28KWh+1KW 2.56KWh+3KW 5.12KWh+5KW 10.24KWh+5KW Voltage 12.8V 25.6V 51.2V 51.2V Battery capacity 100Ah 100Ah 100Ah 200Ah Charge voltage 14.6V 29.2V 58.4V 58.4V Discharge cut- off voltage Battery Module Charge current Max charge current 100A 100A 100A...
  • Page 7 All-In-One ESS Energy Storage System Fail to comply with the local safety regulations (VDE for DE, SAA for AU); Transport damage (including painting scratch caused by rubbing inside packaging during shipping). A claim should be made directly to shipping or insurance company in this case as soon as the container/packaging is unloaded and such damage is identified;...
  • Page 8: Product Introduction

    All-In-One ESS Energy Storage System 2.ProductIntroduction NAME Silk-SCREEN REMARK AC OUT AC OUT AC OUTPUT AC IN AC IN AC input AC OUT AC OUT AC OUTPUT AC switch AC switch DC switch...
  • Page 9: System Operation

    All-In-One ESS Energy Storage System 2.1 Installation Household off-grid application NOTE: First turn on the battery switch, then turn on the inverter switch. NOTE: Recommended AC circuit breaker rating is 22A. STATEMENT: The method of anti-islanding protection is Method(c) 3.System Operation 3.1 Switch On When turning on the system, it is very important to follow the steps below to prevent damage to the system .
  • Page 10 All-In-One ESS Energy Storage System Press the DC switch button, then press the AC switch button, and the display will light up Step 1: Turn on the external PV switch. If there is a PV external switch ( ) Step 2: Turn on the external grid switch.
  • Page 11 All-In-One ESS Energy Storage System → Ground (yellow) L → LINE (red) N → Neutral (black) Connect the corresponding cable to the port according to the identifier , Make sure the wires are securely connected. WARNING: Be sure that AC power source is disconnected before attempting to hardwire it to the unit. CAUTION: Important Be sure to connect AC wires with correct polarity.
  • Page 12 All-In-One ESS Energy Storage System Please follow below steps to implement PV module connection: Remove insulation sleeve 10 mm for positive and negative conductors. Step 1: Check the input voltage of PV array modules. This system is applied with One strings of PV array.
  • Page 13 All-In-One ESS Energy Storage System 3.7.2 Hazards If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas. If one is exposed to the leaked substance, immediately perform the actions described below: Inhalation: Evacuate the contaminated area, and seek medical attention. Eye contact: Rinse eyes with running water for 5 minutes, and seek medical attention.
  • Page 14: Ems Introduction And Set Up

    All-In-One ESS Energy Storage System 4.EMS Introduction And Set Up 4.1 LCD Display Icons INPUTBATTTEMP. OUTPUTBATTLOAD. ERROR %℃ %℃ 100% LOW BAT. Function Buttons Button Description To exit setting mode To go to previous selection DOWN To go to next selection ENTER To confirm the selection in setting mode or enter setting mode 5.
  • Page 15: Quality Assurance

    All-In-One ESS Energy Storage System 5.1.3 Cable, Terminal and Equipment Inspection ◆Check if the cable connections are loose. (Every six months to one year) ◆Check whether the cables are aged / damaged. ◆Check whether the cable tie of the cable has fallen off. ◆Check if the cable terminal screws are loose and the terminal position has any signs ofoverheating.
  • Page 16 All-In-One ESS Energy Storage System ◆The free warranty period for the whole machine/components has expired. ◆The device is damaged during transport. ◆The device is incorrectly installed, refifitted, or used. ◆The device operates in harsh environment, as described in this manual. ◆The fault or damage is caused by installation, repairs, modifification, or disassembly performed by a ◆The fault or damage is caused by the use of non-standard or non-manufacturer.
