Walker TECH600 User Manual

Tyre pressure monitoring system tool

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Tyre Pressure Monitoring System Tool

Navigation

Keys

On/Off:

Hold down

for a few seconds.

More information:

On some screens more

TPMS information can be

viewed.

PC Connection and

WALKER TECH600

User Guide

Mini-USB:

Charge

Accessory

Port

April 2024 V.2.3

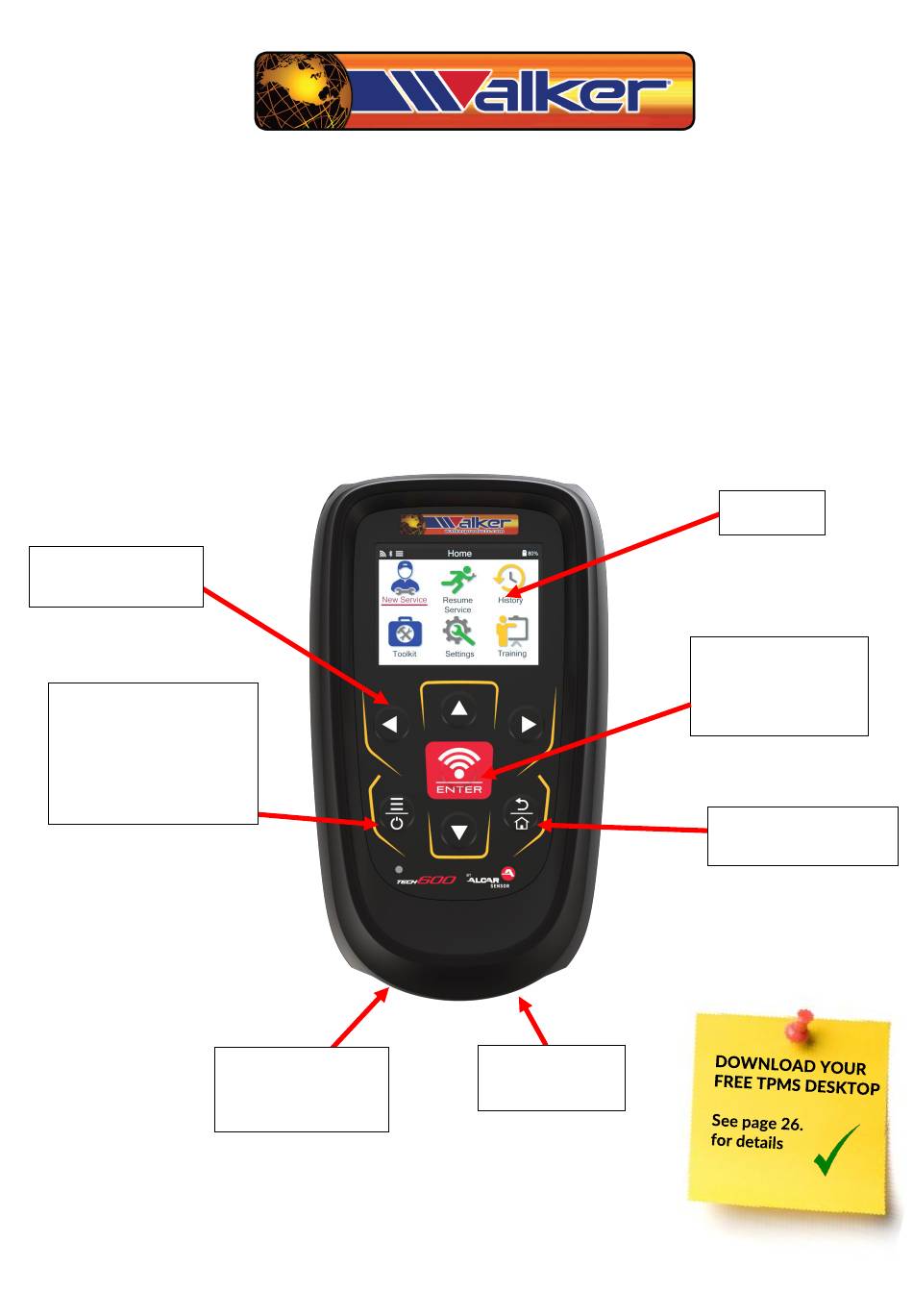

Display

Enter / Test:

commence a TPM

test, only works on

Vehicle Audit

Screen.

Home/Back/Esc:

returns to Home menu

Table of Contents

Need help?

Do you have a question about the TECH600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Walker TECH600

Page 1 WALKER TECH600 Tyre Pressure Monitoring System Tool User Guide Display Navigation Keys Enter / Test: commence a TPM On/Off: test, only works on Hold down Vehicle Audit for a few seconds. Screen. More information: On some screens more TPMS information can be viewed.
Page 2: Foreword
April 2024 FOREWORD Thank you for choosing the TECH600. This manual will help you get your tool up & running and explains how to get the most out of all its great features. PLEASE ENSURE THAT YOUR TOOL IS FULLY CHARGED BEFORE YOU FIRST USE IT AND BEFORE REGISTRATION.
Page 3: Table Of Contents
TECH600 User Guide April 2024 LIST OF CONTENTS FOREWORD ......................2 LIST OF CONTENTS ..................... 3 IMPORTANT NOTICES ..................4 SAFETY PRECAUTIONS ..................5 BEFORE GETTING STARTED ................7 KIT COMPONENTS ....................7 REGISTRATION ..................... 8 CHARGING TOOL ....................11 POWER ON/OFF SEQUENCE .................
Page 4: Important Notices
The right is reserved to make changes at any time without obligation to notify any person or organization of such revisions or changes. Further, Walker Products shall not be liable for errors contained with the furnishing, performance, or use of this material.
Page 5: Safety Precautions
TECH600 User Guide April 2024 SAFETY PRECAUTIONS Read carefully the installation, operating, and maintenance instructions in the Operator’s manual. Do not allow unqualified persons to use this equipment. This will prevent injury to persons and damage to the equipment. The workplace must be dry, sufficiently lit, and well ventilated.
Page 6 Products provides training for clients desirous of acquiring the knowledge required for the correct use of its products. Only personnel authorized by Walker Products are permitted to make any repairs that may be necessary. This tool is guaranteed against any manufacturing fault for 12 months as of the date of invoice (parts and labour) only if the product has been correctly used.
Page 7: Before Getting Started
BEFORE GETTING STARTED CHARGING Only use the power supply or USB cable that is included in the TECH600 tool kit to charge this tool. The use of unapproved power supplies may damage it and will void the tool warranty. REGISTRATION The TECH600 can be registered through the TPMS Desktop software, found at https://www.walkerproducts.com/TPMS/...
Page 8: Registration
TECH600 User Guide April 2024 REGISTRATION Automatic registration takes place when the tool is first turned on. Registration enables the notification of software updates and the ability to download updated files to the tool. Once an account has been made with TPMS Desktop, the tool will be registered to that account, and the latest available updates will be downloaded.
Page 9 TECH600 User Guide April 2024 It is important to fill in all fields completely and accurately. This information will help Bartec remain in contact regarding updates and other important TPMS information. Choose a username (without a space) and password. If the details are accepted, this message will show: The following email should arrive within a few minutes: When clicking ‘Confirm account’...
Page 10 Alternatively, the user can navigate to ‘Update.’ Once registered, the user will see the tool listed, along with whether the tool is up to date: Updating the TECH600 and keeping it up to date using the TPMS Desktop is recommended. 10 |...
Page 11: Charging Tool
April 2024 CHARGING TOOL The TECH600 is shipped with a charged battery. It is recommended that the tool is charged 2+ hours before first use. For optimum performance, always keep it sufficiently charged. The TECH600 will notify the user when the battery has low power, and the battery icon will change color from white to red.
Page 12: Home Menu
TECH600 User Guide April 2024 HOME MENU Used to check sensors, relearn sensors to the New Service vehicle, perform OBD diagnostic, program sensors, and receive TPMS information. Resume Service Used to resume your last job. Used to call up all stored works. The user is...
Page 13: More Tpms Information
TECH600 User Guide April 2024 MORE TPMS INFORMATION If you see this icon on the screen press for more TPMS information or TPMS options. SELECT A VEHICLE TRUCKS, TRAILERS AND BUSSES When starting a New Service, the user will be prompted to select the vehicle that requires TPMS maintenance.
Page 14 TECH600 User Guide April 2024 MOTORCYCLES 14 | P a g e...
Page 15: New Service
Copy using stored data. Enter ID manually. Multiprogramming Identify Universal sensor Vehicle Data Allows the user to review the service data captured with the TECH600. Relearn All relearn procedures are available. Technical Information Detailed sensor & service kit information. 15 |...
Page 16: Vehicle Inspection
TECH600 User Guide April 2024 VEHICLE INSPECTION TEST SENSORS Use this function to test the fitted sensors before continuing with further steps. To check the status of the TPMS sensors on the vehicle, select Test Sensors from the Vehicle Inspection Screen. A screen similar to the following should be displayed: Use the arrow keys to select the sensor which needs to be read.
Page 17 TECH600 User Guide April 2024 POSSIBLE READING SCENARIOS Note that if a faulty Sensor has been replaced, some method of relearn procedure will need to be followed, as explained later in this manual. Successful Read Sensor The sensor was successfully activated and decoded. Displays pressure (in Bar or PSI) at wheel location.
Page 18 TECH600 User Guide April 2024 TREAD INSPECTION To perform a tread inspection, select Vehicle Inspection followed by Tread Inspection. The selected wheel and tread position will be highlighted on the display. Press the enter key to enter the tread manually, the valid input range is 0-32/32 nds.
Page 19 TECH600 User Guide April 2024 After entering the measurement for each wheel, you will be prompted to select one of the following statuses: Damaged Tyre Damaged Wheel Worn Tyre Aged Tyre Questionable condition At the end of the service, a dialog box will be displayed which informs the user of the number of issues recorded.
Page 20: Programmable Sensor
TECH600 User Guide April 2024 PROGRAMMABLE SENSOR The “Program Sensors” option on the service menu enables the function of programming aftermarket sensors for the replacement of OE sensors. The user can choose from a selection of sensors that match the preselected MMY.
Page 21: Relearn
TECH600 User Guide April 2024 The current coverage list is available at www.bartecautoid.com. The user has the option to either create or copy the ID. Notice: Sensors need to be read before copying. Sensors that can be programmed by the tool may have slightly different procedures and times.
Page 22: Vehicle Data
It can take up to 20 minutes to relearn the sensor IDs. OBD RELEARNS OBD connection allows the TECH600 to directly program the vehicle electronics module with sensor IDs. Note that not all vehicles support vehicle communications modes.
Page 23: Technical Information
TECH600 User Guide April 2024 TECHNICAL INFORMATION Gives detailed information about replacement parts, service kits, sensors, vehicles, and service tips. Relearn Procedure is only for Motorcycles. Sensors do not have to be read to access the following information. View Relearn Procedure This option provides steps on how to perform the TPMS Relearn for the preselected MMY.
Page 24: Settings
TECH600 User Guide April 2024 SETTINGS Connections Connect to a Bluetooth OBDII Module, TPMS Desktop, and Wi-Fi. General Check and update the time and date on the tool, and change the language displayed. Sound and Vibration Enable or disable tool sounds or vibrations.
Page 25 Step 3: Once the TECH600 has discovered the BT OBDII module, it will display a list of all possible connections. From this list, select the item which begins with ‘OBD’ and ends with the BT OBDII module’s serial number, i.e.: ‘OBD 5100010001’. The BT OBDII module’s serial number can be confirmed by checking the label affixed to the module.
Page 26: Tpms Desktop
Configure settings for Bluetooth and Wi-Fi configuration. UPDATE Register and update the Walker Products Tool with the latest software. This feature helps to keep control of all tools in use and updates them with the most current software available. Simply connect the tool to a PC with TPMS Desktop installed and click Update. This is the preferred method for updating the TECH600.
Page 27: Bluetooth Settings
The tool is compatible with PCs running Windows operating systems. Step 1: Power on the TECH600 and connect to a PC. The Tool will display a USB icon, to indicate that it is ready to receive update files. Step 2: Navigate to TPMS Desktop and log in.
Page 28: Updating Your Tool Via Wi-Fi
UPDATING YOUR TOOL VIA WI-FI Once the tool is set up to connect to a Wi-Fi network, it will be ready for updating via Wi-Fi. In the Settings menu, go to ‘Update Tool’ and press enter. The TECH600 will then check for updates.
Page 29: Appendix
APPENDIX APPENDIX A: Vehicle Identification Number (VIN) When using the TECH600 tool, it is important for the user to verify the Model Year to help insure looking for that proper sensor and using the proper vehicle COMs when necessary. By using the vehicle’s VIN and locating the 10 digit from the left the user can in most cases accurately determine the vehicle’s Model Year.
Page 30 “Park”, as otherwise, it will not work on the vehicle. The TECH600 tool has the ability to perform the necessary mode change. If a sensor is shown as “Ship”, “Test” or “Off” and the relearn toolkit provides the option “Set Sensor to Park Mode”, please use this option to change the sensor mode into the correct one: •...
Page 31: Technical Specification
TECH600 User Guide April 2024 TECHNICAL SPECIFICATION Power Supply Lithium Polymer rechargeable battery, not user serviceable Display LCD 16-bit colour, graphic, resolution 320x240 Keyboard 7 keys, dust, water, and grease-resistant Input/output Micro-USB style USB used to Connect to PC for firmware update and audit file download.
