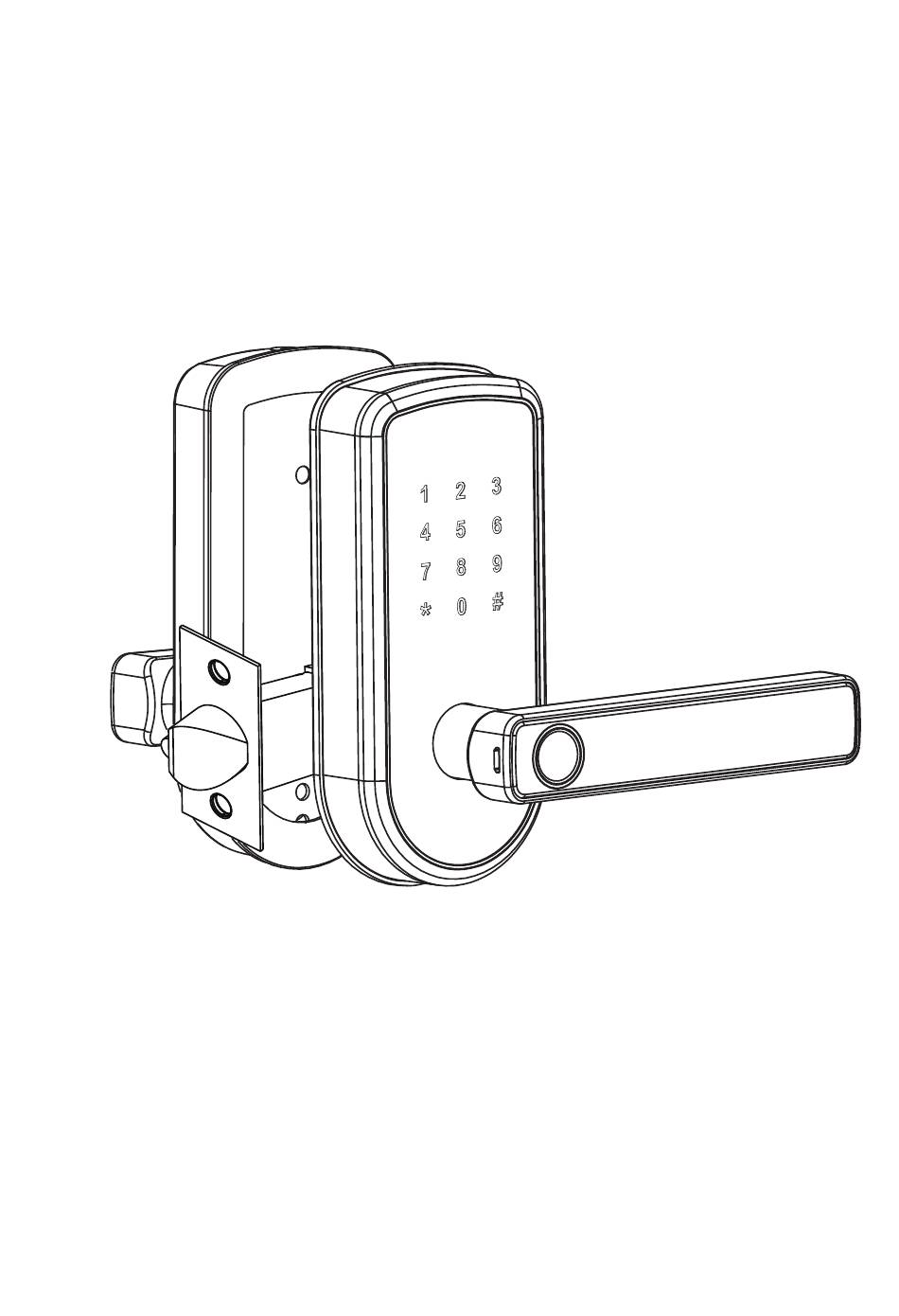

USER MANUAL
USER MANUAL
Note：
1. Before using this lock, please pair the lock with App on your mobile phone.
2. This lock is equipped with mechanical keys for manual unlocking. Remove mechanical
keys from the package and keep them in a safe place and always have access to them.
3. To power on the lock, 4 x AA alkaline batteries(not included) are required. Non-alkaline and
rechargeable batteries ARE NOT RECOMMENDED.
4. This lock is used outdoors and indoors, it is designed to be exposed to direct sunlight or rain. The
waterproof rating: IP65.
5. The operation of lock has a stand-by time limit of 8 seconds; Without any activity, lock's
keyboard will shut after 8 seconds.
6. Keep your fingers clean when using this lock.
Please read this manual before operating your Smart Lock,and keep it for further reference.
Advertisement
Table of Contents
Summary of Contents for AiBOCN S210BL-F
- Page 1 USER MANUAL USER MANUAL Note： 1. Before using this lock, please pair the lock with App on your mobile phone. 2. This lock is equipped with mechanical keys for manual unlocking. Remove mechanical keys from the package and keep them in a safe place and always have access to them. 3.
-
Page 2: Packing List
Packing List 25mm 30mm Installation Diagram A) Outdoor unit * 1 F) M4 x 30mm cross flat head screw * 3 B) Indoor unit * 1 G) M4 x 6mm cross flat head bolt * 2 C) Mounting plate * 1 H) M4 x 25mm cross flat head self-tapping screw * 4 D) Single latch * 1 I) Mechanical key * 2... -
Page 3: Door Preparation
Door Preparation 1. Check door thickness and Door Frame. Door frame≧110mm Door thickness: 38-48mm 2. Check door open direction. left inward right inward left outward right outward Note: Please refer the above picture to adjust the direction of strike plate J and latch D. Door drill hole map 26mm 54mm... -
Page 4: Installation Instructions
Installation Instructions Step 1 According to the map drilling holes on the door Note: 1) Check the required backset (60mm or 70mm). 2) Align the template along the vertical center line of the single latch (D) at the desired height,and tape it to the door. - Page 5 Installation Instructions Step 3 Confirm handle’s direction For Right-open door, pls install the direction of handle for outdoor unit and indoor unit as below: Right open Outdoor unit Indoor unit For Left-open door, pls install the direction of handle for outdoor unit and indoor unit as below: Left open Indoor unit...
- Page 6 Step 4 Install outdoor unit (A) on the door. Note: Make sure the side with the text "This Side Up" on the square spindle must be upward. Step 5 Install mounting plate (C). Note: Cable passes over the latch. Install indoor unit (B). Step 6 Note: Remove the batteries box and install 4 x AA Alkaline batteries.
-
Page 7: Product Profile
Step 7 Testing the lock by rotating back handle and using key (I). Notes: Mark and drill holes for strike. Note: When the door is locked, the clutch is in idle position, the front handle will be turned. However, the door will remain locked. Product Profile Specifications Material... - Page 8 Randomizer: Before you enter your passcode, you can push some random numbers to prevent the passcode from being inferred based on the fingerprints on the frequently pushed numbers and from being seen by anyone nearby. Battery Dead Alarm: If the batteries are running low, the door lock informs you through a specific melody or keypad LED.
- Page 9 Note: -If you can not see the “+” sign when pairing the lock, follow the steps below to reset the lock: The reset button is on the backside of back panel under the battery-box. Keep pressing the reset button for about 5 seconds, then voice promt "Please input initialization passcode", please input "0000#".
- Page 10 3.6. Records: View locking and unlocking information to check when and who used it. 3.7. Settings (Lock’s setting) 3.7.1. Basics: Display the Lock Number, MAC/ID, Battery lever, Lock Name (You can change the name of the lock), Lock Group (The administrator can add multiple locks for group- ing,which is suitable for rental housing.
- Page 11 Operation Instructions for Different Functions 1. Unlock 1.1. Via App: Open the App and click the icon on the interface to unlock. (The phone should be within 5 meters from the lock.) 1.2. Via Passcode: Enter the passcode and then press “#” to confirm the unlocking. 1.3.
- Page 12 5. Freeze / Delete / Authorize / Name / Operate Already Sent eKeys by Administrator Open the App - enter the interface of the lock - click eKeys - click the eKey that has been sent - click Name / valitidity / delete the eKey info you need - clicking the menu on the upper right corner to conduct the freeze / authorize operation.
- Page 13 Q: How to unlock when the battery runs out? A： 1. Unlock with mechanical key. 2. Use a 9V battery (easy to buy in the store) and connect it to the emergency power supply port at the bottom of the front panel to temporarily supply power. Q: Smart lock cannot be paired with my App.
-
Page 14: Important Safeguards
Q: Can I still use the smart lock when my phone is lost or turn off? A： 1. Yes. You can still use the traditional physical key or password to lock / unlock the door. 2. Use a new phone to download the App, Sign in your App account with the email or phone number and password.
