WASTE WATER PUMPING SYSTEMS
Flood Pump Kit
Installation and operating guidelines

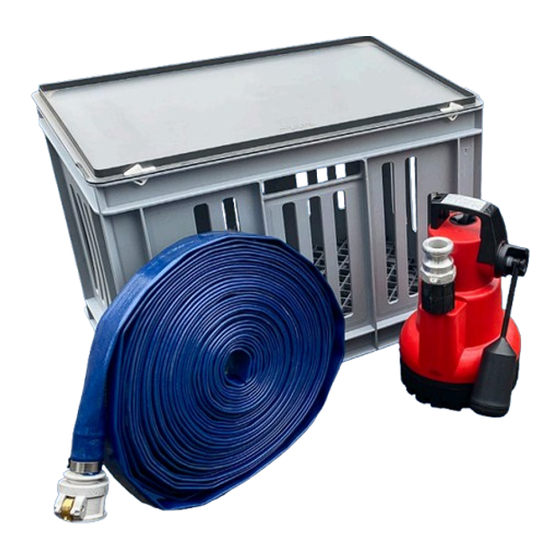

The Flood Pump Kit is designed to remove flood water from your property
with speed and efficiency. The pump can operate within the filter chamber
for extra protection or independently as required.
www.edincare.com
01442 2115441
08/20/DM/3.0
Advertisement
Table of Contents
Summary of Contents for edincare Flood Pump Kit
- Page 1 WASTE WATER PUMPING SYSTEMS Flood Pump Kit Installation and operating guidelines The Flood Pump Kit is designed to remove flood water from your property with speed and efficiency. The pump can operate within the filter chamber for extra protection or independently as required.
-
Page 2: Table Of Contents
WASTE WATER PUMPING SYSTEMS Installation and operating guidelines Flood Pump Kit 1. Contents Contents ..................2 Product summary ................. 3 Operating guidelines ..............4 3.1 Advisory .................. 4 3.2 Setup and operation ............... 4 Technical specification ..............5 Dimensions ................... 5 Parts list .................. -
Page 3: Product Summary
2. Product Summary The Flood Pump Kit is designed to remove flood water from your property with speed and efficiency. The pump can operate within the filter chamber for extra protection or independently as required. With manual operation the pump can reduce the water level to 40mm. -
Page 4: Operating Guidelines
2. Screw the 1¼” male plug into the non-return valve of the pump. 3. Select a suitable location for the flood pump kit taking into account the distance of the nearest drainage point. 4. Roll out the lay flat hose from the pump to the nearest drainage point with the quick release coupling (supplied fitted to hose) at the pump end. -
Page 5: Technical Specification
WASTE WATER PUMPING SYSTEMS Installation and operating guidelines Flood Pump Kit 4. Technical specifications Model Flood pump kit Power supply 230V AC Rated current 1.9A Motor rating 180W Frequency 50Hz Revolutions per min. 2800rpm Max vertical output 6.7m Max flow rate 2.9 l/s... -
Page 6: Maintenance
WASTE WATER PUMPING SYSTEMS Installation and operating guidelines Flood Pump Kit 8. Maintenance Before carrying out any maintenance work the unit should be completely disconnected from the mains, and measures should be taken to prevent the unit being inadvertently switched back on. -
Page 7: Electrical Connections
WASTE WATER PUMPING SYSTEMS Installation and operating guidelines Flood Pump Kit 9.2 Electrical connections Anyone carrying out electrical work must ensure that reasonable provision has been made in the design and installation of the electrical installations in order to protect any persons who might use, maintain or alter the electrical installation of that dwelling from fire and injury, including electric shock, this should be done in accordance with the latest IET wiring regulations BS7671. - Page 8 All information is given in good faith. No responsibility can be accepted for errors, omissions or incorrect assumptions. © Copyright 2020 Omni Pump International Ltd T/A Edincare Pumps & Edincare Drains. All rights reserved.
