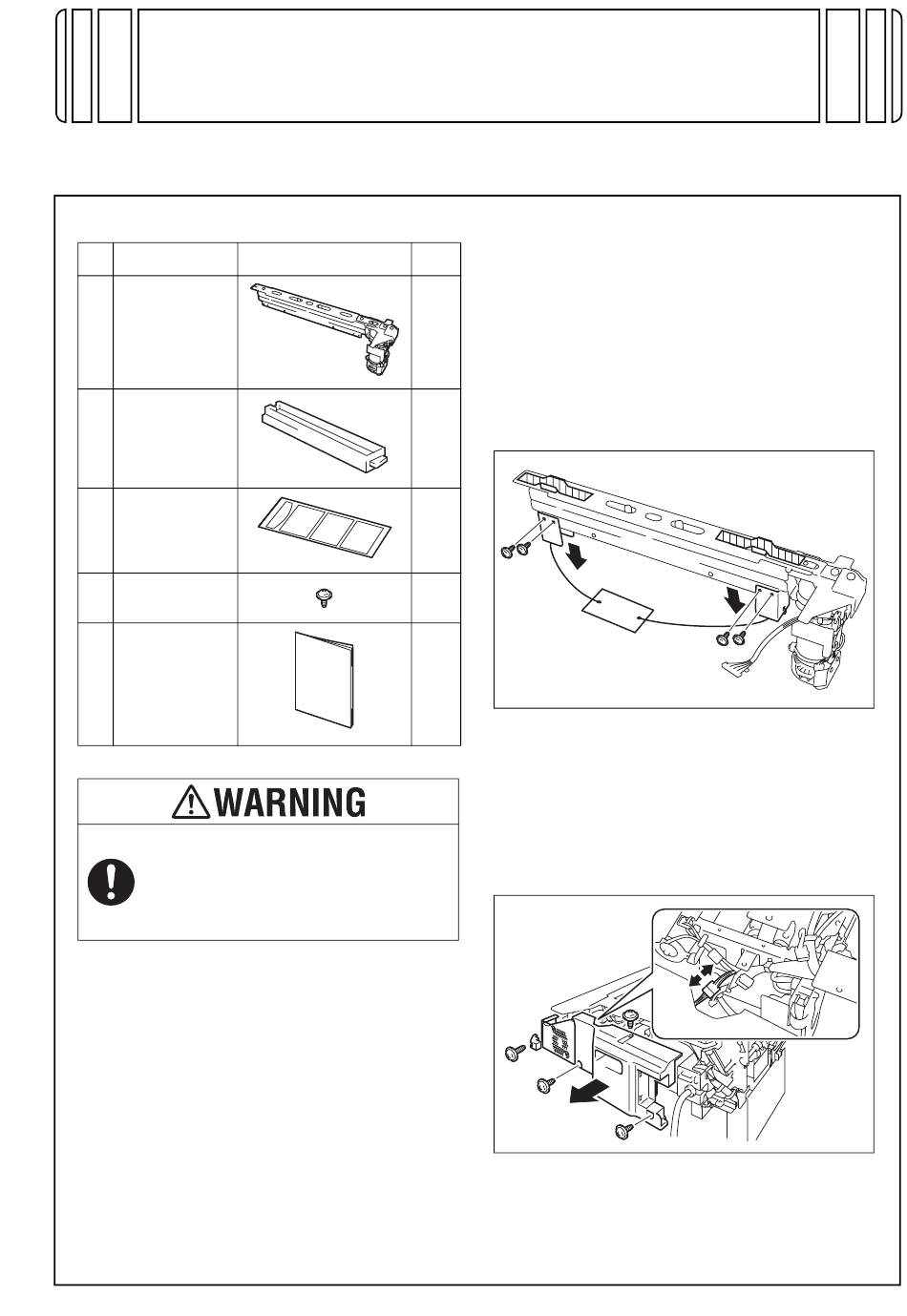

I. Accessory parts
No.
Name
1. Punch unit
2. Punch box
3. Label
4. Screw
(3 × 6 mm)
5. Installation
manual
After unpacking, be sure to get rid of the
packaging materials and keep them out of
the reach of children.
Putting the head in the plastic bag
involves danger of suffocation.
II. When installing to the printers
• This manual provides the illustration of the
machine used as MFP. However, the same instal-
lation procedure is used for the printers.
• For screen adjustment, make sure to use the field
service tools. Refer to the machine installation
manual regarding how to connect and use the
field service tools.
PK-515
INSTALLATION MANUAL
Shape
Q'ty
1
4512IXC037DA
1
4512U003AA
1
4512IXC053DA
2
9735
1
set
4980IXC019DA
Punch Kit
III. Installation procedures
Note:
• When mounting the punch kit, mount it before
mounting the finisher to the machine.
• When mounting the saddle stitcher at the same
time, mount the punch kit first.
1. Turn off the machine and unplug the power cord
from the power outlet.
2. Remove the protective tapes.
3. Remove the fixing brackets of the punch unit (four
screws).
4. If the finisher is mounted on the machine, remove
the finisher.
Note:
For the finisher removal procedure, see installa-
tion manual for finisher.
5. Remove the rear cover of the finisher (four
screws).
6. Disconnect the connector.
E-1
Applied Machine: FS-519
4512IXC038DB
4511IXC057DB
A0DH-9550-00
