Summary of Contents for ACCU-STAND VFB1
- Page 1 VFB1 Installation Guide...
- Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and in- structions herein are subject to change without notice. Accu Cable logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
- Page 3 T A B L E O F C O N T E N T S General Information Limited Warranty (USA Only) Installation Specifications...

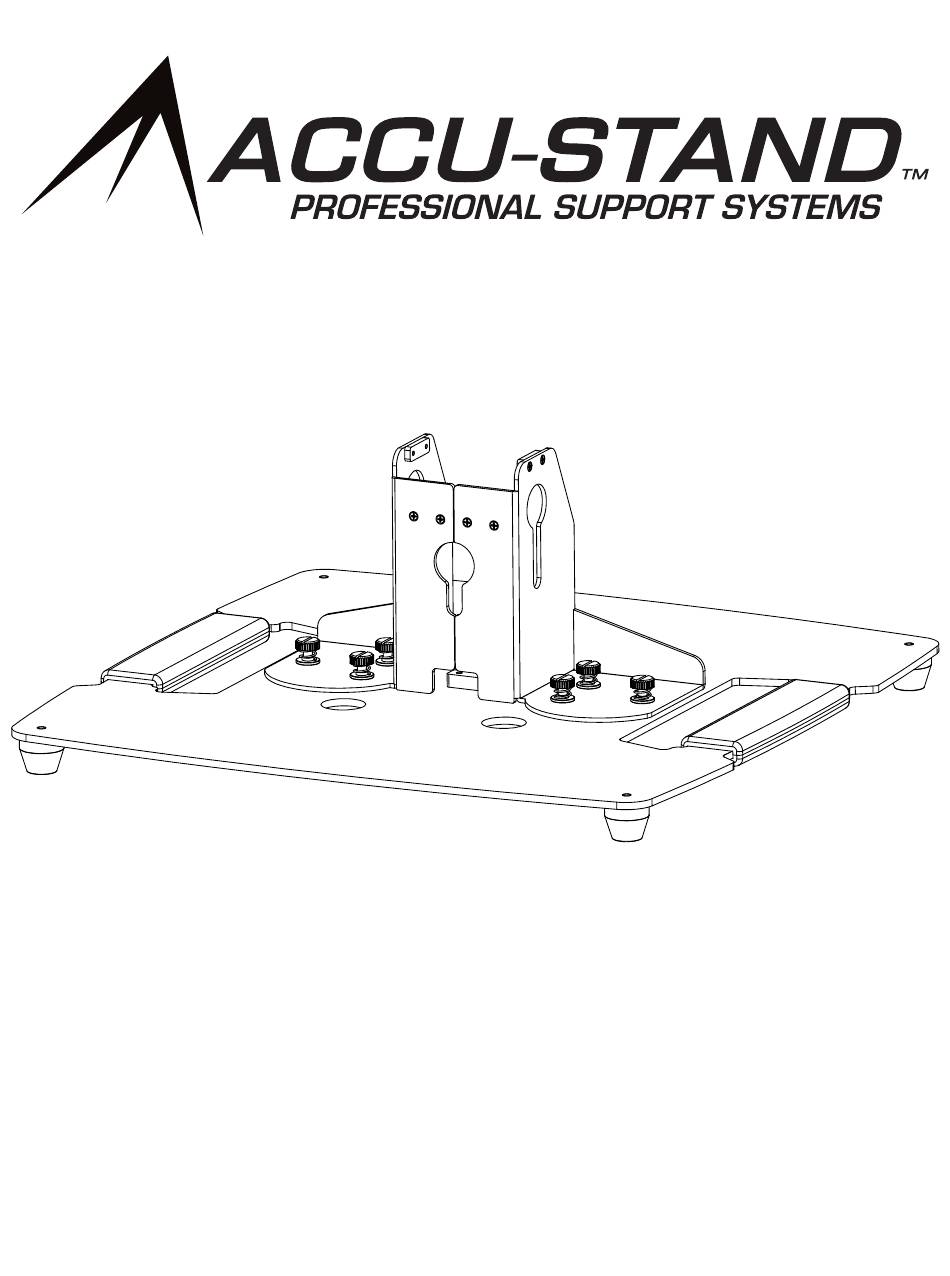

- Page 4 G E N E R A L I N F O R M A T I O N INTRODUCTION The Accu Cable VFB1 is a floor base designed to accommodate the vertical installation of ADJ ElectraPix Bar 8 or ElectraPix Bar 16 fixtures. Please read and understand the instructions in this manual carefully and thoroughly before attempting to install this device.
- Page 5 L I M I T E D W A R R A N T Y ( U S A O N L Y ) A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse).
- Page 6 I N S T A L L A T I O N This device is intended for use only on stable, level ground. It is advisable to use sandbags or some similar type of weighted ballast to provide additional stability. FLAMMABLE MATERIAL WARNING! Keep this device and the attached fixture a minimum of 5.0 feet (1.5m) away from flammable material and/or pyrotechnics.
- Page 7 To mount the either the ElectraPix Bar 8 or ElectraPix Bar 16 fixture to the VFB1 Floor Base, align the connector recesses located at one end of the fixture with the tabs on the VFB1 Floor Base. Align the L-tracks on the ElectraPix Bar fixture with the slots in the vertical sleeve of the VFB1, then insert an L-track lock into the slot on each side and tighten down to secure the fixture in place.
- Page 8 I N S T A L L A T I O N The maximum number of ElectraPix Bar fixtures that the VFB1 can accommodate while remaining upright and stable is as follows: 2X ELECTRAPIX BAR 8 4X ELECTRAPIX BAR 8...
- Page 9 S P E C I F I C A T I O N S • Compatibility: ElectraPix Bar 8 and ElectraPix Bar 16 • Dimensions: 19.7” x 19.4” x 1.4” (500mm x 494mm x 36mm) • Material: Steel • Unit Weight: 22lbs (10kgs.)
