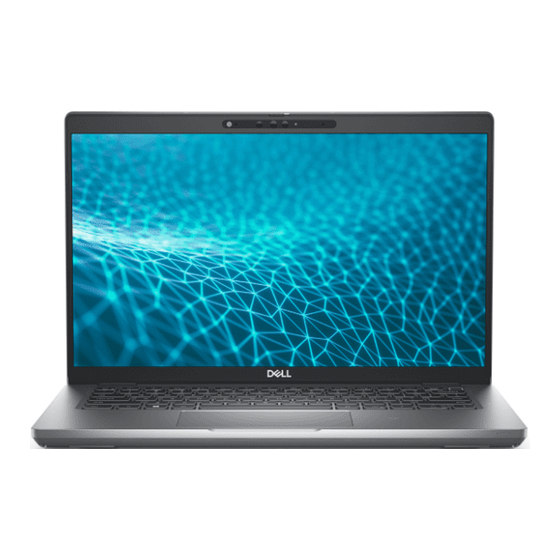

DELL laptop Latitude 5431 (NOT21107)
Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike,
potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji.
Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike
i konkurentne cene proizvoda.
Posetite nas i uživajte u ekskluzivnom iskustvu pametne kupovine klikom na link:
https://tehnoteka.rs/p/dell-laptop-latitude-5431-not21107-akcija-cena/
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dell NOT21107
Summary of Contents for Dell NOT21107
- Page 1 Uputstvo za upotrebu (EN) DELL laptop Latitude 5431 (NOT21107) Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike, potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji. Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike i konkurentne cene proizvoda.
- Page 2 Latitude 5431 Setup and Specifications Regulatory Model: P137G Regulatory Type: P137G007/P137G008 May 2023 Rev. A01...
- Page 3 A WARNING indicates a potential for property damage, personal injury, or death. © 2022-2023 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 4: Table Of Contents
Contents Chapter 1: Set up your Latitude 5431.....................5 Chapter 2: Views of Latitude 5431....................7 Right......................................7 Left......................................7 Top......................................8 Display....................................8 Bottom....................................9 Back......................................9 Service Tag..................................10 Battery charge and status light .............................10 Chapter 3: Specifications of Latitude 5431................... 11 Dimensions and weight..............................11 Processor.................................... - Page 5 Chapter 5: Keyboard shortcuts of Latitude 5431................28 Chapter 6: Getting help and contacting Dell................30 Contents...
-
Page 6: Chapter 1: Set Up Your Latitude 5431
Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, search in the Knowledge Base Resource at www.dell.com/support. For Windows: Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: ● Connect to a network for Windows updates. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. - Page 7 SupportAssist proactively checks the health of your system's hardware and software. When an issue is detected, the necessary system state information is sent to Dell to begin troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows operating system.
-
Page 8: Chapter 2: Views Of Latitude 5431
Views of Latitude 5431 Right 1. microSD-card slot 2. Headset (headphone and microphone combo) port 3. USB 3.2 Gen 1 port 4. USB 3.2 Gen 1 port with PowerShare 5. HDMI 2.0 port 6. RJ45 Ethernet port (flip-down) 7. Wedge-shaped lock slot Left 1. -
Page 9: Top
1. Power button with fingerprint reader (optional) 2. Keyboard 3. NFC (optional) 4. Clickpad Display 1. Ambient Light Sensor (ALS) 2. Microphone Views of Latitude 5431... -
Page 10: Bottom
3. IR emitter 4. IR camera 5. Camera shutter 6. RGB camera 7. Camera indicator LED 8. Microphone 9. LCD panel 10. Battery indicator/diagnostic LED Bottom 1. Speakers 2. Service tag label 3. Air vents Back 1. microSIM-card slot Views of Latitude 5431... -
Page 11: Service Tag
Service Tag The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in your computer and access warranty information. Battery charge and status light The following table lists the battery charge and status light behavior of your Latitude 5431. -
Page 12: Chapter 3: Specifications Of Latitude 5431
Specifications of Latitude 5431 Dimensions and weight The following table lists the height, width, depth, and weight of your Latitude 5431. Table 3. Dimensions and weight Description Values Height: Front height 20.95 mm (0.82 in.) Rear height 23.60 mm (0.92 in.) Width 321.35 mm (12.65 in.) Depth... -
Page 13: Chipset
Chipset The following table lists the details of the chipset supported by your Latitude 5431. Table 5. Chipset Description Values Chipset Intel P28 Processor Generation Intel Core i5/i7 DRAM bus width 64-bit (for dual-channel) Flash EPROM ● 32 MB for non-vPro ●... -
Page 14: External Ports
NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support. Ethernet The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Latitude 5431. Table 9. Ethernet specifications... -
Page 15: Wireless Module
Not supported Global Navigation Satellite System (GNSS) Supports GPS, BDS, and GLONASS NOTE: For instructions on how to find your computer's IMEI (International Mobile Station Equipment Identity) number, see the knowledge base article 000143678 at www.dell.com/support. Specifications of Latitude 5431... -
Page 16: Audio
Audio The following table lists the audio specifications of your Latitude 5431. Table 12. Audio specifications Description Values Audio controller Realtek ALC3204 with Waves MaxxAudio Pro Stereo conversion 24-bit Digital-to-Analog (DAC) and Analog-to-Digital (ADC) Internal audio interface High definition audio interface External audio interface Universal audio jack Number of speakers... -
Page 17: Media-Card Reader
Media-card reader The following table lists the media cards supported by your Latitude 5431. Table 15. Media-card reader specifications Description Values Media-card type One microSD 4.0 card Media-cards supported ● Micro Secure Digital (mSD) ● Micro Secure Digital High Capacity (mSDHC) ●... -
Page 18: Clickpad
Table 17. Camera specifications (continued) Description Option 1 Option 2 Option 3 Camera type FHD RGB/IR camera FHD RGB/IR camera, proximity HD RGB camera sensor/express sign-in Camera location Front camera Front camera Front Camera Camera sensor CMOS sensor technology CMOS sensor technology CMOS sensor technology type Camera... -
Page 19: Power Adapter
Power adapter The following table lists the power adapter specifications of your Latitude 5431. Table 19. Power adapter specifications Description Option one Option two Type 90 W AC adapter, USB-C 130 W AC adapter, USB-C NOTE: Supported only in UMA configuration. -
Page 20: Display
CAUTION: Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption. -
Page 21: Fingerprint Reader (Optional)
Table 21. Display specifications (continued) Description Option one Option two Option three Option four Option five Height 173.95 mm (6.84 173.95 mm (6.84 in.) 173.95 mm (6.84 in.) 173.95 mm (6.84 173.95 mm (6.84 in.) in.) in.) Width 309.4 (12.18 in.) 309.6 mm (12.18 in.) 309.6 mm (12.18 in.) 309.6 mm (12.18 309.6 mm (12.18... -
Page 22: Sensor
Sensor The following table lists the sensor of your Latitude 5431. Table 23. Sensor Sensor support Accelerometer (ST Micro LIS2DW12TR): On the base (system board) Accelerometer with Gyro (ST Micro LSM6DSOTR): On the hinge-up (optional-upsell configuration with EMZA/ALS/IR camera) GPS (through WWAN card only, optional) Adaptive thermal performance: requires 16-bit accelerometer Hall effect sensor Sensor hub... -
Page 23: Hardware Security
Dell Power Manager Support assist : PCs & OS Recovery (Excalibur) Dell SafeBIOS - Off-Host Verification Dell SafeBIOS - Indicator of Attack Dell SafeID Vmware Carbon Black Endpoint: Standard, Advanced, Enterprise Absolute Visibility Absolute Control Absolute Resilience Netskope Cloud Access... -
Page 24: Smart-Card Reader
Table 27. Hardware security (continued) Vmware Carbon Black Endpoint + Secureworks Threat Detection & Response Carbonite Dell Supply Chain Defense Smart-card reader Contactless smart-card reader This section lists the contactless smart-card reader specifications of your Latitude 5431. Table 28. Contactless smart-card reader specifications... -
Page 25: Contacted Smart-Card Reader
Circuit Card Interface Device for OS level drivers Windows Certified Device certified by Microsoft WHCK Dell ControlVault support Device connects to Dell ControlVault for usage and processing FIDO2 compliance Dell ControlVault 3 Smart-card reader is compliant with the FIDO SPEC NOTE: 125 Khz proximity cards are not supported. -
Page 26: Operating And Storage Environment
FIPS 201 (PIV/HSPD-12) Compliant via Device compliant with FIPS 201/PIV/ HSPD-12 requirements FIDO2 compliance Dell ControlVault 3 Smart-card reader is compliant with the FIDO SPEC Operating and storage environment This table lists the operating and storage specifications of your Latitude 5431. - Page 27 * Measured using a random vibration spectrum that simulates user environment. † Measured using a 2 ms half-sine pulse. Specifications of Latitude 5431...
-
Page 28: Chapter 4: Comfortview Plus
ComfortView Plus WARNING: Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes. Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes. - Page 29 Keyboard shortcuts of Latitude 5431 NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions.
- Page 30 Table 33. Secondary behavior (continued) Function key Secondary behavior Fn + F4 Operating system and application specific F4 behavior Fn + F5 Operating system and application specific F5 behavior Fn + F6 Operating system and application specific F6 behavior Fn + F7 Operating system and application specific F7 behavior Fn + F8 Operating system and application specific F8 behavior...
- Page 31 Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 34. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell app...
- Page 32 Ovaj dokument je originalno proizveden i objavljen od strane proizvođača, brenda Dell, i preuzet je sa njihove zvanične stranice. S obzirom na ovu činjenicu, Tehnoteka ističe da ne preuzima odgovornost za tačnost, celovitost ili pouzdanost informacija, podataka, mišljenja, saveta ili izjava sadržanih u ovom dokumentu.
