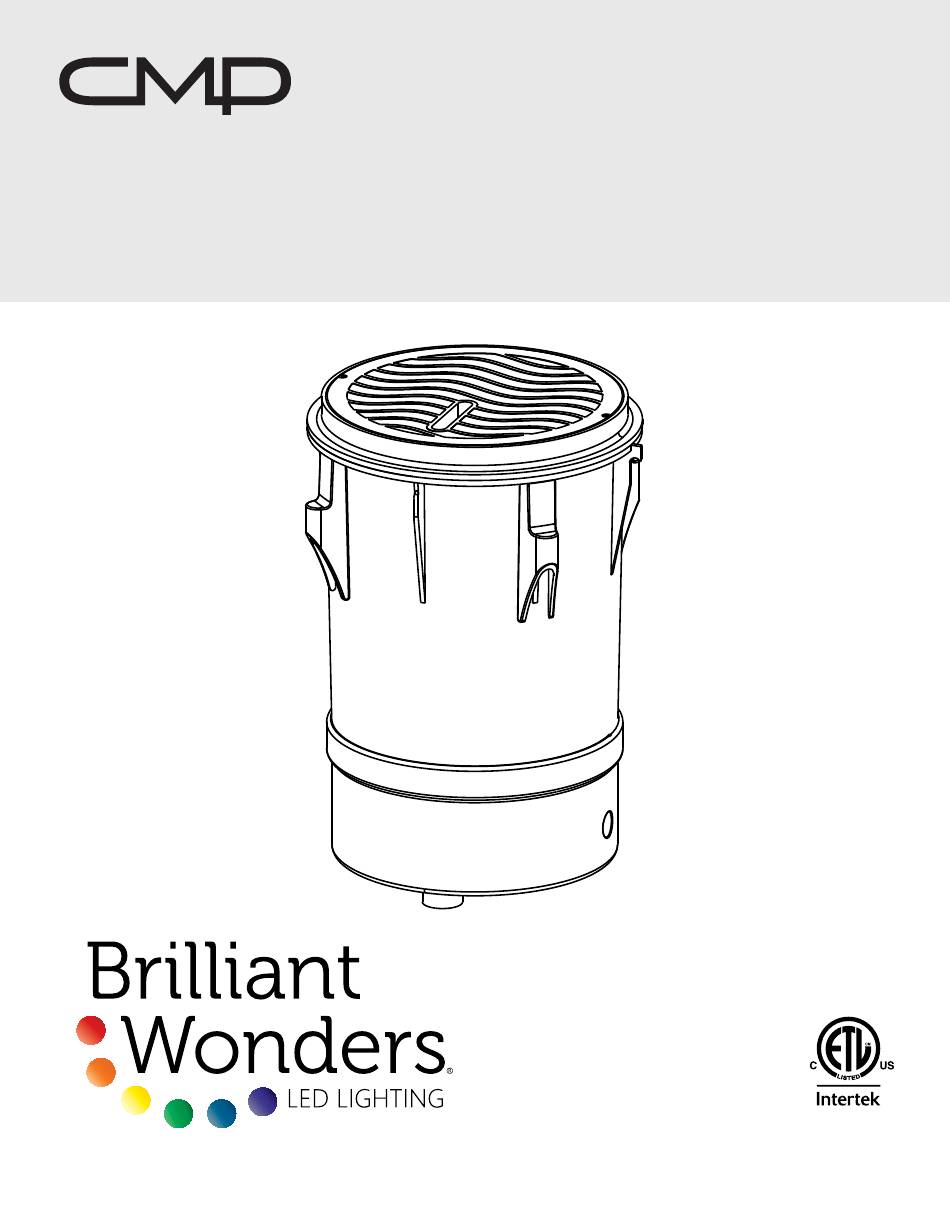

- Page 1 ® BRILLIANT WONDERS LED LAMINAR ® 25597-62X-X00 25597-62X-X00P 25597-62X-X00H 4006147 CMP DOCUMENT 90500-255-976 REV C LED WATERFALL | LED BUBBLER | LED LIGHTS | LED LAMINAR ab0519 CUSTOM MOLDED PRODUCTS | 36 HERRING ROAD, NEWNAN, GA 30265 | WWW.C-M-P.COM...
-
Page 2: Important Warnings & Safety Instructions
Always disconnect power to the pool lights before servicing. Turn off power to light before installation/service. CMP Laminar WARNING Deck Jets are equipped with a low voltage light and should never be electrically connected to a power source other than an approved pool “Safety Rated,”... -
Page 3: General Installation Instructions
(do not use a sand Deck Jet installed requires its own ball valve filter) and be installed with a check valve. to adjust flow on each line such as the CMP For up to four laminar jet installations use a Ball Valve 25800-151-000. -
Page 4: Installation Instructions
3. INSTALLATION INSTRUCTIONS WATER THROW 7 ’ MAX WATER HEIGHT 6’ MAX CHECK BALL TRANSFORMER VALVE VALVE PUMP FILTER 5’ CENTER STAKE DRAIN LINE FIGURE 2: SUGGESTED PLUMBING DIAGRAM FOR LAMINAR DECK JETS BALL VALVE BALL CHECK VALVE VALVE PUMP MANIFOLD FILTER BALL... - Page 5 3. INSTALLATION INSTRUCTIONS 3.1 DECK CANISTER INSTALLATION canister marked “ELECTRICAL.” It is highly recommended to use sweep fittings for NOTE: Prior to installation, make sure the ease of installation. opening on the laminar deck jet canister lid is facing toward the desired target location 6.
- Page 6 4. LED LIGHT INSTALLATION/ WINTERIZATION 4.1 PREPARING THE LED LIGHT 4.2 WINTERIZATION STEPS FOR AREAS INSTALLATION WITH FREEZING CONDITIONS NOTE: Ensure that the pool meets 1. Remove canister lid. requirements of the National Electric Code and all local codes and ordinances. A licensed 2.
-
Page 7: Optional Accessories
FIGURE 6: DECK CANISTER INTERNAL EXPLODED VIEW 5.2 OPTIONAL ACCESSORIES Part Number Description 25590-250-000 CMP Pool Fitting Multi-Tool 5.2 TROUBLE SHOOTING Problem Solution 1 Solution 2 Poor Stream Quality Remove Deck Housing and check for leaks. Refer to your pump manual to reduce pressure. - Page 8 When syncing multiple LED light products, color shows will match NOTICE but cycle timings may vary. CMP/J-STYLE COLOR SELECTION AND SYNC INSTRUCTIONS The CMP/J-STYLE Laminar Deck Jet is preprogrammed with the following color sequence: SEQUENCE ORDER COLOR MODE Alpine White...
- Page 9 6. OPERATION INSTRUCTIONS [CONTINUED] H-STYLE COLOR SELECTION AND SYNC INSTRUCTIONS The H-STYLE Brilliant Wonders 1.5” LED Light is preprogrammed with seventeen light modes: SEQUENCE ORDER COLOR MODE Voodoo Lounge Deep Blue Sea Royal Blue Afternoon Skies Aqua Green Emerald Cloud White Warm Red Flamingo Vivid Violet...
- Page 10 6. OPERATION INSTRUCTIONS [CONTINUED] P-STYLE COLOR SELECTION AND SYNC INSTRUCTIONS The P-STYLE Laminar Deck Jet Lights can be controlled using a standard wall-mount light switch. Multiple lights can be connected via a junction box to a single switch so that all lights can be switched ON and OFF together.
