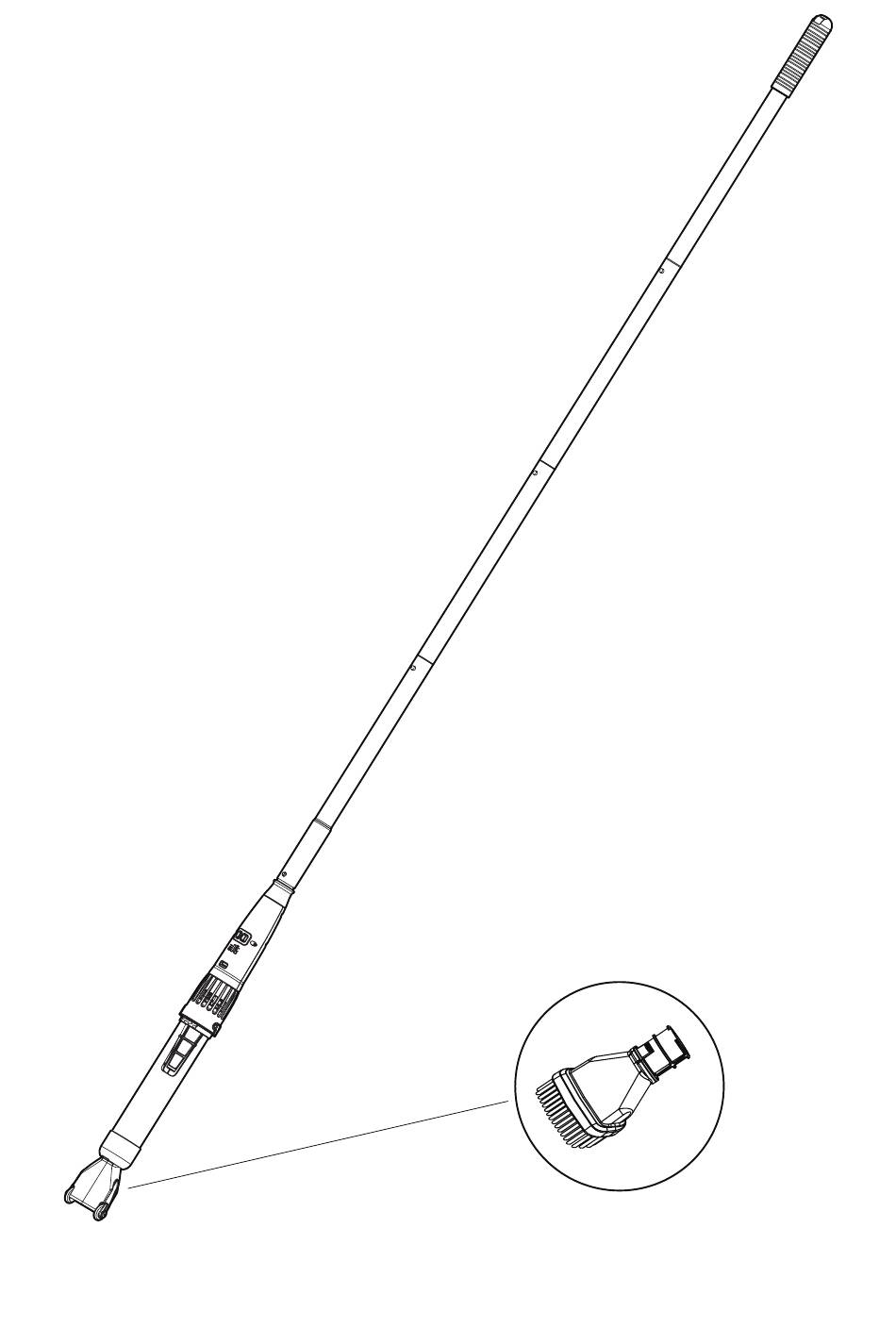

User Manual
Hand-held Pool Vacuum Cleaner
Suitable for Swimming Pool and SPA
Model:
AQ10 Pro
Battery: 3.6V 3350mAh 12.06Wh
Max. Cleaning Cycle: 90 min
Charging Time: 4-5h
Charging Power: 5W
Max Flow Rate: 1.5m³/h
With Cotton Filter Precision:10μm
Without Cotton Filter Precision:180μm
Debris Basket Capacity: 0.3L
Waterproof Level:IPX8
Product Size:
8.5×6.5×200cm(3.3''×2.6''×78.7'')
Net weight: 1.06Kg
Gross weight:1.52Kg
This manual contains important information which can help you in operation and maintenance
of pool vacuum cleaner . Please keep it properly for future reference.
Advertisement
Related Manuals for AQUAFYSH AQ10 Pro
Summary of Contents for AQUAFYSH AQ10 Pro
- Page 1 User Manual Hand-held Pool Vacuum Cleaner Suitable for Swimming Pool and SPA Model: AQ10 Pro Battery: 3.6V 3350mAh 12.06Wh Max. Cleaning Cycle: 90 min Charging Time: 4-5h Charging Power: 5W Max Flow Rate: 1.5m³/h With Cotton Filter Precision:10μm Without Cotton Filter Precision:180μm Debris Basket Capacity: 0.3L...
-
Page 3: Support & Contact
This manual is written by the manufacturer in English and can be requirements. Since the product is constantly upgraded as needed, the information herein is for reference only, please kindly refer to real object, and we hereby reserve the right to renew the product. Support & Contact Email: service@aquafysh.com Web: www.aquafysh.com... - Page 4 Safety Warnings and Directions Please read and follow all the instructions in this manual and the equipment so as not to cause serious damage to the product or the operator. Warning! Please read the instructions carefully and follow the instructions. Our company is not responsible for any loss or injury caused by improper use.
- Page 5 Directions 1. Assembly of the product 1 . 1 Assembly of components: The main body: (1) Rolling Vacuum Head, (2) Debris Collection Bin, 3) Filter, 4) Frame, 5) Aluminum Pole. Components: (6) USB Cable, (7) Charger,(8) Brushy Vacuum Head,(9) Filter cotton 1 .
- Page 6 1.4 Installation of the Vacuum Head Insert the vacuum head into the debris collection bin with attention to the direction of the bulge. 1.5 The Aluminum Pole Assemble the aluminum pole and connect them with the main body as shown in the picture.
- Page 7 1.6 ON-OFF Button Press the “ON” button to turn the product on. press the “OFF”button to turn it off. 200cm 45cm 1.7 Charge Connect it to a charger at the output voltage of 5V for charge as shown in the picture.
-
Page 8: Common Troubleshooting
1.8 Common Trouble Shooting Faults Possible causes Solutions Power out Recharge for use Out of operation Contact after-sales service Battery damage center for repair Low battery Recharge Low suction power Contact after-sales service Motor malfunction center for repair Contact after-sales service Abnormal noise Impeller damage center for repair... -
Page 9: Product Recycling
1.9 Battery Disassembly and Recycling This pool vacuum cleaner contains a non-replaceable battery The battery must be removed from the pool vacuum cleaner before being scrapped. When removing the battery, disconnect the pool vacuum cleaner from the power supply. The battery should be disposed of safely and sent to a professional recycling facility.
