Summary of Contents for SAND PS1016
- Page 1 Sichuan Manufacture No.01000286 PS1016 Intelligent Pressure Gauge Operation Manual ChengDu Sand Electronics Co., Ltd. Http://www.sandcop.com E-mail：cdsand@163.com TEL:+86-28-87078792 FAX:+86-28-87078762...
- Page 2 Welcome for choosing and using our PS1016 intelligent pressure gauge. This manual enunciates the functions and methods for use of intelligent pressure gauge in detail. Before using this intelligent pressure gauge, please refer to this manual for your correct use.

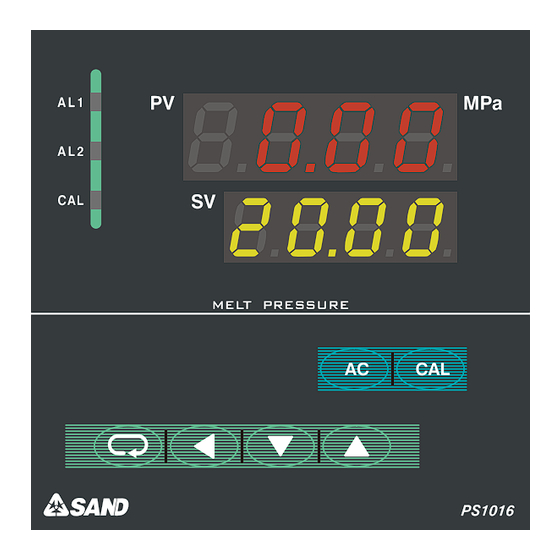

- Page 3 Function Keyboard Reset zero key: (if pressed with switch key simultaneously, reset; press AC key for more than 5 seconds and zero, i.e. zero in calibration, can be recovered; Cal: Calibration key: if pressed with switch key simultaneously, calibration can be done automatically. Conversion key Shift key Down key...
- Page 4 Orders explain: please order according to the explain as follows The basic product：Temperature pressure gauge Type： PS1016 Function Explain for functions 1、double deck four-digit pipe display the actual value of 4、choice for measurement range panel pressure and temperature separately 2、relay outputÿpressure and temperature upper limitĀ...
- Page 5 Self-calibration for system zero pressure: connect high-temperature fusion pressure transducer with PS1016 intelligent temperature & pressure gauge according to operation manual. Properly connect 220 V AC power supply. Press ‘cal’ key and point press Shift key simultaneously after system POST, and then the system starts fully automatic self-calibration.
- Page 6 5Ā If repair work is beyond customers’ capability, please directly send to us. We ensure one-year responsibility of repair and life-long maintenance. Ex-factory supplementary components Serial name unit Quantity remark number PS1016 Intelligent Temperature Pressure Gauge In term of the Transducer piece customer’s request Cable wire meter One end with socket...
