Summary of Contents for Insportline Hawkie Evo

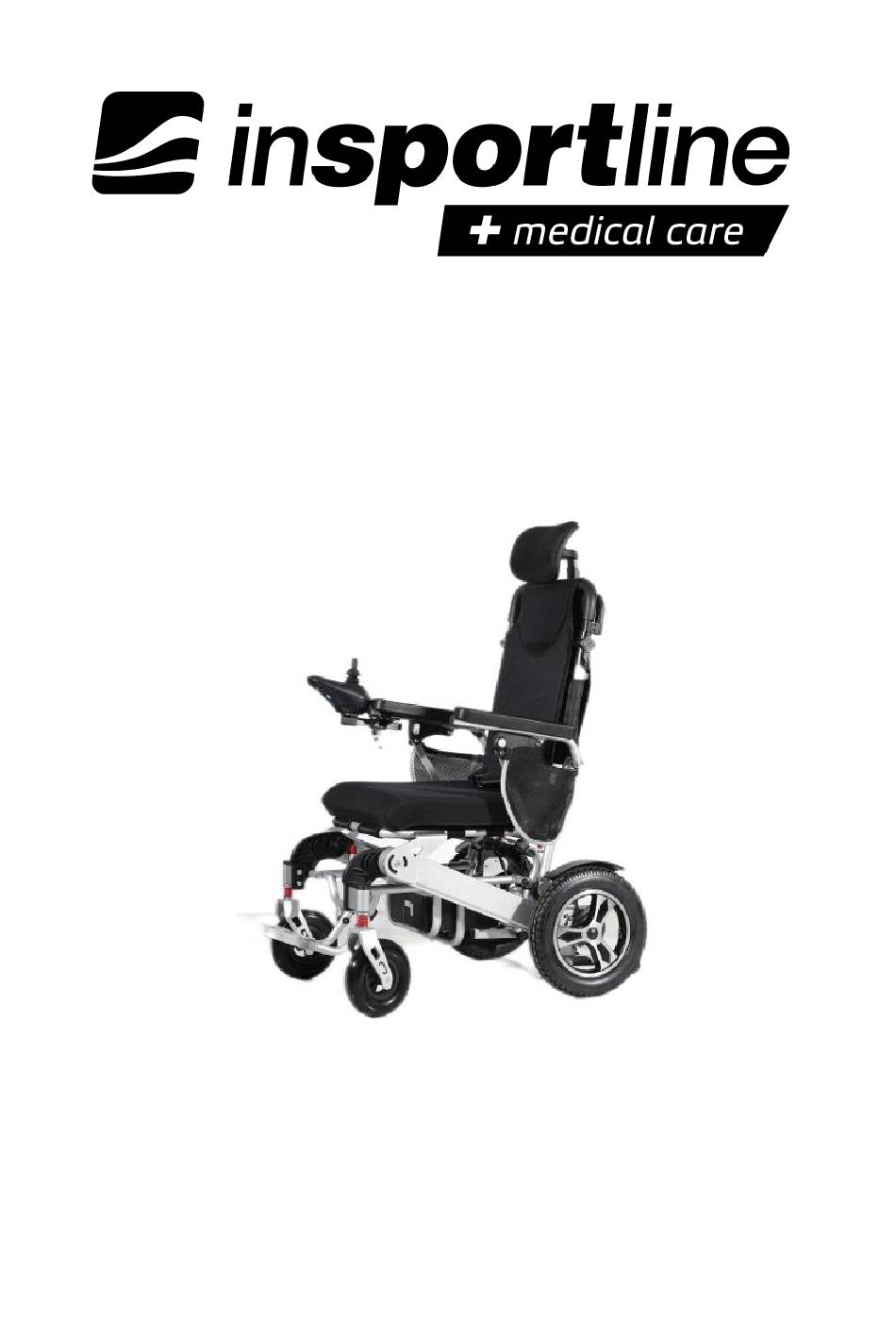

- Page 1 USER MANUAL – EN IN 25933 Electric wheelchair inSPORTline Hawkie Evo with adjustable backrest...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 PRODUCT DESCRIPTION ........................5 ASSEMBLY ............................. 6 USE ................................. 9 CONTROLLER ............................10 TABLE OF INDICATORS AND FAULTS ................... 11 REMOTE CONTROLER ........................12 FOLDING ............................... 14 BATTERY .............................. 16 BATTERY CHARGING ........................16 BATTERY INFORMATION ........................ 16 MAINTENANCE AND STORAGE ...................... -
Page 3: Safety Instructions
SevenSport s.r.o. reserves the right to make any changes and improvements to its product without prior notice. Visit our website www.insportline.eu where you will find the latest version of the manual. SAFETY INSTRUCTIONS • Read the manual before use and keep it for future reference. - Page 4 • Make sure the battery is fully charged before driving. • Charge the wheelchair in a well-ventilated room. • Before riding, check that all parts are tighten and are working properly. • Before reversing, make sure that there is no obstacle behind you. Reverse to the lowest speed.
-
Page 5: Product Description
PRODUCT DESCRIPTION Joystick Joystick power port Safety belt Footrest 8’ front wheels Button for folding armrests 12’ rear wheels... -
Page 6: Assembly
Switching drive electric / manual Buckle for folding Battery adapter Adjustable wheel lock ASSEMBLY Headrest Loosen the bolts, adjust the backrest to a comfortable position, then tighten the bolts again. - Page 7 Make sure the headrest is properly tightened. Lock the headrest in position. The headrest can be positioned up and down. Joystick attachement 1. Backrest adjustment 2. Confirmation button Attach the joystick to the right or left armrest. If you want to adjust the angle of the backrest, press the adjustment button until the middle LED starts to flash.
- Page 8 Then press the button to confirm, you will hear 3x beeps. You can then use the joystick to change the angle forward or backward. After setting the angle, press the button to confirm. Connect the right or left armrest controller to the motor and battery. 1.
-
Page 9: Use
Familiarize yourself with the controls before driving. First try driving with the assistance of another person in a safe place without traffic. Always make sure the wheelchair is switched off before getting on it. Set the maximum speed according to your abilities. We recommend leaving the speed at lower values until you are completely familiar with the handling of the truck. -
Page 10: Controller
• Brake slowly. Do not make irregular and sudden changes in movement. • Always keep your limbs on the armrests and footrests. • Never drive over obstacles that are higher than 5 mm. • Never drive over gaps wider than 10 cm. •... -
Page 11: Table Of Indicators And Faults
The indicators show the maximum speed. The indicators are divided into 5 segments, the higher the number, the higher the maximum speed. Horn Press to sound the horn. Reduce max. speed Press the button to reduce the maximum possible speed. Adjustments must always be made when the wheelchair is not in motion. -
Page 12: Remote Controler
REMOTE CONTROLER The remote control is powered by 2x AAA batteries. 1. Joystick 2. Power button 3. Reduce max. speed 4. Back support 5. No function for this model 6. No function for this model 7. Increase max. speed 8. Horn 9. - Page 13 Press the reduce max. speed button on the wheelchair controller until the middle LED lights up. Press the horn button on the wheelchair controller. Press the reduce max. speed on the remote control until the power button stops flashing. The LED on the wheelchair controller turns off and the controllers are paired.
-
Page 14: Folding
To change the angle of the backrest, press the B button, then use the arrows to adjust the angle. You can then use the joystick to control the wheelchair. FOLDING Press the buckle behind the backrest. - Page 15 Grasp the backrest and push forward. Fold the wheelchair. You can adjust the distance of the controller using the bolt under the handle. To fold the handles, it is necessary to loosen the nut and fold the handles back. Removing the battery Unplug the power cord...
-
Page 16: Battery
Grasp the battery and pull it out of the frame. BATTERY The wheelchair uses a 24 V 12 Ah lithium battery. Only change the battery at an authorized service center. 6-month battery warranty – we guarantee that battery's nominal capacity does not fall below 70% of its total capacity within 6 months of the product’s sale. -
Page 17: Maintenance And Storage
MAINTENANCE AND STORAGE • Use mild detergents and a damp cloth for cleaning. Do not use aggressive cleaning agents. • Always dry all parts properly, especially electronic parts. • Keep the controller and panel away from water. • Check the condition of the cables and connections. •... - Page 18 The seller is SEVEN SPORT s.r.o. with its registered office in Strakonická street 1151/2c, Prague 150 00, Company Registration Number: 26847264, registered in the Trade Register at Regional Court in Prague, Section C, Insert No. 116888. According to valid legal regulations it depends whether the Buyer is the End Customer or not. “The Buyer who is the End Customer”...
- Page 19 VAT ID: CZ26847264 About shipping Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk...
- Page 20 IČ: 268 47 264 Czech republic Declares on its own responsibility that product: IN 25933 Electric wheelchair inSPORTline Hawkie Evo with adjustable backrest This product meets the technical requirements for the product set by government regulation The product complies with (EU)2017/745 and the following standards:...
