FiRA VISION IM200-B User Manual

Bi-spectrum radiometric detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

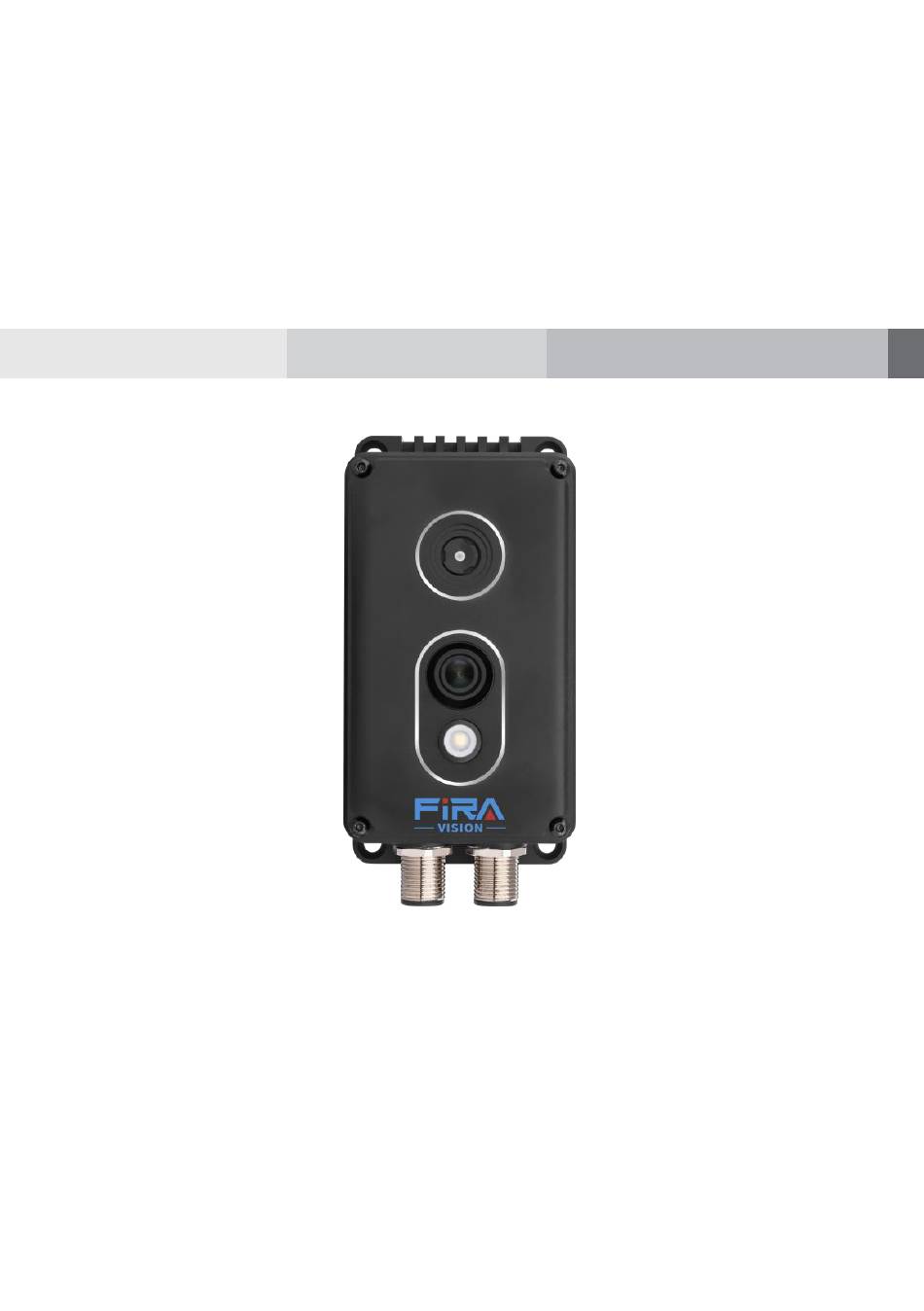

IM200-B
Bi-Spectrum Radiometric Detector
User Manual
Issue
V 1.2
Date
01-03-2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IM200-B and is the answer not in the manual?

Questions and answers

Summary of Contents for FiRA VISION IM200-B

  • Page 1 IM200-B Bi-Spectrum Radiometric Detector User Manual Issue V 1.2 Date 01-03-2024...
  • Page 2 Issue V1.0 (2018-07-25)

  • Page 3: Precautions

    IM200-B Bi-Spectrum Radiometric Detector User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
  • Page 4 IM200-B Bi-Spectrum Radiometric Detector Precautions User Manual ⚫ Use accessories delivered with this device. The voltage must meet input voltage requirements for this device. ⚫ If this device is installed in places with unsteady voltage, ground this device to discharge high energy such as electrical surges in order to prevent the power supply from burning out.
  • Page 5 IM200-B Bi-Spectrum Radiometric Detector User Manual Precautions ⚫ Keep the device away from moist, dusty, extremely hot or cold places, or places with strong electric radiation. ⚫ If the device is installed outdoors, take insect- and moisture-proof measures to avoid circuit board corrosion that can affect monitoring.

  • Page 6: Table Of Contents

    IM200-B Bi-Spectrum Radiometric Detector User Manual Contents Contents Precautions ........................i Contents ........................4 1 Overview ........................6 1.1 Principle of Thermal Imaging and Advantages .............. 6 1.2 Product Introduction ....................... 7 1.2.1 Product Features ....................7 1.3 Description of Cable ....................... 7 1.3.1 Multi-cable ......................
  • Page 7 IM200-B Bi-Spectrum Radiometric Detector User Manual Contents 4.6.8 LED Control Parameter ..................43 5 Thermal Parameter Configuration ..............46 5.1 Access the Sensor Setting Interface ................46 5.2 Sensor Setting Parameter description ................47 5.2.1 Mode ........................ 47 5.2.2 Image Setting ....................48 5.2.3 Scene ........................

  • Page 8: Overview

    IM200-B Bi-Spectrum Radiometric Detector User Manual Overview Overview 1.1 Principle of Thermal Imaging and Advantages Any object with temperature higher than the absolute zero (-273.15℃) will emit infrared (IR) ray, even though it does not emit light. The IR ray is also called thermal radiation.

  • Page 9: Product Introduction

    IM200-B Bi-Spectrum Radiometric Detector User Manual Overview 1.2 Product Introduction Bi-Spectrum Radiometric Detector, the whole machine shell and the base are all made of high strength aluminum alloy material with comprehensive function and high stability. It can be widely used in power switch cabinets, machine rooms, storages, etc.
  • Page 10 IM200-B Bi-Spectrum Radiometric Detector User Manual Overview Name Port Description ALARM IN RS232 RS232 COM RS232 TX RS232 RX RS485 RS485+ RS485- Figure 1-2 Panel interface Table 1-2 Description of panel interface Name Description Power indicator When camera is power on, the light is steady on Network Indicator flashes when the networking is working normally.

  • Page 11: Device Dimensions

    IM200-B Bi-Spectrum Radiometric Detector User Manual Device Dimensions Device Dimensions Figure 2-1 shows the dimensions of the Bi-Spectrum Radiometric Detector. Figure 2-1 Dimensions (unit: mm) Issue V1.2 (01-03-2024)
  • Page 12 IM200-B Bi-Spectrum Radiometric Detector User Manual Device Dimensions Issue V1.2 (01-03-2024)

  • Page 13: Device Installation

    IM200-B Bi-Spectrum Radiometric Detector User Manual Device Installation Device Installation 3.1 Cabinet Installation 3.1.1 General Installation Step 1 Stick the installation sticker label 1 on the cabinet door ‘s mounting surface, drill three holes based on the marks on the sticker, as shown in Figure 3-1. It is recommended that the drill size be φ3 - φ4 mm, and it is better to remove the label...
  • Page 14 IM200-B Bi-Spectrum Radiometric Detector User Manual Device Installation Figure 3-2 Attach the device Step 3 Take out the PWM3×6 screws in the accessory and fix them on the screw holes of the camera through the holes punched in step 1 on the front of the door and tighten the screws.

  • Page 15: Magnet Installation

    IM200-B Bi-Spectrum Radiometric Detector User Manual Device Installation 3.1.2 Magnet Installation If you can't drill the hole in the door or the camera position needs precise adjustment, you can attach the magnet bracket to cabinet directly. Step 1 Take out the camera, install the camera on cabinet, as shown in Figure 3-4.

  • Page 16: Wall Installation

    IM200-B Bi-Spectrum Radiometric Detector User Manual Device Installation 3.2 Wall Installation 3.2.1 Bracket Installation If the camera angle needs to be adjusted, you need to use the gimbal bracket. Step 1 Stick the installation sticker label 3 on the walling ‘s mounting surface, drill three holes based on the marks on the sticker, drive three swell plastic buttons into the holes.

  • Page 17: Wall Installation

    IM200-B Bi-Spectrum Radiometric Detector User Manual Device Installation Figure 3-7 Install the bracket Step 4 Connect the multi-head combination cable to start up the camera. Step 5 Adjust the universal rod of the bracket to adjust the camera angle, tighten the bottom bracket nut and tighten the locking screw on the bracket to complete the angle adjustment.

  • Page 18: Packing List

    IM200-B Bi-Spectrum Radiometric Detector User Manual Device Installation Figure 3-8 Install camera Step 3 Connect the multi-head combination cable to start up the camera. ----End 3.3 Packing list After receiving the equipment, please follow the list of packing list to check, if there is any omission, please contact the seller.
  • Page 19 IM200-B Bi-Spectrum Radiometric Detector User Manual Device Installation Self –tapping screw PT4*40 Swell plastic button Gimbal bracket(Optional) Issue V1.2 (01-03-2024)

  • Page 20: Quick Configuration

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Quick Configuration 4.1 Login and Logout To access the web interface through Microsoft Edge browser (IE Mode); otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.0.121) in the address box, and press Enter.

  • Page 21: Main

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Figure 4-2 Internet Explorer Compatibility  The default name and password are both admin. Modify the password when you login the system for first time to ensure system security.  After modifying password, you need to wait at least three minutes then power off to make sure modifying successfully.
  • Page 22 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Figure 4-3 Main page layout Table 4-1 Elements on the main page Element Description Real-time video Real-time videos are played in this area. You can also set area sensor parameters. Playback You can query the playback videos in this area.
  • Page 23 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration 1. When the device generates an alarm, the alarm icon is displayed. You can click to view the alarm information. When the device accepts an alarm signal, the alarm icon will display within 10 s in the web management system.

  • Page 24: Change The Password

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration 4.3 Change the Password Description You can click to change the password for logging in to the system. Procedure Step 1 Click in the upper right corner of the main page. The Change Password dialog box is displayed, as shown in Figure 4-5.

  • Page 25: Browse Video

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration 4.4 Browse Video User can browse the real-time video in the web management system. Preparation To ensure the real-time video can be displayed properly, you must perform the following operations when you login to the web for the first time: Step 1 Open the Internet Explorer.

  • Page 26: Install Plugins

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Figure 4-7 Configuring ActiveX control and plug-ins Step 3 Download and install the player control as prompted. The login page is display when the control is loaded. 4.5 Install Plugins You will be prompted with a message “Download and install the new plugin” as shown in Figure 4-8 when you login to the web management system for the first time.

  • Page 27: Set Local Network Parameters

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration 4.5.1 Set Local Network Parameters Description Local network parameters include: ⚫ IP protocol ⚫ IP address ⚫ Subnet mask ⚫ Default gateway ⚫ Dynamic Host Configuration Protocol (DHCP) ⚫ Preferred Domain Name System (DNS) server ⚫...
  • Page 28 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Table 4-2 Local network parameters Parameter Description Setting IP Protocol IPv 4 is the IP protocol that uses [Setting method] an address length of 32 bits. Select a value from the drop-down list box.

  • Page 29: Thermal Settings

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Parameter Description Setting Set the maximum value of [Setting method] network transmission data Enter a value manually. packets. NOTE The MTU value is range from 800 to 1500, the default value is 1500, Please do not change it arbitrarily.
  • Page 30 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Figure 4-10 Temperature Parameters interface Step 2 Set the parameters according to Table 4-3. Table 4-3 Temperature parameters Parameter Description Setting Temperature Unit Celsius and Fahrenheit [Setting method] temperature units are available.
  • Page 31 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Parameter Description Setting Length Unit Meter and Inch units are [Setting method] available.. Select a value from the drop-down list box. [Default value] Meters Cavity The cavity temperature of Temperature camera. Correction...
  • Page 32 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Parameter Description Setting Measure Mode There are two types measure [Setting method] modes. Select a value from the drop-down list box. [Default value] General Display Alarm [Setting method] Area Enable or disable...
  • Page 33 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Figure 4-11 Advanced interface Table 4-4 Advance parameters Parameter Description Setting Dimming Mode There are auto and manual [Setting method] modes. It will show on Select a value from the temperature item.

  • Page 34: Ambient Temperature

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Parameter Description Setting Raw Data Upload Interval of Upload the raw data. [Setting method] Interval(F/S) Select a value from the drop-down list box. [Default value] Mix Stream Mode This function is used for...

  • Page 35: Temperature Area

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration ----End 4.6.3 Temperature Area Operation Procedure Step 1 Choose Configuration >Thermal >Temperature Area. The Temperature Area page is displayed, as shown in Figure 4-13 Figure 4-13 Temperature area and alarm configuration Step 2 Set the parameters according to Table 4-6 Issue V1.2 (01-03-2024)
  • Page 36 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Table 4-6 Temperature area and alarm configuration Parameter Description Setting Channel [Setting method] Select a value from the drop-down list box. [Default value] Measure Mode Set at temperature parameters interface. Name Area name of temperature area.
  • Page 37 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Parameter Description Setting Duration (1-10S) Choose temperature rise alarm, set the duration, the temperature rise the value and it is keep for duration setting, the alarm is triggered successfully. Emission Rate The emission rate is the...
  • Page 38 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Parameter Description Setting Group ID The ID can be chosen into one [Setting method] of six groups, or no group. The Select a value from the group will be alarm following drop-down list box.

  • Page 39: Shield Area

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Figure 4-14 Temperature Area Setting Interface 4. Click Apply, the message “Apply success” is displayed, the temperature area is set successfully. Delete a temperature area: 1. Select an area ID. 2. Click the temperature area and right-click.

  • Page 40: Schedule Linkage

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Figure 4-15 Shield Area Step 2 Enable the shield area. Step 3 Enable Show Shield Area, then the setting shield will show in live video. Step 4 Click left mouse button to set area, click right mouse button to end the setting.
  • Page 41 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Figure 4-16 Schedule Linkage Step 2 Tick the output channel. Enable “Alarm Record”, “SMTP”,”FTP” button. Step 3 Step 4 Set schedule linkage. Method 1：Click left mouse button to select any time point within 0:00-24:00 from Monday to Sunday as shown in Figure 4-16.

  • Page 42: Thermal Mapping

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration 4.6.6 Thermal Mapping Step 1 Choose Configuration >Thermal Mapping, as shown in Figure 4-17. Figure 4-17 Thermal mapping interface Step 2 Settings please refer to Table 4-7. Table 4-7 Parameter of thermal mapping...

  • Page 43: Bad Point Check

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Parameter Description Setting vertical shift(%) Input the value, the area of setting will be move vertical the correspond location. The result will be shown on visual channel. Fine turning Click the icon to move the area of setting.
  • Page 44 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Figure 4-18 Bad Point Check Bad Point 1 Bad Point 2 Figure 4-19 NOTE If the image is defected by detector’s fault, user can test the function to recover the bad point.

  • Page 45: Led Control Parameter

    IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Figure 4-20 Recover bad point Step 3 Click Reset to return the previous settings. Step 4 Click Apply. The message "Apply success" is displayed, the system saves the settings. ----End 4.6.8 LED Control Parameter...
  • Page 46 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Figure 4-21 LED Control Parameter Issue V1.2 (01-03-2024)
  • Page 47 IM200-B Bi-Spectrum Radiometric Detector User Manual Quick Configuration Table 4-8 Parameter of thermal mapping Parameter Description Setting Display mode There are four modes, [Setting method] Close/Open/Flicker/Timing. Select from drop list. Flicker Display mode is Flicker, and [Setting method] interval(100- user need to set an interval to...

  • Page 48: Thermal Parameter Configuration

    IM200-B Bi-Spectrum Radiometric Detector User Manual Thermal Parameter Configuration Thermal Parameter Configuration 5.1 Access the Sensor Setting Interface Operation procedure: Method 1: Step 1 On the web interface or client interface, move the cursor to the real-time video page and right-click on the page. A shortcut menu is displayed, as shown in Figure 5-1, and Table 5-1 describes the sensor setting interface.

  • Page 49: Sensor Setting Parameter Description

    IM200-B Bi-Spectrum Radiometric Detector User Manual Thermal Parameter Configuration Step 2 Choose Sensor Configure and the Sensor Setting dialog box appears. Method 2: Step 3 At “Configuration > Sensor Setting” interface, choose channel 2 to enter the setting interface, as shown in .

  • Page 50: Image Setting

    IM200-B Bi-Spectrum Radiometric Detector User Manual Thermal Parameter Configuration Figure 5-3 Time Segment page Step 2 Choose Debug Model in the lower left corner to activate the sensor setting page. Step 3 Set the switch mode parameters. Step 4 Click Save to save the setting.
  • Page 51 IM200-B Bi-Spectrum Radiometric Detector User Manual Thermal Parameter Configuration Figure 5-4 Image setting interface Table 5-2 describes the image setting parameters. Table 5-2 Image setting parameter description Parameter Description Setting Brightness It indicates the total brightness of an image. As [Setting the value increases, the image becomes brighter.

  • Page 52: Scene

    IM200-B Bi-Spectrum Radiometric Detector User Manual Thermal Parameter Configuration 5.2.3 Scene Figure 5-5 shows the scene interface. Figure 5-5 Scene interface Provide the selection of image pixel locations. Normal: the image is not flipped. Horizontal: the image is flipped left and right.

  • Page 53: Ffc Control

    IM200-B Bi-Spectrum Radiometric Detector User Manual Thermal Parameter Configuration Figure 5-6 set pseudocolor interface Polarity/LUT: the temperatures of the temperature fields detected by the thermal imaging camera are separately mapped to values ranging from 0 to 255 by the algorithm. In the black/white display mode, this range is converted to the grayscale tones.
  • Page 54 IM200-B Bi-Spectrum Radiometric Detector User Manual Thermal Parameter Configuration Figure 5-7 FFC mode interface Table 5-3 describes the FFC mode parameters. Table 5-3 FFC control parameter description Parameter Description Setting The internal of the thermal imaging camera may comprise the mechanical action correction mechanism that can periodically improve the image quality.

  • Page 55: Noise Reduction

    IM200-B Bi-Spectrum Radiometric Detector User Manual Thermal Parameter Configuration Parameter Description Setting mode is selected, the FFC interval (minutes) ranges from 10 to 255 minutes. The temperature change of the camera is based on the temperatures collected by the internal temperature probe. The temperature of the camera sharply changes when the camera is powered on.

  • Page 56: Enhance Image

    IM200-B Bi-Spectrum Radiometric Detector User Manual Thermal Parameter Configuration Figure 5-8 Noise reduction interface Table 5-4 describes noise reduction parameters. Table 5-4 Noise reduction parameter description Parameter Description Setting [How to set] Select from the drop-down list box. Drag the slider to adjust max...
  • Page 57 IM200-B Bi-Spectrum Radiometric Detector User Manual Thermal Parameter Configuration Figure 5-9 Enhance image interface Table 5-5 Enhance image parameter description Parameter Meaning Configuration Method [How to set] Drag the slider. Defog Decrease the image fog. [Default value] ----End Issue V1.2 (01-03-2024)

  • Page 58: Visible-Light Parameter Configuration

    IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration Visible-light Parameter Configuration 6.1 Access the Sensor Interface Operation procedure Step 1 On the web or NVMS interface, move the cursor to the real-time video page and right-click on the page. A shortcut menu is displayed, as shown in Figure 6-1.

  • Page 59: Sensor Setting Parameter Description

    IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration Figure 6-2 Sensor setting ----End 6.2 Sensor Setting Parameter description 6.2.1 Mode Operation procedure: Step 1 Click Mode tag on sensor setting interface, the time segment page is displayed, as shown in Figure 6-3.

  • Page 60: Image Adjust

    IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration Figure 6-3 Mode page Step 2 Choose Debug Model in the lower left corner to activate the sensor setting page. Step 3 Set the time segment parameters. Step 4 Click Save to save the setting.
  • Page 61 IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration Figure 6-4 Image Adjust tab page Table 6-1 describes the parameters on the Image Adjust tab page. Table 6-1 Parameters on the Image Adjust tab page Parameter Description Configuration Method Contrast...

  • Page 62: Scene Mode

    IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration 6.2.3 Scene Mode Figure 6-5 shows the scene mode interface. Figure 6-5 Scene mode interface Table 6-2 describes the scene mode parameters. Table 6-2 scene mode parameters description Parameter Description Configuration...

  • Page 63: Exposure

    IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration Parameter Description Configuration Method Mirror It is used to select the pixel location of [Setting method] an image. Select a value from the drop-down list. ⚫ Normal: The image does not flip.

  • Page 64: Wb Setting

    IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration Table 6-3 Exposure parameters description Parameter Meaning Configuration Method The exposure modes include: [Setting method] ⚫ Auto: The system performs auto exposure based Select a value on the monitoring environment. from the drop- ⚫...
  • Page 65 IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration Figure 6-7 WB Setting interface Table 6-4 describes WB Setting parameters. Table 6-4 WB Setting parameters description Parameter Meaning Configuration Method Mode It is adjusted based on application scenarios [Setting method] to improve the fidelity of the image color.

  • Page 66: Daynight

    IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration Parameter Meaning Configuration Method Red Gain It indicates the gain applied to red channels. [Setting method] As the value increases, the color temperature Drag the slider. becomes lower. [Default value] This parameter is valid when Manual Mode is set to Customized.
  • Page 67 IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration Table 6-5 DNR parameters description Parameter Meaning Configuration Method D/N Setting It can be set to Auto, Day, Night or [Setting method] Mode Timing. Select a value from the drop-down list.

  • Page 68: Noise Reduction

    IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration Parameter Meaning Configuration Method TRANSI.(N It determines the night-to-day switching [Setting method] ->D)(dB) in auto mode. When the system gain is Drag the slider. smaller than the value of this parameter, [Default value] the system enters the day mode.
  • Page 69 IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration Figure 6-9 Noise Reduction interface Table 6-6 describes Noise Reduction parameters. Table 6-6 Noise Reduction parameters description Parameter Meaning Configuration Method [Configuration method] Select from the drop- down list 2D NR Reduce noise of image.

  • Page 70: Enhance Image

    IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration Parameter Meaning Configuration Method It is valid in auto noise filter mode. [Setting method] When the parameter value is 0, the Drag the slider. noise filter is disabled. When the [Default value]...
  • Page 71 IM200-B Bi-Spectrum Radiometric Detector User Manual Visible-light Parameter Configuration Table 6-7 Enhance image parameters description Parameter Meaning Configuration Method [Setting method] It is used to display the foreground and Tick the WDR background at the same time in the mode and drag the environment with a large brightness slider.

  • Page 72: Camera Maintenance

    IM200-B Bi-Spectrum Radiometric Detector User Manual Camera Maintenance Camera Maintenance At “Configuration > Maintenance” interface, user can restart, auto reboot, update device, restore to factory default, save to local hard drive(the configuration will be saved), load from local hard drive, as shown in Figure 7-1.

  • Page 73: A Common Emission Rate

    Bi-Spectrum Radiometric Detector User Manual A Common Emission Rate Common Emission Rate Emission Rate The emission rate is the capability of an object to emit or absorb energy. An ideal transmitter provides an emission rate of emitting 100% of intake energy. An object with an emission rate of 0.8 can absorb 80% of intake energy, and reflect the remaining 20%.
  • Page 74 IM200-B Bi-Spectrum Radiometric Detector User Manual A Common Emission Rate Copper 199/390 0.18 Cobalt 599/1110 0.19 199/390 0.57 Steel 599/1110 0.57 Tinned iron sheet (Light) 28/82 0.23 Brass(High-polish) 247/476 0.03 Brass (Tough rolled, polished 21/70 0.04 metal wire) Tinned Iron (Light) 0.13...
  • Page 75 Bi-Spectrum Radiometric Detector User Manual A Common Emission Rate Carbon (T - carbon 0.9% ash) 127/260 0.81 Concrete 0.94 Glass (Glossy) 22/72 0.94 Granite (Surfaced) 21/70 0.85 0/32 0.97 Marble (I Polished, grey) 22/72 0.93 Asbestos board 23/74 0.96 38/100 0.93 Asbestos paper 371/700...
