HW65992WH Bluetooth Audio
1. Function description:
1) DC12V input.
2) Led light switch, with dimming dark function.
3) Connect your phone and USB to play Music via Bluetooth.

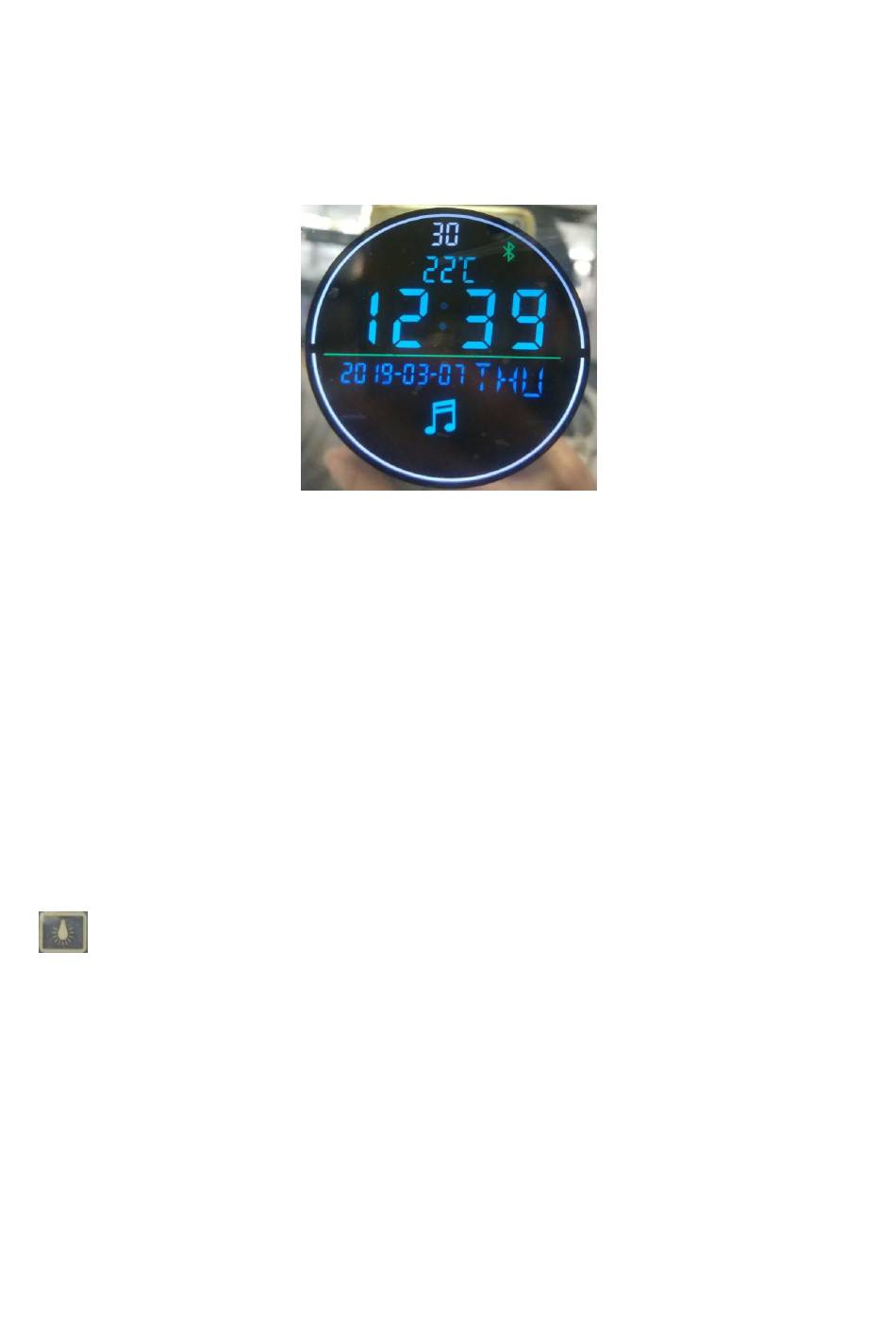

4) LCD working icon and note indication.
5) Calendar and temperature display.
2. Method of operation
1)
Click on the LED light button to turn off the white LED light and warm LED,
click on the third button to turn off the white LED light and warm LED, and then
click on the third button to turn on the neutral light (that is, the white LED light and
warm LED light together) . long-press on this button to adjust the light and dark.
When the LED is turned on, long-press on this button to adjust the light
continuously, led brightness from 100% to 5% , release and then long press, LED
brightness from 5% to 100% , in turn cycle
Instruction
Advertisement
Summary of Contents for FOSHAN HW65992WH
- Page 1 HW65992WH Bluetooth Audio Instruction 1. Function description: 1) DC12V input. 2) Led light switch, with dimming dark function. 3) Connect your phone and USB to play Music via Bluetooth. 4) LCD working icon and note indication. 5) Calendar and temperature display.
- Page 2 Bluetooth and adjust the time button, Single Press on Bluetooth, then Single Press Off Bluetooth to open USB; long press enter adjust the time state: Long Press 2 seconds digital flicker, Single Press Increase or decrease minutes; then press the confirmation minutes and enter the hour, Single Press Increase or decrease in hours;...
- Page 3 3. Installation Diagram 1) Lens laser marking icon (figure 1) figure 1 2) Fix The positioning frame with neutral glass glue (Fig. 2) ; figure 2 figure 3 ↑Position box front view figure 4↑The reverse side of the locator box 3) Location box installation method: Before installing the locator box, use the locator board to locate it.
- Page 4 Note: The position of the hole on the positioning plate must be consistent with the display of the mirror and the keys to mark the position. 4) The installation is complete (figure 5) figure 5 4. Wiring (figure 6) 1) 12V+, 12V- connect to the 12V dc power supply. The power must be more than 10W.
- Page 5 figure 6 5. Electrical parameters: Input Voltage Output voltage Rated load 12V DC 12V DC 2×60W...
- Page 6 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
