6238 Multi Sensor manual
Please read the operating instructions carefully to familiarize yourself with the features and
modes of operation before using the instrument.
Keep the manual for future reference and pass it on with the device, if you pass on the device
to other users.
Scope of delivery:
1 Multi-Purpose Detector
1 x Instruction manual
Technical Data
Operating voltage: 9 V
, max. 1 mW
Battery type: 6LR61 (9 V block)
Detector depths:
Beam (STUD): max. 19 mm ± 3 mm
Metal (METAL): max. 30 mm ± 13 mm
Voids (DEEP): max. 38 mm ± 5 mm
AC voltage (AC): max. 50 mm (only with lines which carry 230 V~ 50 Hz)

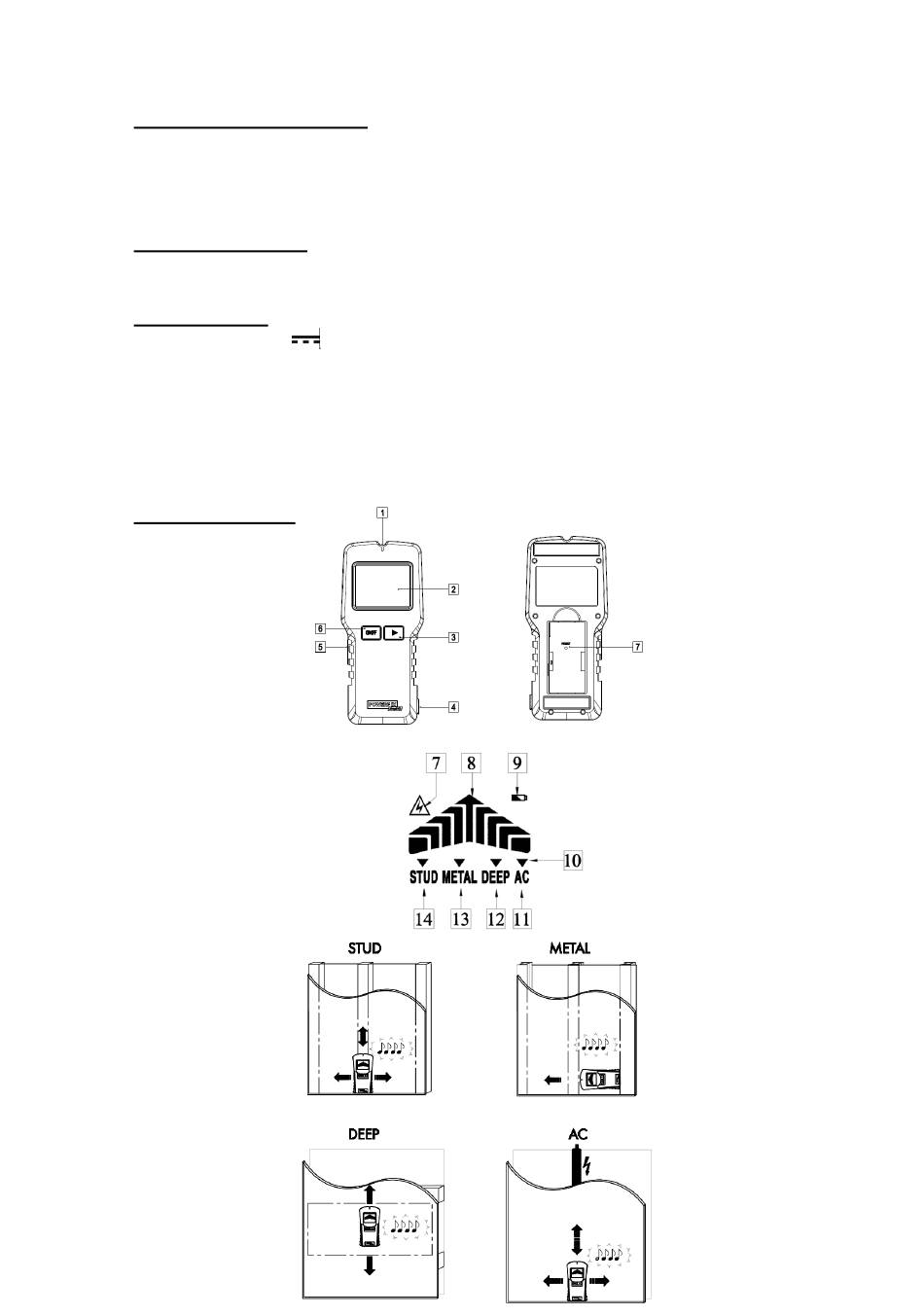

Prodcut Overview
Fig. A:
Fig. B:
Advertisement
Summary of Contents for Habotest 6238
- Page 1 6238 Multi Sensor manual Please read the operating instructions carefully to familiarize yourself with the features and modes of operation before using the instrument. Keep the manual for future reference and pass it on with the device, if you pass on the device to other users.
- Page 2 Fig. C: General safety This unit can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the device and understand the resulting risks. Do not let children play with the device.
- Page 3 The selection arrow (▼) is over the menu point for Beam search (STUD) , when the ● device is switched on. Bring the selection arrow over the desired menu point by repeatedly pressing the selection button (► ) .The meaning of the individual menu points are: : Wooden beam search ;...
- Page 4 Depending on the wall thickness and material, it is possible that the detector may signal a ● finding, before it is over the material. In this case mark the start and end of the signalled area at the indentation of the measuring head. The middle of the sought object lies in the middle between the two markings.
