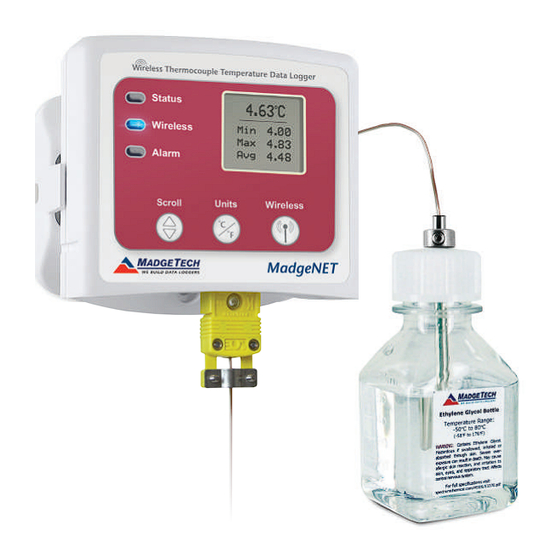

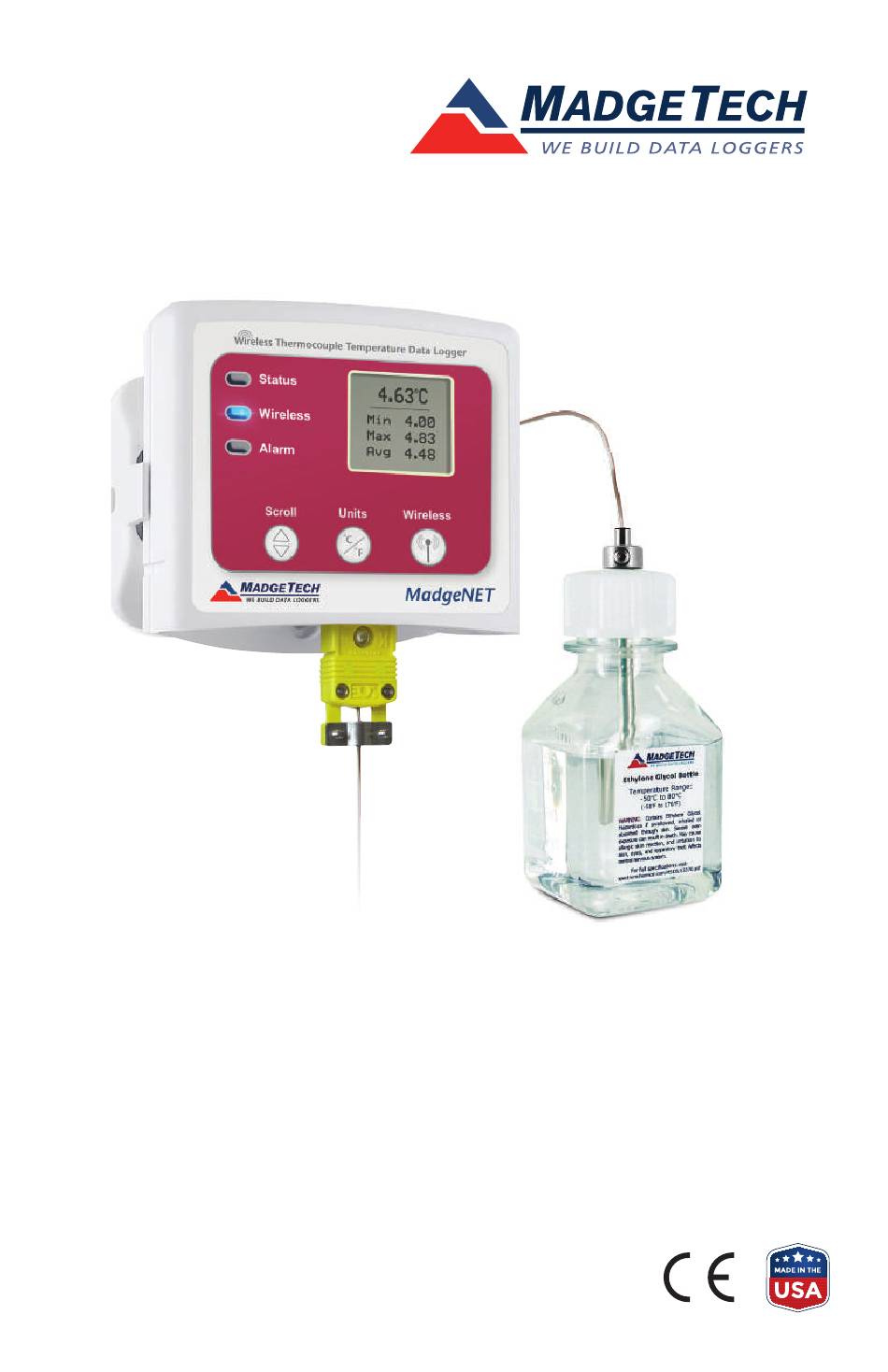

- Page 1 VTMS Vaccine Temperature Monitoring System Product User Guide GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
-
Page 2: Table Of Contents
Product User Guide Table of Contents ............. 3 Product Overview ............ 4 Software Installation Guide ........5 Activating & Deploying the Data Logger....6 Channel Programming ..........6 Product Maintenance ..........7 RMA Instructions ............7 Troubleshooting ............8 Compliance Information .......... 9 General Specifications ........ - Page 3 Connect the RFC1000 wireless transceiver (sold separately) to the Windows PC with the provided USB cable. Push and hold the wireless button on the VTMS for 5 seconds to activate wireless communication. The display will confirm “Wireless: ON” and the blue LED will blink every 15 seconds.
-
Page 4: Product Overview
Users have the ability to manually reset the statistics within the device to zero without needing to use the MadgeTech 4 Software. Any data recorded up to that point is recorded and saved. To apply the manual reset, press and hold the scroll key down for three seconds. -
Page 5: Software Installation Guide
MadgeTech 4 Software The MadgeTech 4 Software makes the process of downloading and reviewing data quick and easy, and is free to download from the MadgeTech website. Installing the MadgeTech 4 Software Locate and unzip the downloaded file (typically you can do this by right clicking on the file and selecting Extract). -
Page 6: Activating & Deploying The Data Logger
To claim a data logger, select the desired data logger in the list and click the Claim icon. Once the data logger has been claimed, select a start method in the Device tab. For steps to claim the data logger and view data using MadgeTech Cloud Services, refer to the MadgeTech Cloud Services Software Manual at: www.madgetech.com/mt-cloud-manual.pdf Different wireless channels may be used to create multiple networks in one area, or to avoid wireless interference from other devices. -
Page 7: Product Maintenance
RMA Instructions To send a device back in to MadgeTech for calibration, service or repair, follow the instructions below to create an RMA (Return Merchandise Authorization) on the MadgeTech website: Go to www.madgetech.com/rma. -
Page 8: Troubleshooting
Product User Guide Troubleshooting Why is the wireless data logger not appearing in the software? If the VTMS doesn’t appear in the Connected Devices panel, or an error message is received while using the VTMS, try the following: » Check that the RFC1000 is properly connected. For more information, see Troubleshooting wireless transceiver problems (below). -
Page 9: Compliance Information
VTMS Compliance Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 10: General Specifications
Product User Guide Temperature Internal Temperature Range -20 °C to +60 °C (-4 °F to +140 °F) Internal Temperature Resolution 0.1 °C (0.18 °F) Wireless 2.45 GHz IEEE 802.15.4 ultra-low power wireless transceiver RF Frequency with fully bi-directional communication ISM band 2.405-2.475 GHz Band Operation (channels 11 through 25) @ 250 kbps Maximum Output Power... - Page 11 Stand-alone Operation: USB to mini USB Computer Interface Wireless Operation: RFC1000 wireless transceiver PC Compatibility MadgeTech 4: Windows 10, 8, 7, Vista, Window XP with SP3 MadgeTech Cloud Services Compatible Operating Environment -20 °C to +60 °C (-4 °F to +140 °F); 0 %RH to 95 %RH non-condensing Dimensions 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only...
- Page 12 Product Support & Troubleshooting: » Refer to the Troubleshooting section of this document. » Refer to the built-in help section of the MadgeTech 4 Software. DOC-1285036-00 REV 7 2016.04.26 GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
