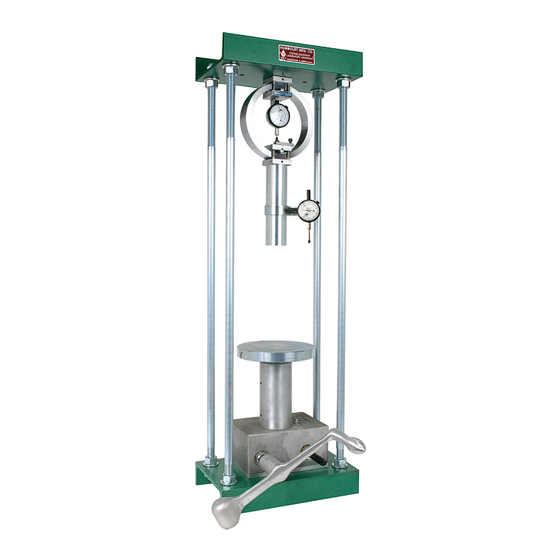

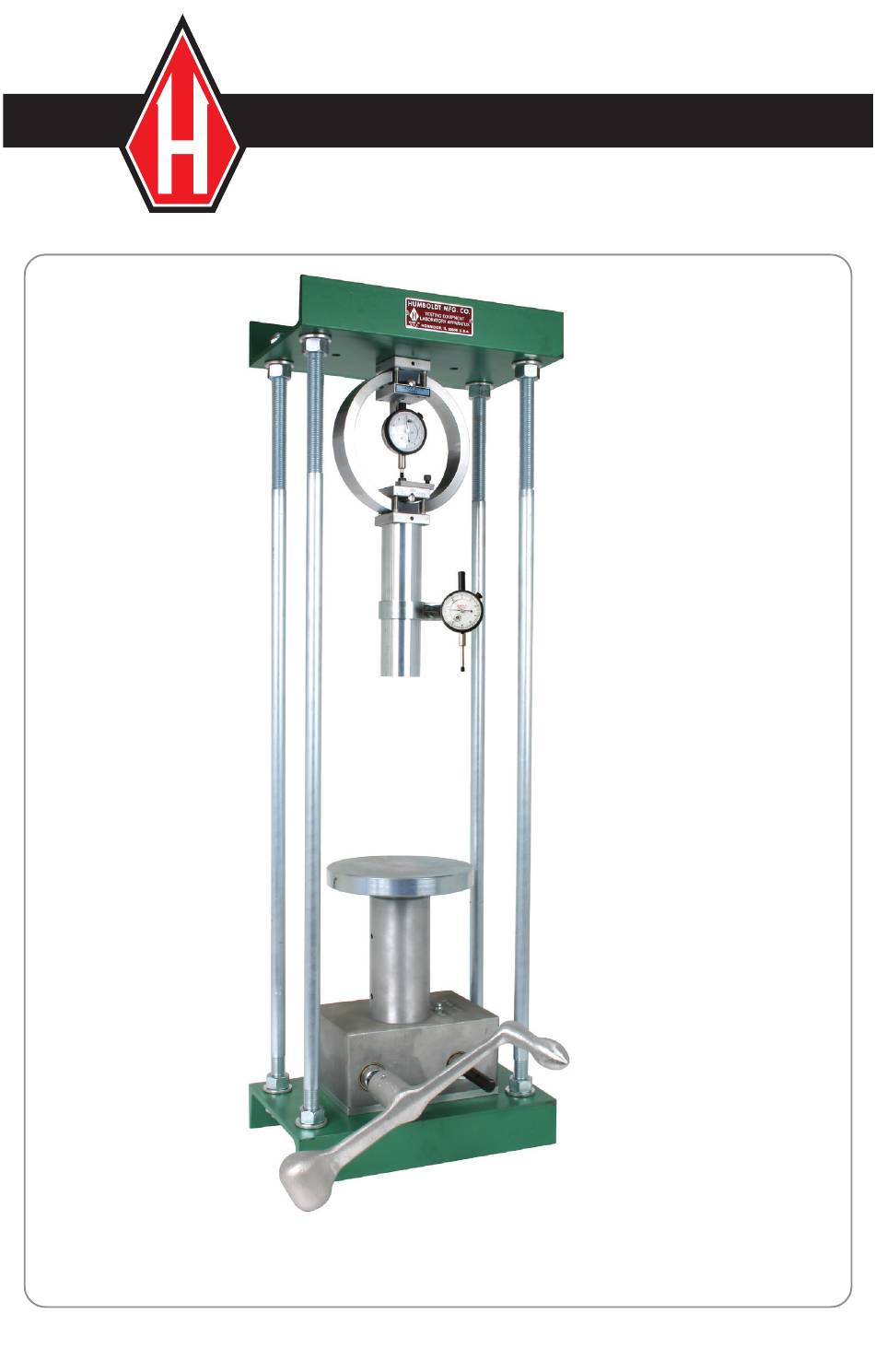

- Page 1 0724 H-4156 Mechanical Loading Press for CBR...
-
Page 3: General Information
General Information Inspection: Your Mechanical Loading Press compression machine was thoroughly inspected before it was shipped and should be ready to operate as soon as you have completed the set-up procedure. Notify Humboldt Mfg. Co. or your local agent and file a claim with any carriers involved if you find any damage to the machine. Physical Specification: Shipping weight: 120 Ibs. (54.4 kg) Overall height: 41 inches (1042mm) Base dimension: 13-1/4" x 8" x 2-1/4" (337 x 203 x 57mm) - Page 4 Take readings of time versus travel at frequent enough intervals to control the rate of penetration or flow within the required test limits. Speed Selection: Test Type Speed in/min (mm/ min) California Bearing Ratio/Lime Bearing Ratio (CBRlLBR) 0.050 (1.27) Unconfined Compression and UU Triaxial or plastic material on 1.4" (38mm) diameter sample 0.028 (0 .71) Unconfined Compression and UU Tri-axial for plastic nnmm material on 2.8" (70mm) diameter sample 0.056 (1.42) Soil - Cement 0.050 (1.27) UU (Quick) Tri-axial for brittle material on 1.4" (38mm) diameter sample...
- Page 5 H-4156 Parts...
- Page 8 Warranty Humboldt Mfg. Co. warrants its products to be free from defects in material or workmanship. The exclusive remedy for this warranty is Humboldt Mfg. Co., factory replacement of any part or parts of such product, for the warranty of this product please refer to Humboldt Mfg. Co. catalog on Terms and Conditions of Sale.
