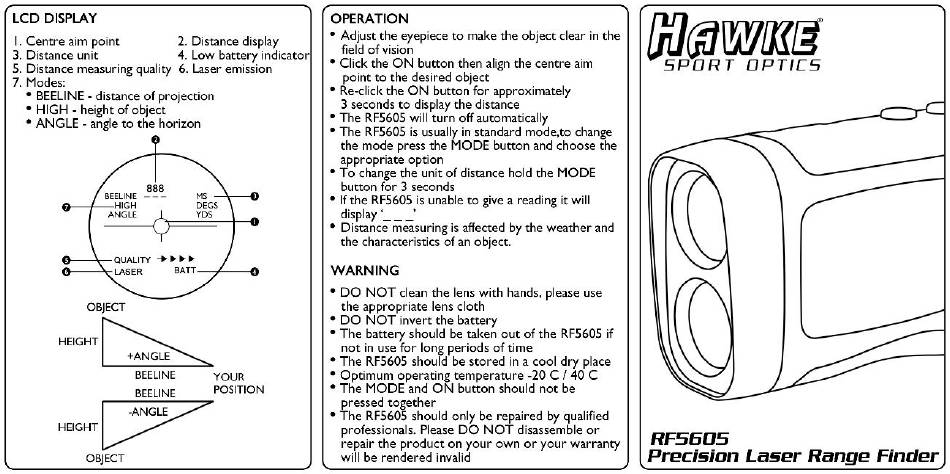

Hawke RF5605 Quick Start Manual

LCD DISPLAY
I . Centre aim point 2. Distance display
3. Distance unit 4. Low battery indicator
5. Distance measuring quality 6. Laser emission
7. Modes:
• BEELINE - distance of projection
• HIGH - height of object
• ANGLE - angle to the horizon
D---\--
QUALITY ...
~ ~ ~
A----'"
LASER - - / - - -
OBJECT
HElGHT~
~
BEELINE YOUR
BEELINE POSITION
~
HEIGHT~
OBJECT
OPERATION
• Adjust the eyepiece to make the object clear in the
field of vision
• Click the ON button then align the centre aim
point to the desired object
• Re-click the ON button for approximately
3 seconds to display the distance
• The RF5605 will turn off automatically
• The RF5605 is usually in standard mode,to change
the mode press the MODE button and choose the
appropriate option
• To change the unit of distance hold the MODE
button for 3 seconds
• If the RF5605 is unable to give a reading it will
display ' ___ '
• Distance measuring is affected by the weather and
the characteristics of an object.
WARNING
• DO NOT clean the lens with hands, please use
the appropriate lens cloth
• DO NOT invert the battery
• The battery should be taken out of the RF5605 if
not in use for long periods of time
• The RF5605 should be stored in a cool dry place
• Optimum operating temperature -20 C / 40 C
• The MODE and ON button should not be
pressed together
• The RF5605 should only be repaired by qualified
professionals. Please DO NOT disassemble or
repair the product on your own or your warranty
will be rendered invalid
RF56D5
Precision Laser Range Finder
