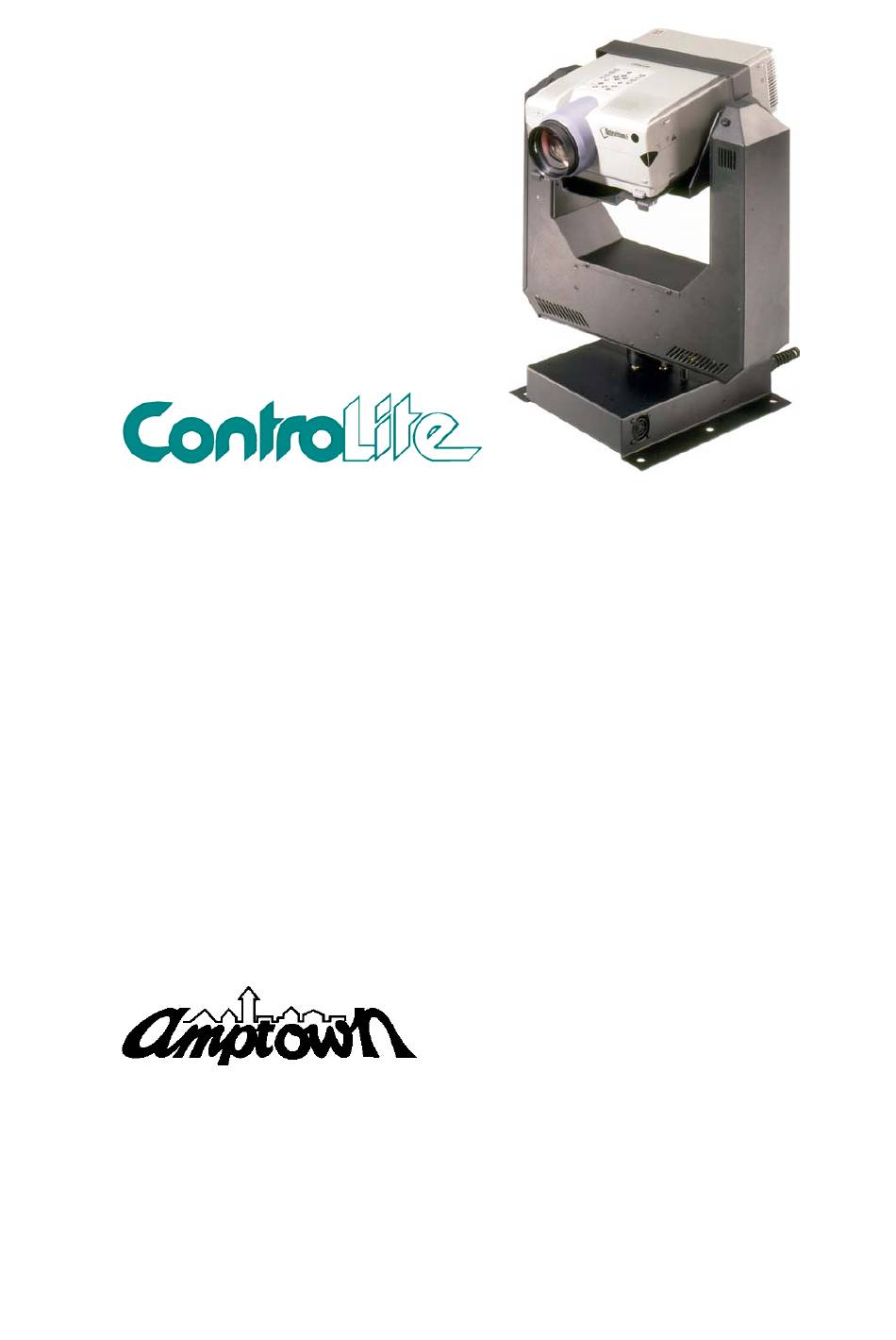

- Page 1 Moving Yoke Operating Instructions project 2 As of 05/2002 amptown lichttechnik gmbh wandsbeker straße 26 22179 hamburg, germany +49 (0) 40 - 64 60 04 - 42 +49 (0) 40 - 64 60 04 - 47 technik@amptown-lichttechnik.de www.amptown-lichttechnik.de...
- Page 2 Moving Yoke Moving Yoke with with Sharp Beamer XG-NV6/XG-P10 Sharp Beamer XG-NV6/XG-P10 16-bit Servo card 16-bit Servo card DMX control DMX control Signal source switching Signal source switching Lamp on/off Lamp on/off Focus Focus Zoom Zoom Reset Reset...
-
Page 3: Table Of Contents
4.2 LED Function ....................14 4.3 Block Diagram ..................15 4.4 Declaration of Conformity .................16 4.5 DMX Channels..................17 4.6 DMX Channel Settings ................18 _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42 fax ...-47... -
Page 4: General Information
/ objects. For this reason, all safety and technical requirements must be followed without exception. Failure to do so exempts Amptown Lichttechnik GmbH from any and all liability for both the unit's guarantee / warranty and any resulting injuries and / or damages. - Page 5 These qualified personnel must either have well- founded technical knowledge or have received instructions from the manufacturer. _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42 fax ...-47...
-
Page 6: Technical Data
= 40°C Weight: Yoke 16 kg + Beamer 7.3 Kg = 23.5 Kg Design and technical detail subject to be changed. _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42 fax ...-47... -
Page 7: Preparing To Operate The Moving Yoke
Should you need to run more than two units parallelly, an active splitbox is required. The DMX input within the unit has an impedance of 800 Ohm. _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42... - Page 8 The Moving Yoke does not have to be connected to the power supply in order to enter the unit's start address! _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42...
-
Page 9: Dip Switch Settings Dmx Card
Jumper in back on the DMX card (the card must be pulled out): Function open 1 2 3 4 DIP 1 DIP 2 DIP 3 DIP 4 DMX-2 V4.x _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42 fax ...-47... - Page 10 J4 - Analog channels This jumper is of no interest to the user. It is used to test the DMX card only. _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42...
-
Page 11: Functions
(focus reset). During this, the focus motor drive to bounds and then to the DMX position that has been set. _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42... -
Page 12: Zoom
It must cool down for approx. 5 minutes. Values 202, 203, 204 carry out servo-card- and/or zoom-/focus-resets (see section 4.6 DMX Channel Settings). _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42... -
Page 13: Test Mode
With all other invalid DMX start addresses, the Moving Yoke will go to its default position: head horizontal, yoke 50%, focus 0%, zoom 0%, signal input 1. _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42... -
Page 14: Appendix
222, 3 m m 135, 0° 306, 0 m m 40, 5 m m 30, 5 m m 474, 0 m m _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42 fax ...-47... - Page 15 Front View 340, 0 m m 85, 0 m m 128, 0 m m 135, 0° 47, 0 m m _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42 fax ...-47...
-
Page 16: Led Function
Moving Yoke As of 05/02 4.2 LED Function _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42 fax ...-47... -
Page 17: Block Diagram
Moving Yoke As of 05/02 4.3 Block Diagram Y-axis X-axis Control Port: Mini-Din 9 male RS232 signal yoke base head (Beamer) _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42 fax ...-47... -
Page 18: Declaration Of Conformity
EN 60598-2-17 VGB 70 EMC: EN 55103-1 EN 55103-2 EN 50081-1 EN 50082-1 Hamburg, July 10 1997 _____________________ Dipl.-Ing. Michael Knappe _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42 fax ...-47... -
Page 19: Dmx Channels
43 steps Zoom 27 steps Signal Input 2 channels Auxiliary Channel: Power ON Auxiliary Channel: Power OFF Auxiliary Channel: RESET _________________________________________________________________________ amptown lichttechnik gmbh d-22179 hamburg wandsbeker str. 26 fon +49 / (0)40 / 64 60 04-42 fax ...-47... -
Page 20: Dmx Channel Settings
Moving Yoke As of 05/02 4.6 DMX Channel Settings Amptown ControLite Yoke for Sharp XG-P10 Beamer (DP_ALT01) Project 2 04/02 Channel Name Function Movement 00 h Horizontal -170° horizontal (coarse) 7F h Horizontal 0° pan ( X ) 100% FF h Horizontal +170°... - Page 21 Moving Yoke As of 05/02 Amptown ControLite Yoke for Sharp XG-P10 Beamer (DP_ALT01) Project 2 04/02 Channel Name Function no function no function no function no function Auxiliary Channel: 0...39 0...15.3% 00...27 h no change 15.7% 28 h Display Beamer ON 41...49...
