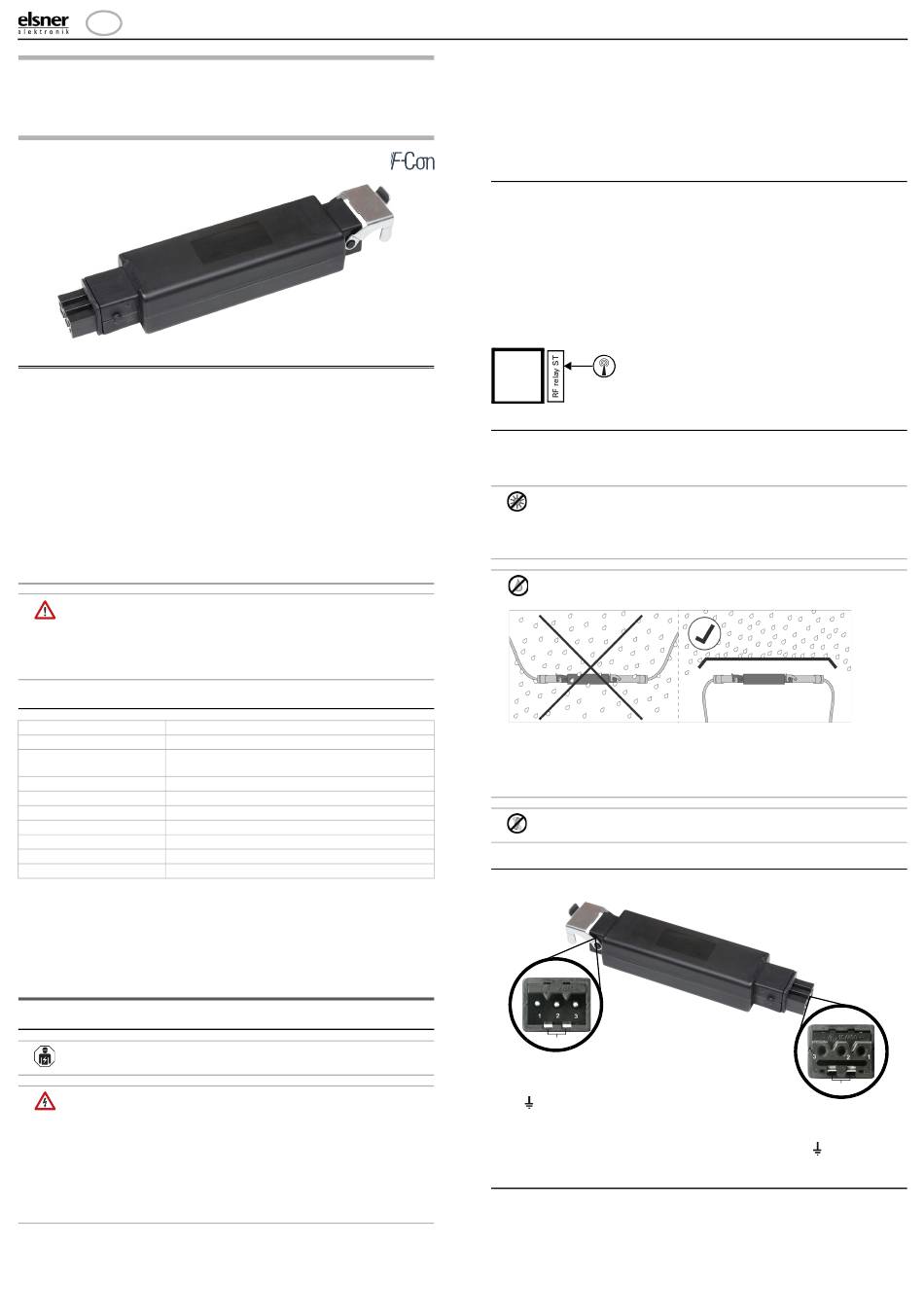

elsner elektronik RF-Relais-ST IP53 Installation Instructions

EN
RF-Relais-ST IP53
Radio Relay
Technical specifications and installation instructions
Item number 60536
1. Description
The RF-Relais-ST IP53 is a radio actuator with a closing contact for the WS1 and
WS1000 Color and Style, WS1000 Connect controllers for the radio system Solexa
II. A light, a pond pump or similar can, for example be connected to the relay.
A consumer connected to the radio relay can also be operated directly using the re-
mote control Remo 8/pro via the button interface RF-B2-UP or the solar radio button
Corlo P RF (without an additional control unit).
Functions:
• 1 Contact 230 V
• Reception of the radio control signal
• Suitable for: WS1 Color, WS1 Style, WS1000 Color, WS1000 Style, KNX
WS1000 Style (from software version 1.20).
WS1000 Connect. Solexa II.
Remo 8 (from version 0.1), Remo pro, RF-B2-UP, Corlo P1 RF, Corlo P2 RF.
1.0.1. Safety advice
WARNING!
Risk of injury caused by components moved automatically!
If the wireless connection between the control unit and the wireless
actuator is interrupted, connected devices can no longer be operated.
• For that reason do not connect drives to the wireless actuator which
could be hazardous to human life!
1.1. Technical specifications
Housing Plastic
Protection category IP 53*
Dimensions (without approx. 147 x 36 x 29 (W x H x D, mm)
locking bow)
Weight approx. 140 g
Ambient temperature Operation -20...+70 °C, storage -55...+90°C
Ambient humidity max. 95% RH, avoid condensation
Operating voltage 230 V AC
Input STAS3-plug (230 V)
Output STAK3 coupling, loadable to max. 16 A / 230 V AC
Wireless frequency 868.2 MHz
The product conforms with the provisions of EU guidelines
.
*The Radio relay RF-Relais-ST IP53 should be installed in a protected area despi-
te a high protection category because water may enter through the connectors.
Please observe the instructions in chapter Connection.
The product is compliant with the provisions of EC guidelines.
2. Installation and commissioning
2.1. Installation notes
Installation, testing, operational start-up and troubleshooting should
only be performed by an electrician.
DANGER!
Risk to life from live voltage (mains voltage)!
There are unprotected live components within the device.
• VDE regulations and national regulations are to be followed.
• Ensure that all lines to be assembled are free of voltage and take
precautions against accidental switching on.
• Do not use the device if it is damaged.
• Take the device or system out of service and secure it against
unintentional use, if it can be assumed, that risk-free operation is no
longer guaranteed.
The device is only to be used for the intended purpose described in this manual. Any
improper modification or failure to follow the operating instructions voids any and
all warranty and guarantee claims.
Radio relay RF-Relais-ST IP53 from software version 5.7 • Version: 08.06.2020 • Technical changes and errors excepted. • Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany • www.elsner-elektronik.de • Technical Service: +49 (0) 7033 / 30945-250
Radio relay RF-Relais-ST IP53
After unpacking the device, check it immediately for possible mechanical damage.
If it has been damaged in transport, inform the supplier immediately.
The device may only be used as a fixed-site installation; that means only when as-
sembled and after conclusion of all installation and operational start-up tasks and
only in the surroundings designated for it.
Elsner Elektronik is not liable for any changes in norms and standards which may
occur after publication of these operating instructions.
2.2. Notes on wireless equipment
When planning facilities with devices that communicate via radio, adequate radio
reception must be guaranteed. The range of wireless control will be limited by legal
regulation and structural circumstances. Avoid sources of interference and obstac-
les between receiver and transmitter, that could disturb the wireless communicati-
on. Those would be for example:
• Walls and ceilings (especially concrete and solar protection glazing).
• Metal surfaces next to the wireless participants (e. g. aluminium construction
of a conservatory).
• Other wireless devices and powerful local transmitters (e.g. wireless
headphones), which transmit on the same frequency. Please maintain a
minimum distance of 30 cm between wireless transmitters for that reason.
Metal
profile
2.3. Connection
The radio module is connected between the appliance and the power supply. It may
only be connected to flexible lines using STAK/STAS connectors. The connectors
must be locked using the locking bow.
2.3.1. Connection
Input mains voltage
Slot for the STAK3 coupling
1 Neutral conductor
2 L
3 nc*
PE
* Contact not used
2.4. Establish wireless connection
1. Set the control unit and/or remote control or the button to teaching mode (obser-
ve the corresponding manual/data sheet)
2. Switch on the RF-Relais-ST IP53 voltage supply or shut it off for at least 3 se-
conds if the unit is already supplied with power.
The antenna symbol on the housing shows the position
of the antenna in the RF-Relais-ST IP53. This side
must not be positioned directly on metal surfaces or ob-
jects. Otherwise, the radio signal might be disturbed.
Do not expose to continuous sun radiation to avoid overheating.
The housing is not UV-resistant.
• Assembly the device in a protected area (e. g. in
the box for the blinds/marquee/shutters in a construction
profile beneath the roof tiles or in a housing).
No water may run along the supply line and device because water
can enter in via the connectors.
• Assembly the device in a protected area (e. g. in
the box for the blinds/marquee/shutters in a construction
profile beneath the roof tiles or in a housing).
• Lay the supply lines out and down from the device.
No vibrations!
• Assemble the device in a place that is free of vibrations.
PE
1
Output consumer
Slot for the STAS3
coupling
PE
1 Neutral conductor
2 L
3 nc*
PE
