Sealey VS150 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
WARNING! Wear eye protection and take care when compressing/decompressing springs as they can become dislodged and fly off.
‰
DO NOT allow dirt or foreign matter to enter the engine parts.
8
Ensure any oil return holes in the cylinder head and spark plug holes are covered to prevent collets or seals entering the engine.
9
DO NOT use air or electric tools with this tool.
8
2. INTRODUCTION
This tool provides a simple means for replacement of valve stem oil seals, damaged or broken valve springs without having to remove the
cylinder head.
3. CONTENTS
4. APPLICATIONS
Ford CVH engines. Fiesta, Orion 1.4 and 1.6 models including XR3 and RS Turbo models
5. OPERATION
5.1. Disconnect the battery earth lead.
5.2. Remove the air cleaner unit, cam belt cover, rocker box cover and spark plugs in accordance with the manufacturers instructions.
5.3. Rotate the engine in the normal direction of rotation until the relevant piston is at top dead centre.
5.4. Remove the relevant rocker arm and hydraulic tappet.
5.5. Fit the valve spring compressor claw over the valve spring cap and screw the seating nut onto the M8 rocker nut until the heel of the
compressor sits on the empty tappet hole. Fig.1
5.6. Tighten the 22mm nut to compress the valve spring and retaining cap just enough to allow the split collet to be released from the
groove in the valve stem.
5.7. With the collets removed, slowly undo the 22mm nut and remove the compressor tool, valve spring and cap.
5.8. Prise the valve stem oil seal from the valve guide, fit new seal and reassemble in the reverse order of dismantling.
© Jack Sealey Limited

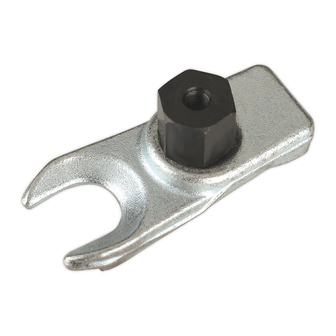

CVH VALVE SPRING COMPRESSOR - FORD
VS150
MODEL NO:
Item no.
1
2
3
Original Language Version
Part no. Description
VS150/1 Compressor claw
VS150/2 Retained nut
VS150/3 Circlip
fig.1
VS150 | Issue:1 02/01/20
