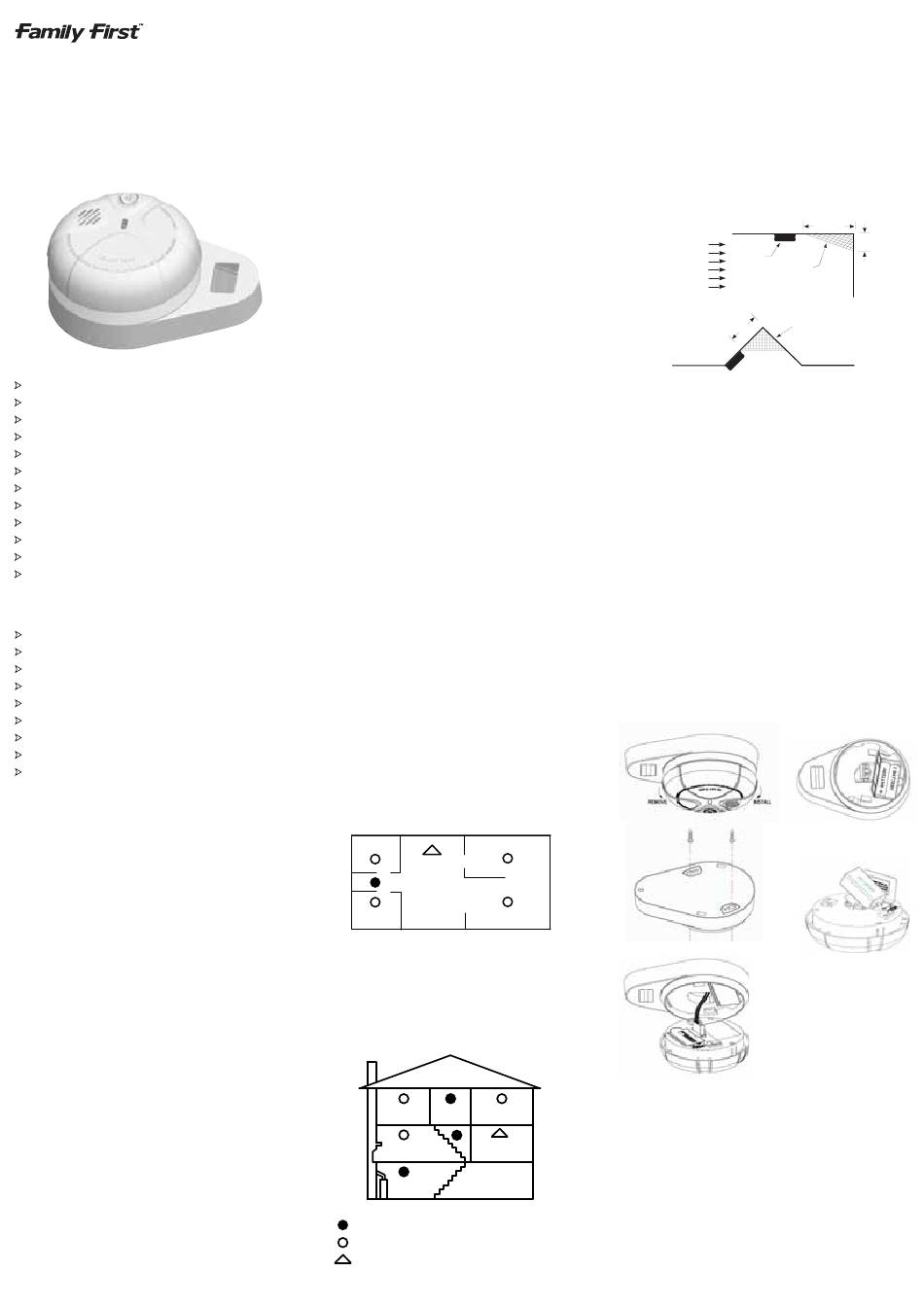

PHOTOELECTRIC SMOKE ALARM MODEL: FFP 9 VHEL
Smoke Alarm User's Manual
Please read and save this manual
Photoelectric smoke alarms are generally more effective
at detecting smoldering fires which can smolder for hours
before bursting into flame. Sources of these fires may include
cigarettes burning in couches or bedding.
MAIN FEATURES
DC operated photoelectric type smoke alarm
Photoelectric sensor for slow smoldering fires
Insect proof
Self-Test button
Environmentally friendly non-radioactive technology
High and stable sensitivity
With quick fix mounting bracket for easy installation
Fitting and battery tamper-resist feature
LED operation indicator
Extra loud alarm sound over 8 5 dB
Low-battery and battery missing warning indicator
Auto-reset when smoke clears
SPECIFICATION
FFP 9 VHEL
Model Number:
Detection Type:
Photoelectric Chamber
9 V DC Battery
Power Source:
1 5 uA max
Standby Current:
7 00mA max
Alarm Current:
8 5 Decibels at 3 meters
Alarm Sound Level
5 º C to 45 º C
Operation Temperature:
10%- 9 0%
Ambient Humidity:
3 .0-6.0 %Obs /m
Sensitivity to Smoke:
IMPORTANT SAFETY INFORMATION
.This smoke alarm requires constant working 9 -volt
1
battery to operate properly. This smoke alarm WILL
NOT work if DC power is not connected or has failed
or been interrupted for any reason AND the battery
is removed, drained or improperly connected. DO NOT
use any other kind of battery except as specified.
DO NOT connect this smoke alarm to any other type
of smoke alarm or auxiliary device, except those
listed in this manual.
2 . The Test button accurately tests all smoke alarm
functions. Do not use any other test method.
Test smoke alarm weekly to ensure proper operation.
3
.DO NOT remove or disconnect battery to quiet
unwanted alarms. This will remove your protection.
Open windows or fan the air around smoke alarm to
silence it.
4 . This smoke alarm may be installed by a licensed,
qualified electrician. Observe and follow all
local and national electrical and building codes
for installation.
5 . This smoke alarm is designed to be used inside a
single unit only. In buildings with several units, each
individual living unit should have its own smoke alarms.
Do not install in non-residential buildings.
This smoke alarm is not a substitute for a complete
alarm system.
6 . Install a smoke alarm in every room and on every
level of the home. Smoke may not reach the smoke
alarm for many reasons. For example, if a fire starts
in a remote part of the home, on another level, in a
chimney, wall, roof, or on the other side of a closed
door, smoke may not reach the smoke alarm in time
to alert household members. A smoke alarm will not
promptly detect a fire except in the area or room in
which it is installed.
7 . Smoke alarms may not alert every household
member every time. The alarm sound is loud in
order to alert individuals to a potential danger.
However, there may be limiting circumstances
member may not hear the alarm
where a household
(i.e. outdoor or indoor noise, sound sleepers, drug
or alcohol usage, the
hard of hearing, etc.). If you
suspect that this smoke alarm may not alert a
household member, install and
maintain specialty
smoke alarms. Household member must hear the
alarm's warning sound and quickly
reduce the risk of damage, injury, or death that
may result from fire. If a household
hearing impaired, install special smoke alarms
with lights or vibrating devices to alert occupants.
8. Smoke alarms can only sound their alarms when
they detect smoke. Smoke alarms detect combustion
particles in the air. They do not sense heat, flame,
or gas. This smoke alarm is designed to give audible
warning of a developing fire. However, many fires
are fast-burning, explosive, or intentional. Others are
caused by carelessness or safety hazards.
Smoke may not reach the smoke alarm QUICKLY
ENOUGH to ensure safe escape.
9 . Smoke alarms have limitations. This smoke alarm
is not foolproof and is not warranted to protect lives
or property from fire. Smoke alarms are not a
substitute for insurance. Homeowners and renters
should insure their lives and property. In addition,
it is possible for the smoke alarm to fail at any time.
For this
reason, you must test the smoke alarm
weekly and replace every 10 years.
Note: For best protection, we recommend that you
install
a smoke alarm in every room.
SMOKE ALARM PLACEMENT
Typical single-story home
Install a smoke alarm on the ceiling or wall inside each
bedroom and in the hallway outside each separate
sleeping area. If a
bedroom area hallway is more than
3 0 feet long, install a smoke
alarm at each end.
If there is a basement: Install a smoke alarm on the
basement ceiling at the bottom of the stairwell.
BEDROOM
KITCHEN
DINING ROOM
BEDROOM
LIVING ROOM
SINGLE-STORY RESIDENCE, APARTMENT, MOBILE HOME
Typical Multi-story or split level home
Install a smoke alarm on the ceiling or wall inside each
bedroom and in the hallway outside each separate
sleeping area. If a bedroom area
than 3 0 feet long, install a smoke alarm at each end.
Please install a smoke alarm on the top of a first-to-
second floor stairwell.
BEDROOM
HALL
BEDROOM
LIVING ROOM
KITCHEN
BASEMENT
KEY:
MULTI-STORY RESIDENCE
Minimum required smoke alarm locations
Recommended additional smoke alarm locations
Smoke alarms with hush features recommended
for additional protection
IMPORTANT SMOKE ALARM PLACEMENT
AND EXCEPTION INFORMATION
1. As close to the centre of the ceiling as possible or at
least no closer than 3 00mm to any wall or corner.
2. Install a minimum of two smoke alarms in every
home, no matter how small the home.
3. Install a smoke alarm in each room that is divided
by a partial wall (either coming down from the ceiling
at least 200mm (8 Inches), or coming up from the floor).
4. Install a smoke alarm in lived-in attics or attics
which house electrical equipment like furnaces, air
conditioners, or heaters.
Heat and
smoke
from fire
respond to it to
member is
DO NOT INSTALL SMOKE ALARMS
1. Use a specialised smoke alarm with unwanted alarm
control near appliances or areas where normal
combustion regularly occurs (near furnaces, hot water
heaters etc).
2. In areas with high humidity, like bathrooms or areas
near dishwashers or washing machines. Install at
least 3 Metres (10 Feet) away from these areas.
3 . Near air returns or heating and cooling supply vents.
Install at least 9 00mm ( 3 Feet) away from these areas.
The air could blow smoke away from the detector,
interrupting its alarm.
4 . In rooms where temperatures may fall below 5 º C
or rise above 45 º C
5 . In extremely dusty, dirty, or insect-infested areas
where loose particles interfere with smoke alarm
operation.
WARNING:
HOW TO INSTALL THIS SMOKE ALARM
hallway is more
WARNING:
1. Remove the mounting plate by turning anti-clockwise
at the back of the smoke alarm. (See figure 1.)
2. Insert AA batteries into the battery compartment of the
mounting plate. (See figure 2.) Ensure correct battery
polarity is observed. Ensure the compartment cover is
properly closed
3 . Secure the mounting plate to the ceiling, with mounting
screws. (See figure 3 .)
4. Connect a new 9 -volt battery to battery connector
inside battery pocket of the detector.
300mm min
300mm
Best here
Dead air space, Do Not install here
Dead air space,
Do Not install here
900mm min
Incorrect orientation will result in a
decrease in operational effectiveness.
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Smoke alarm installation must be in
accordance with the requirements of the
national electrical code and any local
codes that may apply.
